How many IPsec tunnels and what throughput does C9300X-48HX-A support?

C9300X-48HX-A supports 128 IPsec tunnels at first release, with 25 new tunnels per second, per the Catalyst 9300 data sheet. Throughput is up to 100 Gbps with esp-gcm-128 or esp-gcm-256, and up to 15G with esp-aes plus esp-sha-hmac. The tunnels also need the HSECK9 authorization code and the Advantage subscription tier.

Does the HSECK9 code on C9300X-48HX-A stay after a config erase?

Yes. HSECK9 is a one-time install that persists across reloads and config erase. It is a Smart Licensing authorization code (SLAC) obtained in CSSM, and it is available for the Catalyst 9300X, 9500X and 9600X. Without it IPsec cannot be turned on, even though C9300X-48HX-A already runs Network Advantage.

Can C9300X-48HX-A run 256-bit MACsec?

Yes. 256-bit MACsec requires Network Advantage, which C9300X-48HX-A carries. The 128-bit mode needs only Network Essentials, so on this model the license tier decides the key length. App hosting and SD-Access belong to the Advantage subscription tier and are separate from the MACsec setting.

How many watts does C9300X-48HX-A draw with the PoE test at 100 percent?

At 115 VAC with the PoE test at 100 percent, C9300X-48HX-A draws 694.4W with no module fitted. A C9300X-NM-2C raises the draw to 914.2W, C9300X-NM-8Y to 918.8W and C9300X-NM-4C to 939.8W, per the Catalyst 9300 data sheet power table. Size circuits and UPS capacity against the module that is fitted.

How much packet buffer and how many NetFlow flows does C9300X-48HX-A have?

C9300X-48HX-A is a dual-ASIC switch with two 16MB buffers, which makes 32 MB of packet buffer in total. It supports 128,000 Flexible NetFlow flows. The 48-port 10G Multigigabit model group in the Catalyst 9300 data sheet carries these values on both license tiers.

What app hosting resources does C9300X-48HX-A provide?

C9300X-48HX-A provides 8 GB of RAM and 4 vCPU (2 cores) for hosted applications, plus two 10G AppGig ports and a QAT crypto accelerator. App hosting belongs to the Advantage subscription tier. Local storage is a USB 3.0 SSD of up to 240 GB, ordered as SSD-120G or SSD-240G.

What input voltage and power cord does the default PWR-C1-1100WAC-P on C9300X-48HX-A use?

The PWR-C1-1100WAC-P accepts 115-240VAC at 12-6A through an IEC 320-C16 inlet with a 15A cord, per the Catalyst 9300 hardware installation guide technical specifications. It is rated at 3754 BTU/hr of heat output. Choose the cord type at order time, because the configurator defaults to North American cords.

C9300X-48HX-A – 48x10G mGig UPOE+ Ports – Modular Uplink – 590W PoE Budget

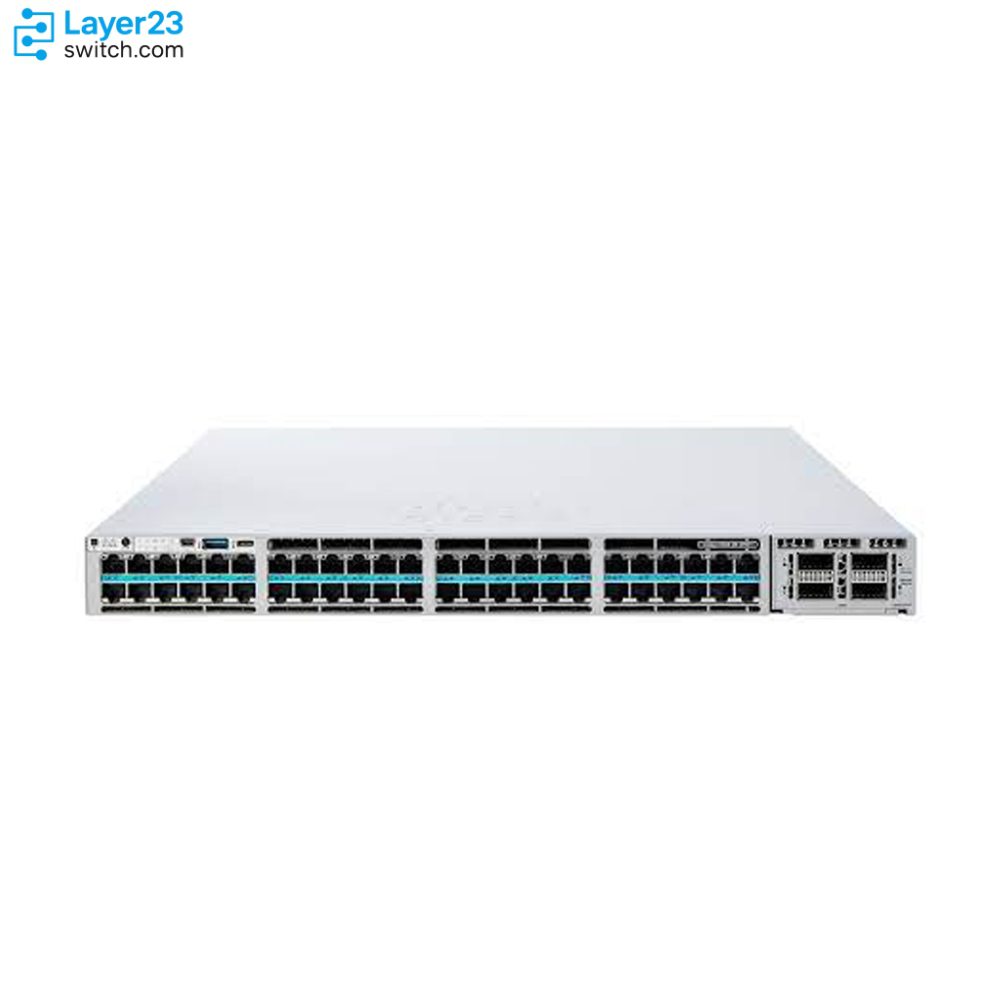

Name: C9300X-48HX-A - Cisco Catalyst 9300X 48-Port mGig UPOE+ Switch
Brand: Cisco
SKU: C9300X-48HX-A
Price: 10725.50 USD
Availability: InStock
Rating: 4.8 (10 reviews)

Brand: Cisco Category: Catalyst 9300 Switches Availability:

In Stock

Model: C9300X-48HX-A

Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policy

Rated 4.8 out of 5 based on 10 customer ratings

4.810 reviews7 Questions4 sold this month

List Price: ~~$23,961.39~~ 55% OFF

$10,725.50

Price Alert

Condition

Related

Subscription C9300-DNA-A + $864.86 Subtotal Price $11,590.36

Quantity

Shipping Express Shipping 2-6 Business Days, via UPS, FedEx, DHL and more

Trusted & Secure Payments

Shop Expert-Recommended Accessories for the C9300X-48HX-A

Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.

SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4
Original price was: $1,213.85.Current price is: $91.68.
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km Reach
Original price was: $4,873.66.Current price is: $149.00.
SFP-25G-SR-S
25GBASE-SR SFP28 - 850nm MMF - 100m OM4
Original price was: $1,213.85.Current price is: $258.00.
SFP-10/25G-LR-S
10/25GBASE-LR SFP28 - 10 km G.652 SMF - 0 to 70°C Commercial Temperature
Original price was: $2,787.19.Current price is: $431.00.
QSFP-40G-SR4
40G SR4 QSFP - MPO-12 MMF - 4x10G Breakout
Original price was: $3,653.72.Current price is: $126.00.
QSFP-40G-SR-BD
40G SR-BiDi QSFP - LC MMF - 150m OM4
Original price was: $2,925.26.Current price is: $120.00.
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOM
Original price was: $1,260.58.Current price is: $95.80.
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m Reach
Original price was: $570.10.Current price is: $70.00.
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOM
Original price was: $633.46.Current price is: $59.00.
STACK-T1-50CM
50cm Type 1 StackWise Cable - C9300/C9300X Data Stack - 480G/1T
Original price was: $121.99.Current price is: $70.00.
STACK-T1-1M
1m Type 1 StackWise Cable - C9300/C9300X Data Stack - 480G/1T
Original price was: $252.03.Current price is: $140.00.
STACK-T1-3M
3m Type 1 StackWise Cable - C9300/C9300X Data Stack - 480G/1T
Original price was: $378.07.Current price is: $200.00.
C9300X-NM-8Y
8x25G/10G/1G SFP28 Module - Catalyst 9300X
Original price was: $7,400.00.Current price is: $925.00.
C9300X-NM-2C
2x100G/40G QSFP28 Module - Catalyst 9300X
Original price was: $7,480.00.Current price is: $935.00.
C9300X-NM-4C
4x100G/40G QSFP28 Module - Catalyst 9300X
Original price was: $19,760.00.Current price is: $2,470.00.
C9300X-NM-8M
8x10G/mGig Copper Module - Catalyst 9300X
Original price was: $10,280.00.Current price is: $1,143.00.
PWR-C1-1100WAC-P
1100W AC PSU - Catalyst 9300 C1 - Platinum Rated
Original price was: $2,317.88.Current price is: $689.00.
PWR-C1-1900WAC-P
1900W AC PSU - Catalyst 9300 C1 - Platinum Rated
Original price was: $12,784.00.Current price is: $1,598.00.

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded

Customers

Units shipped

Countries

Inventory You Can See

Cisco stock on hand

Models ready to ship

Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

Advance replacement for in-stock models
New unit for dead-on-arrival
14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

C9300X-48HX-A Description

The C9300X-48HX-A is a Cisco Catalyst 9300X Series stackable access switch, licensed for Network Advantage, for wiring closets that power access points, cameras and lighting over Cisco UPOE+. Each of its 48 RJ-45 ports runs at up to 10G Multigigabit and supplies up to 90W, the default 1100W supply leaves a 590W PoE budget, and 1,760 Gbps of switching capacity sits behind a modular uplink slot. The default budget runs six ports at a full 90W, and Cisco IOS XE Bengaluru 17.5.1 is the first release that supports the switch.

Quick Specs

Parameter	Specification
Product ID	C9300X-48HX-A
Downlink ports	48 x 10G Multigigabit (10G/5G/2.5G/1G/100M)
PoE standards	Cisco UPOE+ on all 48 ports, up to 90W per port
Default power supply	PWR-C1-1100WAC-P (1100W AC)
Default PoE budget	590W
Maximum PoE budget	3290W with 1900W primary and 1900W secondary supplies
Uplinks	Modular slot for C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C and C9300X-NM-4C
Network license	Network Advantage
Switching capacity	1,760 Gbps (2,760 Gbps with stacking)
Forwarding rate	1,309 Mpps (2,232 Mpps with stacking)
Stacking	StackWise-1T at 1 Tbps, up to 8 members
Hardware-based IPsec	Up to 100G with an HSEC key
Minimum software release	Cisco IOS XE Bengaluru 17.5.1

Product Performance

Switching Capacity

Forwarding Rate

Maximum PoE Budget

Key Features

Supply Choice Sets The 90W Port Count

The default supply alone carries six ports at a full 90W. With the second 1100W supply that the configurator adds, the budget is 1690W, enough for 18 such ports or for 48 PoE+ devices at 30W each. Two 1900W supplies reach 3290W, which covers 36 ports at 90W or all 48 at 60W, and each of those supplies gives its full 1900W only on 230V input.

Cable Grade Sets The Port Speed

Cat5e runs a port at up to 5G. A 10G link needs Cat6 for runs up to 55 m or Cat6A for the full 100 m, and the Multigigabit ports work in full duplex only.

All Four C9300X Uplink Modules Fit

This chassis is one of three Catalyst 9300X models that accept C9300X-NM-4C, with four 100G/40G ports; that module needs Cisco IOS XE 17.6.1 or later. C9300X-NM-2C, C9300X-NM-8Y and C9300X-NM-8M also fit, while modules from non-X Catalyst 9300 switches do not.

Routing And Segmentation Under Network Advantage

Network Advantage lifts the 1,000-route OSPF limit of the Essentials tier and adds BGP, IS-IS and HSRP. VRF, VXLAN, LISP, Cisco TrustSec and MPLS handle segmentation, and MACsec-256 encrypts the links.

Hardware IPsec And Hosted Applications

The UADP 2.0sec ASIC runs IPsec at up to 100G with AES-256 once an HSEC key is installed. IPsec and app hosting both come with the Advantage subscription tier, and hosted containers get Intel QuickAssist, two 10G AppGig ports and an optional 120 GB or 240 GB USB 3.0 SSD.

StackWise-1T And StackPower+

Eight Catalyst 9300X members stack at 1 Tbps when all run the same license level; one non-X Catalyst 9300 member drops the stack to StackWise-480 speed. StackPower+ shares supply capacity across four switches per ring, or eight with an XPS-2200.

Application Scenarios

Hospital Ward Closet

On a hospital ward, the switch powers wireless access points, PTZ cameras and large displays from one closet, while VRF keeps clinical device traffic apart from staff and guest networks.

Classroom Building With Smart Lighting

A school building runs LED lighting fixtures and digital signage from the UPOE+ ports, and classroom access points connect at 2.5G, 5G or 10G on the same switch.

Collapsed Core For A Small Campus

At a small campus with one main closet, a stack of these switches serves both as the access layer and the routed core, exchanging routes with the WAN edge over BGP through 100G uplink modules.

Product Comparison

Parameter	C9300X-48HX-A	C9300X-48HX-E	C9300X-48TX-A	C9300X-48HXN-A
Total 10/100/1000, Multigigabit copper or SFP fiber	48x 10G Multigigabit	48x 10G Multigigabit	48x 10G Multigigabit	8x 10G Multigigabit + 40x 5G Multigigabit
PoE type	Cisco UPOE+	Cisco UPOE+	Not applicable	Cisco UPOE+
Available PoE with default power supply	590W	590W	No PoE	690W
Maximum available PoE	3290W	3290W	No PoE	3390W
Uplink configuration	Modular; C9300X-NM modules including C9300X-NM-4C	Modular; C9300X-NM modules including C9300X-NM-4C	Modular; C9300X-NM modules including C9300X-NM-4C	Modular; C9300X-NM-8M and C9300X-NM-8Y limited to 6 ports; no C9300X-NM-4C
Network license	Network Advantage	Network Essentials	Network Advantage	Network Advantage
Stacking bandwidth support	StackWise-1T, 1 Tbps	StackWise-1T, 1 Tbps	StackWise-1T, 1 Tbps	StackWise-1T, 1 Tbps
Switching capacity	1,760 Gbps	1,760 Gbps	1,760 Gbps	960 Gbps

C9300X-48HX-A and C9300X-48TX-A share 48 10G Multigigabit ports, a modular uplink and Network Advantage, but only C9300X-48HX-A supplies Cisco UPOE+, from a 590W default budget, while C9300X-48TX-A is data only and fits closets with no powered endpoints. C9300X-48HX-E is the same switch on Network Essentials, and a closet that stays within Layer 2 and OSPF up to 1,000 routes, with no BGP, VXLAN or MPLS, can drop to it. Moving back up later takes a C9300-LIC= term such as C9300-48-E-A-5, which cannot sit on the switch order. C9300X-48HXN-A starts at 690W of PoE but runs 40 ports at 5G, switches 960 Gbps and does not take C9300X-NM-4C. Every stack member runs the same license level.

PoE Power Planning

Planning Item	Value or Check
Default power supply	PWR-C1-1100WAC-P (1100W AC)
Default PoE budget	590W; six ports at a full 90W
With a 350W secondary supply	940W
With a 715W secondary supply	1305W
With a second 1100W supply (configurator default)	1690W; 18 ports at a full 90W, or 48 ports at 30W PoE+
With a 1900W secondary supply	2490W; 27 ports at a full 90W
With a 1900W primary supply	1390W alone; 1740W, 2105W or 2490W with a 350W, 715W or 1100W secondary
With 1900W primary and 1900W secondary supplies	3290W; 36 ports at a full 90W, or 48 ports at 60W
All 48 ports at 90W	4320W, above every supported supply combination
1900W supply at 115V input	Output limited to 1500W; 1900W needs 230V nominal input
PoE standards	IEEE 802.3af, 802.3at, 802.3bt Type 3 and Type 4, Cisco UPOE and UPOE+

Ordering Checklist

Subscription tier: Keep an Advantage term of 3, 5 or 7 years, such as C9300-DNA-A-48-5Y for Cisco DNA or C9300-DNX-A-48-5Y for Cisco Catalyst. New orders need a subscription at the same tier as the Network Advantage license.
HSEC key: Add the HSEC key when IPsec tunnels will end on the switch. Hardware IPsec stays unavailable without it, even on Network Advantage.
Uplink module: The configurator adds C9300X-NM-2C; keep it, change it to C9300X-NM-4C, C9300X-NM-8M or C9300X-NM-8Y, or select C9300X-NM-NONE. An empty slot needs a blank, and C9300X-NM-4C needs Cisco IOS XE 17.6.1 or later.
Second power supply: A second PWR-C1-1100WAC-P is selected by default and C9300-SPS-NONE removes it. Without it the PoE budget stays at 590W instead of 1690W.
Stack cables: A 3 m StackWise cable and a 150 cm StackPower cable come with each switch unless C9300X-STACK-NONE and C9300-SPWR-NONE are selected. Unstacked switches otherwise arrive with cables they do not use.
Power cords: Select the cord type for the destination country, because the configurator defaults to North American cords.

Optional Add-ons

Model	Description
C9300X-NM-4C	Catalyst 9300X network module with 4 x 100G/40G QSFP ports
C9300X-NM-2C	Catalyst 9300X network module with 2 x 100G/40G QSFP ports
C9300X-NM-8Y	Catalyst 9300X network module with 8 x 25G/10G/1G SFP ports
C9300X-NM-8M	Catalyst 9300X network module with 8 x 10G/1G Multigigabit copper ports
PWR-C1-1100WAC-P=	Spare 1100W AC Platinum-rated power supply, matching the default supply
PWR-C1-1900WAC=	Spare 1900W AC power supply for PoE budgets up to 3290W
PWR-C1-1900WHV-T=	Spare 1900W HVAC/HVDC Titanium-certified power supply
PWR-C1-715WAC-P=	Spare 715W AC Platinum-rated power supply
STACK-T1-50CM=	StackWise-480/1T stacking cable, 50 cm
STACK-T1-1M=	StackWise-480/1T stacking cable, 1 m
STACK-T1-3M=	StackWise-480/1T stacking cable, 3 m
CAB-SPWR-30CM=	StackPower cable, 30 cm
CAB-SPWR-150CM=	StackPower cable, 150 cm
SSD-120G	Pluggable USB 3.0 SSD storage, 120 GB
SSD-240G	Pluggable USB 3.0 SSD storage, 240 GB
FAN-T2=	Spare fan module

C9300X-48HX-A Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1	Ground connectors	7	StackPower connectors
2	USB3.0–SSD port	8	AC OK (input) status LED
3	BEACON LED	9	PS OK (output) status LED
4	CONSOLE (RJ-45 console port)	10	StackWise-480 port connectors
5	MGMT (RJ-45 10/100/1000 management port)	11	Power supply modules
6	Fan modules	–	–

Rear Panel of a Cisco Catalyst 9300 Series Switch

Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1	Cisco Catalyst 9300 Series switch with optional network module¹ (power supply and fan modules not shown)	9	Eight number-8 Phillips flat-head screws
2	AC power cord	10	Cable guide
3	Product documentation and compliance document	11	M4.0 x 20mm Phillips pan-head screw
4	Four rubber mounting feet	12	(Optional) RJ-45 console cable
5	Ground lug screw and ring terminal	13	(Optional) USB console cable
6	Two 19-inch mounting brackets	14	(Optional) StackWise-480/1T cable (0.5-meter, 1-meter, or 3-meter)
7	Four number-12 pan-head screws	15	(Optional) StackPower cable (0.3-meter or 1.5-meter)
8	Four number-10 pan-head screws	16	(Optional) StackWise-320 cable

Specifications

Parameter	Specification	Parameter	Specification
Product ID	C9300X-48HX-A	Network license	Network Advantage, perpetual and included with the hardware
Downlink ports	48 x 10G Multigigabit (10G/5G/2.5G/1G/100M)	PoE standards	Cisco UPOE+ on all 48 ports, up to 90W per port; IEEE 802.3af, 802.3at and 802.3bt Type 3 and Type 4 devices
Multigigabit cabling	Up to 5G on Cat5e; 10G on Cat6 up to 55 m or Cat6A up to 100 m; full duplex only	Uplink slot	Modular slot for C9300X-NM network modules
Supported network modules	C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C (Cisco IOS XE 17.5.1 or later); C9300X-NM-4C (Cisco IOS XE 17.6.1 or later)	Network module slot rule	Operate with a network module or a blank module installed
Management port	10/100/1000 RJ-45	Console port	RJ-45 console port and USB mini-Type B console port
USB port	USB Type A and USB Type C, USB 3.0, 900 mA at 5 V	SSD storage	Pluggable 120 GB or 240 GB USB 3.0 SSD module
Switching capacity	1,760 Gbps	Switching capacity with stacking	2,760 Gbps
Forwarding rate	1,309 Mpps	Forwarding rate with stacking	2,232 Mpps
Packet buffer	32 MB	Flexible NetFlow entries	128,000 flows
DRAM	16 GB	Flash	16 GB
Hardware-based IPsec	Up to 100G, AES-256; requires an HSEC key and the Cisco Catalyst or Cisco DNA Advantage tier	App hosting capacity	2x the hosting resources of Catalyst 9300 models, Intel QuickAssist Technology, 2 x 10G AppGig ports
MAC addresses	32,000	IPv4 routes	39,000 (24,000 direct routes, 15,000 indirect routes)
IPv6 routes	19,500	Multicast routes	8,000
QoS entries	4,000	ACL entries	8,000
VLAN IDs	4094	PVST instances	300
STP virtual ports (PVST/MST)	13,000	Switched virtual interfaces	1,000
Jumbo frames	9198 bytes	Total routed ports per stack	448
Stacking	StackWise-1T, 1 Tbps, up to 8 members	Mixed stacking	StackWise-480 speeds with standard Catalyst 9300 (non-X) members; not supported with higher-scale C9300-24UB, C9300-24UXB or C9300-48UB; all members share one license level
StackPower	StackPower+; up to 4 switches per ring, 8 with XPS-2200	Network Advantage feature set	BGP, EIGRP, HSRP, IS-IS, OSPF; VRF, VXLAN, LISP, Cisco TrustSec, SGT, MPLS, mVPN; NETCONF, RESTCONF, gRPC, YANG; NSF, GIR, xFSU; AVB, PTP; MACsec-256
Default power supply	PWR-C1-1100WAC-P (1100W AC, Platinum-rated)	Power supply slots	2; dual redundant power supplies supported
Available PoE with default power supply	590W	Available PoE with 350W secondary supply	940W
Available PoE with 715W secondary supply	1305W	Available PoE with 1100W secondary supply	1690W
Available PoE with 1900W secondary supply	2490W	Available PoE with 1900W primary supply alone	1390W
Available PoE with 1900W primary, 350W secondary	1740W	Available PoE with 1900W primary, 715W secondary	2105W
Available PoE with 1900W primary, 1100W secondary	2490W	Available PoE with 1900W primary, 1900W secondary	3290W
1900W supply output at 115V input	Limited to 1500W	Default supply input voltage	115 to 240 VAC
Default supply input current	12-6A	Default supply inlet	IEC 320-C16
Default supply power cord rating	15A	Default supply total output BTU	3,754 BTU/hr
Power consumption, full port traffic (no module, 115VAC)	268.9W	Power consumption, weighted average (no module, 115VAC)	260W
Power consumption, 100% PoE test (no module, 115VAC)	694.4W	Fan modules	Three field-replaceable fans with N+1 redundancy
Fan module	FAN-T2=	Fan module airflow	20 cfm
Airflow	Front-to-rear and side-to-rear	Operating temperature	-5°C to 45°C (23°F to 113°F)
Minimum cold-start temperature	0°C (32°F)	Storage temperature	-40°C to 70°C (-40°F to 158°F)
Operating humidity	5% to 90%, noncondensing	Operating altitude	Up to 3,000 m (10,000 ft)
Storage altitude	Up to 15,000 ft (4500 m)	Dimensions, chassis only (H x W x D)	1.73 x 17.5 x 19 in. (4.4 x 44.5 x 48.3 cm)
Dimensions with default power supply (H x W x D)	1.73 x 17.5 x 22.03 in. (4.4 x 44.5 x 56.0 cm)	Weight with default power supply	6.62 kg (14.6 lb)
MTBF	185,420 hours	Safety certifications	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
EMC certifications	47 CFR Part 15, EN 55032 Class A, CISPR 32 Class A, EN 55035, CISPR 35, EN 300 386, EN 61000-3-2, EN 61000-3-3, ICES-003 Class A, CNS13438, KN32, KN35, TCVN 7189 Class A, TCVN 7317	Environmental compliance	RoHS 5
IEEE standards	802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3ae, 802.3an, 802.3bz, 802.3af, 802.3at	Management standards	SNMPv1, SNMPv2c, SNMPv3, RMON I and II
Minimum software release	Cisco IOS XE Bengaluru 17.5.1

Get More Information

Need pricing, stock, or shipping details for the C9300X-48HX-A ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.

Quality Certifications

Customer Reviews

Write A Review

4.8

Rated 4.8 out of 5

(10 reviews)

5 Stars

4 Stars

3 Stars

2 Stars

1 Stars

Samantha Rivas

Posted on 03/02/2026

Verified Buyer

Rated 5 out of 5

5.0

Our reorder frequency tells you everything about how we feel.

Maria Ramirez

Posted on 09/01/2026

Verified Buyer

Rated 4 out of 5

4.0

We ordered multiple items — everything arrived in one well-organized shipment.

Isabella Nielsen

Posted on 02/01/2026

Verified Buyer

Rated 4 out of 5

4.0

Confirmed zero incidents in the first 30 days. Invoice formatting was a bit different from what our AP system expects, but workable.

Supply Chain

Posted on 25/10/2025

Verified Buyer

Rated 5 out of 5

5.0

Import to the UK was smooth. Documentation was perfect.

Ororo Munroe

Posted on 18/06/2025

Verified Buyer

Rated 5 out of 5

5.0

Shipping was lightning fast. Impressive service.

Questions & Answers

How many IPsec tunnels and what throughput does C9300X-48HX-A support?
C9300X-48HX-A supports 128 IPsec tunnels at first release, with 25 new tunnels per second, per the Catalyst 9300 data sheet. Throughput is up to 100 Gbps with esp-gcm-128 or esp-gcm-256, and up to 15G with esp-aes plus esp-sha-hmac. The tunnels also need the HSECK9 authorization code and the Advantage subscription tier.
Does the HSECK9 code on C9300X-48HX-A stay after a config erase?
Yes. HSECK9 is a one-time install that persists across reloads and config erase. It is a Smart Licensing authorization code (SLAC) obtained in CSSM, and it is available for the Catalyst 9300X, 9500X and 9600X. Without it IPsec cannot be turned on, even though C9300X-48HX-A already runs Network Advantage.
Can C9300X-48HX-A run 256-bit MACsec?
Yes. 256-bit MACsec requires Network Advantage, which C9300X-48HX-A carries. The 128-bit mode needs only Network Essentials, so on this model the license tier decides the key length. App hosting and SD-Access belong to the Advantage subscription tier and are separate from the MACsec setting.
How many watts does C9300X-48HX-A draw with the PoE test at 100 percent?
At 115 VAC with the PoE test at 100 percent, C9300X-48HX-A draws 694.4W with no module fitted. A C9300X-NM-2C raises the draw to 914.2W, C9300X-NM-8Y to 918.8W and C9300X-NM-4C to 939.8W, per the Catalyst 9300 data sheet power table. Size circuits and UPS capacity against the module that is fitted.
How much packet buffer and how many NetFlow flows does C9300X-48HX-A have?
C9300X-48HX-A is a dual-ASIC switch with two 16MB buffers, which makes 32 MB of packet buffer in total. It supports 128,000 Flexible NetFlow flows. The 48-port 10G Multigigabit model group in the Catalyst 9300 data sheet carries these values on both license tiers.
What app hosting resources does C9300X-48HX-A provide?
C9300X-48HX-A provides 8 GB of RAM and 4 vCPU (2 cores) for hosted applications, plus two 10G AppGig ports and a QAT crypto accelerator. App hosting belongs to the Advantage subscription tier. Local storage is a USB 3.0 SSD of up to 240 GB, ordered as SSD-120G or SSD-240G.
What input voltage and power cord does the default PWR-C1-1100WAC-P on C9300X-48HX-A use?
The PWR-C1-1100WAC-P accepts 115-240VAC at 12-6A through an IEC 320-C16 inlet with a 15A cord, per the Catalyst 9300 hardware installation guide technical specifications. It is rated at 3754 BTU/hr of heat output. Choose the cord type at order time, because the configurator defaults to North American cords.

Warranty

100% Low Price Guarantee:

Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.

100% Quality Assurance:

All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.

Free CCIE Technical Support:

Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.

100% Money Back Guarantee:

If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.

Flexible & Secure Payment and Shipping:

We support multiple secure payment and logistics options, backed by industry-leading verification:

Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information

FREE NETWORK TOOLS

Verify, plan, and comparewith confidence

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.

Check lifecycle dates

Cisco Switch Selector Tool

Filter Cisco switches by ports, uplinks, PoE, performance, features, license, and budget.

Find matching switches >

Cisco Serial Number Lookup

Verify authenticity and identify exactmodel, coverage, and lifecycle detailsusing a Cisco serial number.

Verify a serial number >

Product Comparison

Compare specifications, capabilitiesand form factors side-by-side tochoose the right hardware.

Cisco Compare products >

Standard Services

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F3 Team Support

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Shipping

C9300X-48HX-A – 48x10G mGig UPOE+ Ports – Modular Uplink – 590W PoE Budget

Shop Expert-Recommended Accessories for the C9300X-48HX-A

Stocked, Shipped and Supported by One Team

Inventory You Can See

Ships in 1 Business Day

LSCare Warranty

Free CCIE Support

Verify Before You Pay

C9300X-48HX-A Description

Quick Specs

Product Performance

Key Features

Application Scenarios

Product Comparison

PoE Power Planning

Ordering Checklist

Optional Add-ons

C9300X-48HX-A Switch Rear Panel

Components Delivered in the Shipping Box

Specifications

Get More Information

Quality Certifications

Customer Reviews

Questions & Answers

How many IPsec tunnels and what throughput does C9300X-48HX-A support?

Does the HSECK9 code on C9300X-48HX-A stay after a config erase?

Can C9300X-48HX-A run 256-bit MACsec?

How many watts does C9300X-48HX-A draw with the PoE test at 100 percent?

How much packet buffer and how many NetFlow flows does C9300X-48HX-A have?

What app hosting resources does C9300X-48HX-A provide?

What input voltage and power cord does the default PWR-C1-1100WAC-P on C9300X-48HX-A use?

Warranty

Verify, plan, and comparewith confidence

Cisco Switch Selector Tool

Cisco Serial Number Lookup

Product Comparison

Standard Services

DataSheet Downloads

Related Searches of Catalyst 9300 Switches
