C9300X-NM-4C – 4x100G/40G QSFP28 Module – Catalyst 9300X
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9300X-NM-4C Description

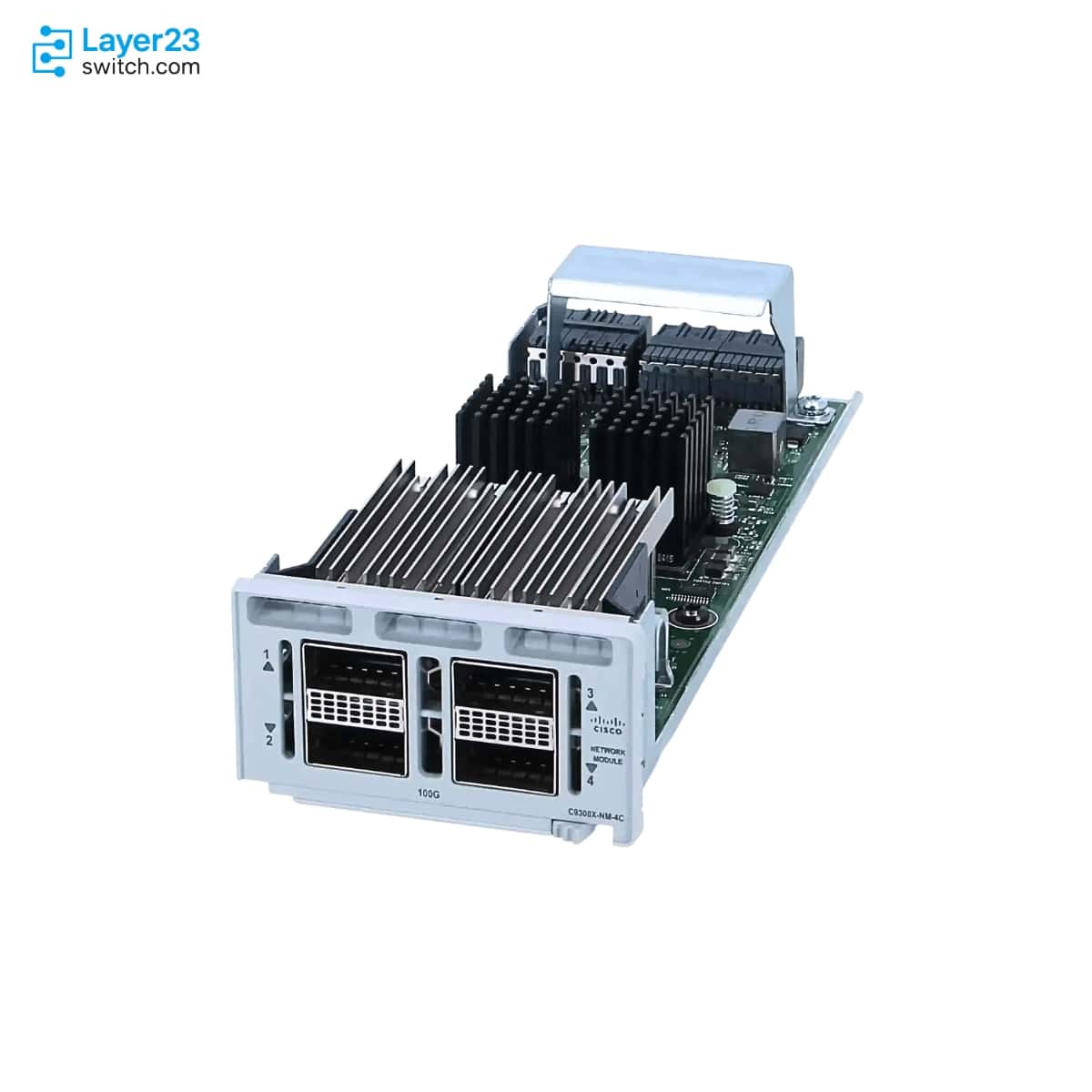

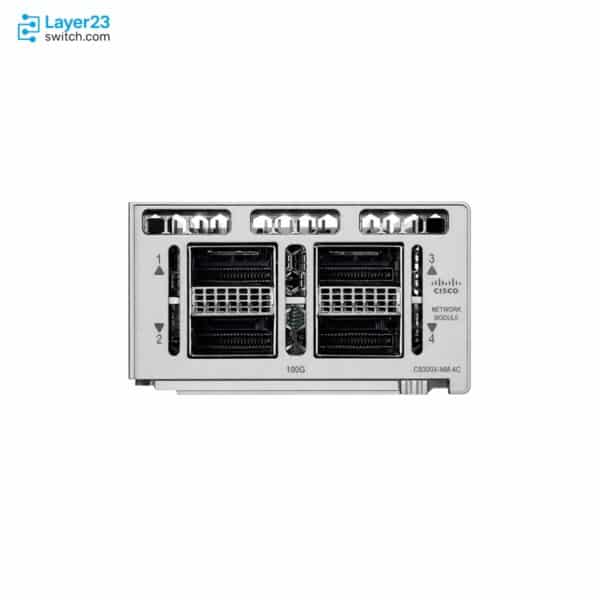

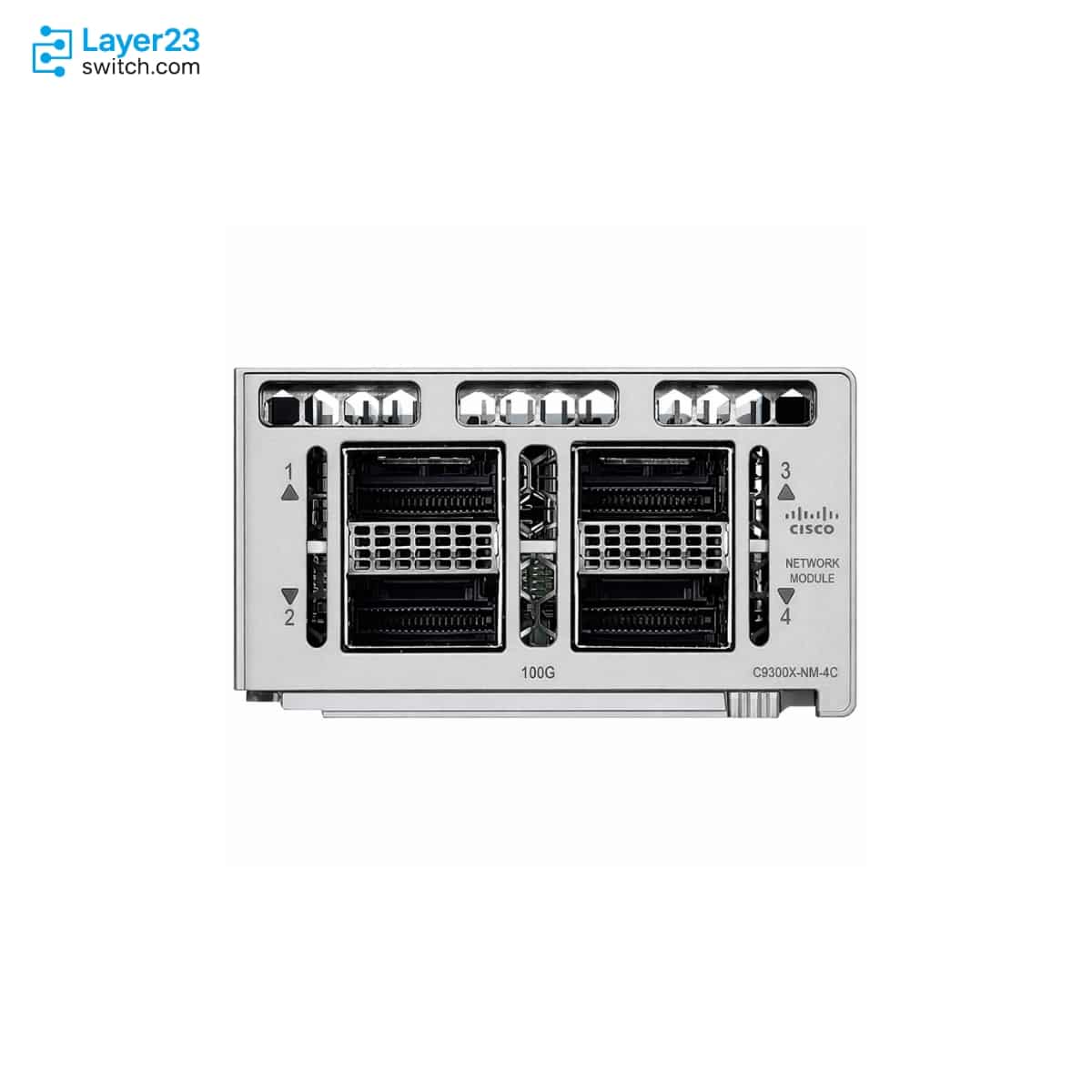

C9300X-NM-4C is a Cisco Catalyst 9300X field-replaceable network module for high-speed uplink expansion on supported Catalyst 9300X switches. It provides four 40G/100G slots, dual-rate 100G and 40G support, QSFP+ connectors in each slot, support for C9300X-24Y, C9300X-48HX, and C9300X-48TX platforms, no support on standard Catalyst 9300 models, and Cisco IOS XE Bengaluru 17.6.1 introductory release context. The module adds four high-speed QSFP uplink positions to compatible Catalyst 9300X switches.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300X-NM-4C |
|
Product type |
Network module |
|
Cisco ordering description |
Catalyst 9300 4 x 100G/40G dual rate QSFP28 network module |
|
Port Count |
4 |
|
Supported Port Speeds |
100G and 40G |
|
Module Slots |
Four 40 GE/100 GE slots |
|
Connector Type |
QSFP+ connector in each slot |
|
Supported Platforms |
C9300X-24Y, C9300X-48HX, and C9300X-48TX |
|
Standard Catalyst 9300 Support |
Not supported on standard Catalyst 9300 models |
|
Introductory Release |
Cisco IOS XE Bengaluru 17.6.1 |
|
Spare SKU |
C9300X-NM-4C= |
|
Installation Type |
Field-replaceable network module |
Application Scenarios
Use C9300X-NM-4C when a supported Catalyst 9300X switch needs four 40G or 100G uplink slots for aggregation, distribution, or high-bandwidth campus backbone connectivity.
Choose this module when two QSFP-class uplinks are not enough and the design needs additional uplink ports without changing to another switch family.
C9300X-NM-4C fits projects that already standardize on C9300X-24Y, C9300X-48HX, or C9300X-48TX. If the installed switch is another Catalyst 9300X model, confirm compatibility before quoting this module.
Product Comparison
|
Parameter |
C9300X-NM-4C | |||
|---|---|---|---|---|
|
Product type |
QSFP28 network module |
QSFP28 network module |
SFP28 network module |
Multigigabit copper network module |
|
Port Count |
4 |
2 |
8 |
8 |
|
Supported Port Speeds |
100G/40G |
100G/40G |
25G/10G/1G |
10G/mGig copper |
|
Connector or Port Type |
QSFP+ connector / QSFP28 ordering description |
QSFP+ connector / QSFP28 ordering description |
SFP28 |
Copper Ethernet |
|
Supported Platform |
C9300X-24Y, C9300X-48HX, C9300X-48TX |
Catalyst 9300X Series switches |
Catalyst 9300X Series switches |
Catalyst 9300X Series switches |
|
Introductory Release |
Cisco IOS XE 17.6.1 |
Cisco IOS XE 17.5.1 |
Cisco IOS XE 17.5.1 |
Cisco IOS XE 17.5.1 |
|
Spare SKU |
C9300X-NM-4C= |
C9300X-NM-2C= |
C9300X-NM-8Y= |
C9300X-NM-8M= |
|
Primary Media Planning |
40G/100G QSFP optics |
40G/100G QSFP optics or supported breakout |
1G/10G/25G SFP optics |
Copper cabling |
- Choose C9300X-NM-4C when the design needs four 40G or 100G uplink slots and the switch model is officially supported.
- Choose C9300X-NM-2C when two QSFP-class uplinks are enough or the switch model does not support C9300X-NM-4C.
- Choose C9300X-NM-8Y for 1G/10G/25G SFP-based uplinks instead of QSFP-class 40G/100G links.
- Choose C9300X-NM-8M when the uplink or module requirement is copper multigigabit Ethernet rather than fiber/QSFP optics.
Selection Guide
1. Choose C9300X-NM-4C for supported Catalyst 9300X models that need
Select C9300X-NM-4C only when the target switch is C9300X-24Y, C9300X-48HX, or C9300X-48TX and the uplink design needs four 40G or 100G ports.
2. Choose C9300X-NM-2C when two 100G uplinks are enough
If the design needs only two high-speed uplinks, C9300X-NM-2C is the closer match and has broader Catalyst 9300X platform coverage.
3. Do not quote it for standard Catalyst 9300 switches
C9300X network modules are supported only on Catalyst 9300X switches. Standard Catalyst 9300 modular-uplink switches require C9300-NM modules instead.
4. Confirm optics and Cisco IOS XE release before purchase
Before ordering, verify Cisco-supported QSFP optics, DACs, AOCs, breakout requirements, and the target Cisco IOS XE release for the installed switch model.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Switch Model |
C9300X-24Y, C9300X-48HX, or C9300X-48TX |
Confirms the module is being ordered for a Cisco-listed compatible switch |
|
Standard C9300 vs C9300X |
Whether the switch is Catalyst 9300X or standard Catalyst 9300 |
C9300X-NM modules are not for standard Catalyst 9300 switches |
|
Uplink Speed |
40G or 100G requirement |
Confirms that a QSFP-class module is the right module type |
|
Port Count |
Four QSFP-class uplinks |
Determines whether C9300X-NM-4C is required or C9300X-NM-2C is enough |
|
IOS XE Release |
Cisco IOS XE 17.6.1 or later for module introduction |
Confirms the software baseline can support the module |
|
Optics or Cables |
Cisco-supported QSFP optics, DACs, AOCs, or breakout cables |
Prevents ordering a module without compatible media |
|
Spare Requirement |
C9300X-NM-4C or C9300X-NM-4C= |
Prevents confusion between base module and spare-part ordering |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300X-NM-4C | Product type | Network module |
| Cisco ordering description | Catalyst 9300 4 x 100G/40G dual rate QSFP28 network module | Port Count | 4 |
| Supported Port Speeds | 100G and 40G | Module Slots | Four 40 GE/100 GE slots |
| Connector Type | QSFP+ connector in each slot | Supported Platforms | C9300X-24Y, C9300X-48HX, and C9300X-48TX |
| Introductory Release | Cisco IOS XE Bengaluru 17.6.1 | Spare Part Number | C9300X-NM-4C= |
| Installation Type | Field-replaceable network module |
Get More Information
Need pricing, stock, or shipping details for the C9300X-NM-4C ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Which port configuration comes with C9300X-NM-4C?
-
Where can C9300X-NM-4C be installed?
-
Can C9300X-NM-4C be installed in a standard Catalyst 9300?
-
When was C9300X-NM-4C introduced in Cisco IOS XE?
-
How does C9300X-NM-4C differ from C9300X-NM-2C?
-
What is C9300X-NM-4C used for?
