C9350-NM-2C Description

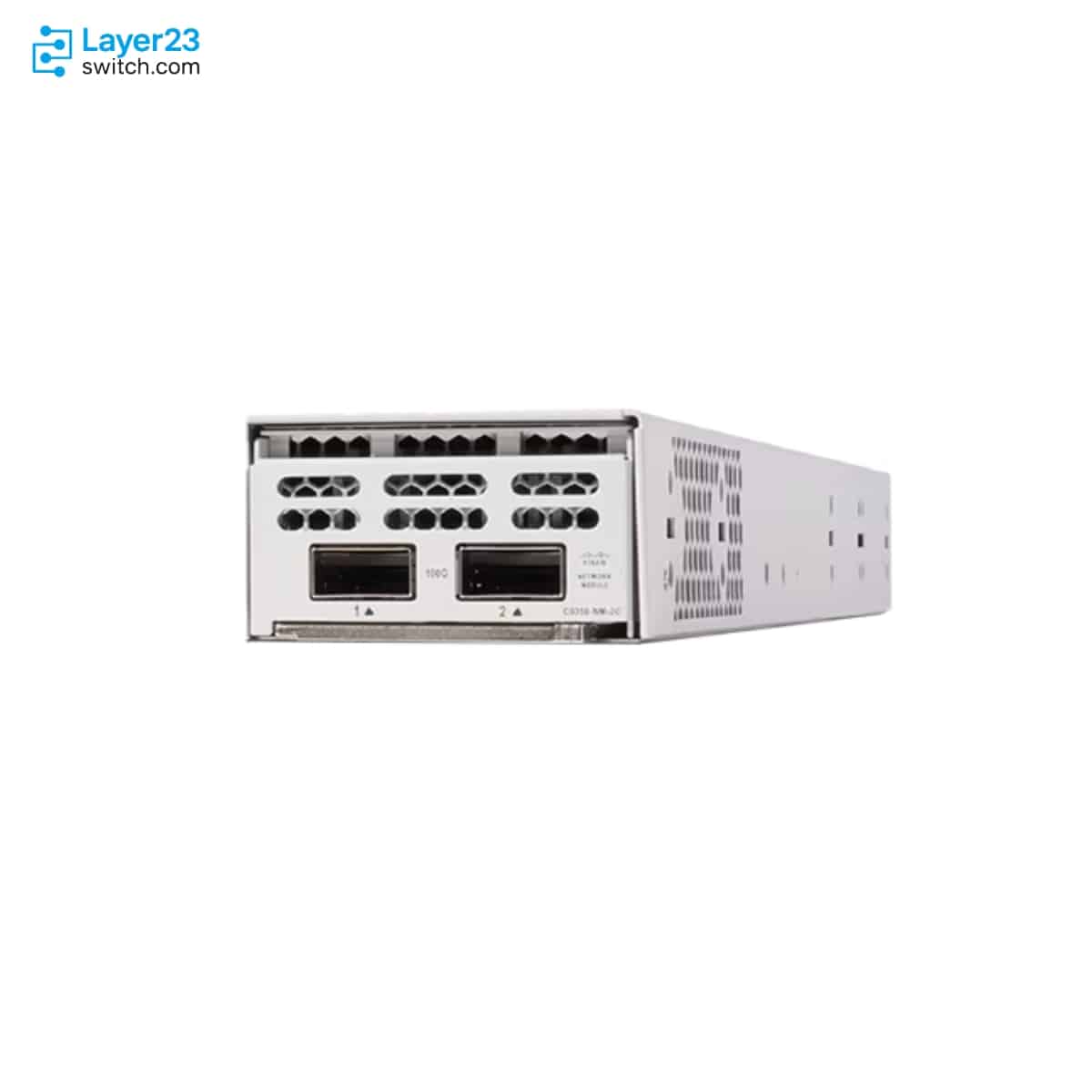

The C9350-NM-2C is a Cisco Catalyst 9350 Series Smart Switches network module for adding 40G or 100G fiber uplinks to access switches. The module has two QSFP28 ports that run at 40G or 100G, for up to 200 Gbps of uplink bandwidth, and it is hot-swappable. The module installs in C9350-24P, C9350-48P, C9350-24T, C9350-48T, C9350-24U, C9350-48U, C9350-48TX and C9350-48HX.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9350-NM-2C |
|
Product type |
Network module |
|
Total ports |
2 |
|
Supported port speeds |
40G and 100G |
|
Module slots |
Two 40 GE/100 GE slots |
|
Connector type |
QSFP28 |
|
Supported switch family |
Cisco C9350 Series |
|
Listed compatible models |
C9350-48HX, C9350-24P, C9350-48P, C9350-24T, C9350-48T, C9350-48TX, C9350-24U, C9350-48U |
|
Installation type |
Field-replaceable network module |
|
Media planning |
Cisco-supported QSFP optics, DACs, AOCs, or breakout options where supported |
Application Scenarios
A campus wiring closet built on C9350-48P or C9350-48U can run two 100G links from the module to the aggregation layer, so the PoE access ports are no longer limited by 10G uplinks.
In a closet that powers dense Wi-Fi access points from a C9350-48TX, the module carries the aggregated multigigabit traffic back to the core over QSFP28 optics or direct-attach cables.
Product Comparison
|
Parameter |
C9350-NM-2C | ||
|---|---|---|---|
|
Uplink ports |
2 x 40G/100G |
4 x 40G/100G |
8 x 1G/10G/25G, or 4 x 50G with the lower row disabled |
|
Connector type |
QSFP28 |
QSFP28 |
SFP56 |
|
Maximum uplink bandwidth |
200 Gbps |
400 Gbps |
200 Gbps |
|
Supported media |
QSFP optics, DACs, AOCs or breakout cables |
QSFP optics, DACs, AOCs or breakout cables |
SFP, SFP+, SFP28 and SFP56 optics, DACs or AOCs |
|
Supported host switches |
C9350-24P, C9350-48P, C9350-24T, C9350-48T, C9350-24U, C9350-48U, C9350-48TX, C9350-48HX |
C9350-48HX, C9350-48TX, C9350-24Y |
C9350-24P, C9350-48P, C9350-24T, C9350-48T, C9350-24U, C9350-48U, C9350-48TX, C9350-48HX |
C9350-NM-2C and C9350-NM-4C are both QSFP28 40G/100G uplink modules, but C9350-NM-2C has two ports for up to 200 Gbps while C9350-NM-4C has four ports for up to 400 Gbps. The four-port module installs only in C9350-48HX, C9350-48TX and C9350-24Y, so C9350-24P, C9350-48P, C9350-24T, C9350-48T, C9350-24U and C9350-48U can take only C9350-NM-2C or C9350-NM-8Y. Uplinks that run on SFP-family optics at 1G, 10G or 25G, or four 50G ports, need C9350-NM-8Y, which has eight SFP56 ports and turns the lower row off when the upper row is switched to 50G mode.
Ordering Checklist
- Catalyst 9350 hosts: Use the module in C9350-24P, C9350-48P, C9350-24T, C9350-48T, C9350-24U, C9350-48U, C9350-48TX and C9350-48HX. Other host models are not on Cisco’s support list.
- Module PID: Order C9350-NM-2C on a new switch order and C9350-NM-2C= as the spare. The = PID is the separate spare for replacing or adding a module on an installed switch.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9350-NM-2C | Product type | Network module |
| Total ports | 2 | Supported port speeds | 40G and 100G |
| Module slots | Two 40 GE/100 GE slots | Connector type | QSFP28 |
| Supported switch family | Cisco C9350 Series | Listed compatible models | C9350-48HX, C9350-24P, C9350-48P, C9350-24T, C9350-48T, C9350-48TX, C9350-24U, C9350-48U |
| Installation type | Field-replaceable network module |
Get More Information
Need pricing, stock, or shipping details for the C9350-NM-2C ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Which Cisco IOS XE release is needed for C9350-NM-2C?
-
Which media can the two QSFP28 ports of C9350-NM-2C use?
-
How many slots does C9350-NM-2C provide, and what connector does each use?
-
Can a failed C9350-NM-2C be replaced in the field?
