C9350-NM-8Y Description

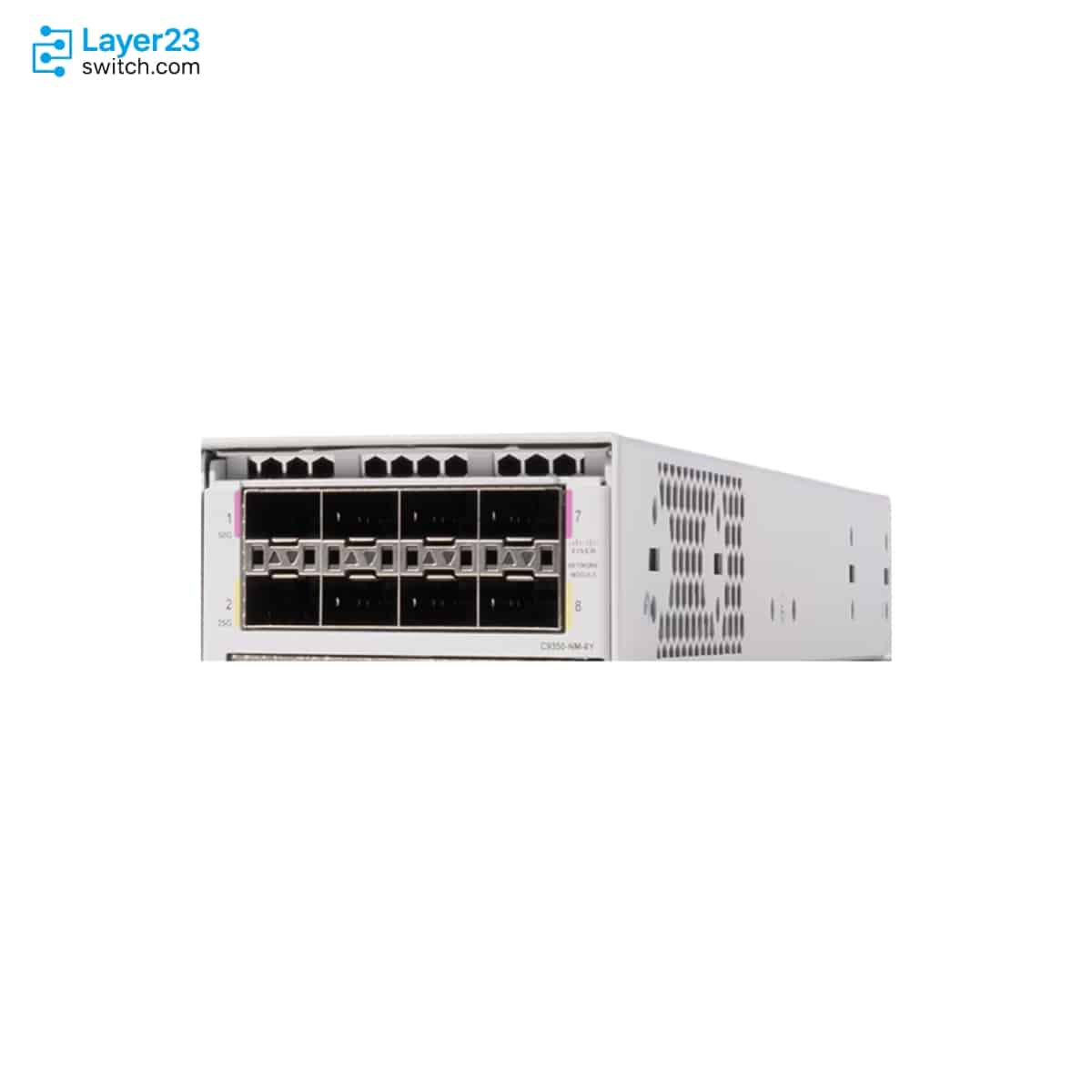

C9350-NM-8Y is a Cisco C9350 Series field-replaceable network module for SFP56 uplink expansion. It provides eight SFP56 slots, 1G, 10G, 25G, and 50G supported port speeds, eight-port operation for 1G/10G/25G mode, four-port operation for 50G mode, Cisco C9350 Series platform scope, compatibility with listed C9350-48HX, C9350-24P, C9350-48P, C9350-24T, C9350-48T, C9350-48TX, C9350-24U, and C9350-48U models, and Cisco-supported SFP/SFP+/SFP28/SFP56 optics, DACs, or AOCs. The module adds flexible fiber uplinks up to 50G to compatible C9350 access switches.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9350-NM-8Y |
|
Product type |
Network module |
|
Port Count |
8 SFP56 slots |
|
Supported Port Speeds |
1G, 10G, 25G, and 50G |
|
1G/10G/25G Mode |
Eight ports |
|
50G Mode |
Four ports |
|
Connector Type |
SFP56 |
|
Supported Switch Family |
Cisco C9350 Series |
|
Listed Compatible Models |
C9350-48HX, C9350-24P, C9350-48P, C9350-24T, C9350-48T, C9350-48TX, C9350-24U, C9350-48U |
|
Installation Type |
Field-replaceable network module |
|
Media Planning |
Cisco-supported SFP/SFP+/SFP28/SFP56 optics, DACs, or AOCs |
Application Scenarios
Use C9350-NM-8Y when a C9350 access switch needs SFP-based uplinks at common campus aggregation speeds without moving to QSFP28 40G/100G modules.
Choose this module when the design needs up to four 50G uplinks on a compatible C9350 switch, subject to optics and software compatibility.
C9350-NM-8Y is useful when a refresh project may start with 10G or 25G uplinks and later move selected links toward 50G while keeping the same C9350 switch and module family.
Product Comparison
|
Parameter |
C9350-NM-8Y | ||
|---|---|---|---|
|
Product type |
SFP56 network module |
QSFP28 network module |
QSFP28 network module |
|
Port Count |
8 or 4 depending on speed mode |
2 |
4 |
|
Supported Port Speeds |
1G/10G/25G or 50G |
40G/100G |
40G/100G |
|
Connector Type |
SFP56 |
QSFP28 |
QSFP28 |
|
Supported Switch Models |
Multiple C9350 models including C9350-24P, C9350-48P, C9350-24T, C9350-48T, C9350-48TX, C9350-24U, C9350-48U, and C9350-48HX |
Multiple C9350 models including C9350-24P, C9350-48P, C9350-24T, C9350-48T, C9350-48TX, C9350-24U, C9350-48U, and C9350-48HX |
C9350-48HX and C9350-48TX |
|
Media Type |
SFP/SFP+/SFP28/SFP56 optics or cables |
QSFP optics or cables |
QSFP optics or cables |
- Choose C9350-NM-8Y when the C9350 switch needs SFP-family uplinks at 1G, 10G, 25G, or 50G.
- Choose C9350-NM-2C when the design needs two QSFP28 40G/100G uplinks.
- Choose C9350-NM-4C only when four QSFP28 40G/100G uplinks are required and the switch model is listed for that module.
Selection Guide
1. Choose C9350-NM-8Y for flexible SFP uplinks
Select this module when the C9350 access switch needs SFP-based uplinks and the project may use 1G, 10G, 25G, or 50G media.
2. Choose C9350-NM-2C for two 100G uplinks
If the uplink design requires QSFP-class 40G or 100G links, C9350-NM-2C is the closer fit.
3. Choose C9350-NM-4C for four 100G uplinks on supported models
If four 40G/100G links are required, compare C9350-NM-4C, but confirm that the installed switch is C9350-48HX or C9350-48TX.
4. Confirm optics, speed mode, and switch SKU before ordering
Before purchase, verify whether the deployment needs eight 1G/10G/25G ports or four 50G ports, then match the optics, cables, and switch model accordingly.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Switch Model |
Exact C9350 switch SKU |
Confirms the module is compatible with the installed switch |
|
Uplink Speed |
1G, 10G, 25G, or 50G |
Determines optics and usable port planning |
|
Port Mode |
Eight 1G/10G/25G ports or four 50G ports |
Prevents overestimating the number of 50G links |
|
Optics or Cables |
Cisco-supported SFP/SFP+/SFP28/SFP56 optics, DACs, or AOCs |
Prevents ordering a module without compatible media |
|
Software Baseline |
Cisco IOS XE release for the target switch |
Helps avoid module recognition or support issues |
|
Alternative Module |
C9350-NM-2C or C9350-NM-4C |
Avoids using an SFP module when QSFP 40G/100G links are required |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9350-NM-8Y | Product type | Network module |
| Port Count | 8 SFP56 slots | Supported Port Speeds | 1G, 10G, 25G, and 50G |
| 1G/10G/25G Mode | Eight ports | 50G Mode | Four ports |
| Connector Type | SFP56 | Supported Switch Family | Cisco C9350 Series |
| Listed Compatible Models | C9350-48HX, C9350-24P, C9350-48P, C9350-24T, C9350-48T, C9350-48TX, C9350-24U, C9350-48U | Installation Type | Field-replaceable network module |
| Media Planning | Cisco-supported SFP/SFP+/SFP28/SFP56 optics, DACs, or AOCs |
