C9500-ACCKITH-19I – 19-Inch Rack Kit – Catalyst 9500 High Performance
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9500-ACCKITH-19I Description

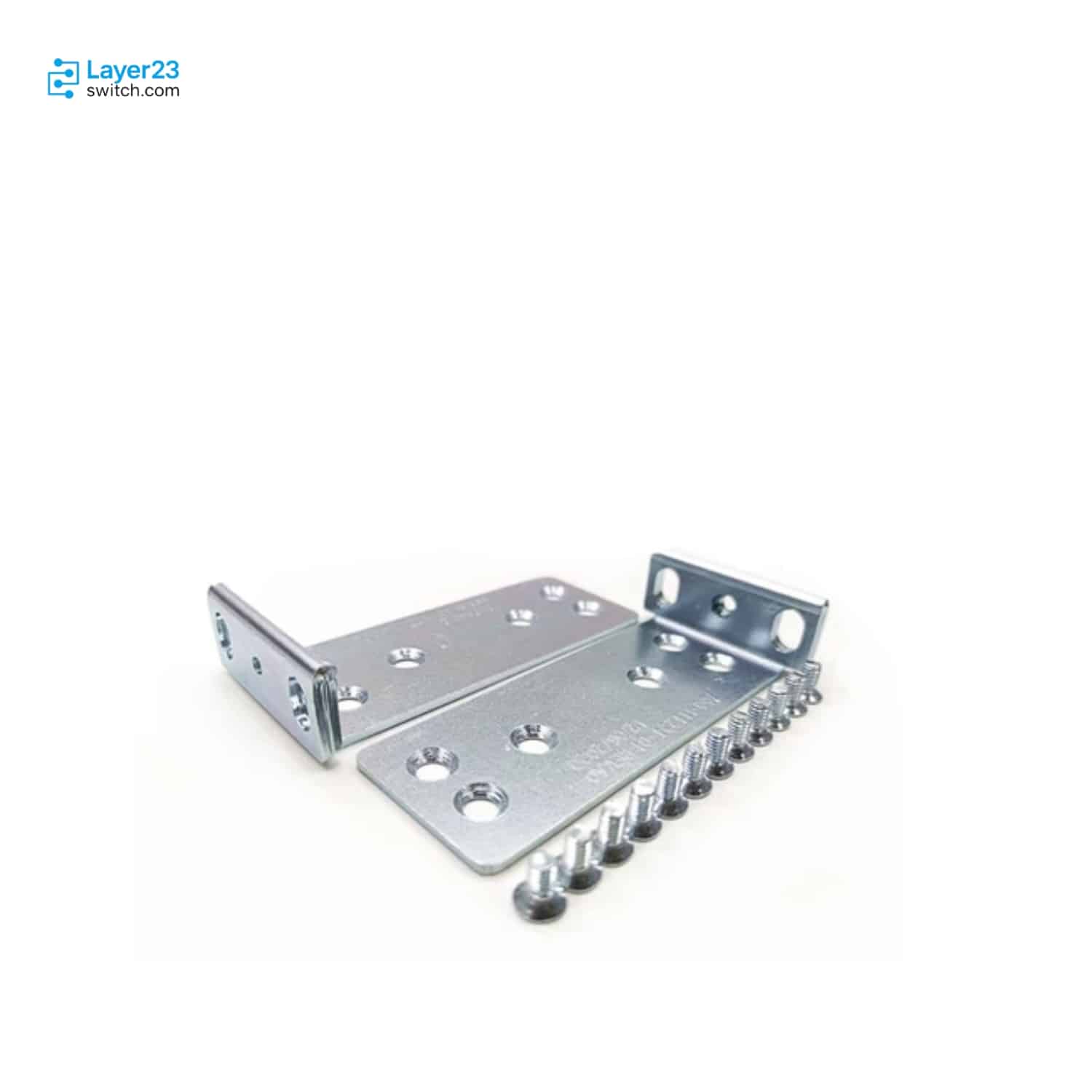

C9500-ACCKITH-19I is a Cisco Catalyst 9500 Series High-End 19-inch rack mount accessory kit for supported high-performance Catalyst 9500 switches. The kit covers C9500-32C, C9500-32QC, C9500-48Y4C, and C9500-24Y4C models and includes two 19-inch mounting brackets, a cable guide, a ground lug, and the required number-12, M4.0 x 20mm, M4.0 x 6mm, number-10, and M4.0 x 8mm screw set. It supplies the standard rack-mount hardware package for compatible Catalyst 9500 High Performance switches.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9500-ACCKITH-19I |
|
Product type |
19-inch rack mount accessory kit |
|
Accessory scope |
Cisco Catalyst 9500 Series High-End switches |
|
Supported switch group |
Cisco Catalyst 9500 Series High Performance switches |
|
Supported models |
C9500-32C, C9500-32QC, C9500-48Y4C, and C9500-24Y4C |
|
Mounting brackets |
2 19-inch mounting brackets |
|
Cable guides |
1 cable guide |
|
Ground lug |
1 ground lug |
|
Confirmed screw set |
Number-12, M4.0 x 20mm, M4.0 x 6mm, number-10, and M4.0 x 8mm screws |
|
Supported switch models |
C9500-32C, C9500-32QC, C9500-48Y4C, C9500-24Y4C |
|
Rack mount format |
19-inch rack mount |
|
Number-12 screws |
4 number-12 pan-head 0.50 inch screws |
|
M4 x 20mm screws |
1 M4.0 x 20mm Phillips pan-head screw |
Application Scenarios
Use C9500-ACCKITH-19I when the installed or planned switch is C9500-32C, C9500-32QC, C9500-48Y4C, or C9500-24Y4C and the rack plan calls for the Cisco-listed 19-inch rack mount accessory kit.
Select this SKU when the switch hardware is already defined but receiving, staging, or field installation needs the high-performance 19-inch bracket kit as a separate purchase line.
Keep this kit on the BOM when the chassis is in the high-performance Catalyst 9500 group; use the standard 19-inch rack kit only when the switch belongs to the standard Catalyst 9500 model group.
Product Comparison
|
Parameter |
C9500-ACCKITH-19I |
C9500-ACCKITH-23I= |
C9500-ACC-KIT-19I= | |
|---|---|---|---|---|
|
Product type |
19-inch rack mount accessory kit |
23-inch rack mount accessory kit |
Four-point mounting extension rail kit |
19-inch rack mount accessory kit |
|
Cisco ordering form |
C9500-ACCKITH-19I= |
C9500-ACCKITH-23I= |
C9500-4PTH-KIT= |
C9500-ACC-KIT-19I= |
|
Supported switch group |
Catalyst 9500 Series High-End switches |
Catalyst 9500 Series High-End switches |
Catalyst 9500 Series High-End switches |
Catalyst 9500 Series switches |
|
Supported models |
C9500-32C, C9500-32QC, C9500-48Y4C, C9500-24Y4C |
C9500-32C, C9500-32QC, C9500-48Y4C, C9500-24Y4C |
C9500-32C, C9500-32QC, C9500-48Y4C, C9500-24Y4C |
C9500-12Q, C9500-24Q, C9500-40X, C9500-16X |
|
Mounting format |
19-inch rack mount |
23-inch rack mount |
Four-point mounting rails and brackets |
19-inch rack mount |
|
Bracket or rail content |
2 19-inch mounting brackets plus cable guide and ground lug |
2 23-inch mounting brackets plus 2 cable guides |
2 sets of extension rails and brackets plus 2 19-inch brackets |
2 19-inch mounting brackets plus cable guide and ground lug |
|
Confirmed screw set |
4 number-12 pan-head, 1 M4.0 x 20mm pan-head, 12 M4.0 x 6mm flat-head, 4 number-10 pan-head, 2 M4.0 x 8mm pan-head |
4 number-12 pan-head, 2 M4.0 x 20mm pan-head, 12 M4.0 x 6mm flat-head, 4 number-10 pan-head |
24 M4.0 x 6mm flat-head, 8 number-10 pan-head, 8 number-12 pan-head |
4 number-12 pan-head, 1 M4.0 x 20mm pan-head, 8 number-8 flat-head, 4 number-10 pan-head, 2 M4.0 x 8mm pan-head |
- In a C9500-ACCKITH-19I vs C9500-ACCKITH-23I= comparison, both belong to the high-performance Catalyst 9500 accessory family, but the rack width changes from 19-inch mounting brackets to 23-inch mounting brackets.
- The C9500-ACCKITH-19I difference from C9500-4PTH-KIT= is accessory scope: the current SKU is the 19-inch rack mount kit, while C9500-4PTH-KIT= supplies extension rails and brackets for four-point mounting.
- For a C9500-ACCKITH-19I vs C9500-ACC-KIT-19I= comparison, the key order check is switch group compatibility because the current SKU is for high-performance Catalyst 9500 models while C9500-ACC-KIT-19I= is for the standard Catalyst 9500 group.
- Buyers deciding which model to choose should match the rack width and switch group before approving the accessory line.
Selection Guide
1. Choose it for high-performance 19-inch rack mounting
Select C9500-ACCKITH-19I when the target switch is C9500-32C, C9500-32QC, C9500-48Y4C, or C9500-24Y4C and the deployment requires the Cisco-listed 19-inch rack mount kit.
2. Move to the 23-inch kit only for 23-inch racks
Use C9500-ACCKITH-23I= when the same high-performance switch group needs 23-inch rack mounting instead of a 19-inch rack accessory kit.
3. Keep four-point rail requirements separate
Choose C9500-4PTH-KIT= when the installation requires extension rails and brackets for four-point mounting rather than the 19-inch rack mount accessory kit.
4. Verify the standard versus high-performance boundary
Confirm the switch model before finalizing the order because C9500-ACC-KIT-19I= is the 19-inch kit for the standard Catalyst 9500 group, not the high-performance group covered by C9500-ACCKITH-19I.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact product ID |
C9500-ACCKITH-19I with Cisco ordering form C9500-ACCKITH-19I= |
Keeps the order tied to the high-performance 19-inch rack mount accessory kit |
|
Switch model |
C9500-32C, C9500-32QC, C9500-48Y4C, or C9500-24Y4C |
Confirms the rack kit is being selected for the Cisco-listed high-performance switch group |
|
Rack width |
19-inch rack mounting |
Separates the current SKU from the 23-inch C9500-ACCKITH-23I= accessory kit |
|
Kit contents |
2 19-inch mounting brackets, 1 cable guide, 1 ground lug, and the confirmed screw set |
Gives installers the mechanical parts Cisco lists for this high-performance rack kit |
|
Four-point mounting need |
Use C9500-4PTH-KIT= when extension rails and brackets are required |
Avoids substituting a bracket kit for the four-point mounting rail kit |
|
Standard kit boundary |
Use C9500-ACC-KIT-19I= only for standard Catalyst 9500 models |
Prevents mixing standard and high-performance Catalyst 9500 mounting hardware |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9500-ACCKITH-19I | Cisco ordering form | C9500-ACCKITH-19I= |
| Product type | 19-inch rack mount accessory kit | Accessory scope | Catalyst 9500 Series High-End switches |
| Supported switch group | Catalyst 9500 Series High Performance switches | Supported switch models | C9500-32C, C9500-32QC, C9500-48Y4C, C9500-24Y4C |
| Rack mount format | 19-inch rack mount | Mounting brackets | 2 19-inch mounting brackets |
| Cable guides | 1 | Ground lug | 1 |
| Number-12 screws | 4 number-12 pan-head 0.50 inch screws | M4 x 20mm screws | 1 M4.0 x 20mm Phillips pan-head screw |
| M4 x 6mm screws | 12 M4.0 x 6mm Phillips flat-head screws | Number-10 screws | 4 number-10 pan-head 0.625 inch screws |
| M4 x 8mm screws | 2 M4.0 x 8mm Phillips pan-head screws | Standard 19-inch kit boundary | C9500-ACC-KIT-19I= is for standard Catalyst 9500 switches |
