C9300-NM-2Y – 2x25G/10G/1G SFP28 Ports – Catalyst 9300 Module
4/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9300-NM-2Y Description

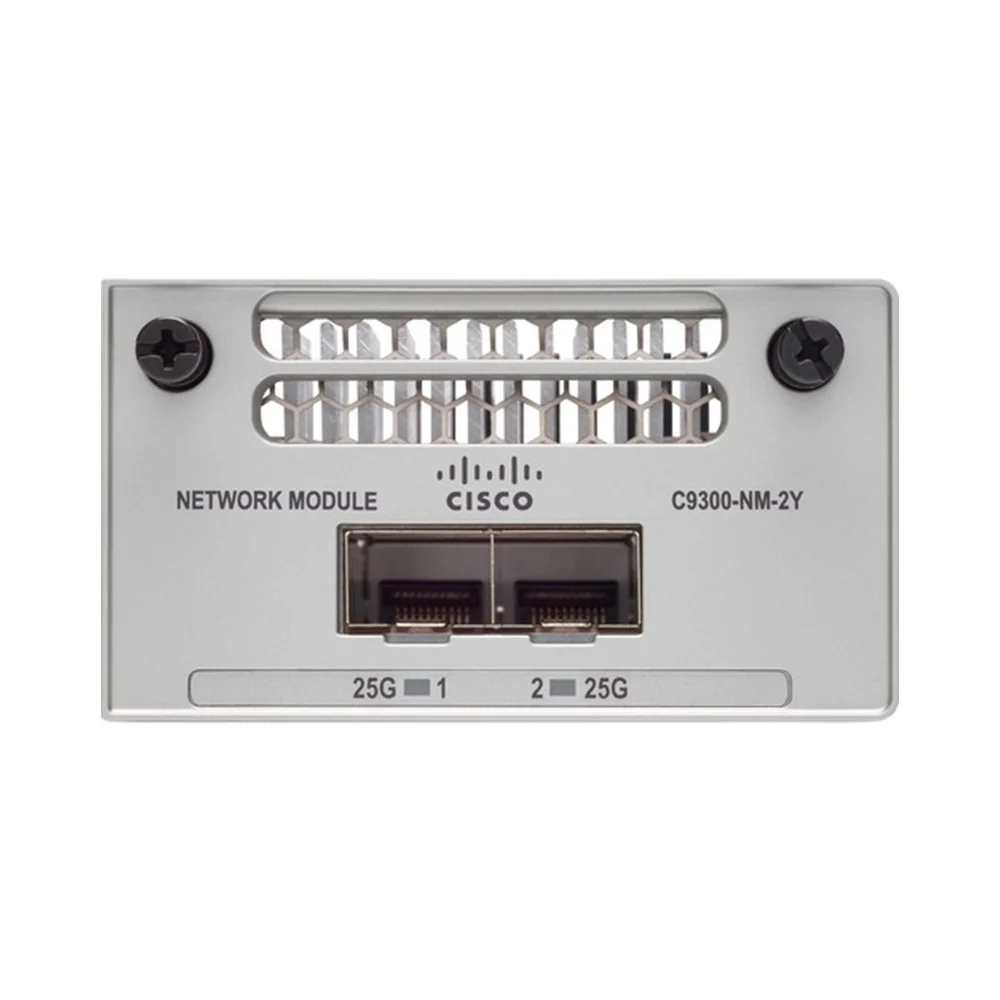

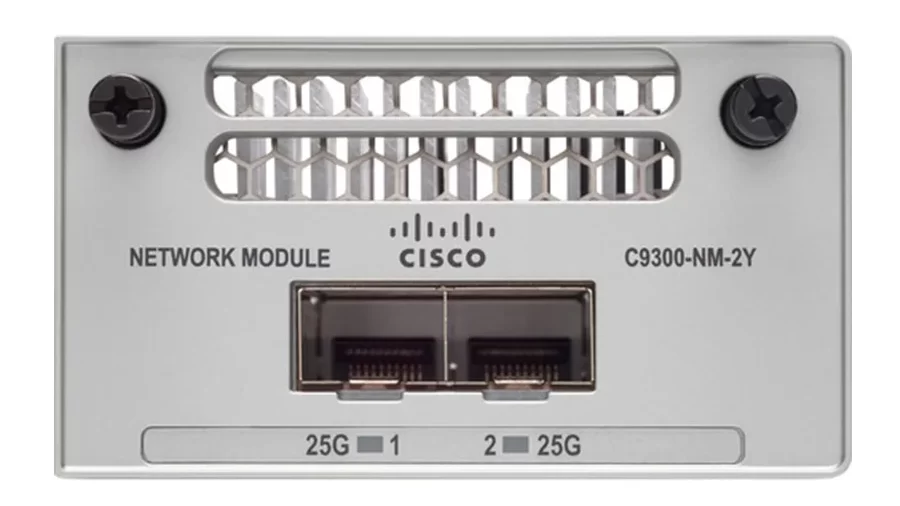

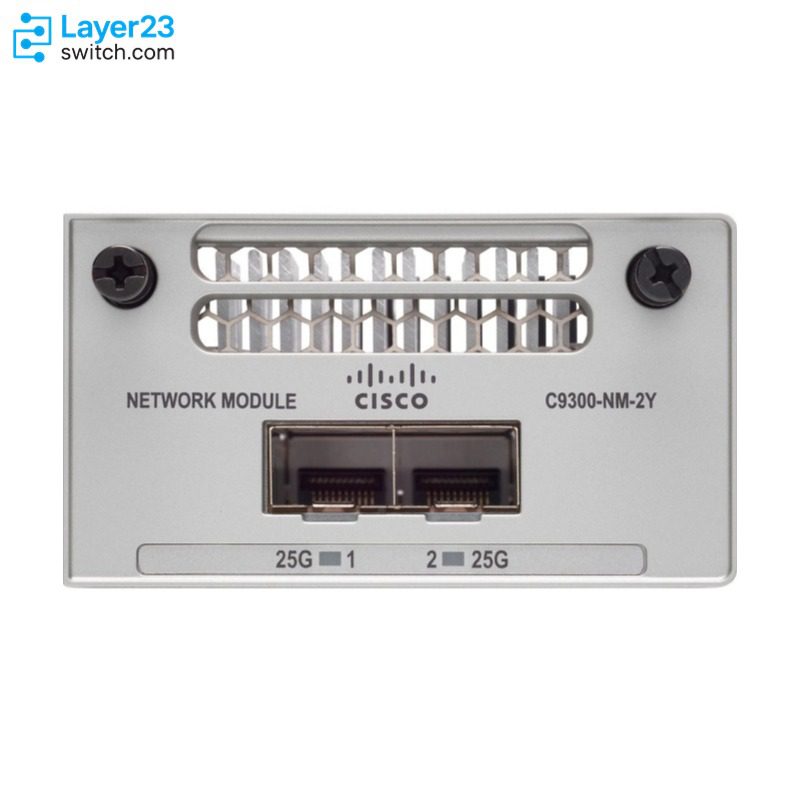

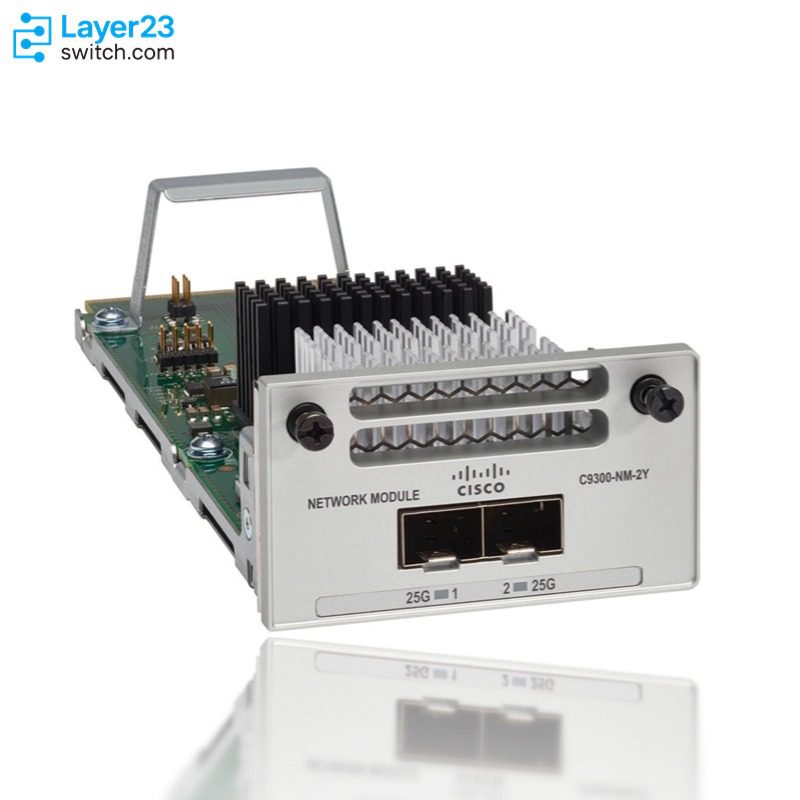

C9300-NM-2Y is a Cisco Catalyst 9300 Series 2-port SFP28 uplink network module for adding 25G, 10G, or 1G modular uplinks to Catalyst 9300 switches.
For buyers standardizing on SFP-based aggregation, C9300-NM-2Y sits between C9300-NM-8X and C9300-NM-2Q: it keeps the order on the Catalyst 9300 module family while moving beyond 10G SFP+ density to two 25G-capable SFP28 slots. C9300-NM-2Q is the adjacent option when the bill of materials needs 40G QSFP+ uplinks instead of SFP28 media.
Order review should confirm the target switch family, Cisco-supported SFP, SFP+, or SFP28 optics, the IOS XE baseline, and whether procurement needs the base PID C9300-NM-2Y or the spare PID C9300-NM-2Y=.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300-NM-2Y |
|
Product family |
Cisco Catalyst 9300 Series |
|
Product type |
Field-replaceable uplink network module |
|
Cisco ordering description |
Catalyst 9300 2 x 25G/10G/1G SFP28 Network Module |
|
Module slots |
2 x 25 Gigabit Ethernet SFP28 module slots |
|
Port speed options |
25G, 10G, and 1G |
|
Port form factor |
SFP28 with SFP and SFP+ support |
|
Supported platform family |
Cisco Catalyst 9300 C9300 network-module switches |
|
Platform boundary |
C9300X switches use C9300X-NM modules |
|
Configurable interfaces |
TwentyFiveGigabitEthernet1/1/1 and TwentyFiveGigabitEthernet1/1/2 |
|
Introductory release |
Cisco IOS XE Fuji 16.8.1a |
|
Spare PID |
C9300-NM-2Y= |
Application Scenarios

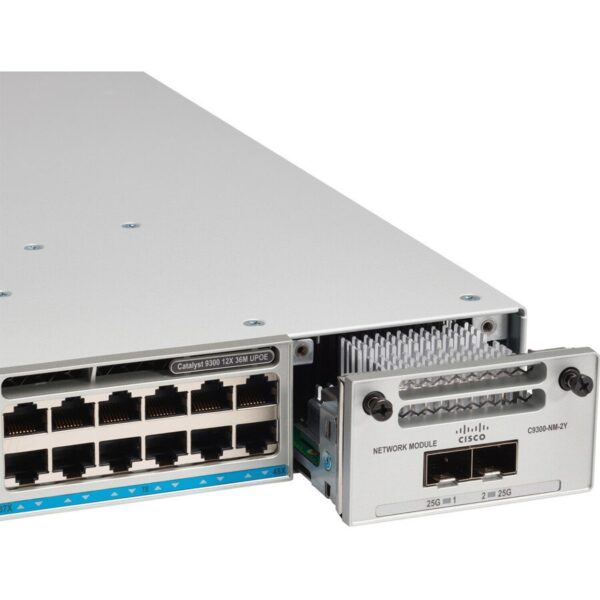

Use C9300-NM-2Y when a Catalyst 9300 modular-uplink switch needs two SFP28 uplink slots for 25G aggregation without moving to a C9300X network module.
Select this module when the cabling plan may run 1G, 10G, or 25G optics over the same SFP-family module choice. The module keeps the uplink slot ready for 25G while still supporting lower-rate SFP and SFP+ optics documented by Cisco.
Use this SKU when the requirement is two SFP28 slots. If the design specifies two 40G QSFP+ ports, compare C9300-NM-2Q instead of changing optics around the wrong connector family.
Product Comparison
|
Parameter |
C9300-NM-2Y | |||
|---|---|---|---|---|
|
Product family |
Catalyst 9300 |
Catalyst 9300 |
Catalyst 9300 |
Catalyst 9300X |
|
Product type |
SFP28 network module |
QSFP+ network module |
SFP+ network module |
Multi-rate SFP network module |
|
Port count |
2 |
2 |
8 |
8 |
|
Cisco-listed module slots |
Two 25 Gigabit Ethernet SFP28 module slots |
Two 40 Gigabit Ethernet QSFP+ module slots |
Eight 10 Gigabit Ethernet SFP+ module slots |
Eight 25G/10G/1G multi-rate SFP module ports |
|
Cisco ordering description |
Catalyst 9300 2 x 25G/10G/1G SFP28 Network Module |
Catalyst 9300 2 x 40GE QSFP Network Module |
Catalyst 9300 8 x 10G/1G SFP+ Network Module |
Catalyst 9300X 8 x 25G/10G/1G multi-rate SFP Network Module |
|
Connector or media class |
SFP28 with SFP and SFP+ support |
QSFP+ |
SFP+ with SFP support |
SFP-family multi-rate module |
|
Supported platform boundary |
C9300 network-module switches |
C9300 network-module switches |
C9300 network-module switches |
C9300X switches |
|
Interface planning |
TwentyFiveGigabitEthernet1/1/1 and 1/1/2 |
FortyGigabitEthernet or 4x10G breakout planning |
TenGigabitEthernet1/1/1 through 1/1/8 |
C9300X usable-port rules apply on HXN models |
|
Spare PID |
C9300-NM-2Y= |
C9300-NM-2Q= |
C9300-NM-8X= |
C9300X-NM-8Y= |
- In a C9300-NM-2Y vs C9300-NM-2Q comparison, the main difference is SFP28 25G/10G/1G media versus QSFP+ 40G media, so the which model to choose decision starts with the transceiver and uplink-speed plan.
- The C9300-NM-2Y difference from C9300-NM-8X is port mix: C9300-NM-2Y provides two 25G-capable SFP28 slots, while C9300-NM-8X provides eight 10G/1G SFP+ slots.
- For buyers comparing C9300-NM-2Y vs C9300X-NM-8Y, the key comparison is platform family because C9300-NM-2Y belongs to the Catalyst 9300 C9300 module set and C9300X-NM-8Y belongs to the C9300X module set.
Selection Guide
1. Choose it for two SFP28 uplinks on Catalyst 9300
Select C9300-NM-2Y when the switch BOM is a Catalyst 9300 C9300 network-module platform and the uplink requirement is two SFP28 slots with 25G capability.
2. Use C9300-NM-8X for higher 10G SFP+ port count
Choose C9300-NM-8X when the design values eight 10G/1G SFP+ module slots more than two 25G-capable SFP28 slots.
3. Use C9300-NM-2Q for QSFP+ 40G uplinks
Quote C9300-NM-2Q instead when the uplink plan is based on two 40G QSFP+ ports or documented QSFP breakout behavior rather than SFP28 optics.
4. Separate C9300 and C9300X module families
Verify the switch family before ordering because C9300X-NM modules such as C9300X-NM-8Y are Cisco-listed for C9300X switches, while C9300-NM-2Y is part of the C9300 module set.
Ordering Checklist
|
Order Gate |
Evidence to Lock |
Misorder Prevented |
|---|---|---|
|
PID form |
Base orders use C9300-NM-2Y and spare orders use C9300-NM-2Y= |
Separates deployable module purchasing from spare-part purchasing |
|
Switch bay |
Target hardware is a Catalyst 9300 C9300 SKU with a network-module slot |
Keeps fixed-uplink C9300L designs and C9300X-NM designs out of the BOM |
|
Media family |
The optics plan uses Cisco-supported SFP28, SFP+, or SFP modules |
Avoids replacing the SFP28 module with QSFP+, SFP+, or copper uplink hardware |
|
Speed profile |
The uplink requirement is two 25G-capable ports with 10G and 1G fallback support |
Distinguishes this SKU from C9300-NM-8X density and C9300-NM-2Q 40G QSFP+ uplinks |
|
Interface labels |
Cabling and configuration reference TwentyFiveGigabitEthernet1/1/1 and TwentyFiveGigabitEthernet1/1/2 |
Prevents TenGigabitEthernet or FortyGigabitEthernet labels from being copied from a different module |
|
Release reference |
Cisco IOS XE Fuji 16.8.1a or a later supported release is acceptable for the deployment |
Confirms the 25G uplink module is covered by the documented introduction path |
Specifications
Packaging weight and dimensions included:| Weight | 1.27 kg |
|---|---|
| Dimensions | 31 × 15 × 10 cm |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Brand | Cisco | Product ID | C9300-NM-2Y |
| Product family | Cisco Catalyst 9300 Series | Product type | Field-replaceable uplink network module |
| Cisco ordering description | Catalyst 9300 2 x 25G/10G/1G SFP28 Network Module | Spare PID | C9300-NM-2Y= |
| Module slots | 2 x 25 Gigabit Ethernet SFP28 module slots | Port speed options | 25G, 10G, and 1G |
| Port form factor | SFP28 with SFP and SFP+ support | Supported platform family | Cisco Catalyst 9300 C9300 network-module switches |
| Platform boundary | C9300X switches use C9300X-NM modules | Configurable interfaces | TwentyFiveGigabitEthernet1/1/1 and TwentyFiveGigabitEthernet1/1/2 |
| Installation type | Hot-swappable network module | Optics support | Cisco-supported SFP, SFP+, and SFP28 transceiver modules |
| Introductory release | Cisco IOS XE Fuji 16.8.1a | Module bay fallback | Use a blank module when uplink ports are not required |
