Name:

C9200-NM-4G

Detail:

4-port Gigabit SFP uplink module

Brand:

 Cisco

Questions

0/mo Solds

Condition:

New Factory Sealed

Availability:

In Stock at Global Warehouses.

Warranty:

3-Year Warranty

Related:

Price:

Original price was: $1,299.00.Current price is: $209.00.

Quantity:

Shipping:

Express Shipping 2-6 Days, via DHL, FedEx, UPS, etc.

Payment:

  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
Why Choose Us
  • $20+ million Units In Stock
  • 500+ B2B Partners Worldwide
  • 24/7 Support & Fast Shipping
Expertise Builds Trust
  • 11 Years’ Experience Across 220+ Countries
  • 18000+ Customers/Projects
  • CCIE & CISSP Certified
  • Free Consultation
Ask an Expert Now

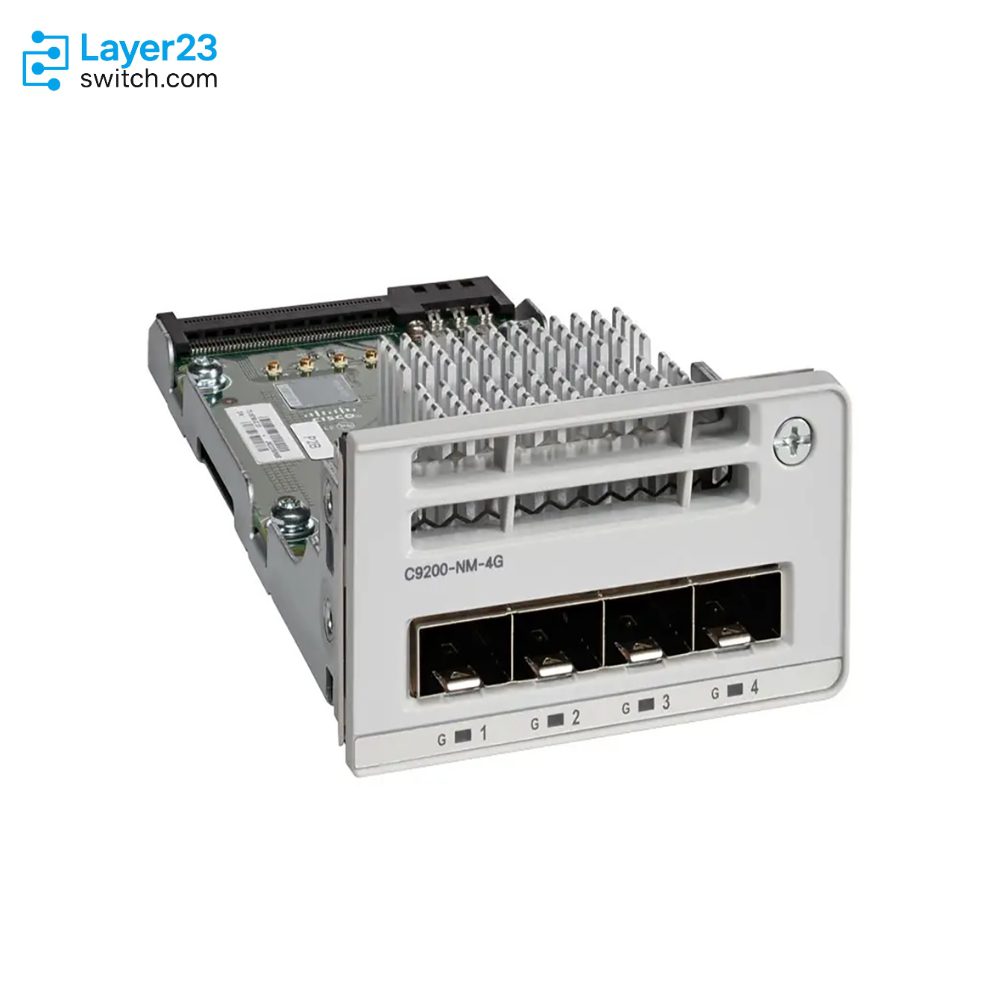

C9200-NM-4G Description

C9200-NM-4G is a 4-port Gigabit network module designed for Cisco Catalyst 9200 Series switches. This 4-port 1 Gbps SFP uplink card delivers a total of 4 Gbps of uplink bandwidth, enabling high-throughput connectivity for edge and distribution layers. Its field-replaceable, hot-swappable design ensures zero-downtime upgrades, while support for IEEE 802.3 100BASE-FX and 1000BASE-SX/LX media provides versatile fiber options.

Model Meaning: Cisco C9200-NM-4G Switch

Field

Meaning

C9200

Cisco Catalyst 9200 Series modular-access switch platform

NM

Network Module (field-replaceable uplink card)

4G

4-port Gigabit SFP uplink module

Supported Platforms

Switch Model

License Version

Description

C9200-24T-A

Network Advantage (A)

24-port Data SW with modular uplinks

C9200-24T-E

Network Essentials (E)

24-port Data SW with modular uplinks

C9200-24P-A

Network Advantage (A)

24-port PoE+ SW with modular uplinks

C9200-24P-E

Network Essentials (E)

24-port PoE+ SW with modular uplinks

C9200-48P-A

Network Advantage (A)

48-port PoE+ SW with modular uplinks

C9200-48P-E

Network Essentials (E)

48-port PoE+ SW with modular uplinks

C9200-48T-A

Network Advantage (A)

48-port Data SW with modular uplinks

C9200-48T-E

Network Essentials (E)

48-port Data SW with modular uplinks

Model comparison

Parameter

C9200-NM-4G

C9200-NM-4X

C9200-NM-2Y

Uplink Ports

4 × 1 Gbps SFP

4 × 1/10 Gbps SFP+

2 × 25 Gbps SFP28

Interface

IEEE 802.3 (1 Gbps)

IEEE 802.3/SFP+ (1/10 Gbps)

IEEE 802.3by (25 Gbps)

Port Speed

1 Gbps per port

1/10 Gbps per port

25 Gbps per port

Total Bandwidth

4 Gbps aggregate

40 Gbps aggregate

50 Gbps aggregate

Installing Catalyst 9200 Network Module Procedure

  • Attach an ESD-preventive wrist strap to your wrist and to an earth ground surface.
  • Remove the module from the protective packaging.
  • Remove the blank module from the switch and save it.
  • Position the module face up to install it in the module slot. Slide the module into the slot until the screw makes contact with the chassis. Fasten the captive screws to secure the network module in place.
  • While installing C9200 network modules, position the module face up to install it in the module slot. Slide the module into the slot until the screw makes contact with the chassis. Fasten the captive screws to secure the network module in place.
  • While installing C9200 network modules, position the module face up to install it in the module slot. Slide the module into the slot until the screw makes contact with the chassis. Fasten the captive screws to secure the network module in place.

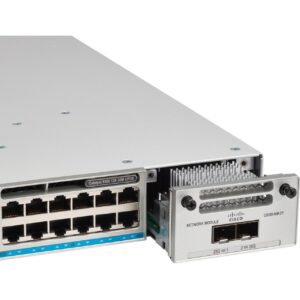

install-C9300-network-module

Get More Information

Discover unbeatable prices and fast shipping for the C9200-NM-4G Access the detailed C9200-NM-4G datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via Live chat or email us at [email protected]

Quality Certifications

Specifications

Parameter Details Parameter Details
Model Number C9200-NM-4G Description 4×1 Gbps SFP network module
Module Type Field-replaceable uplink card Uplink Ports 4 × SFP
Port Speed 1 Gbps per port Total Bandwidth 4 Gbps aggregate
Interface Standard IEEE 802.3 (100/1000 Mbps) Hot-swappable Yes
Compatibility C9200 modular SKUs
(Not on 24PXG/48PXG)		 Software Support IOS XE 16.9.2+
Licensing Network Essentials & Advantage FRU Part Number C9200-NM-4G
Ordering SKU C9200-NM-4G Dimensions 4.72″×1.81″×0.36″
(120×46×9 mm)
Weight 0.2 lb (0.09 kg) Power Draw ≈3 W typical
Operating Temp. 0 °C to 45 °C Storage Temp. –40 °C to 70 °C
Humidity 10–90% non-condensing MTBF >300,000 hours
Compliance RoHS, UL, CE, FCC Warranty Enhanced Limited Lifetime
ESD Rating Human body model ±15 kV Safety IEC 60950-1, UL 60950-1
Installation Plug and Play Stacking N/A
Environment 10–90% humidity, no condensation Acoustic N/A

Customer Reviews

Write A Review
0.0
(0 reviews)
5 Stars
0
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Questions & Answers

  • How easy is it to configure the C9200-NM-4G for IPv6 usage?

    Configuring for IPv6 is straightforward, typically detailed in the user manual and achievable via standard management interfaces.

  • Does the C9200-NM-4G require specific environmental conditions for optimal operation?

    Ideally, maintain a temperature-controlled, dust-free environment to ensure optimal performance and longevity.

  • What are common hardware issues reported by users of the C9200-NM-4G?

    Common hardware issues include port failures, fan malfunctions, or power supply problems; regular maintenance can mitigate many issues.

  • Does the C9200-NM-4G support Power over Ethernet (PoE), and what standards does it comply with?

    PoE support and standards compliance vary by model; check the specifications to verify compatibility with your requirements.

  • Is there a recommended alternative if I can't find the C9200-NM-4G?

    Comparable alternatives generally include other models within the same series or brand, ensuring similar specifications and compatibility.

  • Are there compatibility concerns I should be aware of when integrating the C9200-NM-4G into my existing network?

    Compatibility concerns typically include software version alignments, integration with existing security protocols, and hardware compatibility checks.

  • Can I stack multiple units of the C9200-NM-4G together, and what's the limit?

    Stacking capabilities depend on the specific technology implemented; usually, multiple units can be stacked, often limited by manufacturer's recommendations.

  • What advanced security features does the C9200-NM-4G offer?

    Security features often include encryption capabilities, access controls, threat detection systems, and support for secure management protocols.

  • How energy-efficient is the C9200-NM-4G compared to similar devices?

    This model is designed to be energy-efficient, typically featuring technologies that optimize power usage and reduce overall consumption.

  • How do I perform a software update on the C9200-NM-4G?

    Updates can usually be performed via the device's web interface, CLI, or through network management software provided by the manufacturer.

  • Can the C9200-NM-4G operate effectively in data center environments?

    While some models can function well in data centers, specialized data center switches typically offer superior performance and redundancy.

  • What steps should I take if the C9200-NM-4G experiences connectivity issues?

    Begin by checking cables and connectors, verifying configurations, examining logs, and rebooting the device if necessary.

  • What diagnostic tools are available for troubleshooting the C9200-NM-4G?

    Diagnostic tools provided typically include built-in hardware diagnostics, log inspection tools, and remote management utilities.

  • What’s the typical lifespan of the C9200-NM-4G in regular usage scenarios?

    Under typical operational conditions, the device generally has a lifespan of 5 to 7 years, depending on environmental factors and maintenance practices.

  • What should I do if my C9200-NM-4G firmware update fails?

    If a firmware update fails, consult the recovery instructions from the official documentation or reach out to technical support for specific guidance.

  • How loud is the C9200-NM-4G when operating at full capacity?

    Noise levels vary by model but generally remain within acceptable ranges suitable for office environments; consult specific product details for exact metrics.

  • Can the C9200-NM-4G be managed remotely, and how?

    Yes, remote management is generally supported through protocols like SSH, HTTPS, or vendor-specific remote management platforms.

  • What types of interfaces are provided by the C9200-NM-4G?

    It typically includes standard Ethernet ports, and may offer uplink options such as fiber or copper, depending on the specific configuration.

  • What warranty coverage does the C9200-NM-4G typically include?

    Warranty coverage usually includes limited parts and labor warranty, details of which can be confirmed through the vendor’s official support page.
