C9300-24S-A – 24x1G SFP Data Ports – Modular Uplink – Network Advantage

Brand: Cisco Category: Catalyst 9300 Switches Availability:
In Stock
Model: C9300-24S-A
Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policy
4.910 reviews9 Questions11 sold this month
List Price: $35,356.52 74% OFF
$9,111.48
Price Alert
Condition
Related
Subscription C9300-DNA-A + $1,735.52 This item requires a mandatory DNA. Subtotal Price $10,847.00
Quantity
Shipping Express Shipping 2-6 Business Days, via UPS, FedEx, DHL and more
Trusted & Secure Payments

Shop Expert-Recommended Accessories for the C9300-24S-A

Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.
  • SFP-10G-SR-S

    SFP-10G-SR-S

    10GBASE-SR SFP+ - S-Class - 400m OM4 MMF
    Original price was: $853.95.Current price is: $52.00.
  • SFP-10G-SR

    SFP-10G-SR

    10GBASE-SR SFP+ - 850nm MMF - 400m OM4
    Original price was: $1,213.85.Current price is: $91.68.
  • SFP-10G-LR-S

    SFP-10G-LR-S

    10GBASE-LR SFP+ - S-Class - 10km SMF
    Original price was: $2,439.88.Current price is: $150.00.
  • SFP-10G-LR

    SFP-10G-LR

    10GBASE-LR SFP+ - 1310nm SMF - 10km Reach
    Original price was: $4,873.66.Current price is: $149.00.
  • SFP-25G-SR-S

    SFP-25G-SR-S

    25GBASE-SR SFP28 - 850nm MMF - 100m OM4
    Original price was: $1,213.85.Current price is: $258.00.
  • SFP-10/25G-LR-S

    SFP-10/25G-LR-S

    10/25GBASE-LR SFP28 - 10 km G.652 SMF - 0 to 70°C Commercial Temperature
    Original price was: $2,787.19.Current price is: $431.00.
  • QSFP-40G-SR4

    QSFP-40G-SR4

    40G SR4 QSFP - MPO-12 MMF - 4x10G Breakout
    Original price was: $3,653.72.Current price is: $126.00.
  • GLC-LH-SMD

    GLC-LH-SMD

    1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOM
    Original price was: $1,260.58.Current price is: $95.80.
  • GLC-TE

    GLC-TE

    1000BASE-T SFP - RJ-45 Cat5 Copper - 100m Reach
    Original price was: $570.10.Current price is: $70.00.
  • GLC-SX-MMD

    GLC-SX-MMD

    1000BASE-SX SFP - MMF 850nm - DOM
    Original price was: $633.46.Current price is: $59.00.
  • STACK-T1-50CM

    STACK-T1-50CM

    50cm Type 1 StackWise Cable - C9300/C9300X Data Stack - 480G/1T
    Original price was: $121.99.Current price is: $90.00.
  • STACK-T1-1M

    STACK-T1-1M

    1m Type 1 StackWise Cable - C9300/C9300X Data Stack - 480G/1T
    Original price was: $252.03.Current price is: $140.00.
  • STACK-T1-3M

    STACK-T1-3M

    3m Type 1 StackWise Cable - C9300/C9300X Data Stack - 480G/1T
    Original price was: $378.07.Current price is: $257.00.
  • C9300-NM-2Y

    C9300-NM-2Y

    2x25G/10G/1G SFP28 Ports - Catalyst 9300 Module
    Original price was: $3,227.37.Current price is: $1,122.00.
  • C9300-NM-2Q

    C9300-NM-2Q

    2x40G QSFP+ Uplinks - Catalyst 9300 Module
    Original price was: $3,213.50.Current price is: $800.00.
  • C9300-NM-4G

    C9300-NM-4G

    4x1GE SFP Ports - Catalyst 9300 Module
    Original price was: $680.51.Current price is: $231.00.
  • C9300-NM-4M

    C9300-NM-4M

    4x10G/mGig Copper Ports - Catalyst 9300 Module
    Original price was: $1,890.30.Current price is: $626.00.
  • C9300-NM-8X

    C9300-NM-8X

    8x10G/1G SFP+ Uplinks - Network Module - Catalyst 9300
    Original price was: $3,213.50.Current price is: $761.00.
  • PWR-C1-715WAC-P

    PWR-C1-715WAC-P

    715W AC PSU - Catalyst 9300 C1 - Platinum Rated
    Original price was: $1,479.00.Current price is: $403.00.

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded
Customers
Units shipped
Countries
Cisco switches in stock at the Layer23-Switch warehouse
Play

Inventory You Can See

Cisco stock on hand
Models ready to ship
Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

  • Advance replacement for in-stock models
  • New unit for dead-on-arrival
  • 14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

C9300-24S-A Description

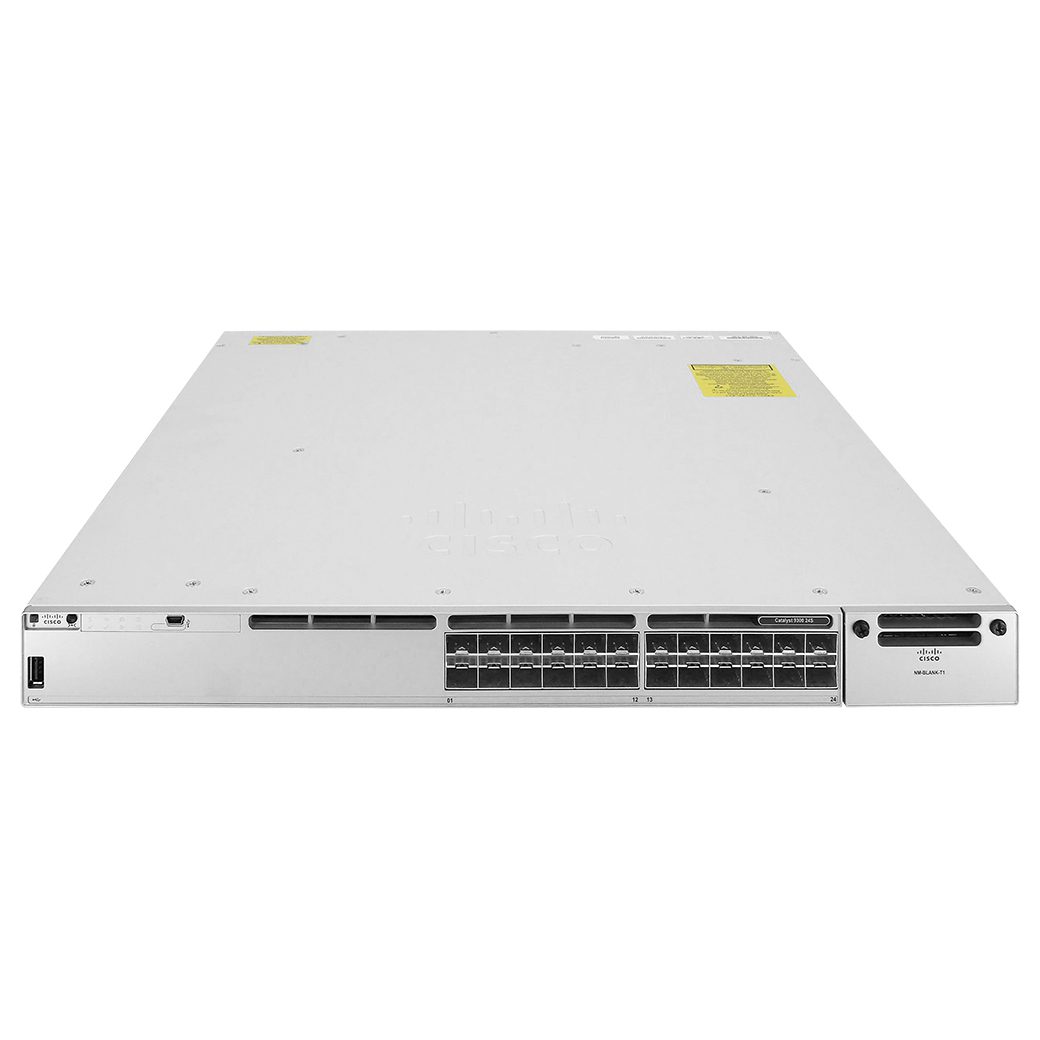

The C9300-24S-A is a Cisco Catalyst 9300 Series stackable access switch for fiber-cabled wiring closets and building aggregation points. The switch has 24 1G SFP ports, a modular uplink slot and 208 Gbps of switching capacity, carries the Network Advantage license, and runs from a default 715W AC supply. The 24 SFP ports provide no PoE, and the switch stacks over StackWise-480 only with other Catalyst 9300 models at the same license level.

Quick Specs

Parameter

Specification

Product ID

C9300-24S-A

Port count and type

24x 1G SFP fiber ports

Uplink

Modular uplink bay (network module sold separately)

Network license

Network Advantage

Default power supply

PWR-C1-715WAC-P (715W AC)

PoE support

None (fiber SFP ports do not source PoE)

Switching capacity

208 Gbps (688 Gbps stacked)

Forwarding rate

154.76 Mpps (511.90 Mpps stacked)

Stacking

StackWise-480, up to 8 members

Minimum software release

Cisco IOS XE 16.11.1a

License PID family

C9300-DNA/DNX-A-24S

Smart Licensing requirement

Smart Account mandatory at order

Product Performance

Switching Bandwidth
Forwarding Rate
StackWise Stack Bandwidth

Key Features

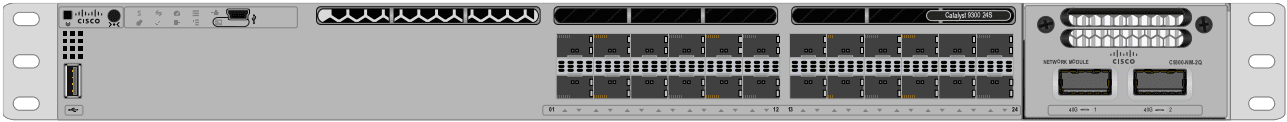

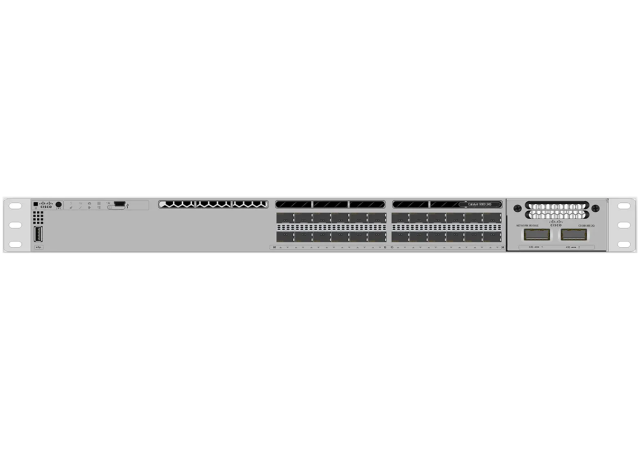

24 Fixed 1G SFP Ports

Every downlink is a fiber cage, so existing single-mode or multimode runs connect without media converters. The transceiver in each cage sets the reach.

Modular Uplink Slot

The slot ships empty and takes Catalyst 9300 network modules such as the C9300-NM-8X with eight 10G/1G SFP+ ports. Uplink speed can be raised later by swapping the module.

Network Advantage Routing And Segmentation

BGP, EIGRP, IS-IS, VRF, VXLAN and Cisco TrustSec are included on top of Layer 2 switching. A stack can therefore originate routes and carry segmentation policy itself.

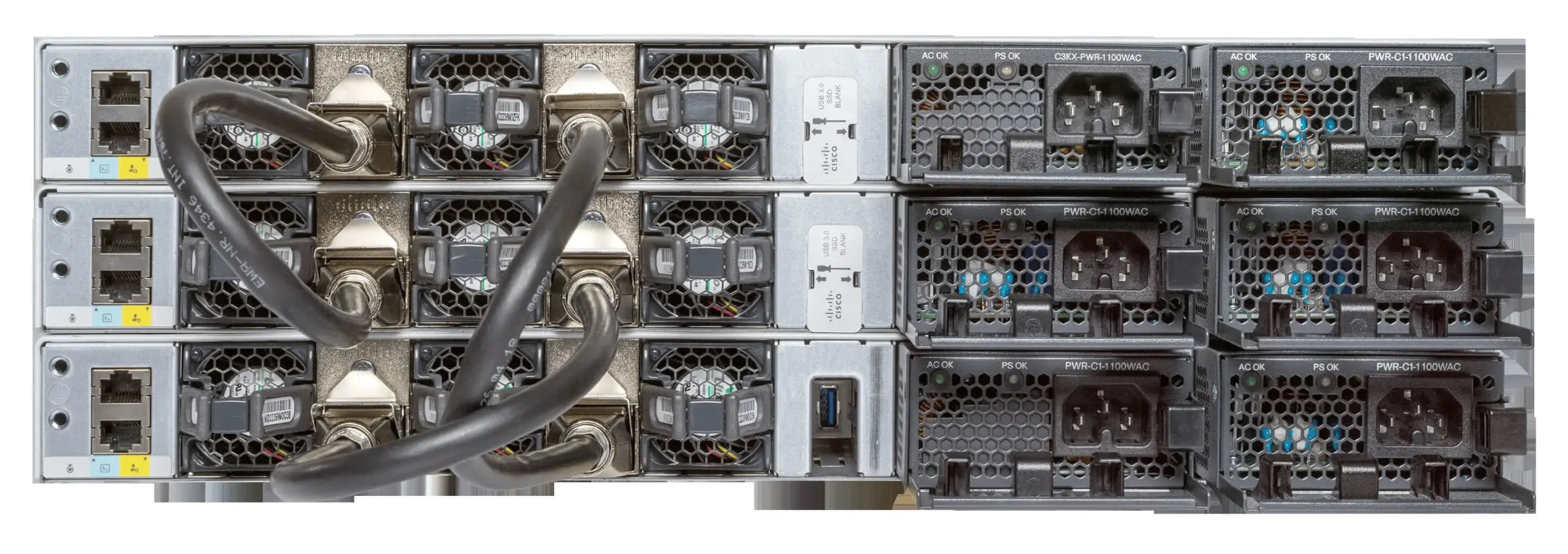

StackWise-480 With StackPower

Up to eight switches join one logical unit at 480 Gbps of stack bandwidth. StackPower lets members share power across the ring.

MACsec-256 And Programmability

MACsec-256 encryption and NETCONF, RESTCONF and YANG model-driven management come with this license. Both matter on fiber links that leave the closet.

Two Power Supply Bays

The switch runs on one 715W AC supply and has a second internal bay. A second PWR-C1-715WAC-P adds 1+1 power redundancy.

Application Scenarios

Inter-Building Fiber Aggregation

A campus building that receives single-mode or multimode fiber drops from several floors can terminate them on the switch’s SFP ports, past the 100 m reach of copper, and pass the traffic upstream through the uplink module.

Encrypted Link Between Buildings

Where a fiber run crosses less secure space, the switch encrypts the link with MACsec-256, and its VRF support keeps tenant or department traffic separated on the same stack.

Routed Fiber Access Stack

A closet that needs BGP or EIGRP at the access layer can stack several switches over StackWise-480 and run routing adjacencies and NETCONF-based automation on the combined unit.

Product Comparison

Parameter

C9300-24S-A

C9300-48S-A

C9300-24T-A

Total 10/100/1000, Multigigabit copper or SFP fiber

24 ports 1G SFP

48 ports 1G SFP

24 ports data

Uplink configuration

Modular uplinks

Modular uplinks

Modular uplinks

Network license

Network Advantage

Network Advantage

Network Advantage

Default AC power supply

715W AC

715W AC

350W AC

Available PoE power

No PoE

No PoE

No PoE

Switching capacity

208 Gbps

256 Gbps

208 Gbps

Forwarding rate

154.76 Mpps

190.47 Mpps

154.76 Mpps

Stack bandwidth

480 Gbps

480 Gbps

480 Gbps

Minimum software release

Cisco IOS XE 16.11.1a

Cisco IOS XE 16.11.1a

Cisco IOS XE 16.5.1a

C9300-24S-A has 24 fixed 1G SFP fiber ports, while C9300-24T-A has 24 1G RJ-45 copper ports at the same 208 Gbps of switching capacity, so a closet wired in copper belongs on C9300-24T-A, which also ships on a 350W supply instead of the 715W PWR-C1-715WAC-P. Closets that need more than 24 fiber drops per switch move to C9300-48S-A, with 48 SFP ports and 256 Gbps of switching capacity. None of the three powers devices over PoE, so a design with powered endpoints needs a different C9300 model. C9300-24S-A and C9300-48S-A start at Cisco IOS XE 16.11.1a against 16.5.1a for C9300-24T-A, a higher software floor for stacks that run an older image.

Ordering Checklist

  • Subscription tier: Select an Advantage term for 24-port fiber models: C9300-DNA-A-24S in 3, 5 or 7 years. The subscription tier must match the Network Advantage switch license; the configurator default is Advantage for 5 years.
  • Uplink module: Keep the default C9300-NM-8X, change it, or select C9300-NM-NONE. The default module is added to the order unless it is changed or removed.
  • Second power supply: A second PWR-C1-715WAC-P is selected by default; C9300-SPS-NONE removes it. The second supply is added to the order unless it is removed.
  • Stack cables: A default 50 cm StackWise cable (C9300-STACK-NONE removes it) and 30 cm StackPower cable (C9300-SPWR-NONE removes it) are added. Both cables are added whether or not the switch is stacked.
  • Power cords: Select the cord type for the destination country. The configurator defaults to North America cords, and two cords ship per switch.

Optional Add-ons

Model

Description

C9300-NM-4G / C9300-NM-4M / C9300-NM-8X / C9300-NM-2Q / C9300-NM-2Y

Field-installable Catalyst 9300 uplink network modules confirmed for the C9300-24S-A modular uplink bay.

PWR-C1-715WAC-P

Second AC power supply, matching the default supply, for 1+1 AC redundancy in the C9300-24S-A power bay.

STACK-T1-50CM / STACK-T1-1M / STACK-T1-3M

StackWise-480 data stacking cables (0.5 m / 1 m / 3 m) for stacking additional C9300-24S-A or other C9300 units.

FAN-T2=

Field-replaceable fan module spare for the standard three-fan N+1 redundant fan tray.

Specifications

Parameter Specification Parameter Specification
Product ID C9300-24S-A Network license Network Advantage
Downlink ports 24x 1G SFP fiber ports Uplink Modular uplink bay, no module installed by default
Management interfaces 10/100/1000 Ethernet management port, RJ-45 console port, USB mini-Type B 5-pin console port SSD storage Rear USB 3.0 SSD bay supports 120 GB / 240 GB SSD modules
Switching capacity 208 Gbps (688 Gbps in an 8-member StackWise-480 stack) Forwarding rate 154.76 Mpps (511.90 Mpps stacked)
MAC addresses 32,000 entries IPv4 routes 32,000 (24,000 direct + 8,000 indirect)
IPv6 routes 16,000 entries Multicast routes 8,000 entries
QoS / ACL entries 5,120 QoS entries, 5,120 ACL entries DRAM / flash 8 GB DRAM, 16 GB Flash
VLAN IDs 4094 Switched virtual interfaces 1,000
PVST instances 300 Packet buffer / FNF flows 16 MB buffer, up to 64,000 FNF flows (Catalyst 9300 Gigabit Ethernet group value)
Stacking StackWise-480, up to 8 members, 480 Gbps stack bandwidth Total routed ports per stack 448
Default power supply PWR-C1-715WAC-P, 715W AC, 100-240VAC 50-60Hz, 2,440 BTU/hr output PoE support Not supported (fiber SFP ports do not source PoE)
Power supply slots 2 internal bays; ships with 1 supply installed and a blank module in the second bay Minimum software release Cisco IOS XE 16.11.1a
Operating temperature -5 to 45C at up to 5000 ft (1500m) Storage temperature -40 to 70C
Operating humidity 5-90% noncondensing Operating altitude Operating up to 10,000 ft (3000m), storage up to 15,000 ft (4500m)
Acoustic noise LpA 45dB typical / 48dB max, LwA 5.6B typical / 5.9B max Connector types LC fiber (SFP), RJ-45 (management), RJ-45-to-DB9 (console)
Dimensions 1.73 x 17.5 x 19.2 in with default power supply (1.73 x 17.5 x 17.7 in chassis only) Weight 7.64 kg (16.84 lb) with default power supply
MTBF 284,130 hours Regulatory compliance UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, FCC Part 15, EN 55032 Class A, CISPR 32 Class A, RoHS 5
License PID family C9300-DNA/DNX-A-24S

Quality Certifications

Customer Reviews

Write A Review
4.9
(10 reviews)
5 Stars
9
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0
    Philip Mason
    Posted on 22/03/2026
    Verified Buyer
    5.0

    I’d recommend giving them a try if you’re on the fence. They deliver.

    Paul Butler
    Posted on 26/02/2026
    Verified Buyer
    5.0

    Solid construction throughout. Inspires confidence in long-term use.

    Roy Reed
    Posted on 15/01/2026
    Verified Buyer
    4.0

    We’ve shipped sensitive equipment ourselves. Layer23 packs better than most. Minor delay in delivery, but everything was in order.

    Thor Odinson
    Posted on 25/07/2025
    Verified Buyer
    5.0

    The package arrived undamaged. Strong packaging.

    Hugo Sinclair
    Posted on 07/05/2025
    Verified Buyer
    5.0

    Stacked four units, link redundancy flawless.

Questions & Answers

  • Can C9300-24S-A be stacked?

    Yes. C9300-24S-A joins a StackWise-480 stack of up to 8 switches at 480 Gbps, and StackPower lets members share power across the ring. Stack members must be Catalyst 9300 models at the same license level.

  • What does Network Advantage on C9300-24S-A include?

    Network Advantage on C9300-24S-A adds BGP, EIGRP, IS-IS, VRF, VXLAN and Cisco TrustSec on top of Layer 2 switching, plus MACsec-256 and NETCONF, RESTCONF and YANG management. The subscription tier must match the Network Advantage switch license.

  • What rack depth does C9300-24S-A need with an 1100W supply installed?

    C9300-24S-A is 19.2 in deep with the default supply and 20.7 in deep with an 1100W supply installed. The bare chassis is shorter by the supply depth. Allow for the deeper figure in the cabinet if you plan to swap the supply later.

  • What input power does the PWR-C1-715WAC-P in C9300-24S-A accept?

    The PWR-C1-715WAC-P accepts 100 to 240 VAC at 50 to 60 Hz, with an input current of 10 to 5 A. It delivers 715W of output and a total output rating of 2440 BTU/hr. Install a second PWR-C1-715WAC-P in the other bay to get 1+1 redundancy for the closet.

  • How large is the packet buffer on C9300-24S-A?

    C9300-24S-A has a 32 MB packet buffer and a Flexible NetFlow table of up to 128,000 flows, matching the 24-port fiber grouping in the Catalyst 9300 data sheet. Standard modular-uplink scale of 32,000 MAC addresses and 5,120 ACL entries applies as well, so plan access policy within those limits.

  • Which management and console ports does C9300-24S-A have?

    C9300-24S-A has a 10/100/1000 Ethernet management port, an RJ-45 console port (EIA/TIA-232) and a USB mini-Type B 5-pin console. The USB console takes priority when both consoles are connected. A rear USB 3.0 bay takes a 120 GB or 240 GB SSD for app-hosting storage.

  • Which bundled licenses come with a Network Advantage subscription on C9300-24S-A?

    A 3, 5 or 7-year Cisco Catalyst or Cisco DNA Advantage subscription bundles Cisco ThousandEyes Network and Application Synthetics (TE-EMBEDDED-T) and Cisco Spaces Extend (D-DNAS-EXT-S-T) for the same term. SD-Access also requires an Advantage subscription, so Essentials terms do not qualify.

  • Which Cisco Catalyst subscription PID matches the Network Advantage license on C9300-24S-A?

    The Cisco Catalyst subscription for C9300-24S-A is the C9300-DNX-A-24S family, and the Cisco DNA subscription is the C9300-DNA-A-24S family, each in 3, 5 or 7-year terms. These fiber PIDs form a dedicated series, so the copper C9300-DNX-A-24 terms do not apply to this switch.

  • Can C9300-24S-A stack with fixed-uplink Catalyst 9300L switches?

    No. Fixed-uplink Catalyst 9300L and 9300LM switches cannot be stacked with modular-uplink Catalyst 9300 switches such as C9300-24S-A. The higher-scale C9300-24UB-A and its related models stack only with each other, so they are also excluded from a stack that includes this switch.

Warranty

100% Low Price Guarantee:

Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.

100% Quality Assurance:

All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.

Free CCIE Technical Support:

Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.

100% Money Back Guarantee:

If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.

Flexible & Secure Payment and Shipping:

We support multiple secure payment and logistics options, backed by industry-leading verification:

Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information

FREE NETWORK TOOLS

Verify, plan, and comparewith confidence

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.

EOL EOSL checker
Check lifecycle dates
cisco switch selector tool

Cisco Switch Selector Tool

Filter Cisco switches by ports, uplinks, PoE, performance, features, license, and budget.

Find matching switches >
cisco sn check tool

Cisco Serial Number Lookup

Verify authenticity and identify exactmodel, coverage, and lifecycle detailsusing a Cisco serial number.

Verify a serial number >

Product Comparison

Compare specifications, capabilitiesand form factors side-by-side tochoose the right hardware.

Cisco Compare products >

DataSheet Downloads

  • C9300-24S-A Datasheet

  • Cisco Catalyst 9300 Switch Datasheet

Related Searches of Catalyst 9300 Switches
