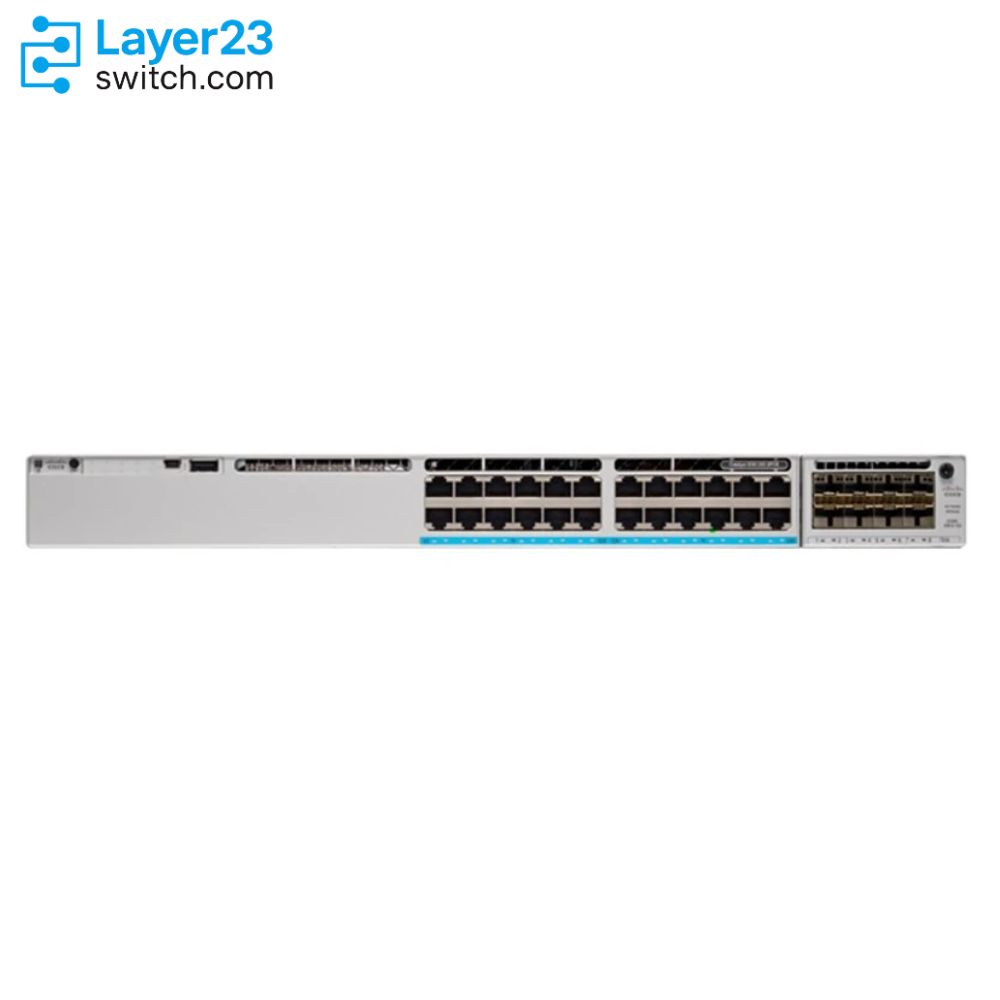

C9300L-24UXG-2Q-E – 8xmGig + 16x1G UPOE Ports – 2x40G QSFP+ Uplinks – 722W PoE Budget
Shop Expert-Recommended Accessories for the C9300L-24UXG-2Q-E
Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.-
PWR-C1-715WAC-P
715W AC PSU - Catalyst 9300 C1 - Platinum RatedOriginal price was: $1,479.00.$403.00Current price is: $403.00. -
PWR-C1-1100WAC-P
1100W AC PSU - Catalyst 9300 C1 - Platinum RatedOriginal price was: $2,317.88.$689.00Current price is: $689.00.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
C9300L-24UXG-2Q-E Description
The C9300L-24UXG-2Q-E is a Cisco Catalyst 9300L Series fixed-uplink stackable access switch for campus closets that connect 10G-capable access points and Gigabit endpoints. The switch combines 8 multigigabit and 16 Gigabit Cisco UPOE copper ports with two fixed 40G QSFP+ uplinks, a 722W default PoE budget and 352 Gbps of switching capacity. The -E suffix carries Network Essentials, which limits OSPF to 1,000 routes and leaves out BGP, VXLAN and MPLS.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300L-24UXG-2Q-E |
|
Product type |
Fixed-uplink stackable mGig UPOE access switch |
|
Downlink ports |
8 x mGig (100M/1G/2.5G/5G/10G) + 16 x 10M/100M/1G copper ports |
|
Fixed uplinks |
2 x 40G QSFP+ |
|
Network license |
Network Essentials |
|
Cisco software subscription |
24-port Essentials term option selected at order time |
|
Default power supply class |
PWR-C1-1100WAC-P 1100W AC |
|
Default PoE budget |
722W |
|
Expanded PoE budget |
1440W with supported secondary power supply configuration |
|
Stacking architecture |
StackWise-320 |
|
Breakout support |
Breakout interfaces supported from Cisco IOS XE Gibraltar 16.12.2 |
|
Switching capacity |
352 Gbps standalone; 672 Gbps with stacking |
|
Forwarding rate |
261.90 Mpps standalone; 500.00 Mpps with stacking |
Product Performance
Key Features
Eight ports run 100M through 10G and the other sixteen run 10M to 1G. Faster access points take the multigigabit ports, and the rest of the closet stays on Gigabit.
The two QSFP+ uplinks are part of the chassis, so there is no uplink module to select. Breakout interfaces are supported from Cisco IOS XE Gibraltar 16.12.2 for splitting a 40G port into 10G links.
With the default 1100W supply, 722W is available for powered devices. A 350W second supply brings the total to 1072W, and a 715W or 1100W second supply to 1440W.
The ports support Cisco UPOE at 60W and IEEE 802.3bt Type 3. Delivering that power on all 24 ports takes two 1100W supplies.
The tier covers Layer 2, routed access with OSPF up to 1,000 routes, 802.1X and MACsec-128. BGP, VRF, VXLAN and MACsec-256 belong to Network Advantage.
Stacking runs on StackWise-320 with a C9300L stack kit and a choice of cable lengths. StackPower is not available on Catalyst 9300L switches.
Application Scenarios
On a campus office floor, the switch feeds multigigabit access points from its eight faster UPOE ports and connects phones and desktops through the sixteen Gigabit ports.
A school building with classroom access points and cameras can land them on this switch and carry the traffic to the main distribution room over a 40G QSFP+ uplink.
A branch office that needs only Layer 2 and basic routed access can stack several switches over StackWise-320 and uplink the stack to the site core at 40G.
Product Comparison
|
Parameter |
C9300L-24UXG-2Q-E | |||
|---|---|---|---|---|
|
Total 10/100/1000, Multigigabit copper or SFP fiber |
24 ports Cisco UPOE: 8 Multigigabit (10G/5G/2.5G/1G/100M) + 16 1G (1G/100M/10M) |
24 ports Cisco UPOE: 8 Multigigabit (10G/5G/2.5G/1G/100M) + 16 1G (1G/100M/10M) |
24 ports Cisco UPOE: 8 Multigigabit (10G/5G/2.5G/1G/100M) + 16 1G (1G/100M/10M) |
48 ports Cisco UPOE: 12 Multigigabit (10G/5G/2.5G/1G/100M) + 36 1G (1G/100M/10M) |
|
Uplink configuration |
2x 40G fixed uplinks |
2x 40G fixed uplinks |
4x 10G/1G fixed uplinks |
2x 40G fixed uplinks |
|
Available PoE (default) |
722W |
722W |
880W |
675W |
|
Available PoE (maximum) |
1440W |
1440W |
1440W |
1775W |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
Stack bandwidth |
320 Gbps (StackWise-320) |
320 Gbps (StackWise-320) |
320 Gbps (StackWise-320) |
320 Gbps (StackWise-320) |
|
Switching capacity |
352 Gbps; 672 Gbps with stacking |
352 Gbps; 672 Gbps with stacking |
272 Gbps; 592 Gbps with stacking |
472 Gbps; 792 Gbps with stacking |
C9300L-24UXG-2Q-E carries Network Essentials where C9300L-24UXG-2Q-A carries Network Advantage on identical hardware: the same 8 mGig plus 16 1G UPOE copper ports, two fixed 40G QSFP+ uplinks and 722W default PoE. A site that needs Network Advantage from day one should order C9300L-24UXG-2Q-A, and an installed Essentials switch can move up later with a C9300L-LIC= term (C9300L-24-E-A-3, -5 or -7), which cannot be placed on the switch order. Four 10G/1G SFP+ uplinks and 880W of default PoE come with C9300L-24UXG-4X-E, at 272 Gbps against 352 Gbps. More than 24 copper drops call for C9300L-48UXG-2Q-E, with 12 mGig and 36 1G ports and 472 Gbps, but only 675W by default.
PoE Power Planning
|
Planning Item |
Cisco Confirmed Value |
Order Impact |
|---|---|---|
|
UPOE class |
C9300L-24UXG-2Q-E is listed in the UPOE Type 3 switch group for IEEE 802.3bt mode |
Match powered endpoints to the correct UPOE class before port allocation |
|
Default PoE budget |
722W with the 1100W AC power-supply class |
Size endpoint demand against the default switch budget before adding secondary power |
|
Access-port mix |
8 mGig UPOE ports plus 16 additional copper access ports |
Keep high-draw endpoints assigned to the ports and speeds supported by the C9300L-24UXG profile |
|
Power and cord scope |
Cisco ordering requires the correct power supply and regional power cable choices |
Confirm the destination cord and power plan before pricing or stock review |
Ordering Checklist
- Subscription tier: Order a Network Essentials term: C9300L-DNA-E-24-xY (Cisco DNA) or C9300L-DNX-E-24-xY (Cisco Catalyst), with x = 3, 5 or 7. New orders require a subscription of the same tier as the built-in Network Essentials license, and the configurator defaults to Cisco DNA Advantage for 5 years.
- Second power supply: A second PWR-C1-1100WAC-P is selected by default; C9300L-SPS-NONE removes it. Without it PoE stays at the 722W single-supply level; the 1440W maximum needs a second supply.
- Stack kit: Choose C9300L-STACK-KIT (STACK-T3 cable) or C9300L-STACK-KIT2 (STACK-T3A cable), with a 50 cm, 1 m or 3 m cable. A C9300L stack kit holds two adapters and one cable, and the cable series must match the kit.
- Power cords: Select the cord type for the destination country; two cords ship and the default is North America. The wrong cord type does not fit the local outlet.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Cisco DNA Essentials 24-port 3-year term subscription for C9300L fixed-uplink switches | |
|
C9300L-DNA-E-24-5Y |
Cisco DNA Essentials 24-port 5-year term subscription for C9300L fixed-uplink switches |
|
C9300L-DNA-E-24-7Y |
Cisco DNA Essentials 24-port 7-year term subscription for C9300L fixed-uplink switches |
|
C9300L-DNX-E-24-3Y |
Cisco Catalyst Essentials 24-port 3-year term subscription option for C9300L and C9300LM models |
|
Stack kit for C9300L SKUs with two stack adapters and one stack cable | |
|
C9300L-STACK-KIT2 |
Stack Kit 2 for C9300L SKUs with two stack adapters and one stack cable |
|
50 cm Type 3 stacking cable for C9300L Stack Kit builds | |
|
50 cm Type 3A stacking cable for C9300L Stack Kit2 builds |
C9300L-24UXG-2Q-E Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300L-24UXG-2Q-E | Product type | Fixed-uplink stackable mGig UPOE access switch |
| Network license | Network Essentials | Cisco software subscription | 24-port Essentials term option selected at order time |
| Downlink ports | 8 x mGig plus 16 x 1G copper ports | MGig port speeds | 100M, 1G, 2.5G, 5G, and 10G |
| GbE port speeds | 10M, 100M, and 1G | Fixed uplinks | 2 x 40G QSFP+ ports |
| Uplink comparison | 2Q profile uses QSFP+ instead of 4X SFP+ | PoE standards | Cisco UPOE Type 3 support on C9300L-24UXG-2Q-E |
| Default PoE budget | 722W | Default power supply class | 1100W AC power supply |
| Stacking architecture | StackWise-320 | Stack kit options | C9300L-STACK-KIT or C9300L-STACK-KIT2 |
| Breakout support | C9300L-24UXG-2Q-E supports breakout interfaces | Breakout release | Cisco IOS XE Gibraltar 16.12.2 |
| Switching capacity | 352 Gbps standalone | Switching capacity with stacking | 672 Gbps |
| Forwarding rate | 261.90 Mpps standalone | Forwarding rate with stacking | 500.00 Mpps |
| Dimensions | 1.73 x 17.5 x 19.2 in. (4.4 x 44.5 x 48.8 cm) | Weight | 7.26 kg (16.01 lb) |
| Minimum software release | Cisco IOS XE Gibraltar 16.12.2 |
Get More Information
Need pricing, stock, or shipping details for the C9300L-24UXG-2Q-E ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Can C9300L-24UXG-2Q-E be stacked with a Network Advantage switch?
-
Which cable category does each multigigabit port on C9300L-24UXG-2Q-E need for 10G?
-
How much power does a device receive from a UPOE port on C9300L-24UXG-2Q-E?
-
Which default SDM values does C9300L-24UXG-2Q-E use?
-
Are the fans of C9300L-24UXG-2Q-E field-replaceable?
-
Can C9300L-24UXG-2Q-E take a DC power supply?
