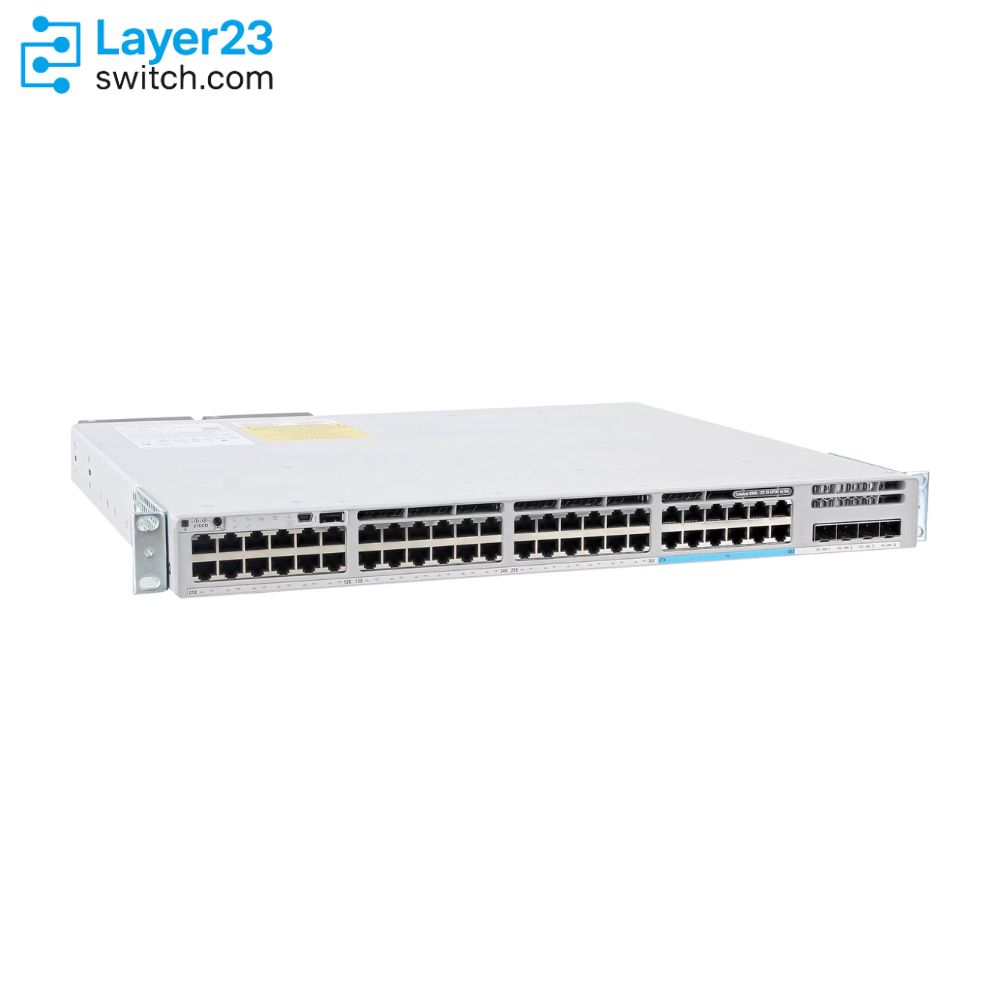

C9300L-48UXG-4X-E – 12x mGig + 36x1G UPOE Ports – Fixed 4x10G Uplinks – 675W PoE Budget – Network Essentials
Shop Expert-Recommended Accessories for the C9300L-48UXG-4X-E
Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $853.95.$52.00Current price is: $52.00. -
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4Original price was: $1,213.85.$91.68Current price is: $91.68. -
SFP-10G-SR-X
10GBASE-SR SFP+ - Extended Temp - 400m OM4 MMFOriginal price was: $1,942.00.$298.70Current price is: $298.70. -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $2,439.88.$150.00Current price is: $150.00. -
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km ReachOriginal price was: $4,873.66.$149.00Current price is: $149.00. -
SFP-10G-LR-X
10GBASE-LR SFP+ - Extended Temp - 10km SMFOriginal price was: $11,206.77.$306.00Current price is: $306.00. -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $1,260.58.$95.80Current price is: $95.80. -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $570.10.$70.00Current price is: $70.00. -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $633.46.$59.00Current price is: $59.00. -
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOMOriginal price was: $2,527.49.$205.00Current price is: $205.00. -
PWR-C1-1100WAC-P
1100W AC PSU - Catalyst 9300 C1 - Platinum RatedOriginal price was: $2,317.88.$689.00Current price is: $689.00.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
C9300L-48UXG-4X-E Description
The C9300L-48UXG-4X-E is a Cisco Catalyst 9300L fixed-uplink UPOE access switch for wiring closets that switch at Layer 2 or route the access edge with OSPF under Network Essentials. All 48 RJ-45 ports carry Cisco UPOE at up to 60W, 12 of them Multigigabit up to 10G and 36 at 10/100/1000 Mbps, with four fixed 10G/1G SFP+ uplinks and 392 Gbps of switching capacity. The default 1100W supply provides a 675W PoE budget, and Network Essentials caps OSPF at 1,000 routes and omits BGP, VRF and VXLAN.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300L-48UXG-4X-E |
|
Network license |
Network Essentials |
|
Downlink ports |
12 x Multigigabit (100M/1G/2.5G/5G/10G) + 36 x 10/100/1000 Mbps RJ-45 |
|
PoE |
Cisco UPOE, up to 60W per port |
|
Default PoE budget |
675W |
|
PoE budget with second 1100W supply |
1775W |
|
Default power supply |
PWR-C1-1100WAC-P (1100W AC) |
|
Uplinks |
4 x 10G/1G SFP+, fixed |
|
Switching capacity |
392 Gbps (712 Gbps with stacking) |
|
Forwarding rate |
291.66 Mpps (529.76 Mpps with stacking) |
|
Stacking |
StackWise-320 at 320 Gbps, up to 8 members |
|
Minimum software release |
Cisco IOS XE Gibraltar 16.12.2 |
Product Performance
Key Features
The switch can act as the first-hop router for its own VLANs. Network Essentials includes RIP, EIGRP Stub and OSPF up to 1,000 routes, along with policy-based routing, VRRP gateway redundancy and PIM Stub multicast for up to 1,000 routes.
802.1X port authentication, MACsec-128, private VLANs and control-plane policing all come with this license. Model-driven telemetry, sampled NetFlow, SPAN and RSPAN are included as well, so monitoring does not depend on the license tier.
Cisco UPOE reaches every one of the 48 ports, not just the Multigigabit twelve. Virtual desktop terminals, building management gateways and LED fixtures that need up to 60W can therefore land on any of the 36 Gigabit ports, and PoE+ and standard PoE devices are supported on the same ports.
On the twelve Multigigabit ports, Cat5e carries 100M through 5G, and bundled Cat5e runs at 5G are limited to 45 m. For 10G, Cat6 works up to 55 m and Cat6A up to the full 100 m. These ports run full duplex only.
Inside the switch, 392 Gbps of capacity forwards every port at line rate for IPv4 and IPv6. The exit is narrower: 156 Gbps of possible access traffic meets 40 Gbps across the four fixed SFP+ uplinks, and with no network module slot that uplink capacity cannot grow later.
Up to eight Catalyst 9300L or 9300LM switches stack as one unit over StackWise-320 at 320 Gbps. Modular-uplink Catalyst 9300 and 9300X switches cannot join the stack, and there is no StackPower, so every member draws on its own supplies.
Application Scenarios
In a campus where the distribution pair handles all routing, the switch trunks access-point, phone and desktop VLANs upstream over its SFP+ uplinks and leaves gateway duties to the layer above.
A school or mid-size office that routes at the access layer can run the closet as an OSPF area member, provided the campus routing table stays under 1,000 routes.
Open-plan floors with shared desks plug virtual desktop terminals and IP phones into UPOE ports, and each device authenticates through 802.1X before it reaches the user VLAN.
Product Comparison
|
Parameter |
C9300L-48UXG-4X-E | |||
|---|---|---|---|---|
|
Network stack |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
Switch fundamentals |
Routed Access (RIP, EIGRP Stub, OSPF – 1,000 routes) |
Routed Access (RIP, EIGRP Stub, OSPF) |
Routed Access (RIP, EIGRP Stub, OSPF – 1,000 routes) |
Routed Access (RIP, EIGRP Stub, OSPF – 1,000 routes) |
|
Advanced switch capabilities and scale |
Not included |
BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM-BIDIR, IP SLA, OSPF |
Not included |
Not included |
|
Network segmentation |
Not included |
VRF, VXLAN, LISP, Cisco TrustSec, SGT, MPLS, mVPN |
Not included |
Not included |
|
Total 10/100/1000, Multigigabit copper or SFP fiber |
48 ports Cisco UPOE: 12 Multigigabit + 36 x 1G |
48 ports Cisco UPOE: 12 Multigigabit + 36 x 1G |
48 ports Cisco UPOE: 12 Multigigabit + 36 x 1G |
24 ports Cisco UPOE: 8 Multigigabit + 16 x 1G |
|
Uplink configuration |
4 x 10G/1G fixed uplinks |
4 x 10G/1G fixed uplinks |
2 x 40G fixed uplinks |
4 x 10G/1G fixed uplinks |
|
Available PoE power, default supply |
675W |
675W |
675W |
880W |
|
Available PoE power with 1100W secondary PS |
1775W |
1775W |
1775W |
1440W |
|
Switching capacity |
392 Gbps |
392 Gbps |
472 Gbps |
272 Gbps |
C9300L-48UXG-4X-E and C9300L-48UXG-4X-A use the same 48 UPOE ports and 4 x 10G/1G SFP+ uplinks, but Network Essentials stops at 1,000 OSPF routes and has no BGP, IS-IS, VRF, VXLAN or TrustSec. Closets that need any of them on day one must order C9300L-48UXG-4X-A; an installed Essentials switch can move up later with a C9300L-48-E-A term license under C9300L-LIC=, which cannot be placed on the switch order. A 40G handoff on Essentials calls for C9300L-48UXG-2Q-E, which replaces the four SFP+ ports with two QSFP+ and reaches 472 Gbps against 392 Gbps. For 24 or fewer drops, C9300L-24UXG-4X-E offers an 880W default budget with eight Multigigabit ports.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Port power class |
Cisco UPOE, up to 60W per port, on all 48 ports |
|
Default PoE budget |
675W on the PWR-C1-1100WAC-P supply |
|
Budget with a 350W second supply |
1025W |
|
Budget with a 715W second supply |
1390W |
|
Budget with an 1100W second supply |
1775W |
|
Full 60W endpoints on the default budget |
11 ports (660W) |
|
Full 30W PoE+ endpoints on the default budget |
22 ports (660W) |
|
Full 60W endpoints with two 1100W supplies |
29 ports (1740W); 48 ports at 60W would need 2880W |
|
Average per port with all 48 drawing |
About 14W at 675W, about 37W at 1775W |
|
Empty second bay |
A blank module fills the bay whenever no second supply is installed |
|
Endpoint check |
Add the maximum class draw of the planned access points, terminals and lighting before choosing the supply pair |
Ordering Checklist
- Subscription tier: Order a 48-port Essentials term of 3, 5 or 7 years, such as C9300L-DNA-E-48-5Y for Cisco DNA or C9300L-DNX-E-48-5Y for Cisco Catalyst. New orders need the subscription at the same tier as the Network Essentials license.
- Second power supply: The configurator adds a second PWR-C1-1100WAC-P by default and C9300L-SPS-NONE removes it. With the second supply the PoE budget is 1775W; without it, 675W.
- Stack kit: C9300L-STACK-KIT with a 50 cm cable is added by default; Catalyst 9300LM members take only C9300L-STACK-KIT2. A stack that includes 9300LM switches needs Kit 2 adapters.
- Power cords: Select the cord type for the destination country; two cords ship with the default configuration. The configurator defaults to North America cords.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Spare 1100W AC Platinum-rated power supply; as the second supply it raises the PoE budget to 1775W | |
|
Spare 715W AC Platinum-rated power supply; as the second supply it raises the PoE budget to 1390W | |
|
Spare 350W AC Platinum-rated power supply; as the second supply it raises the PoE budget to 1025W | |
|
StackWise-320 kit with two stack adapters and a 50 cm STACK-T3 cable | |
|
C9300L-STACK-KIT2 |
StackWise-320 kit with two stack adapters and a 50 cm STACK-T3A cable; used with Catalyst 9300LM members |
|
1 m Type 3 stacking cable for the C9300L stack kit | |
|
STACK-T3-3M |
3 m Type 3 stacking cable for the C9300L stack kit |
|
FAN-T2= |
Spare fan module |
|
SSD-120G |
Pluggable USB 3.0 120 GB SSD for the rear SSD port |
|
Pluggable USB 3.0 240 GB SSD for the rear SSD port |
C9300L-48UXG-4X-E Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300L-48UXG-4X-E | Network license | Network Essentials, perpetual and included with the hardware |
| Network Essentials feature set | Layer 2; RIP, EIGRP Stub, OSPF up to 1,000 routes; PBR; PIM Stub multicast up to 1,000 routes; PVLAN, VRRP, QoS, 802.1X, MACsec-128, CoPP, SXP, SSO | Visibility features | Model-driven telemetry, sampled NetFlow, SPAN, RSPAN |
| Downlink ports | 12 x Multigigabit (100M/1G/2.5G/5G/10G) + 36 x 10/100/1000 Mbps RJ-45 | PoE | Cisco UPOE, up to 60W per port; PoE+ and PoE |
| Uplinks | 4 x 10G/1G SFP+, fixed; no network module slot | Default power supply | PWR-C1-1100WAC-P (1100W AC, Platinum-rated) |
| Default PoE budget | 675W | PoE budget with 350W second supply | 1025W |
| PoE budget with 715W second supply | 1390W | PoE budget with 1100W second supply | 1775W |
| Power supply slots | 2; one supply installed, blank in the second bay | Power supply input | 115-240 VAC, 50-60 Hz, 12-6 A (PWR-C1-1100WAC-P) |
| Power supply heat dissipation | 3,754 BTU/hr output (PWR-C1-1100WAC-P) | Measured power, full port traffic | 163.14W (1100W supply, 115 VAC) |
| Measured power, weighted average | 152.09W (1100W supply, 115 VAC) | Measured power, 100% PoE load | 918.4W (1100W supply, 115 VAC) |
| Switching capacity | 392 Gbps | Switching capacity with stacking | 712 Gbps |
| Forwarding rate | 291.66 Mpps (64-byte IPv4 packets) | Forwarding rate with stacking | 529.76 Mpps |
| DRAM | 8 GB | Flash | 16 GB |
| MAC addresses | 32,000 | IPv4 routes | 32,000 (24,000 direct routes, 8,000 indirect routes) |
| IPv6 routes | 16,000 | Multicast routes | 8,000 |
| QoS entries | 5,120 | ACL entries | 5,120 |
| VLAN IDs | 4094 | PVST instances | 300 |
| STP virtual ports for PVST | 13,000 | STP virtual ports for MST | 13,000 |
| Switched virtual interfaces | 1,000 | Jumbo frames | 9198 bytes |
| Total routed ports per stack | 416 | Stacking | StackWise-320, 320 Gbps, up to 8 members |
| Stack membership | Catalyst 9300L and 9300LM switches at the same license level; no stacking with modular-uplink Catalyst 9300 or 9300X | Stacking hardware | Optional C9300L-STACK-KIT or C9300L-STACK-KIT2: two stack adapters and one cable (0.5 m default; 1 m and 3 m options) |
| Management port | 10/100/1000 RJ-45 | Console port | RJ-45 console port and USB mini-Type B console port |
| USB port | USB Type A, USB 3.0, 900 mA at 5 V; 128 MB to 8 GB flash drives | SSD storage | Rear USB 3.0 SSD port for a 120 GB or 240 GB SSD module |
| Multigigabit cabling | 100M to 5G on Cat5e (bundled 5G runs up to 45 m); 10G on Cat6 up to 55 m or Cat6A up to 100 m; full duplex only | Copper port cabling | RJ-45, 4-pair Cat 5E UTP (1000BASE-T); Cat 5E/6/6A UTP (Multigigabit) |
| Fan modules | 3 hot-swappable FAN-T2= fan modules with N+1 redundancy | Airflow | Front-to-rear and side-to-rear |
| Fan module airflow | 20 cfm | Operating temperature | -5°C to +45°C up to 5000 ft (1500 m); -5°C to +40°C up to 10,000 ft (3000 m) |
| Storage temperature | -40°C to +70°C | Operating humidity | 5% to 90%, noncondensing |
| Operating altitude | Up to 10,000 ft (3000 m) | Storage altitude | Up to 15,000 ft (4500 m) |
| Acoustic noise | LpA 44 dB typical, 47 dB max; LwA 5.5B typical, 5.8B max (C9300L, AC supply, half the PoE+ ports loaded, 25°C) | Dimensions, chassis only (H x W x D) | 4.4 x 44.5 x 40.9 cm |
| Dimensions with default power supply (H x W x D) | 1.73 x 17.5 x 19.2 in (4.4 x 44.5 x 48.8 cm) | Weight | 7.65 kg (16.86 lb) |
| MTBF | 273,820 hours | Safety certifications | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1 |
| EMC certifications | 47 CFR Part 15, EN 55032 Class A, CISPR 32 Class A, EN 55035, CISPR 35, EN 300 386, ICES-003 Class A, VCCI-CISPR 32 Class A, KN32, KN35, CNS13438, QCVN 118:2018/BTTTT | Environmental compliance | RoHS 5 |
| IEEE standards | 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3ae, 802.3af, 802.3at, 802.3an, 802.3bz | Management standards | SNMPv1, SNMPv2c, SNMPv3, RMON I and II |
| Minimum software release | Cisco IOS XE Gibraltar 16.12.2 |
Quality Certifications
Customer Reviews
Questions & Answers
-
Can C9300L-48UXG-4X-E be stacked?
-
What does Network Essentials on C9300L-48UXG-4X-E include?
-
Does C9300L-48UXG-4X-E support MACsec-256?
-
Can C9300L-48UXG-4X-E act as a VXLAN BGP EVPN leaf?
-
Does an SMU patch on C9300L-48UXG-4X-E require a reload?
-
Can C9300L-48UXG-4X-E share power with other stack members through StackPower?
-
What default SDM template limits does C9300L-48UXG-4X-E use?
-
How do I take C9300L-48UXG-4X-E out of service without dropping routed traffic?
