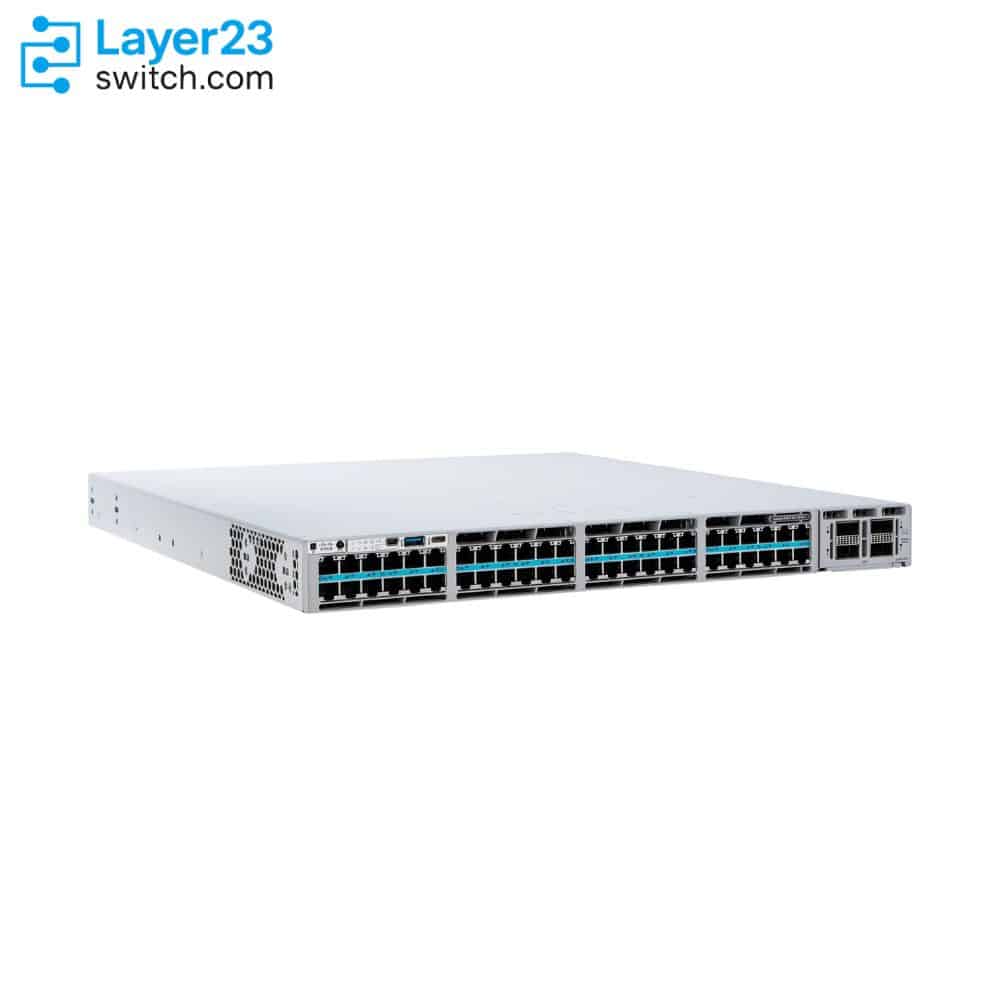

C9300L-48UXG-4X-M – 12x10G mGig + 36x1G UPOE – 4x10G Fixed Uplinks – Meraki – 675W PoE Budget
9/mo Solds
Cisco C9300L-48UXG-4X-M Compatible Accessories, Modules & Spare Parts
Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco C9300L-48UXG-4X-M. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.
Optics & Cables Compatible with Cisco C9300L-48UXG-4X-M
-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $1,870.01.$50.00Current price is: $50.00. Condition: New Factory Sealed -
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4Original price was: $2,658.11.$71.68Current price is: $71.68. Condition: New Factory Sealed -
SFP-10G-SR-X
10GBASE-SR SFP+ - Extended Temp - 400m OM4 MMFOriginal price was: $3,785.89.$1,020.00Current price is: $1,020.00. Condition: New Factory Sealed -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $5,342.92.$128.00Current price is: $128.00. Condition: New Factory Sealed -
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km ReachOriginal price was: $10,672.47.$170.00Current price is: $170.00. Condition: New Factory Sealed -
SFP-10G-LR-X
10GBASE-LR SFP+ - Extended Temp - 10km SMFOriginal price was: $11,206.77.$306.00Current price is: $306.00. Condition: New Factory Sealed -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $2,658.11.$95.80Current price is: $95.80. Condition: New Factory Sealed -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $1,202.16.$62.50Current price is: $62.50. Condition: New Factory Sealed -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $1,335.73.$57.00Current price is: $57.00. Condition: New Factory Sealed -
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOMOriginal price was: $5,329.57.$205.00Current price is: $205.00. Condition: New Factory Sealed
Power Supplies & Fans Compatible with Cisco C9300L-48UXG-4X-M
-
PWR-C1-1100WAC-P
1100W AC PSU - Catalyst 9300 C1 - Platinum RatedOriginal price was: $2,317.88.$635.40Current price is: $635.40. Condition: New Factory Sealed
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9300L-48UXG-4X-M Description
C9300L-48UXG-4X-M is a Cisco Catalyst 9300L-M fixed-uplink UPOE access switch for Meraki-managed campus access networks. It combines 12 multigigabit copper ports, 36 additional 1G copper ports, four 10G/1G SFP+ fixed uplinks, a 675W PoE budget with the default 1100W AC power supply, and StackWise-320 support, giving buyers a 48-port access switch for mixed high-speed endpoints, standard Ethernet devices, and fiber uplink handoff under Meraki Advanced or Enterprise licensing.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300L-48UXG-4X-M |
|
Product type |
Fixed-uplink stackable UPOE access switch |
|
Access ports |
12 x mGig (100M/1G/2.5G/5G/10G) + 36 x GbE (10M/100M/1G) copper ports |
|
Uplink ports |
4 x 10G/1G SFP+ fixed uplink ports |
|
PoE capability |
60W UPOE |
|
Software option |
Meraki Advanced or Enterprise |
|
Meraki license term |
1, 3, 5, 7, or 10 years |
|
Default power supply |
PWR-C1-1100WAC-P-M |
|
Default PoE budget |
675W with primary power supply |
|
Expanded PoE budget |
1775W with supported secondary power supply configuration |
|
Stacking architecture |
StackWise-320 with C9300L-STAK-KIT2-M for intended stacks |
|
Switching capacity |
392 Gbps standalone; 712 Gbps with stacking |
|
Forwarding rate |
291.66 Mpps standalone; 529.76 Mpps with stacking |
Product Performance
Key Features
The access side combines twelve 100M to 10G mGig copper ports with thirty-six 10M to 1G copper ports under the Catalyst 9300L-M software path.
The `-M` suffix ties the order to Meraki licensing rather than the Network Essentials `-E` or Network Advantage `-A` Catalyst order path.
Four 10G/1G SFP+ uplinks are built into the switch, so the uplink design is not handled through a modular C9300 network module.
Cisco Meraki lists this C9300L-48UXG model with 60W UPOE capability, making endpoint power class and cable quality part of the access-port review.
C9300L-M stacking uses the StackWise-320 hardware path, and Cisco Meraki documents C9300L-STAK-KIT2-M as required for each C9300L switch intended for a stack.
The default PWR-C1-1100WAC-P-M supply, 675W primary PoE value, and dual hot-swappable power supply support should stay visible in the BOM.
Application Scenarios
C9300L-48UXG-4X-M fits sites standardizing on the Meraki Dashboard where access points or powered edge devices need a mix of mGig and 1G copper ports.
Use this SKU when the 24-port C9300L-24UXG-4X-M access count is too small but the deployment still needs the Meraki-managed 4X fixed-uplink design.
Choose this order path when the C9300L-48UXG-4X hardware is correct and the organization requires Meraki Advanced or Enterprise licensing instead of Catalyst Network Essentials or Network Advantage.
Product Comparison
|
Parameter |
C9300L-48UXG-4X-M | |||
|---|---|---|---|---|
|
Product type |
Fixed-uplink access switch |
Fixed-uplink access switch |
Fixed-uplink access switch |
Fixed-uplink access switch |
|
Access ports |
12 x mGig + 36 x 1G copper |
12 x mGig + 36 x 1G copper |
12 x mGig + 36 x 1G copper |
8 x mGig + 16 x 1G copper |
|
Access power class |
60W UPOE |
UPOE |
UPOE |
60W UPOE |
|
Uplink ports |
4 x 10G/1G SFP+ fixed |
4 x 10G/1G SFP+ fixed |
4 x 10G/1G SFP+ fixed |
4 x 10G/1G SFP+ fixed |
|
Software option |
Meraki Advanced or Enterprise |
Network Advantage |
Network Essentials |
Meraki Advanced or Enterprise |
|
Management mode |
Cisco Meraki Dashboard |
Catalyst software ordering path |
Catalyst software ordering path |
Cisco Meraki Dashboard |
|
Default power supply |
PWR-C1-1100WAC-P-M |
1100W AC power-supply class |
1100W AC power-supply class |
PWR-C1-1100WAC-P-M |
|
Default PoE budget |
675W |
675W power profile |
675W power profile |
880W |
|
Expanded PoE budget |
1775W with supported secondary power supply configuration |
1775W with supported secondary power supply configuration |
1775W with supported secondary power supply configuration |
1440W with supported secondary power supply configuration |
|
Stacking architecture |
StackWise-320 with C9300L-STAK-KIT2-M |
StackWise-320 |
StackWise-320 |
StackWise-320 with C9300L-STAK-KIT2-M |
|
Switching capacity |
392 Gbps standalone; 712 Gbps with stacking |
392 Gbps standalone; 712 Gbps with stacking |
392 Gbps standalone; 712 Gbps with stacking |
272 Gbps standalone; 592 Gbps with stacking |
|
Forwarding rate |
291.66 Mpps standalone; 529.76 Mpps with stacking |
291.66 Mpps standalone; 529.76 Mpps with stacking |
291.66 Mpps standalone; 529.76 Mpps with stacking |
202.38 Mpps standalone; 440.47 Mpps with stacking |
- In a C9300L-48UXG-4X-M vs C9300L-48UXG-4X-A comparison, the table keeps the same C9300L-48UXG-4X hardware rows and separates Meraki Advanced or Enterprise from Network Advantage.
- The C9300L-48UXG-4X-M vs C9300L-48UXG-4X-E difference is the software option: Meraki licensing and Dashboard management replace the Network Essentials Catalyst order path.
- For C9300L-48UXG-4X-M vs C9300L-24UXG-4X-M, the comparison changes from 48 access ports with 12 mGig ports to 24 access ports with 8 mGig ports.
- The C9300L-48UXG-4X-M vs C9300L-48P-4X-M comparison should focus on mGig UPOE access and 675W primary PoE versus all-1G PoE+ access and a 505W primary PoE value.
Selection Guide
1. Select it for Meraki-managed C9300L-48UXG access
Choose C9300L-48UXG-4X-M when the BOM requires Meraki Dashboard management, 12 mGig access ports, 36 additional 1G access ports, and four fixed SFP+ uplinks.
2. Use A or E for Catalyst licensing
Move to C9300L-48UXG-4X-A or C9300L-48UXG-4X-E when the same hardware should stay under Network Advantage or Network Essentials instead of the Meraki Advanced or Enterprise path.
3. Keep C9300L-24UXG-4X-M for smaller access blocks
Select C9300L-24UXG-4X-M only when 8 mGig ports and 16 additional 1G ports are enough for the Meraki-managed access closet.
4. Do not replace mGig with C9300L-48P-4X-M by accident
Use C9300L-48P-4X-M when the access design needs 48 all-1G PoE+ ports, not the 12-port mGig UPOE access mix of the C9300L-48UXG model.
PoE Power Planning
|
Planning Item |
Cisco Confirmed Value |
Order Impact |
|---|---|---|
|
UPOE port class |
60W UPOE on the C9300L-48UXG-4X-M access profile |
Match high-power endpoints to the UPOE model rather than a PoE+ C9300L-48P order |
|
Primary PoE budget |
675W with the primary PWR-C1-1100WAC-P-M supply |
Size endpoint draw against the default power condition before the quote is released |
|
Secondary power planning |
1775W with the secondary power-supply condition shown for this model |
Confirm redundancy and endpoint power headroom before adding a second supply |
|
Input power check |
1100W AC power supplies require 115V to 240V AC input range |
Confirm regional power cords and site voltage before ordering the hardware |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Meraki order identity |
C9300L-48UXG-4X-M with the `-M` suffix |
Avoids ordering the Network Advantage or Network Essentials version by mistake |
|
Access copper count |
12 multigigabit ports and 36 GbE copper ports |
Keeps the BOM on the 48-port C9300L-48UXG profile instead of a C9300L-24UXG or C9300L-48P substitute |
|
License model |
Meraki Advanced or Enterprise with the selected 1, 3, 5, 7, or 10 year term |
Prevents a license mismatch in the target Meraki organization |
|
Powered endpoint plan |
60W UPOE capability and 675W primary available PoE |
Checks powered-device load before secondary power is added |
|
Fiber handoff |
Four fixed 10G/1G SFP+ uplinks |
Separates this order from the 2Q QSFP uplink variants during optic selection |
|
Physical stack materials |
C9300L-STAK-KIT2-M and Type 3A cable length |
Accounts for stack adapters because C9300L-M units do not include stack ports by default |
Optional Add-ons
|
Model |
Description |
|---|---|
|
1100W AC power supply for C9300, C9300L, and C9300X Meraki-option platforms | |
|
C9300L-STAK-KIT2-M |
Stack kit for C9300L-M switches with two adapters and one 50 cm stack cable |
|
50 cm Type 3A stacking cable spare for C9300L-M stack kit use | |
|
1 m Type 3A stacking cable spare for C9300L-M stack kit use | |
|
3 m Type 3A stacking cable spare for C9300L-M stack kit use | |
|
FAN-T2-M |
System fan for C9300, C9300L, and C9300X Meraki-option platforms |
|
4PT-KIT-T2-M |
Catalyst 9300-M rack mount kit for C9300, C9300L, and C9300X platforms |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300L-48UXG-4X-M | Product type | Fixed-uplink stackable UPOE access switch |
| Management mode | Cisco Meraki Dashboard | Software option | Meraki Advanced or Enterprise |
| Meraki license terms | 1, 3, 5, 7, or 10 years | Access ports | 12 x mGig plus 36 x GbE copper ports |
| mGig speeds | 100M, 1G, 2.5G, 5G, and 10G | GbE port speeds | 10M, 100M, and 1G |
| Uplink ports | 4 x 10G/1G SFP+ fixed uplink ports | PoE capability | 60W UPOE |
| Default PoE budget | 675W with primary power supply | Default power supply | PWR-C1-1100WAC-P-M |
| Power supply configuration | Hot-swappable dual power supply support | Secondary PoE value | 1775W with secondary power-supply condition |
| Power load | 104.56 W idle; 875.3 W maximum | Power input range | 115V to 240V AC, 50 to 60 Hz for 1100W AC supply |
| Stacking architecture | StackWise-320 | Stacking kit | C9300L-STAK-KIT2-M required for intended stacks |
| Hardware stack ports | 2 | Dedicated management interface | 1 |
| Switching capacity | 392 Gbps standalone | Switching capacity with stacking | 712 Gbps |
| Forwarding rate | 291.66 Mpps standalone | Forwarding rate with stacking | 529.76 Mpps |
| Dimensions | 1.73 x 17.5 x 19.2 in. (4.4 x 44.5 x 48.8 cm) | Weight | 16.86 lb (7.65 kg) with default power supply |
| Mount type | 1U rack mount | Hot swap fans | 3 |
| Operating temperature | -5 deg C to 45 deg C | Humidity | 5 to 90% |
| MTBF at 25 deg C | 273,820 hours |
Get More Information
Need pricing, stock, or shipping details for the C9300L-48UXG-4X-M ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Who needs C9300L-48UXG-4X-M for Meraki multigigabit UPOE access?
-
What does the Meraki M suffix mean in C9300L-48UXG-4X-M?
-
What does 48UXG-4X mean in C9300L-48UXG-4X-M?
-
How is C9300L-48UXG-4X-M different from 2Q IOS XE models?
-
Can C9300L-48UXG-4X-M power Wi-Fi 6 access points?
-
Does C9300L-48UXG-4X-M use fixed uplink 4 fixed 10G ports?
-
When is C9300L-48UXG-4X-M the wrong SKU?
-
What Meraki mGig UPOE details matter for C9300L-48UXG-4X-M?
