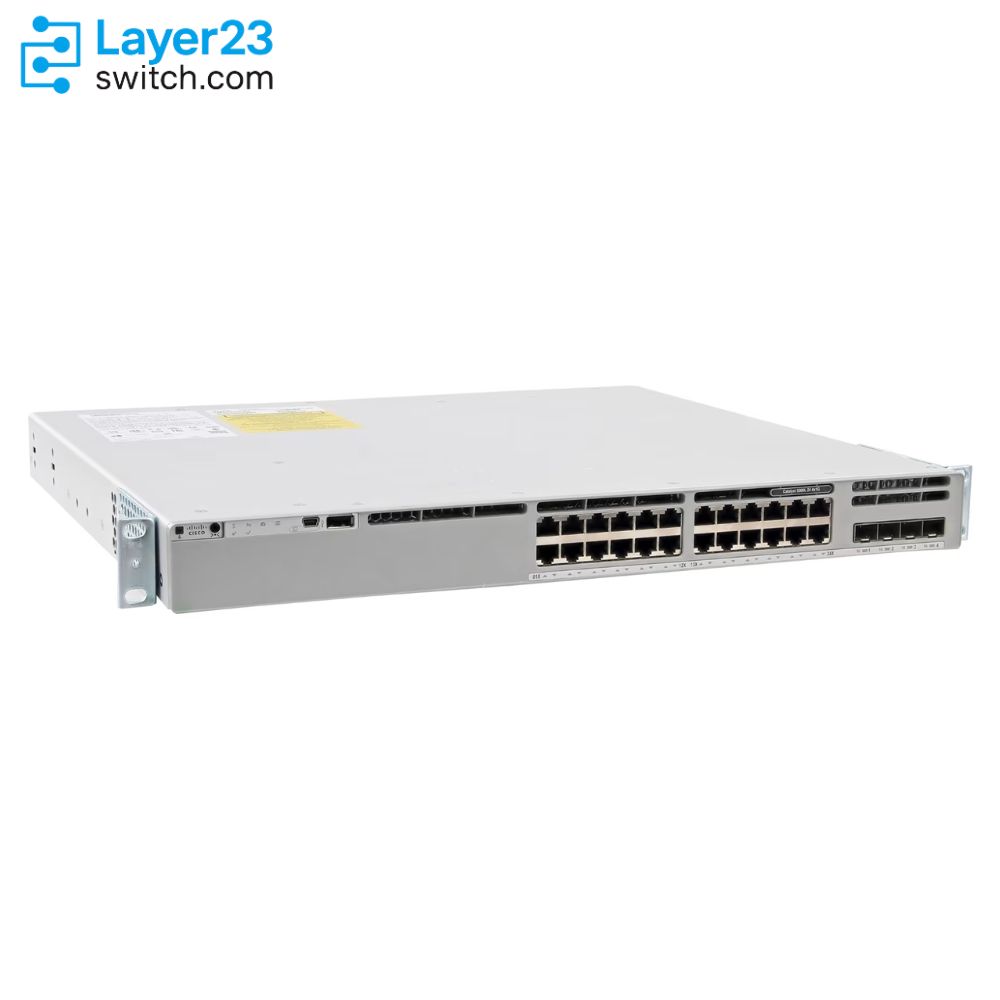

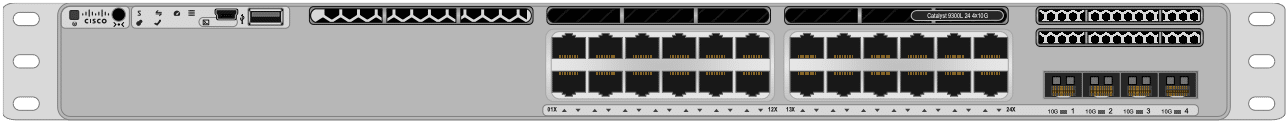

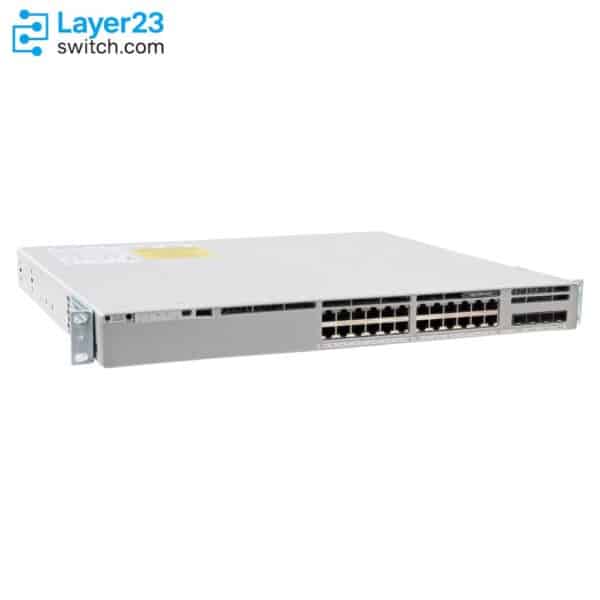

C9300L-24T-4X-A – 24x1G Data Ports – 4x10G Fixed Uplinks
3/mo Solds
Cisco C9300L-24T-4X-A Compatible Accessories, Modules & Spare Parts
Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco C9300L-24T-4X-A. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.
Optics & Cables Compatible with Cisco C9300L-24T-4X-A
-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $1,870.01.$50.00Current price is: $50.00. Condition: New Factory Sealed -
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4Original price was: $2,658.11.$71.68Current price is: $71.68. Condition: New Factory Sealed -
SFP-10G-SR-X
10GBASE-SR SFP+ - Extended Temp - 400m OM4 MMFOriginal price was: $3,785.89.$1,020.00Current price is: $1,020.00. Condition: New Factory Sealed -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $5,342.92.$128.00Current price is: $128.00. Condition: New Factory Sealed -
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km ReachOriginal price was: $10,672.47.$170.00Current price is: $170.00. Condition: New Factory Sealed -
SFP-10G-LR-X
10GBASE-LR SFP+ - Extended Temp - 10km SMFOriginal price was: $11,206.77.$306.00Current price is: $306.00. Condition: New Factory Sealed -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $2,658.11.$95.80Current price is: $95.80. Condition: New Factory Sealed -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $1,202.16.$62.50Current price is: $62.50. Condition: New Factory Sealed -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $1,335.73.$57.00Current price is: $57.00. Condition: New Factory Sealed -
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOMOriginal price was: $5,329.57.$205.00Current price is: $205.00. Condition: New Factory Sealed
Power Supplies & Fans Compatible with Cisco C9300L-24T-4X-A
-
PWR-C1-350WAC-P
350W AC PSU - Catalyst 9300 C1 - Platinum RatedOriginal price was: $792.96.$151.00Current price is: $151.00. Condition: New Factory Sealed
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9300L-24T-4X-A Description
C9300L-24T-4X-A is a Cisco Catalyst 9300L fixed-uplink stackable access switch for campus access deployments that need 24 data-only 10/100/1000 copper ports and four integrated 10G/1G SFP+ uplinks. The SKU belongs to the Catalyst 9300L 24-port data family, carries the Network Advantage license tier, uses a 350 WAC default power supply, does not provide PoE, and supports StackWise-320 for stackable access-layer designs where fixed uplinks and a data-only edge profile are required.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300L-24T-4X-A |
|
Product type |
Fixed-uplink stackable access switch |
|
Access ports |
24 x 10/100/1000 Mbps data copper ports |
|
Uplink ports |
4 x 10G/1G SFP+ fixed uplink ports |
|
Network license |
Network Advantage |
|
Default power supply |
PWR-C1-350WAC-P |
|
PoE support |
No PoE |
|
Stacking architecture |
StackWise-320 |
|
Switching capacity |
128 Gbps standalone; 448 Gbps with stacking |
|
Forwarding rate |
95.23 Mpps standalone; 333.33 Mpps with stacking |
|
Introductory software release |
Cisco IOS XE Gibraltar 16.11.1c |
Product Performance
Key Features
The C9300L-24T model provides copper access for endpoints that do not require PoE, keeping the bill separate from C9300L-24P PoE+ variants.
The 4X hardware choice builds four 10G/1G SFP+ uplink ports into the switch, so uplink capacity is selected by the base SKU rather than by a modular card.
The `-A` suffix maps the order to Network Advantage and the matching C9300L Cisco DNA Advantage 24-port term license family.
Catalyst 9300L fixed-uplink models use StackWise-320, making stack accessory planning a C9300L fixed-uplink task instead of a modular C9300 network-module task.
Cisco lists PWR-C1-350WAC-P as the default supply for C9300L-24T-4X, which aligns with the data-only design and leaves PoE budget out of the order line.
Because the C9300L 4X ports are integrated, buyers should validate SFP+ optics and stack hardware without adding Catalyst 9300 modular uplink modules to this SKU.
Application Scenarios
C9300L-24T-4X-A fits a wiring closet that needs 24 non-powered 1G copper access ports and SFP+ uplinks to distribution or aggregation.
Use this order line when the site standard is Catalyst 9300L fixed-uplink hardware with Network Advantage rather than the Essentials suffix.
Add the switch to a same-tier StackWise-320 access stack when expansion requires data-only copper ports and the uplink design already uses 4X SFP+ handoff.
Product Comparison
|
Parameter |
C9300L-24T-4X-A | |||
|---|---|---|---|---|
|
Product type |
Fixed-uplink access switch |
Fixed-uplink access switch |
Fixed-uplink access switch |
Fixed-uplink access switch |
|
Access ports |
24 x 10/100/1000 Mbps data |
24 x 10/100/1000 Mbps data |
24 x 10/100/1000 Mbps data |
24 x 10/100/1000 Mbps PoE+ |
|
Uplink ports |
4 x 10G/1G SFP+ fixed |
4 x 10G/1G SFP+ fixed |
4 x 1G SFP fixed |
4 x 10G/1G SFP+ fixed |
|
Network license |
Network Advantage |
Network Essentials |
Network Advantage |
Network Advantage |
|
Default power supply |
PWR-C1-350WAC-P |
PWR-C1-350WAC-P |
PWR-C1-350WAC-P |
PWR-C1-715WAC-P |
|
PoE support |
No PoE |
No PoE |
No PoE |
PoE+ with 505W default available PoE |
|
Stacking architecture |
StackWise-320 |
StackWise-320 |
StackWise-320 |
StackWise-320 |
|
Switching capacity |
128 Gbps standalone; 448 Gbps with stacking |
128 Gbps standalone; 448 Gbps with stacking |
56 Gbps standalone; 376 Gbps with stacking |
128 Gbps standalone; 448 Gbps with stacking |
|
Forwarding rate |
95.23 Mpps standalone; 333.33 Mpps with stacking |
95.23 Mpps standalone; 333.33 Mpps with stacking |
41.66 Mpps standalone; 279.76 Mpps with stacking |
95.23 Mpps standalone; 333.33 Mpps with stacking |
- In a C9300L-24T-4X-A vs C9300L-24T-4X-E comparison, the access ports, SFP+ uplinks, power profile, and performance values match; the table difference is Network Advantage versus Network Essentials.
- The C9300L-24T-4X-A difference from C9300L-24T-4G-A is the uplink class, because the 4X model uses fixed 10G/1G SFP+ ports and the 4G model uses fixed 1G SFP ports.
- For C9300L-24T-4X-A vs C9300L-24P-4X-A, the comparison is data-only access with PWR-C1-350WAC-P versus PoE+ access with PWR-C1-715WAC-P and 505W default available PoE.
- The which SKU to order check should start with license tier, PoE requirement, and 1G versus 10G uplink design before optics, stack accessories, and power cords are added.
Selection Guide
1. Choose it for data access plus SFP+ uplinks
Select C9300L-24T-4X-A when the BOM needs 24 non-PoE copper ports, four fixed 10G/1G SFP+ uplinks, StackWise-320, and Network Advantage.
2. Keep Essentials on the E suffix
Use C9300L-24T-4X-E only when the same C9300L-24T-4X hardware should ship with Network Essentials and the matching DNA Essentials term.
3. Move to 4G only for 1G uplinks
Use C9300L-24T-4G-A when SFP uplinks at 1G match the aggregation design and the lower listed bandwidth profile is acceptable.
4. Switch to C9300L-24P-4X-A only for PoE endpoints
Choose C9300L-24P-4X-A when the access layer must power phones, access points, or cameras from PoE+ switch ports.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Endpoint power boundary |
C9300L-24T access ports are data only |
Prevents PoE+ endpoint groups from being assigned to a non-PoE switch |
|
Uplink optics plan |
Four fixed 10G/1G SFP+ uplink ports |
Separates the order from 4G SFP models before transceivers are selected |
|
License alignment |
Network Advantage plus C9300L Cisco DNA Advantage 24-port term |
Keeps the hardware suffix and software subscription tier matched |
|
Stack accessories |
C9300L StackWise-320 adapter and correct cable length |
Keeps stack expansion inside the fixed-uplink Catalyst 9300L accessory path |
|
Power module handling |
PWR-C1-350WAC-P default supply plus secondary supply or blank module |
Verifies redundancy and site power without importing PoE assumptions |
Optional Add-ons
|
Model |
Description |
|---|---|
|
C9300L-STACK-A |
Stacking adapter for C9300L and C9300LM Series switches used with STACK-T3A cables |
|
50 cm stacking cable for C9300L and C9300LM Series switches | |
|
1 m stacking cable for C9300L and C9300LM Series switches | |
|
3 m stacking cable for C9300L and C9300LM Series switches | |
|
350W AC Platinum-rated power supply module | |
|
715W AC Platinum-rated power supply module supported in Catalyst 9300 Series power planning | |
|
1100W AC Platinum-rated power supply module supported in Catalyst 9300 Series power planning | |
|
PWR-C1-715WDC |
715W DC power supply module supported in Catalyst 9300 Series power planning |
|
C9300L Cisco DNA Advantage 24-port 3-year term license | |
|
C9300L-DNA-A-24-5Y |
C9300L Cisco DNA Advantage 24-port 5-year term license |
|
C9300L-DNA-A-24-7Y |
C9300L Cisco DNA Advantage 24-port 7-year term license |

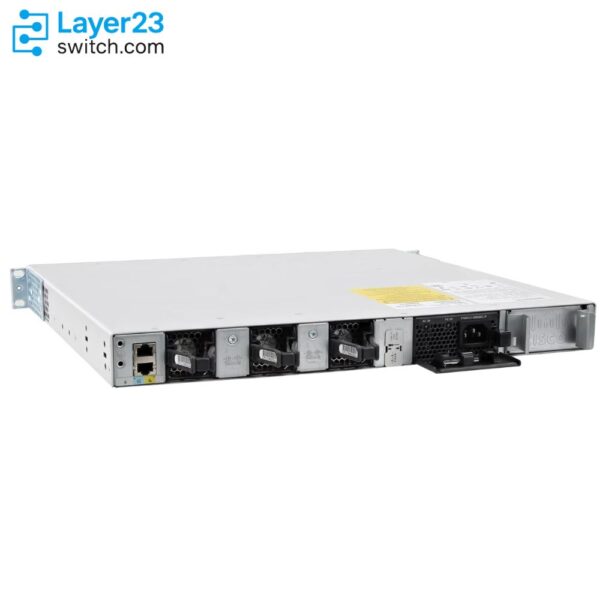

C9300L-24T-4X-A Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300L-24T-4X-A | Product type | Fixed-uplink stackable access switch |
| Network license | Network Advantage | Introductory software release | Cisco IOS XE Gibraltar 16.11.1c |
| Access ports | 24 x 10/100/1000 Mbps data copper ports | Uplink ports | 4 x 10G/1G SFP+ fixed uplink ports |
| PoE support | No PoE | Default power supply | PWR-C1-350WAC-P |
| Modular uplinks | No for C9300L fixed-uplink models | Power supply slots | 2 internal power supply module slots |
| Stacking architecture | StackWise-320 | Stacking bandwidth | 320 Gbps |
| Supported stack family | Catalyst 9300L and 9300LM fixed-uplink models | Optional stack accessories | C9300L-STACK-A with STACK-T3A cable options |
| Switching capacity | 128 Gbps standalone | Switching capacity with stacking | 448 Gbps |
| Forwarding rate | 95.23 Mpps standalone | Forwarding rate with stacking | 333.33 Mpps |
| MAC addresses | 32,000 | IPv4 routes | 32,000 total with 24,000 direct and 8,000 indirect routes |
| Packet buffer | 16 MB for C9300L 24- and 48-port Gigabit Ethernet models | Flexible NetFlow entries | 64,000 flows on C9300L 24- and 48-port Gigabit Ethernet models |
| DRAM | 8 GB | Flash | 16 GB |
| VLAN IDs | 4094 | Jumbo frames | 9198 bytes |
| Dimensions | 1.73 x 17.5 x 19.2 in. (4.4 x 44.5 x 48.8 cm) | Weight | 14.93 lb (6.78 kg) with default power supply |
Get More Information
Need pricing, stock, or shipping details for the C9300L-24T-4X-A ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is Cisco C9300L-24T-4X-A used for?
-
Does C9300L-24T-4X-A support PoE?
-
How is C9300L-24T-4X-A different from C9300L-24T-4X-E?
-
What uplinks are built into C9300L-24T-4X-A?
-
Can C9300L-24T-4X-A be stacked?
-
How is C9300L-24T-4X-A different from C9300-24T-A?
-
When is C9300L-24T-4X-A the right data-only model?
-
When is C9300L-24T-4X-A too limited?
