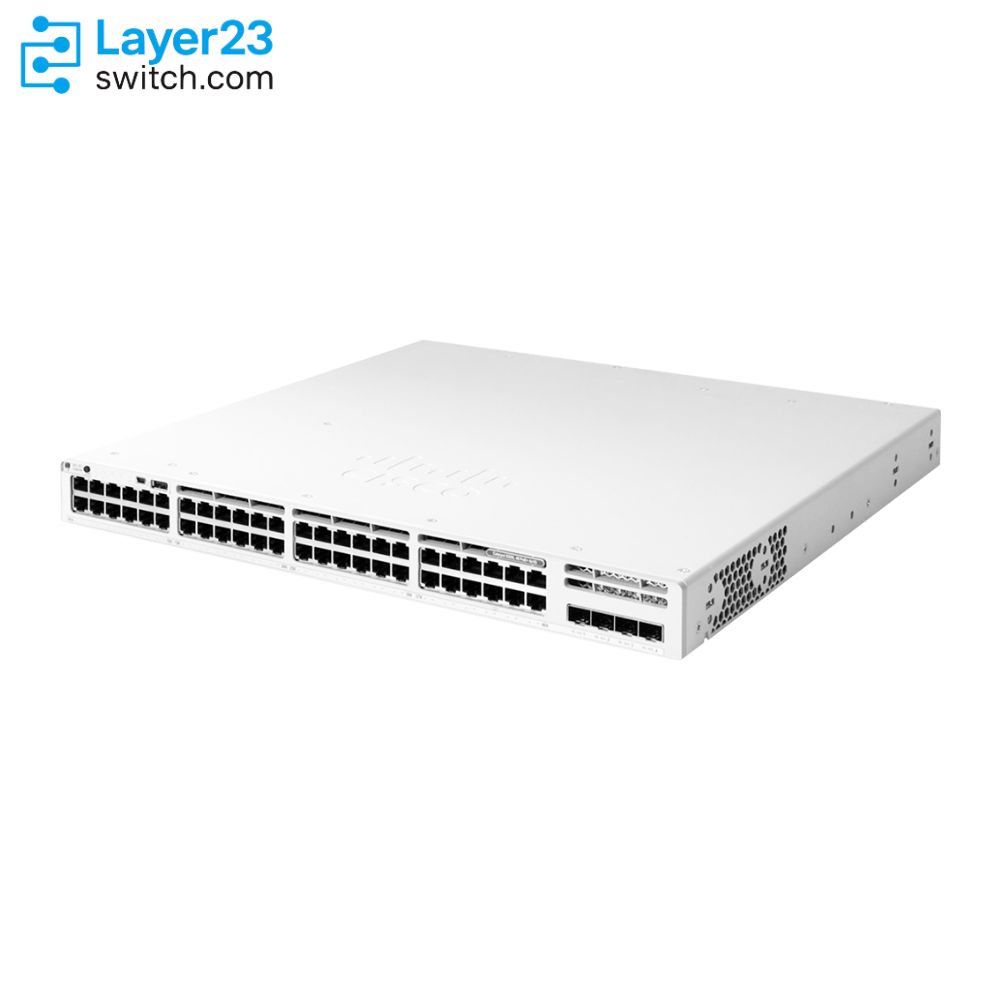

C9300L-48T-4X-M – 48 Ports – 4×10G uplinks – access switch

Brand: Availability: In Stock

Condition:

New Factory Sealed
(3 customer reviews)

Questions

4/mo Solds

Warranty:

3-Year Warranty

Related:

Price:

Original price was: $5,696.00.Current price is: $3,588.00.

Quantity:

Shipping:

Express Shipping 2-6 Days, via DHL, FedEx, UPS, etc.

Payment:

  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
Why Choose Us
  • $20+ million Units In Stock
  • 500+ B2B Partners Worldwide
  • 24/7 Support & Fast Shipping
Expertise Builds Trust
  • 11 Years’ Experience Across 220+ Countries
  • 18000+ Customers/Projects
  • CCIE & CISSP Certified
  • Free Consultation
Ask an Expert Now

Expert-Curated Bundles & Accessories

Our specialists have handpicked the essential add-ons to maximize your network’s performance.

No posts

No posts

C9300L-48T-4X-M Description

  The Cisco Catalyst C9300L-48T-4X-M is a fixed-uplink access switch tailored for enterprise and campus edge deployments that require high-throughput data switching without PoE. It offers 48×1 Gbps RJ-45 copper ports and four built-in 10 Gbps SFP+ uplinks, providing ample bandwidth to aggregation or core layers. Powered by a 350 W AC supply (PWR-C1-350WAC-P), it consumes minimal power while delivering a nonblocking, wire-speed architecture of 176 Gbps switching capacity and 130.95 Mpps forwarding rate in standalone mode. When stacked via StackWise-320 (up to eight members), it scales to 496 Gbps switching and 369.05 Mpps forwarding, ensuring seamless scalability and high availability through cross-stack EtherChannel and StackPower redundancy.

Product Performance

Ethernet Ports
Switching Capacity
Forwarding Rate

Quick Specs

Parameter

Specification

Model

C9300L-48T-4X-M

Switching Capacity

176 Gbps standalone / 496 Gbps stacked

Forwarding Rate

130.95 Mpps standalone / 369.05 Mpps stacked

Downlink Ports

48 × 1 Gbps RJ-45 data-only ports

Uplink Ports

4 × 10 Gbps SFP+ fixed

Stacking Bandwidth

StackWise-320 (320 Gbps per stack link)

Default Power Supply

350 W AC (PWR-C1-350WAC-P), no PoE

Memory (DRAM)

8 GB

Flash Storage

16 GB

Key Features

176 Gbps Nonblocking Fabric

Ensures wire-speed switching across 48 × 1 Gbps ports without backplane bottlenecks.

Four 10 Gbps SFP+ Uplinks

Provides ample uplink bandwidth for aggregation or data-center grade connectivity.

StackWise-320 Technology

Stack up to eight switches with combined 496 Gbps switching and cross-stack resiliency.

Meraki Cloud Management (-M)

Zero-touch provisioning, cloud-hosted monitoring, adaptive policies, and automatic firmware updates via Meraki Dashboard.

Advanced Security

Supports MACsec encryption, Encrypted Traffic Analytics (ETA), Secure Boot, and Secure Unique Device Identifier (SUDI) for a hardened access layer.

Model-Driven Telemetry

Real-time telemetry via gNMI/YANG and flexible NetFlow for proactive network assurance.

Applications Scenarios

Campus Aggregation

Acts as a high-density aggregation switch in wiring closets with 10 Gbps uplinks to distribution or core.

Data Center Top-of-Rack (ToR)

Functions as a ToR leaf switch in small-to-medium racks, offering 10 Gbps uplinks for server connectivity.

Cloud-Managed Branch

Serves remote offices or branch locations where Meraki’s Dashboard provides zero-touch provisioning, unified visibility, and simplified policy enforcement.

Product Comparison

Parameter

C9300L-48T-4X-M

C9300L-48P-4X-M

C9300L-24T-4X-M

Downlink Ports

48 × 1 Gbps data

48 × 1 Gbps PoE+ (30 W/port)

24 × 1 Gbps data

Uplink Ports

4 × 10 Gbps SFP+ fixed

4 × 10 Gbps SFP+ fixed

4 × 10 Gbps SFP+ fixed

Switching Capacity

176 Gbps / 496 Gbps stacked

176 Gbps / 496 Gbps stacked

128 Gbps / 448 Gbps stacked

Forwarding Rate

130.95 Mpps / 369.05 Mpps stacked

130.95 Mpps / 369.05 Mpps stacked

95.23 Mpps / 333.33 Mpps stacked

Default Power Supply

350 W AC (no PoE)

715 W AC (505 W PoE budget)

350 W AC (no PoE)

Stacking Bandwidth

320 Gbps (StackWise-320)

320 Gbps (StackWise-320)

320 Gbps (StackWise-320)

License Image

Meraki Advanced/Enterprise

Meraki Advanced/Enterprise

Meraki Advanced/Enterprise

PoE Capability

None

PoE+ (30 W per port)

None

Accessories

Category

Part Number

Description

Power Supply

PWR-C1-350WAC-P

350 W AC power supply (default), no PoE

Stacking Kit

C9300L-STACK-KIT2

StackWise-320 stacking module (2 adapters + cable)

Uplink Modules

N/A (fixed uplinks)

Four 10 Gbps SFP+ ports built-in—no external module required

Spare Fans

FAN-T2=

Field-replaceable fan module (N+1 redundancy)

C9300L-48T-4X-M Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1

Ground connectors

7

StackPower connectors

2

USB3.0–SSD port

8

AC OK (input) status LED

3

BEACON LED

9

PS OK (output) status LED

4

CONSOLE (RJ-45 console port)

10

StackWise-480 port connectors

5

MGMT (RJ-45 10/100/1000 management port)

11

Power supply modules

6

Fan modules

–

–

Rear Panel of a Cisco Catalyst 9300 Series Switch

Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1

Cisco Catalyst 9300 Series switch with optional network module1 (power supply and fan modules not shown)

9

Eight number-8 Phillips flat-head screws

2

AC power cord

10

Cable guide

3

Product documentation and compliance document

11

M4.0 x 20mm Phillips pan-head screw

4

Four rubber mounting feet

12

(Optional) RJ-45 console cable

5

Ground lug screw and ring terminal

13

(Optional) USB console cable

6

Two 19-inch mounting brackets

14

(Optional) StackWise-480/1T cable (0.5-meter, 1-meter, or 3-meter)

7

Four number-12 pan-head screws

15

(Optional) StackPower cable (0.3-meter or 1.5-meter)

8

Four number-10 pan-head screws

16

(Optional) StackWise-320 cable

cisco-catalyst-9300-switch-shipping-box

Get More Information

Discover unbeatable prices and fast shipping for the C9300L-48T-4X-M Access the detailed C9300L-48T-4X-M datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via Live chat or email us at [email protected]

Quality Certifications

Specifications

Parameter Detail
Model C9300L-48T-4X-M
Form Factor 1 RU rack-mountable switch
Downlink Ports 48 × 1 Gbps RJ-45 data-only ports
Uplink Ports 4 × 10 Gbps SFP+ fixed
Switching Capacity 176 Gbps standalone / 496 Gbps stacked
Forwarding Rate 130.95 Mpps standalone / 369.05 Mpps stacked
Stacking Bandwidth StackWise-320 (320 Gbps per stack link)
Max Stack Members Up to 8 switches
Memory (DRAM) 8 GB
Flash Storage 16 GB
Primary Power Supply PWR-C1-350WAC-P (350 W AC; no PoE)
Fans 3 × field-replaceable fans (N+1 redundancy)
Dimensions (H × W × D) 1.73″ × 17.5″ × 16.1″ (4.4 × 44.5 × 40.9 cm)
Weight (w/ PSU) 15.41 lb (7.00 kg)
MTBF 380,080 hours
Operating Temperature −5 °C to + 45 °C at sea level (derate at altitude)
Jumbo Frames Up to 9,198 bytes
Max VLAN IDs 4,094
Max MAC Addresses 32,000
Max IPv4 Routes 32,000 (24,000 direct + 8,000 indirect)
Max IPv6 Routes 16,000
Security Features MACsec-256 encryption, Encrypted Traffic Analytics (ETA), Secure Boot, SUDI, IEEE 802.1X
Telemetry Model-driven telemetry (gNMI/YANG), flexible NetFlow
Software Image Meraki-managed (“-M”) for cloud provisioning
License Tier Meraki Advanced/Enterprise
Warranty Limited lifetime hardware warranty

Customer Reviews

Write A Review
5.0
(3 reviews)
5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
    Margaret Bell
    Posted on 13/03/2024
    Verified Buyer
    5.0

    Reliable workhorse. Zero configuration issues after 6 months.

    Charles Ward
    Posted on 19/11/2023
    Verified Buyer
    5.0

    Perfect for non-PoE deployments. Shipping was faster than Amazon.

    Joseph Morris
    Posted on 21/08/2023
    Verified Buyer
    5.0

    Base model works great for access layer. Saved 40% vs fully-loaded version.

Questions & Answers

  • What types of interfaces are provided by the C9300L-48T-4X-M?

    It typically includes standard Ethernet ports, and may offer uplink options such as fiber or copper, depending on the specific configuration.

  • What diagnostic tools are available for troubleshooting the C9300L-48T-4X-M?

    Diagnostic tools provided typically include built-in hardware diagnostics, log inspection tools, and remote management utilities.

  • Are there compatibility concerns I should be aware of when integrating the C9300L-48T-4X-M into my existing network?

    Compatibility concerns typically include software version alignments, integration with existing security protocols, and hardware compatibility checks.

  • How easy is it to configure the C9300L-48T-4X-M for IPv6 usage?

    Configuring for IPv6 is straightforward, typically detailed in the user manual and achievable via standard management interfaces.

  • What advanced security features does the C9300L-48T-4X-M offer?

    Security features often include encryption capabilities, access controls, threat detection systems, and support for secure management protocols.

  • How do I perform a software update on the C9300L-48T-4X-M?

    Updates can usually be performed via the device's web interface, CLI, or through network management software provided by the manufacturer.

  • How energy-efficient is the C9300L-48T-4X-M compared to similar devices?

    This model is designed to be energy-efficient, typically featuring technologies that optimize power usage and reduce overall consumption.

  • How loud is the C9300L-48T-4X-M when operating at full capacity?

    Noise levels vary by model but generally remain within acceptable ranges suitable for office environments; consult specific product details for exact metrics.

  • What’s the typical lifespan of the C9300L-48T-4X-M in regular usage scenarios?

    Under typical operational conditions, the device generally has a lifespan of 5 to 7 years, depending on environmental factors and maintenance practices.

  • What steps should I take if the C9300L-48T-4X-M experiences connectivity issues?

    Begin by checking cables and connectors, verifying configurations, examining logs, and rebooting the device if necessary.

  • Does the C9300L-48T-4X-M require specific environmental conditions for optimal operation?

    Ideally, maintain a temperature-controlled, dust-free environment to ensure optimal performance and longevity.
