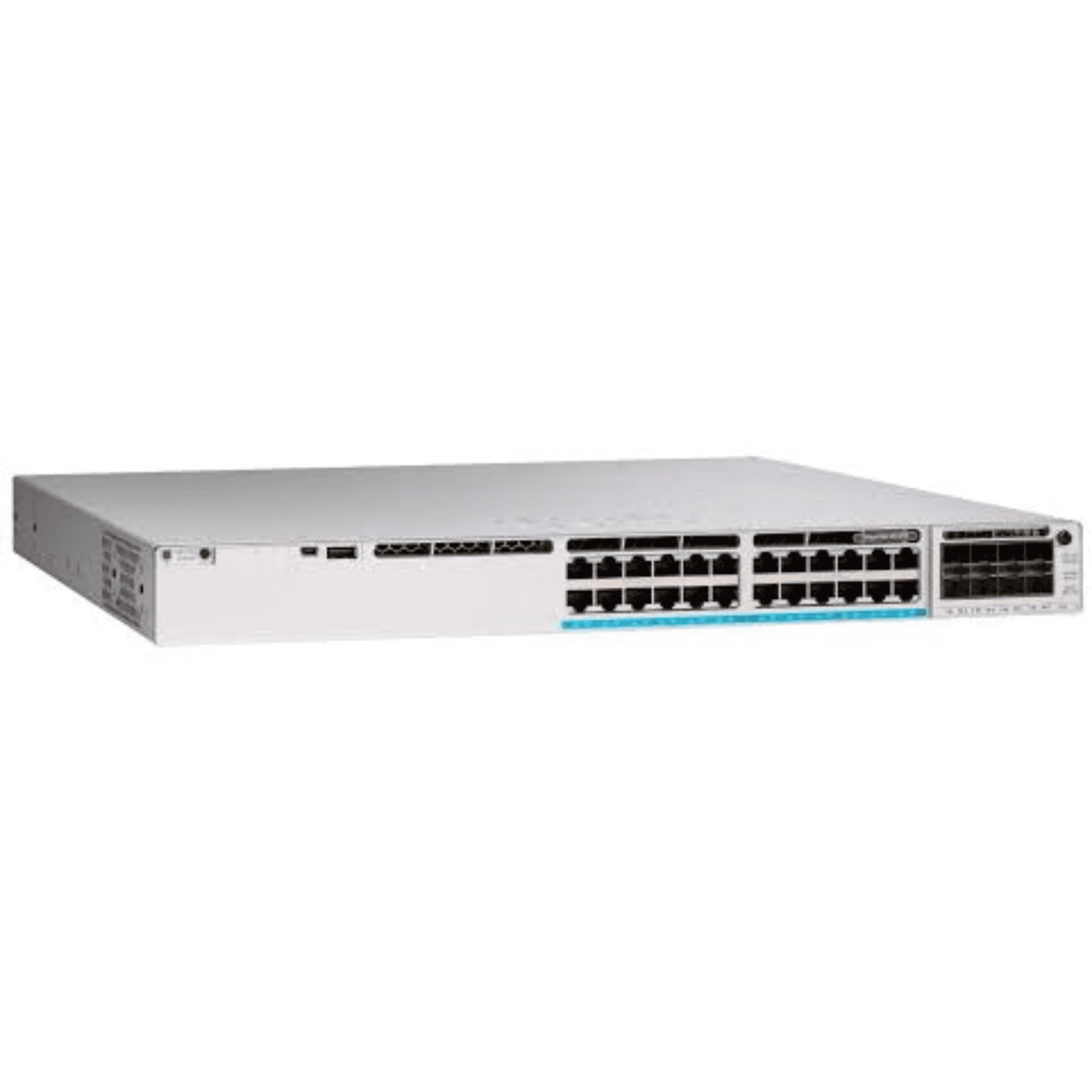

C9300-24UX-A – 24 Ports UPOE – modular uplinks – access switch

Brand: Category: Availability: In Stock Model:

C9300-24UX-A

(10 customer reviews)
Questions

7/mo Solds

List Price: $9419 $3365.52
  • 100% Genuine
    Original, factory-authenticated
  • S/N Verifiable
    Verified by official serial-check
Condition New Factory Sealed Related Quantity
Trusted & Secure Payments
Shipping Express Shipping 2-6 Days, via DHL, FedEx, UPS, etc. Packaging weight and dimensions included:
Weight 14 kg
Dimensions 56 × 54 × 23 cm
layer23-switch
Certified Expertise for Project Delivery

CCIE · JNCIE · NSE7 · ACDX · HPE · Dell Server/AI Expert

Expert-Curated Bundles & Accessories

Our specialists have handpicked the essential add-ons to maximize your network’s performance.

  • C9300-NM-2Y

    2×25G uplink module – Cisco Catalyst 9300

  • C9300-NM-2Q

    2×40G uplink module – Cisco Catalyst 9300

  • C9300-NM-4M

    4×1/2.5/5/10G uplink module – Cisco Catalyst 9300

  • C9300-NM-8X

    8×10G uplink module – Cisco Catalyst 9300

    No posts

Stable Global Supply Chain for Thriving Businesses.

  • $3,000,000 Inventory
  • Certified Cisco Partner ships
  • Collaborating with FedEx, UPS, DHL

Free Expert Support from Planning to Deployment

  • Assistance with product selection and network solution design
  • Configuration guidance and best-practice recommendations
  • Troubleshooting support provided by CCIE-level technical experts

Established Global IT Distributor

With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

C9300-24UX-A Description

Cisco Catalyst 9300-24UX-A is the flagship 24-port multigigabit model in the Catalyst 9300 family, purpose-built for high-density Wi-Fi 6/6E edge, smart-building PoE, and Software-Defined Access. Each downlink supports 100 M to 10 G speeds plus 60 W UPOE for converged data-power delivery, while the StackWise-480 architecture provides up to 1120 Gbps stack bandwidth for eight-switch fabrics. A field-replaceable network module lets you choose 1/10/25/40 G uplinks, protecting your investment as traffic requirements grow. Secure Boot, MACsec-256 and on-box ETA analytics guard the network, and the built-in x86 CPU with 16 GB flash is ready for containerised apps like ThousandEyes or ASA-c firewall.

Product Performance

Default AC power supply
Switching Capacity
Forwarding Rate

Model Meaning

Component

Meaning

C

Cisco Catalyst series

9300

Next-generation enterprise access switch platform

24

24 downlink ports

U

Cisco UPOE power (up to 60 W per port)

X

Multigigabit downlinks (100 M / 1G / 2.5G / 5G / 10G)

-A

Network Advantage software license (advanced routing, segmentation, telemetry)

Key Features

Network Advantage Software License

Ships with the full “-A” feature set—Layer 3 routing, SD-Access fabric, advanced segmentation, ETA encrypted-traffic analytics, and API programmability—no extra upgrade required.

24× Multigigabit UPOE Ports

Each RJ-45 downlink negotiates 100 M, 1 G, 2.5 G, 5 G, or 10 G and delivers up to 60 W of Cisco UPOE power—ideal for Wi-Fi 6/6E access points, LED lighting, and IoT endpoints.

640 Gbps Switching & StackWise-480 Scalability

Non-blocking 640 Gbps per chassis plus 480 Gbps stack bandwidth (1.12 Tbps in an 8-member stack) keeps campus traffic uncongested today and ready for tomorrow.

Field-Replaceable Modular Uplinks

A hot-swap Type-1 slot supports 4×1 G, 8×10 G, 4×10 G-mGig, 2×25 G SFP28, or 2×40 G QSFP+ modules, letting you upgrade backbone speed without changing the base switch.

Enterprise-Grade Security & Resiliency

Secure Boot, trust anchor SUDI, AES-256 MACsec, and redundant FRU fans/PSUs protect both the control plane and power delivery, while StackPower pools wattage across up to four switches.

App-Hosting & Telemetry Ready

On-box x86 CPU with 8 GB DRAM, 16 GB flash, and optional 240 GB SSD runs containerized apps (ThousandEyes, ASA-c) and streams real-time telemetry to DNA Center or third-party tools for proactive operations.

Applications Scenarios

Hospital Smart-Ward Backbone

Multigig UPOE ports power bedside monitors, IP cameras, VoIP phones, and medical IoT sensors—while MACsec-256 and ETA analytics keep patient data HIPAA-secure. Modular 25 G uplinks push telemetry to the core EMR systems with zero bottlenecks.

University eSports & Research Lab

Run 10 Gbps LAN for gaming rigs and VR clusters, plus 60 W UPOE to drive RGB-hungry monitors and AR headsets. StackWise-480 lets IT expand racks for new semesters without re-cabling; on-box app hosting supports real-time performance analytics.

Broadcast & Media Production Floor

Connect mixed-bit-rate 4K/8K cameras, editing stations, and NDI IP video converters on one switch—then burst uncompressed streams over 40 G QSFP+ uplinks to the render farm. Fan/PSU redundancy and StackPower keep shoots rolling even during power swaps.

Product Comparison

Model

Switching capacity

Downlinks

PoE class

Default PSU

C9300-24UX-A

640 Gbps

24×10G UPOE

60 W

1100 W

C9300-24T-A

208 Gbps

24×1G data

–

350 W

C9300-48UXM-A

580 Gbps

36×2.5G + 12×10G UPOE

60 W

1100 W

Cisco Catalyst C9300-24UX-A- Accessories

Part Number

Description

C9300-NM-4G=

4 × 1 GE SFP network module

C9300-NM-8X=

8 × 10 GE/1 GE SFP+ network module

C9300-NM-2Y=

2 × 25 GE/10 GE/1 GE SFP28 network module

C9300-NM-4M=

4 × 10 GE/mGig copper network module

C9300-NM-2Q=

2 × 40 GE QSFP+ network module (previously listed)

NM-BLANK-T1=

Type 1 network-module blank cover

STACK-T1-50CM=

0.5 m StackWise-480/1T data-stack cable

STACK-T1-1M=

1 m StackWise-480/1T data-stack cable

STACK-T1-3M=

3 m StackWise-480/1T data-stack cable

CAB-SPWR-30CM=

0.3 m StackPower inter-switch power-sharing cable

CAB-SPWR-150CM=

1.5 m StackPower inter-switch power-sharing cable

PWR-C1-350WAC-P=

350 W platinum-rated AC power supply (spare)

PWR-C1-715WAC-P=

715 W platinum-rated AC power supply (spare)

PWR-C1-1100WAC-P=

1100 W platinum-rated AC power supply (spare)

PWR-C1-1900WAC-P=

1900 W platinum-rated AC power supply (spare)

FAN-T2=

Field-replaceable fan module for Catalyst 9300

SSD-120G=

120 GB pluggable USB 3.0 SSD storage module

SSD-240G=

240 GB pluggable USB 3.0 SSD storage module

CAB-TA-NA=

North-America AC power cord (NEMA 5-15)

CAB-TA-EU=

Europe AC power cord (CEE 7/7)

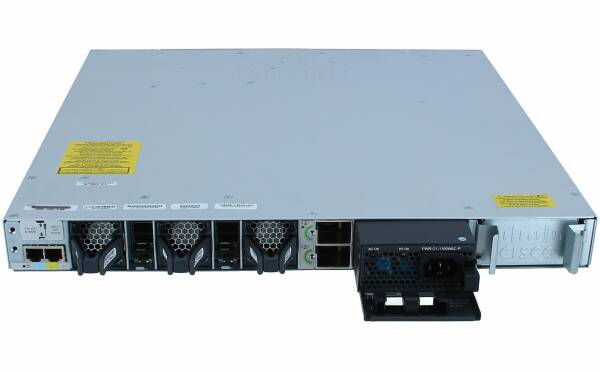

C9300-24UX-A Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1

Ground connectors

7

StackPower connectors

2

USB3.0–SSD port

8

AC OK (input) status LED

3

BEACON LED

9

PS OK (output) status LED

4

CONSOLE (RJ-45 console port)

10

StackWise-480 port connectors

5

MGMT (RJ-45 10/100/1000 management port)

11

Power supply modules

6

Fan modules

–

–

Rear Panel of a Cisco Catalyst 9300 Series Switch

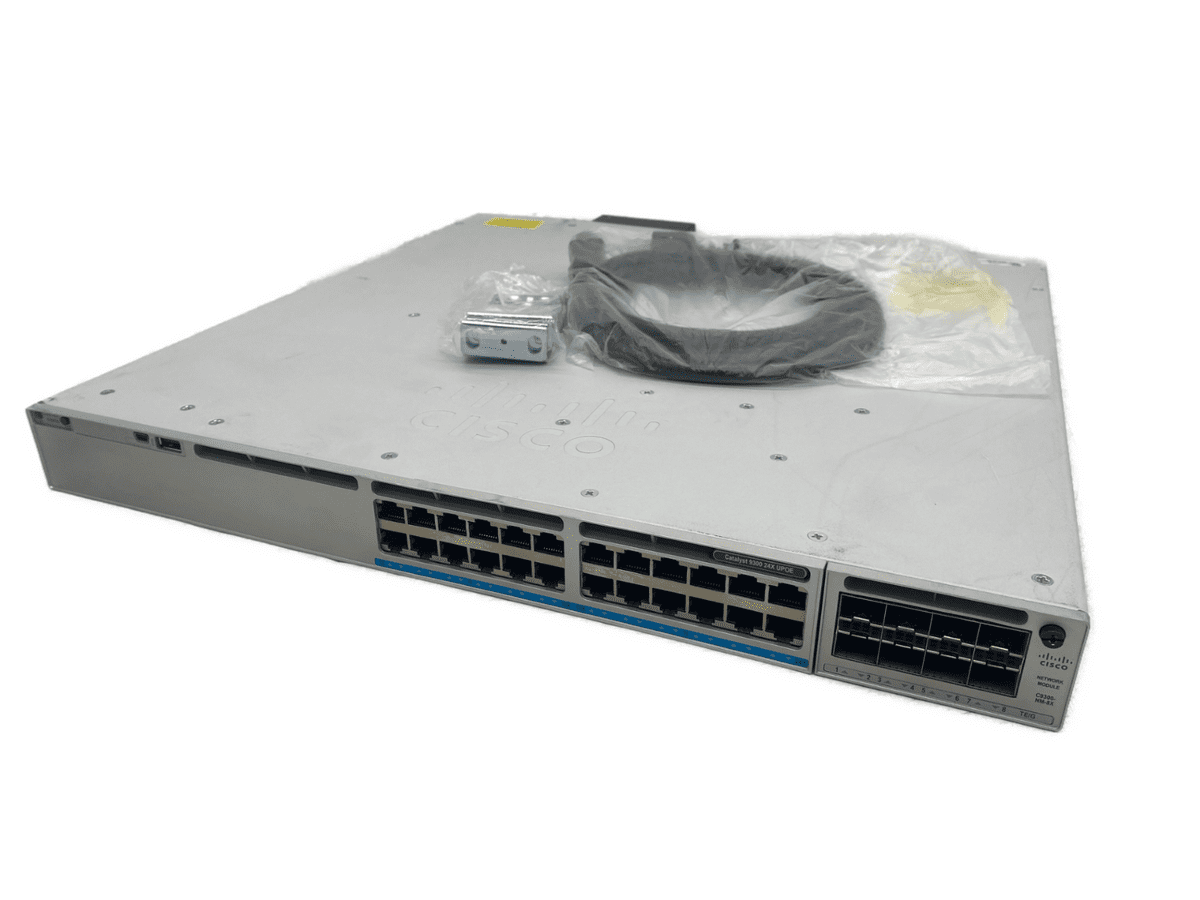

Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1

Cisco Catalyst 9300 Series switch with optional network module1 (power supply and fan modules not shown)

9

Eight number-8 Phillips flat-head screws

2

AC power cord

10

Cable guide

3

Product documentation and compliance document

11

M4.0 x 20mm Phillips pan-head screw

4

Four rubber mounting feet

12

(Optional) RJ-45 console cable

5

Ground lug screw and ring terminal

13

(Optional) USB console cable

6

Two 19-inch mounting brackets

14

(Optional) StackWise-480/1T cable (0.5-meter, 1-meter, or 3-meter)

7

Four number-12 pan-head screws

15

(Optional) StackPower cable (0.3-meter or 1.5-meter)

8

Four number-10 pan-head screws

16

(Optional) StackWise-320 cable

cisco-catalyst-9300-switch-shipping-box

Specifications

Cisco Catalyst 9300-24UX-A Detailed Specs
Series / Model Catalyst 9300 / C9300-24UX
Software Image Network Advantage (-A)
Switching Capacity 640 Gbps (non-blocking)
Stacking Bandwidth 480 Gbps per switch (StackWise-480)
Forwarding Rate 476.19 Mpps (64-byte IPv4)
Downlink Ports 24 × RJ-45 10G/5G/2.5G/1G/100M
PoE Standard Cisco UPOE (IEEE 802.3bt Type 3, 60 W)
Maximum PoE Budget 1440 W with dual 1100 W PSUs
Uplink Module Slot 1 × field-replaceable (4×1G / 8×10G / 2×25G / 2×40G)
MAC Address Table 32,000 entries
IPv4 Routes 32,000 total (24k direct / 8k indirect)
IPv6 Routes 16,000
QoS Entries 5,120
ACL Entries 5,120
Packet Buffer 16 MB
DRAM / Flash 8 GB / 16 GB
External SSD Optional USB 3.0 slot (up to 240 GB)
Fans 3 × field-replaceable, N + 1 redundant
Dimensions (H × W × D) 1.73 × 17.5 × 17.1 in (4.4 × 44.5 × 43.4 cm)
Weight (with PSU) ~18.18 lbs / 8.25 kg
Operating Temp. -5 °C to +45 °C (sea level)
StackPower Yes – 4-switch ring, 8-switch via XPS-2200
Secure Features Secure Boot, SUDI, MACsec-256, ETA analytics
App Hosting Container support, ThousandEyes & ASA-c

Get More Information

Discover unbeatable prices and fast shipping for the C9300-24UX-A Access the detailed C9300-24UX-A datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via Live chat or email us at [email protected]

Quality Certifications

Customer Reviews

Write A Review
4.9
(10 reviews)
5 Stars
9
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0
    Logistics
    Posted on 12/09/2025
    Verified Buyer
    5.0

    Shipping to France was smooth. Good packaging.

    Gandalf
    Posted on 08/08/2025
    Verified Buyer
    5.0

    A swift arrival. The package was secure.

    Aragorn
    Posted on 02/05/2025
    Verified Buyer
    5.0

    Service with honor. The goods are authentic.

    Network Lead
    Posted on 12/04/2025
    Verified Buyer
    5.0

    Sales team helped confirm the order details. Very helpful.

    Nolan Corstone
    Posted on 11/04/2025
    Verified Buyer
    5.0

    VXLAN setup was straightforward with the Advantage license.

Questions & Answers

  • What should I do if my C9300-24UX-A firmware update fails?

    If a firmware update fails, consult the recovery instructions from the official documentation or reach out to technical support for specific guidance.

  • Can the C9300-24UX-A operate effectively in data center environments?

    While some models can function well in data centers, specialized data center switches typically offer superior performance and redundancy.

  • Does the C9300-24UX-A support Power over Ethernet (PoE), and what standards does it comply with?

    PoE support and standards compliance vary by model; check the specifications to verify compatibility with your requirements.

  • Is there a recommended alternative if I can't find the C9300-24UX-A?

    Comparable alternatives generally include other models within the same series or brand, ensuring similar specifications and compatibility.

  • How energy-efficient is the C9300-24UX-A compared to similar devices?

    This model is designed to be energy-efficient, typically featuring technologies that optimize power usage and reduce overall consumption.

  • How loud is the C9300-24UX-A when operating at full capacity?

    Noise levels vary by model but generally remain within acceptable ranges suitable for office environments; consult specific product details for exact metrics.

  • What advanced security features does the C9300-24UX-A offer?

    Security features often include encryption capabilities, access controls, threat detection systems, and support for secure management protocols.

  • What are common hardware issues reported by users of the C9300-24UX-A?

    Common hardware issues include port failures, fan malfunctions, or power supply problems; regular maintenance can mitigate many issues.

  • Can I stack multiple units of the C9300-24UX-A together, and what's the limit?

    Stacking capabilities depend on the specific technology implemented; usually, multiple units can be stacked, often limited by manufacturer's recommendations.

  • What’s the typical lifespan of the C9300-24UX-A in regular usage scenarios?

    Under typical operational conditions, the device generally has a lifespan of 5 to 7 years, depending on environmental factors and maintenance practices.

  • What steps should I take if the C9300-24UX-A experiences connectivity issues?

    Begin by checking cables and connectors, verifying configurations, examining logs, and rebooting the device if necessary.

  • What types of interfaces are provided by the C9300-24UX-A?

    It typically includes standard Ethernet ports, and may offer uplink options such as fiber or copper, depending on the specific configuration.

  • Does the C9300-24UX-A require specific environmental conditions for optimal operation?

    Ideally, maintain a temperature-controlled, dust-free environment to ensure optimal performance and longevity.

  • Are there compatibility concerns I should be aware of when integrating the C9300-24UX-A into my existing network?

    Compatibility concerns typically include software version alignments, integration with existing security protocols, and hardware compatibility checks.

  • How easy is it to configure the C9300-24UX-A for IPv6 usage?

    Configuring for IPv6 is straightforward, typically detailed in the user manual and achievable via standard management interfaces.

  • Can the C9300-24UX-A be managed remotely, and how?

    Yes, remote management is generally supported through protocols like SSH, HTTPS, or vendor-specific remote management platforms.

  • What warranty coverage does the C9300-24UX-A typically include?

    Warranty coverage usually includes limited parts and labor warranty, details of which can be confirmed through the vendor’s official support page.

  • How do I perform a software update on the C9300-24UX-A?

    Updates can usually be performed via the device's web interface, CLI, or through network management software provided by the manufacturer.

  • What diagnostic tools are available for troubleshooting the C9300-24UX-A?

    Diagnostic tools provided typically include built-in hardware diagnostics, log inspection tools, and remote management utilities.

Warranty

100% Low Price Guarantee:

Layer23-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Standard Services

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F3 Team Support

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Shipping

Resources Downloads

  • C9300-24UX-A Datasheet

  • Cisco Catalyst 9300 Switch Datasheet

Product Tag

Related products

  • C9300-24S-AC9300-24S-A

    C9300-24S-A

    Original price was: $9,000.00.Current price is: $5,048.28. Condition: New Factory Sealed
  • C9300L-24P-4G-AC9300L-24P-4G-A

    C9300L-24P-4G-A

    Original price was: $2,887.00.Current price is: $1,825.07. Condition: New Factory Sealed
  • C9300-48P-EC9300-48P-E

    C9300-48P-E

    Original price was: $9,200.00.Current price is: $2,527.20. Condition: New Factory Sealed
  • C9300-24UX-EC9300-24UX-E

    C9300-24UX-E

    Original price was: $8,000.00.Current price is: $3,228.97. Condition: New Factory Sealed
