Who needs C9300-24UB-A for higher-scale 1G copper UPOE and Network Advantage?

C9300-24UB-A fits higher-scale 24-port 1G copper UPOE access stacks that also need Network Advantage routing and policy capabilities.

What does C9300-24UB-A add over C9300-24UB-E?

C9300-24UB-A keeps the higher-scale 24-port UPOE hardware and changes the software tier to Network Advantage.

Can C9300-24UB-A stack with 24UXB higher-scale switches?

Yes. C9300-24UB-A can be planned with higher-scale peers, but the design remains 1G UPOE on this member and mGig only on 24UXB members.

Can C9300-24UB-A stack with C9300-24U-A?

No. C9300-24UB-A is a higher-scale SKU and needs higher-scale stack peers, not standard C9300-24U-A stack members.

Does C9300-24UB-A provide 10G/mGig access ports?

No. C9300-24UB-A is a higher-scale 1G copper UPOE member. Use 24UXB when each access port needs 10G/mGig copper speed.

When does C9300-24UB-A fit routed access?

C9300-24UB-A fits routed access when higher-scale 1G UPOE hardware and Network Advantage features are both required.

When is C9300-24UB-A the wrong SKU?

C9300-24UB-A is wrong for standard C9300 stacks, 90W UPOE+ endpoints, fiber downlinks, or mGig access designs.

What Network Advantage higher-scale details matter for C9300-24UB-A?

C9300-24UB-A planning depends on higher-scale stack rules, Network Advantage scope, UPOE device wattage, StackPower, modular uplinks, and power redundancy.

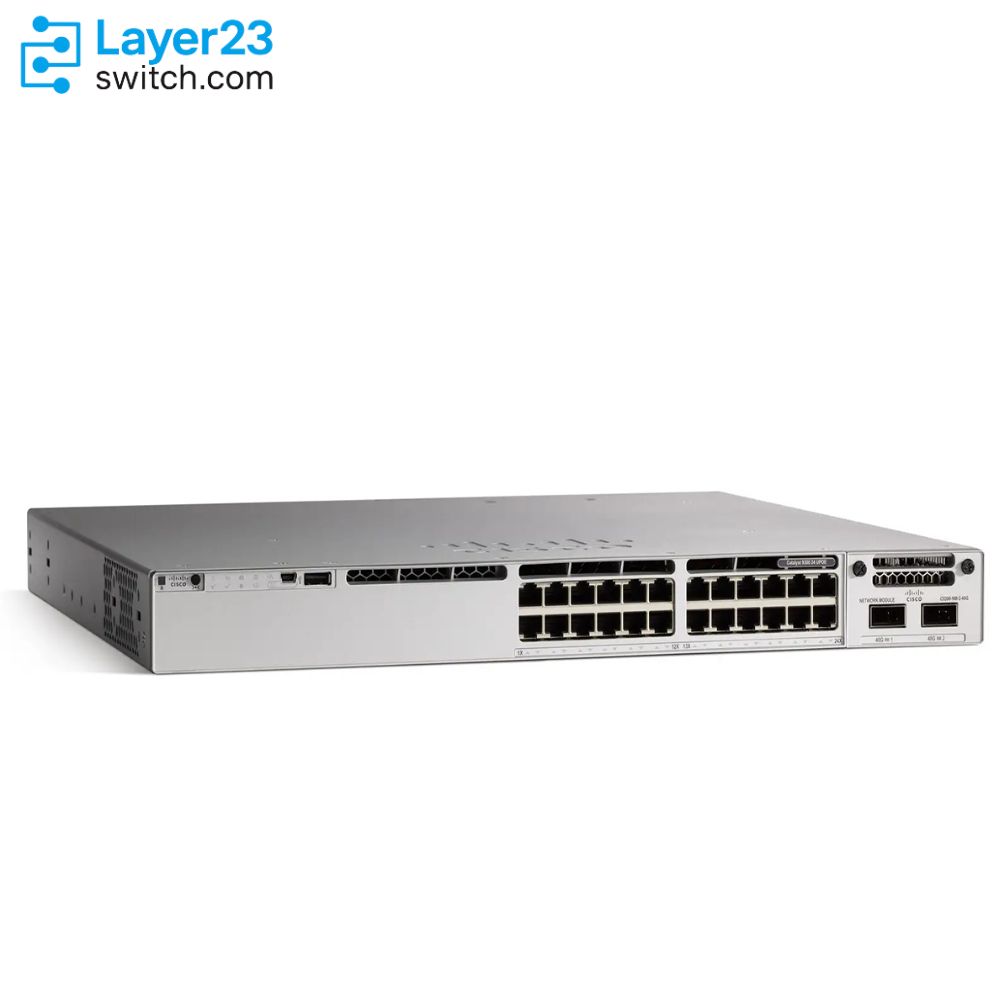

C9300-24UB-A – 24x1G UPOE Ports – Higher-Scale Buffer – 830W PoE Budget

Name: C9300-24UB-A Price - Higher-Scale 24-Port UPOE Catalyst 9300 Switch
Brand: Cisco
SKU: C9300-24UB-A
Price: 4567.00 USD
Availability: InStock
Rating: 4.92 (13 reviews)

Brand: Cisco Category: Catalyst 9300 Switches Availability:

In Stock

Model: C9300-24UB-A

Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policy

Rated 4.92 out of 5 based on 13 customer ratings

4.913 reviews8 Questions4 sold this month

List Price: ~~$18,016.89~~ 75% OFF

$4,567.00

Price Alert

Condition

Related

Subscription C9300-DNA-A + $889.70 Subtotal Price $5,456.70

Quantity

Shipping Express Shipping 2-6 Business Days, via UPS, FedEx, DHL and more

Trusted & Secure Payments

Cisco C9300-24UB-A Compatible Accessories, Modules & Spare Parts

Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco C9300-24UB-A. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.

SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMF
Rated 5 out of 5
Original price was: $1,870.01.Current price is: $52.00. Condition: New Factory Sealed
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4
Rated 4.75 out of 5
Original price was: $2,658.11.Current price is: $71.68. Condition: New Factory Sealed
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMF
Rated 4.75 out of 5
Original price was: $5,342.92.Current price is: $150.00. Condition: New Factory Sealed
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km Reach
Rated 4.88 out of 5
Original price was: $10,672.47.Current price is: $149.00. Condition: New Factory Sealed
SFP-25G-SR-S
25GBASE-SR SFP28 - 850nm MMF - 100m OM4
Rated 4.75 out of 5
Original price was: $2,658.11.Current price is: $258.00. Condition: New Factory Sealed
SFP-10/25G-LR-S
10/25GBASE-LR SFP28 - 1310nm 10km SMF Transceiver
Rated 4.75 out of 5
Original price was: $5,877.20.Current price is: $431.00. Condition: New Factory Sealed
QSFP-40G-SR4
40G SR4 QSFP - MPO-12 MMF - 4x10G Breakout
Rated 4.86 out of 5
Original price was: $8,001.01.Current price is: $126.00. Condition: New Factory Sealed
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOM
Rated 4.91 out of 5
Original price was: $2,658.11.Current price is: $95.80. Condition: New Factory Sealed
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m Reach
Rated 4.89 out of 5
Original price was: $1,202.16.Current price is: $70.00. Condition: New Factory Sealed
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOM
Rated 5 out of 5
Original price was: $1,335.73.Current price is: $57.00. Condition: New Factory Sealed

Stable Global Supply Chain for Thriving Businesses.

$8,000,000 Inventory
Certified Cisco Partner ships
Collaborating with FedEx, UPS, DHL

Free Expert Support from Planning to Deployment

Assistance with product selection and network solution design
Configuration guidance and best-practice recommendations
Troubleshooting support provided by CCIE-level technical experts

Established Global IT Distributor

With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

C9300-24UB-A Description

C9300-24UB-A is a Cisco Catalyst 9300 higher-scale stackable access switch for campus access and aggregation deployments that need 24 Gigabit UPOE copper ports with modular uplink flexibility. Cisco positions this Network Advantage model with a default 1100W AC power supply that delivers 830W of PoE, StackWise-480 for higher-scale stacking, StackPower support, and the 32 MB packet buffer used on higher-scale Gigabit Ethernet Catalyst 9300 variants.

Quick Specs

Parameter	Specification
Product ID	C9300-24UB-A
Product type	Higher-scale stackable access switch with modular uplinks
Access ports	24 x 10/100/1000 UPOE copper ports
Higher-scale profile	32-MB packet buffer for higher-scale Gigabit Ethernet models
Uplink architecture	Modular uplink slot; C9300-NM-8X is the default C9300 order selection unless changed
Network license	Network Advantage
Default power supply	PWR-C1-1100WAC-P
Default PoE budget	830W
Minimum software release	Cisco IOS XE Gibraltar 16.12.1
Stacking and StackPower	StackWise-480 with StackPower support
Expanded PoE budget	1440W with supported secondary power supply configuration
Switching and forwarding	208 Gbps standalone switching; 154.76 Mpps standalone forwarding

Product Performance

Higher-Scale Packet Buffer

MAC Addresses

Standalone Switching Capacity

Key Features

Higher-scale 24-port UPOE identity

The `C9300-24UB` hardware profile marks this as a 24-port 1G Cisco UPOE Catalyst 9300 switch in the higher-scale group, not the standard C9300-24U order line.

Network Advantage suffix

The `-A` suffix ties the hardware to Network Advantage, while the same higher-scale 24-port UPOE hardware is also listed as C9300-24UB-E with Network Essentials.

32-MB buffer for Gigabit Ethernet

Cisco lists the higher-scale Gigabit Ethernet models with a 32-MB packet buffer, a key distinction from standard 24-port and 48-port Gigabit Ethernet C9300 models.

Higher routing and policy scale

The higher-scale Catalyst 9300 column lists 64,000 MAC addresses, 112,000 IPv4 routes, 56,000 IPv6 routing entries, 18,000 QoS entries, and 18,000 ACL scale entries.

Higher-scale stacking boundary

Cisco states that C9300-24UB, C9300-24UXB, and C9300-48UB higher-scale SKUs need to be stacked with other higher-scale models.

Modular uplink order control

Cisco ordering defaults C9300 modular-uplink SKUs to C9300-NM-8X, while still allowing another C9300-NM choice or a no-network-module selection.

Application Scenarios

Higher-scale 1G UPOE access stack

C9300-24UB-A fits a Catalyst 9300 access stack that needs 24 1G UPOE ports plus the higher-scale buffer and table profile of the UB hardware family.

Advantage licensed campus refresh

The SKU suits a Network Advantage campus standard where the BOM must avoid the C9300-24UB-E Essentials line but still stay with the 24-port 1G UPOE higher-scale hardware.

Controlled higher-scale stack expansion

Use this model only where the stack plan is based on higher-scale Catalyst 9300 members, because Cisco separates C9300-24UB, C9300-24UXB, and C9300-48UB from mixed standard C9300 stacking.

Product Comparison

Parameter	C9300-24UB-A	C9300-24UB-E	C9300-24U-A	C9300-24UXB-A
Product type	Higher-scale stackable access switch	Higher-scale stackable access switch	Stackable access switch	Higher-scale stackable access switch
Scale profile	Higher-scale Catalyst 9300	Higher-scale Catalyst 9300	Standard Catalyst 9300 modular uplink	Higher-scale Catalyst 9300
Access ports	24 x 10/100/1000 UPOE	24 x 10/100/1000 UPOE	24 x 10/100/1000 UPOE	24 x 10G/mGig UPOE
Uplink architecture	Modular uplink slot	Modular uplink slot	Modular uplink slot	Modular uplink slot
Network license	Network Advantage	Network Essentials	Network Advantage	Network Advantage
Default power supply	PWR-C1-1100WAC-P	PWR-C1-1100WAC-P	PWR-C1-1100WAC-P	PWR-C1-1100WAC-P
Default PoE budget	830W	830W	830W	560W
Expanded PoE budget	1440W with supported secondary power supply configuration	1440W with supported secondary power supply configuration	1440W with supported secondary power supply configuration	1440W with supported secondary power supply configuration
Packet buffer	32 MB	32 MB	16 MB	64 MB
MAC addresses	64,000	64,000	32,000	64,000
IPv4 routes	112,000	112,000	32,000	112,000
Stacking architecture	StackWise-480 higher-scale stack group	StackWise-480 higher-scale stack group	StackWise-480 standard C9300 group	StackWise-480 higher-scale stack group
Switching capacity	208 Gbps standalone; 688 Gbps with stacking	208 Gbps standalone; 688 Gbps with stacking	208 Gbps standalone; 688 Gbps with stacking	640 Gbps standalone; 1120 Gbps with stacking
Forwarding rate	154.76 Mpps standalone; 511.90 Mpps with stacking	154.76 Mpps standalone; 511.90 Mpps with stacking	154.76 Mpps standalone; 511.90 Mpps with stacking	476.19 Mpps standalone; 833.33 Mpps with stacking

In a C9300-24UB-A vs C9300-24UB-E comparison, the higher-scale 24-port UPOE hardware, 32-MB buffer, 64,000 MAC address scale, 830W PoE budget, and StackWise-480 group match; the confirmed difference is Network Advantage versus Network Essentials.
The C9300-24UB-A difference from C9300-24U-A is the scale profile: C9300-24UB-A is in the higher-scale group with a 32-MB buffer, 64,000 MAC addresses, and 112,000 IPv4 routes, while C9300-24U-A is the standard 24-port UPOE model.
For C9300-24UB-A vs C9300-24UXB-A, the comparison is 1G UPOE access versus 10G/mGig UPOE access; the C9300-24UXB model also has the 64-MB packet buffer and higher listed switching and forwarding figures.
In a C9300-24UB-A vs C9300-48UB-A comparison, the which model to choose question turns on access density because both are higher-scale 1G UPOE Network Advantage models, but the C9300-48UB SKU doubles the port count and changes the listed PoE budget and performance figures.

Selection Guide

1. Match it to higher-scale 1G UPOE access

Choose C9300-24UB-A when the BOM needs 24 1G Cisco UPOE access ports and the higher-scale Catalyst 9300 buffer, MAC, routing, QoS, and ACL profile.

2. Keep the license tier explicit

Select C9300-24UB-E instead only when the same higher-scale 24-port UPOE hardware should be ordered with Network Essentials rather than Network Advantage.

3. Do not substitute standard C9300-24U hardware blindly

Use C9300-24U-A only when the standard Catalyst 9300 scale profile is acceptable, because it does not match the higher-scale C9300-24UB buffer and table values.

4. Separate mGig and 48-port requirements

Specify C9300-24UXB-A for higher-scale 10G/mGig UPOE downlinks or C9300-48UB-A for 48 higher-scale 1G UPOE ports instead of forcing those requirements into C9300-24UB-A.

PoE Power Planning

Planning Item	Cisco Confirmed Value	Order Impact
Default PoE budget	C9300-24UB is listed with 830W available PoE and PWR-C1-1100WAC-P as the default supply	Size the powered endpoint plan to the 830W default budget unless the power design adds a second supply
Secondary supply selection	Cisco ordering selects a secondary power supply by default unless the no-secondary-supply option is chosen	Decide whether the quote should keep redundant power or remove the secondary supply from the configuration
UPOE access profile	C9300-24UB is a 24-port 10/100/1000 UPOE model	Prevent replacement with data-only, PoE+, UPOE+, or mGig order lines unless the access-port requirement changes
StackPower	C9300-24UB supports StackPower	Add StackPower cables only when the site design requires shared power across compatible Catalyst 9300 stack members

Ordering Checklist

Check Item	What to Confirm	Why It Matters
Exact SKU	C9300-24UB-A	Confirms the order is the higher-scale 24-port 1G UPOE Catalyst 9300 switch with Network Advantage
Higher-scale stack family	Stack members limited to other higher-scale C9300 models	Prevents mixing C9300-24UB with standard C9300 members in an unsupported stack plan
Advantage subscription term	Cisco Catalyst or Cisco DNA Advantage 24-port 3-year, 5-year, or 7-year subscription	Keeps the software line aligned with the 24-port Network Advantage hardware SKU
Power plan	PWR-C1-1100WAC-P default supply, 830W PoE budget, and any secondary supply requirement	Keeps UPOE endpoint power planning tied to Cisco-confirmed power values

Optional Add-ons

Model	Description
C9300-NM-4G	Catalyst 9300 Series 4 x 1G network module
C9300-NM-8X	Catalyst 9300 Series 8 x 10G/1G network module
C9300-NM-2Q	Catalyst 9300 Series 2 x 40G network module
C9300-NM-2Y	Catalyst 9300 Series 2 x 25G/10G/1G network module
C9300-NM-4M	Catalyst 9300 Series 4 x 10G/mGig copper network module
PWR-C1-1100WAC-P=	1100W AC Platinum-rated power supply spare
STACK-T1-50CM=	Data stack 50 cm cable option for C9300 and C9300X SKUs
STACK-T1-1M=	Data stack 1 m cable option for C9300 and C9300X SKUs
STACK-T1-3M=	Data stack 3 m cable option for C9300 and C9300X SKUs

C9300-24UB-A Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1	Ground connectors	7	StackPower connectors
2	USB3.0–SSD port	8	AC OK (input) status LED
3	BEACON LED	9	PS OK (output) status LED
4	CONSOLE (RJ-45 console port)	10	StackWise-480 port connectors
5	MGMT (RJ-45 10/100/1000 management port)	11	Power supply modules
6	Fan modules	–	–

Rear Panel of a Cisco Catalyst 9300 Series Switch

Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1	Cisco Catalyst 9300 Series switch with optional network module¹ (power supply and fan modules not shown)	9	Eight number-8 Phillips flat-head screws
2	AC power cord	10	Cable guide
3	Product documentation and compliance document	11	M4.0 x 20mm Phillips pan-head screw
4	Four rubber mounting feet	12	(Optional) RJ-45 console cable
5	Ground lug screw and ring terminal	13	(Optional) USB console cable
6	Two 19-inch mounting brackets	14	(Optional) StackWise-480/1T cable (0.5-meter, 1-meter, or 3-meter)
7	Four number-12 pan-head screws	15	(Optional) StackPower cable (0.3-meter or 1.5-meter)
8	Four number-10 pan-head screws	16	(Optional) StackWise-320 cable

Specifications

Parameter	Specification	Parameter	Specification
Product ID	C9300-24UB-A	Product type	Higher-scale stackable access switch with modular uplinks
Network license	Network Advantage	Access ports	24 x 10/100/1000 UPOE copper ports
Scale profile	Catalyst 9300 higher-scale model	Default power supply	PWR-C1-1100WAC-P
Default PoE budget	830W	Uplink architecture	Modular C9300 network module slot
Network module order selection	C9300-NM-8X selected by default; alternate C9300-NM or C9300-NM-NONE can be selected	Supported network modules	C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y, C9300-NM-4M
Stacking architecture	StackWise-480	Stack members	Higher-scale C9300 models only
Stack bandwidth	480 Gbps	StackPower	Supported
Packet buffer	32 MB	FNF entries	128,000 flows for higher-scale Gigabit Ethernet models
MAC addresses	64,000	IPv4 routes	112,000 total routes
IPv6 routing entries	56,000	Multicast routing scale	16,000
QoS scale entries	18,000	ACL scale entries	18,000
Switching capacity	208 Gbps standalone	Switching capacity with stacking	688 Gbps
Forwarding rate	154.76 Mpps standalone	Forwarding rate with stacking	511.90 Mpps
DRAM	8 GB	Flash	16 GB
Minimum software release	Cisco IOS XE Gibraltar 16.12.1	Fan modules	3 field-replaceable fans
VLAN IDs	4094	Jumbo frames	9198 bytes

Get More Information

Need pricing, stock, or shipping details for the C9300-24UB-A ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.

Quality Certifications

Customer Reviews

Write A Review

4.9

Rated 4.92 out of 5

(13 reviews)

5 Stars

4 Stars

3 Stars

2 Stars

1 Stars

Chen Howard

Posted on 11/04/2026

Verified Buyer

Rated 5 out of 5

5.0

Their team confirmed the details before we placed the order.

Justin White

Posted on 05/03/2026

Verified Buyer

Rated 5 out of 5

5.0

If you’re hesitating, don’t. Layer23 is the real deal.

Michael Lee

Posted on 28/01/2026

Verified Buyer

Rated 5 out of 5

5.0

Layer23 is doing things right. We’ll be back.

Purchasing

Posted on 05/10/2025

Verified Buyer

Rated 5 out of 5

5.0

Shipped to Canada without delay.

Ellen Ripley

Posted on 12/06/2025

Verified Buyer

Rated 5 out of 5

5.0

Secure packaging. Nothing was damaged. Trustworthy.

Questions & Answers

Who needs C9300-24UB-A for higher-scale 1G copper UPOE and Network Advantage?
C9300-24UB-A fits higher-scale 24-port 1G copper UPOE access stacks that also need Network Advantage routing and policy capabilities.
What does C9300-24UB-A add over C9300-24UB-E?
C9300-24UB-A keeps the higher-scale 24-port UPOE hardware and changes the software tier to Network Advantage.
Can C9300-24UB-A stack with 24UXB higher-scale switches?
Yes. C9300-24UB-A can be planned with higher-scale peers, but the design remains 1G UPOE on this member and mGig only on 24UXB members.
Can C9300-24UB-A stack with C9300-24U-A?
No. C9300-24UB-A is a higher-scale SKU and needs higher-scale stack peers, not standard C9300-24U-A stack members.
Does C9300-24UB-A provide 10G/mGig access ports?
No. C9300-24UB-A is a higher-scale 1G copper UPOE member. Use 24UXB when each access port needs 10G/mGig copper speed.
When does C9300-24UB-A fit routed access?
C9300-24UB-A fits routed access when higher-scale 1G UPOE hardware and Network Advantage features are both required.
When is C9300-24UB-A the wrong SKU?
C9300-24UB-A is wrong for standard C9300 stacks, 90W UPOE+ endpoints, fiber downlinks, or mGig access designs.
What Network Advantage higher-scale details matter for C9300-24UB-A?
C9300-24UB-A planning depends on higher-scale stack rules, Network Advantage scope, UPOE device wattage, StackPower, modular uplinks, and power redundancy.

Warranty

100% Low Price Guarantee:

Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.

100% Quality Assurance:

All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.

Free CCIE Technical Support:

Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.

100% Money Back Guarantee:

If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.

Flexible & Secure Payment and Shipping:

We support multiple secure payment and logistics options, backed by industry-leading verification:

Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information

Check lifecycle dates

FREE NETWORK TOOLS

Verify, plan, and comparewith confidence

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.

Cisco Serial Number Lookup

Verify authenticity and identify exactmodel, coverage, and lifecycle detailsusing a Cisco serial number.

Verify a serial number >

Product Comparison

Compare specifications, capabilitiesand form factors side-by-side tochoose the right hardware.

Cisco Compare products >

Standard Services

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F3 Team Support

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Shipping

C9300-24UB-A – 24x1G UPOE Ports – Higher-Scale Buffer – 830W PoE Budget

Cisco C9300-24UB-A Compatible Accessories, Modules & Spare Parts

C9300-24UB-A Description

Quick Specs

Product Performance

Key Features

Application Scenarios

Product Comparison

Selection Guide

1. Match it to higher-scale 1G UPOE access

2. Keep the license tier explicit

3. Do not substitute standard C9300-24U hardware blindly

4. Separate mGig and 48-port requirements

PoE Power Planning

Ordering Checklist

Optional Add-ons

C9300-24UB-A Switch Rear Panel

Components Delivered in the Shipping Box

Specifications

Get More Information

Quality Certifications

Customer Reviews

Questions & Answers

Who needs C9300-24UB-A for higher-scale 1G copper UPOE and Network Advantage?

What does C9300-24UB-A add over C9300-24UB-E?

Can C9300-24UB-A stack with 24UXB higher-scale switches?

Can C9300-24UB-A stack with C9300-24U-A?

Does C9300-24UB-A provide 10G/mGig access ports?

When does C9300-24UB-A fit routed access?

When is C9300-24UB-A the wrong SKU?

What Network Advantage higher-scale details matter for C9300-24UB-A?

Warranty

Verify, plan, and comparewith confidence

Cisco Serial Number Lookup

Product Comparison

Standard Services

DataSheet Downloads

Related Searches of Catalyst 9300 Switches
