C9300X-24Y-E – 24 Ports – modular uplinks – access switch

Brand: Availability: In Stock

Condition:

New Factory Sealed
(4 customer reviews)

Questions

5/mo Solds

Warranty:

3-Year Warranty

Related:

Price:

Original price was: $7,787.00.Current price is: $4,905.00.

Quantity:

Shipping:

Express Shipping 2-6 Days, via DHL, FedEx, UPS, etc.

Payment:

  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
Why Choose Us
  • $20+ million Units In Stock
  • 500+ B2B Partners Worldwide
  • 24/7 Support & Fast Shipping
Expertise Builds Trust
  • 11 Years’ Experience Across 220+ Countries
  • 18000+ Customers/Projects
  • CCIE & CISSP Certified
  • Free Consultation
Ask an Expert Now

C9300X-24Y-E Description

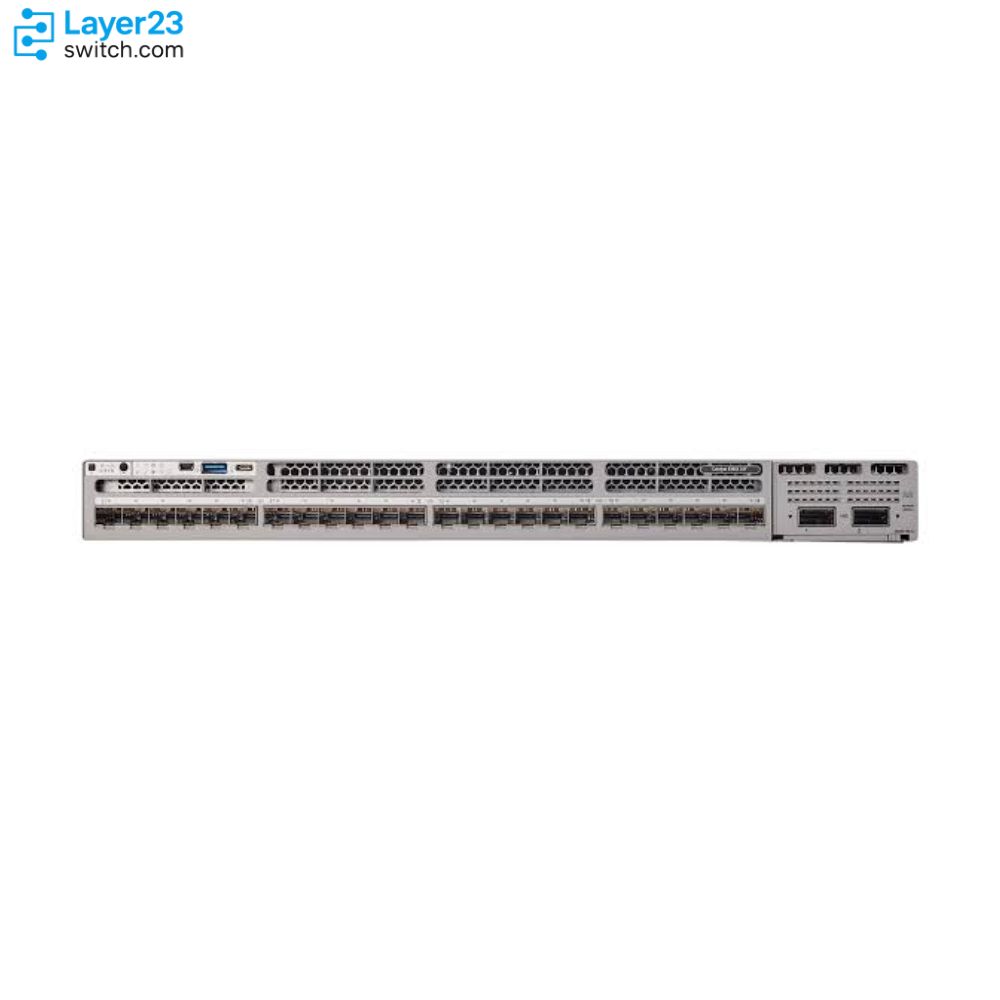

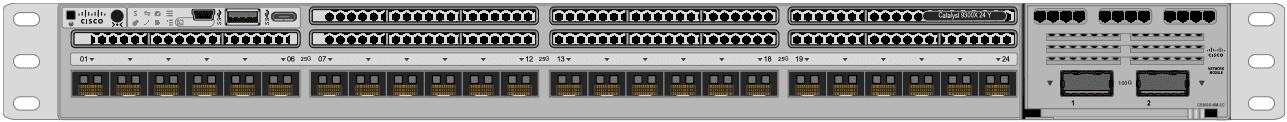

C9300X-24Y-E
  Cisco Catalyst C9300X-24Y-E is a high-density, data-only fiber access switch engineered for campus and data-center edge environments that demand ultra-high throughput with flexible uplink options. It provides 24 multi-rate SFP28 ports capable of 25 Gbps, 10 Gbps, or 1 Gbps, allowing seamless migration from 10 GbE to 25 GbE as network needs evolve. There are four modular uplink slots, supporting any combination of C9300X network modules—such as the NM-8Y (8×25 G/10 G/1 G SFP), NM-2C (2×100 G/40 G QSFP), or NM-4C (4×100 G/40 G QSFP)—for tailored aggregation or core connectivity without forklift upgrades.Powered by a single 715 W AC supply (PWR-C1-715WAC-P), the switch consumes approximately 115 VA at idle while delivering nonblocking, line-rate performance via the UADP 2.0Sec ASIC. In standalone mode, it delivers 2 Tbps of switching capacity (2,000 Gbps) and 1,488 Mpps forwarding; when stacked via StackWise-1T (up to eight members), capacity scales to 3 Tbps (3,000 Gbps) and forwarding to 2,232 Mpps.

Product Performance

Ethernet Ports
Switching Capacity
Forwarding Rate

Quick Specs

Parameter

Specification

Model

C9300X-24Y-E

Switching Capacity

2 Tbps standalone / 3 Tbps stacked

Forwarding Rate

1,488 Mpps standalone / 2,232 Mpps stacked

Downlink Ports

24 × multi-rate SFP28 (25 G/10 G/1 G) fiber

Uplink Module Slots

4 × modular uplink slots (supports NM-8Y, NM-2C, NM-4C)

Stacking Bandwidth

StackWise-1T (1 Tbps per stack link)

DRAM

16 GB

Flash Storage

16 GB

Key Features

High-Density SFP28 Ports

24 multi-rate SFP28 ports supporting 25 Gbps, 10 Gbps, or 1 Gbps, providing investment protection as network bandwidth demands grow.

UADP 2.0Sec ASIC

Hardware-based forwarding at 2 Tbps (1,488 Mpps) standalone, with 3 Tbps (2,232 Mpps) stacked, ensuring wire-speed performance for fiber access.

StackWise-1T Technology

Stack up to eight switches into a single logical unit with 1 Tbps per stack link, supporting mixed stacking with Catalyst 9300 at 480 Gbps speeds when needed.

Modular Uplink Architecture

Four uplink slots supporting NM-8Y, NM-2C, or NM-4C modules for customized 25 G/40 G/100 G aggregation paths and future-proof scalability.

Network Essentials Image

Includes MACsec 128/256 encryption, Encrypted Traffic Analytics (ETA), Secure Boot, SUDI, and model-driven telemetry (gNMI/YANG) for secure, observable network operations.

16 GB DRAM & 16 GB Flash

Supports advanced Layer 3 services (IPv4/IPv6 routing, VXLAN routing, limited hardware IPsec) directly on the switch, enabling low-latency, on-premise services.

Applications Scenarios

25 GbE Server Leaf

Acts as a 24-port SFP28 leaf in a leaf-spine fabric, aggregating multiple 10 GbE server uplinks and scaling to 25 GbE as needed.

Campus Core/Distribution

Provides high-performance fiber interconnect at building entrances, with modular uplink flexibility for future 100 GbE migration.

Cloud-Managed Campus Edge

Delivers fiber access at campus edges, integrated with Cisco DNA Center or SD-Access for zero-touch provisioning and real-time analytics.

Product Comparison

Parameter

C9300X-24Y-E

C9300X-12Y-E

C9300X-48TX-E

Downlink Ports

24 × 25 G/10 G/1 G SFP28

12 × 25 G/10 G/1 G SFP28

48 × 10 G/5 G/2.5 G/1 G/100 M mGig SFP+

Uplink Module Slots

4 modular (NM-8Y, NM-2C, NM-4C)

4 modular (NM-8Y, NM-2C, NM-4C)

4 modular (NM-8M, NM-2C, NM-4C)

Switching Capacity

2 Tbps / 3 Tbps stacked

1.4 Tbps / 2.4 Tbps stacked

1.76 Tbps / 2.76 Tbps stacked

Forwarding Rate

1,488 Mpps / 2,232 Mpps stacked

1,041 Mpps / 1,785 Mpps stacked

1,309 Mpps / 2,232 Mpps stacked

Stacking Bandwidth

1 Tbps (StackWise-1T)

1 Tbps (StackWise-1T)

1 Tbps (StackWise-1T)

Power Supply

1 × 715 W AC (no PoE)

1 × 715 W AC (no PoE)

1 × 715 W AC (no PoE)

License Image

Network Essentials (“-E”)

Network Essentials (“-E”)

Network Essentials (“-E”)

C9300X-24Y-E Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1

Ground connectors

7

StackPower connectors

2

USB3.0–SSD port

8

AC OK (input) status LED

3

BEACON LED

9

PS OK (output) status LED

4

CONSOLE (RJ-45 console port)

10

StackWise-480 port connectors

5

MGMT (RJ-45 10/100/1000 management port)

11

Power supply modules

6

Fan modules

–

–

Rear Panel of a Cisco Catalyst 9300 Series Switch

Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1

Cisco Catalyst 9300 Series switch with optional network module1 (power supply and fan modules not shown)

9

Eight number-8 Phillips flat-head screws

2

AC power cord

10

Cable guide

3

Product documentation and compliance document

11

M4.0 x 20mm Phillips pan-head screw

4

Four rubber mounting feet

12

(Optional) RJ-45 console cable

5

Ground lug screw and ring terminal

13

(Optional) USB console cable

6

Two 19-inch mounting brackets

14

(Optional) StackWise-480/1T cable (0.5-meter, 1-meter, or 3-meter)

7

Four number-12 pan-head screws

15

(Optional) StackPower cable (0.3-meter or 1.5-meter)

8

Four number-10 pan-head screws

16

(Optional) StackWise-320 cable

cisco-catalyst-9300-switch-shipping-box

Get More Information

Discover unbeatable prices and fast shipping for the C9300X-24Y-E Access the detailed C9300X-24Y-E datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via Live chat or email us at [email protected]

Quality Certifications

Specifications

Parameter Specification Parameter Specification
Model C9300X-24Y-E Chassis Dimensions (H × W × D, chassis only) 1.73″ × 17.5″ × 16.1″
Chassis with Default PSU 1.73″ × 17.5″ × 17.6″ Chassis with Secondary PSU 1.73″ × 17.5″ × 19.2″
Weight (with Default PSU) 16.2 lb (7.35 kg) DRAM 16 GB
Flash Storage 16 GB MAC Address Table 32,000 entries
IPv4 Routes 39,000 (24,000 direct + 15,000 indirect) IPv6 Routing Entries 19,500 entries
Multicast Routing Scale 8,000 entries QoS Scale Entries 4,000 entries
ACL Scale Entries 8,000 entries Packet Buffer 32 MB
Flexible NetFlow Entries 128,000 flows VLAN IDs 4,094
Total SVIs 1,000 Jumbo Frame Support Up to 9,198 bytes
Switching Capacity 2,000 Gbps Switching Capacity (with stacking) 3,000 Gbps
Forwarding Rate 1,488 Mpps Forwarding Rate (with stacking) 2,232 Mpps
Downlink Ports 24 × 25G/10G/1G SFP28 Uplink Slots 4 × modular (10G/25G/40G/100G)
Default Power Supply PWR‐C1‐715WAC‐P (715 W AC) Available PoE None
Total Routed Ports per Stack 448 MTBF 249,350 hours
Host CPU x86 4-core SUDI Support Secure Universal Device ID
Trustworthy System Secure Boot Operating Temperature −5 °C to +45 °C
Storage Temperature −40 °C to +70 °C AC Input Voltage 100–240 VAC, 50–60 Hz

Customer Reviews

Write A Review
5.0
(4 reviews)
5 Stars
4
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
    Gwenyth Hale
    Posted on 15/03/2025
    Verified Buyer
    5.0

    A core component of our infrastructure refresh. The investment is justified by the performance and advanced security features.

    Miles Sterling
    Posted on 09/11/2024
    Verified Buyer
    5.0

    The 24 ports of multigigabit Ethernet are exactly what we needed to support our new Wi-Fi 6E access points. Solved our bottleneck issues.

    Arthur Pena
    Posted on 28/06/2024
    Verified Buyer
    5.0

    The hardware arrived on schedule for our deployment deadline. It’s a high-performing aggregation switch that has met all our requirements.

    Nora Bishop
    Posted on 03/12/2023
    Verified Buyer
    5.0

    Impressive switching capacity, especially when stacked. Provides the redundancy and simplified management we need for our critical healthcare apps.

Questions & Answers

  • Can I stack multiple units of the C9300X-24Y-E together, and what's the limit?

    Stacking capabilities depend on the specific technology implemented; usually, multiple units can be stacked, often limited by manufacturer's recommendations.

  • Is there a recommended alternative if I can't find the C9300X-24Y-E?

    Comparable alternatives generally include other models within the same series or brand, ensuring similar specifications and compatibility.

  • What should I do if my C9300X-24Y-E firmware update fails?

    If a firmware update fails, consult the recovery instructions from the official documentation or reach out to technical support for specific guidance.

  • What diagnostic tools are available for troubleshooting the C9300X-24Y-E?

    Diagnostic tools provided typically include built-in hardware diagnostics, log inspection tools, and remote management utilities.

  • Can the C9300X-24Y-E be managed remotely, and how?

    Yes, remote management is generally supported through protocols like SSH, HTTPS, or vendor-specific remote management platforms.

  • What are common hardware issues reported by users of the C9300X-24Y-E?

    Common hardware issues include port failures, fan malfunctions, or power supply problems; regular maintenance can mitigate many issues.

  • How easy is it to configure the C9300X-24Y-E for IPv6 usage?

    Configuring for IPv6 is straightforward, typically detailed in the user manual and achievable via standard management interfaces.

  • What advanced security features does the C9300X-24Y-E offer?

    Security features often include encryption capabilities, access controls, threat detection systems, and support for secure management protocols.

  • Can the C9300X-24Y-E operate effectively in data center environments?

    While some models can function well in data centers, specialized data center switches typically offer superior performance and redundancy.

  • Does the C9300X-24Y-E require specific environmental conditions for optimal operation?

    Ideally, maintain a temperature-controlled, dust-free environment to ensure optimal performance and longevity.

  • How energy-efficient is the C9300X-24Y-E compared to similar devices?

    This model is designed to be energy-efficient, typically featuring technologies that optimize power usage and reduce overall consumption.

  • Does the C9300X-24Y-E support Power over Ethernet (PoE), and what standards does it comply with?

    PoE support and standards compliance vary by model; check the specifications to verify compatibility with your requirements.

  • What’s the typical lifespan of the C9300X-24Y-E in regular usage scenarios?

    Under typical operational conditions, the device generally has a lifespan of 5 to 7 years, depending on environmental factors and maintenance practices.

  • How do I perform a software update on the C9300X-24Y-E?

    Updates can usually be performed via the device's web interface, CLI, or through network management software provided by the manufacturer.

  • What warranty coverage does the C9300X-24Y-E typically include?

    Warranty coverage usually includes limited parts and labor warranty, details of which can be confirmed through the vendor’s official support page.

  • What steps should I take if the C9300X-24Y-E experiences connectivity issues?

    Begin by checking cables and connectors, verifying configurations, examining logs, and rebooting the device if necessary.

  • Are there compatibility concerns I should be aware of when integrating the C9300X-24Y-E into my existing network?

    Compatibility concerns typically include software version alignments, integration with existing security protocols, and hardware compatibility checks.

  • How loud is the C9300X-24Y-E when operating at full capacity?

    Noise levels vary by model but generally remain within acceptable ranges suitable for office environments; consult specific product details for exact metrics.

  • What types of interfaces are provided by the C9300X-24Y-E?

    It typically includes standard Ethernet ports, and may offer uplink options such as fiber or copper, depending on the specific configuration.
