What ports does C9300X-24HX-E offer?

C9300X-24HX-E offers 24 10G multigigabit copper ports supporting 10G, 5G, 2.5G, 1G, and 100M speeds, plus Cisco UPOE+ and modular uplinks.

Is C9300X-24HX-E made for Wi-Fi 6E access points?

C9300X-24HX-E is a strong match for dense Wi-Fi 6 or Wi-Fi 6E access layers because every downlink can provide mGig speed and 90W Cisco UPOE+ power.

How is C9300X-24HX-E different from C9300X-24HX-A?

C9300X-24HX-E and C9300X-24HX-A share the same 24-port mGig UPOE+ hardware; the E suffix identifies Network Essentials licensing.

What PoE budget detail matters on C9300X-24HX-E?

C9300X-24HX-E ships in the 1100W AC power-supply class, so high-density UPOE+ designs need endpoint wattage totals, redundant supply choices, and StackPower planning.

Can C9300X-24HX-E use 100G uplinks?

C9300X-24HX-E uses C9300X modular uplinks, allowing designs to add higher-speed uplink modules such as 40G or 100G where the access layer needs faster aggregation.

What stacking behavior matters for C9300X-24HX-E?

C9300X-24HX-E supports StackWise-1T with C9300X members, while mixed modular Catalyst 9300 stacks can change effective stack bandwidth and operational assumptions.

Where does C9300X-24HX-E fit against C9300X-48HXN-E?

C9300X-24HX-E fits sites needing 24 full 10G mGig UPOE+ copper ports instead of the 48HXN layout with 40 lower-speed mGig and 8 10G mGig ports.

What cable plant check matters for C9300X-24HX-E?

C9300X-24HX-E deployments need copper cabling checked for the intended 2.5G, 5G, or 10G speeds before access points, cameras, or smart-building endpoints are connected.

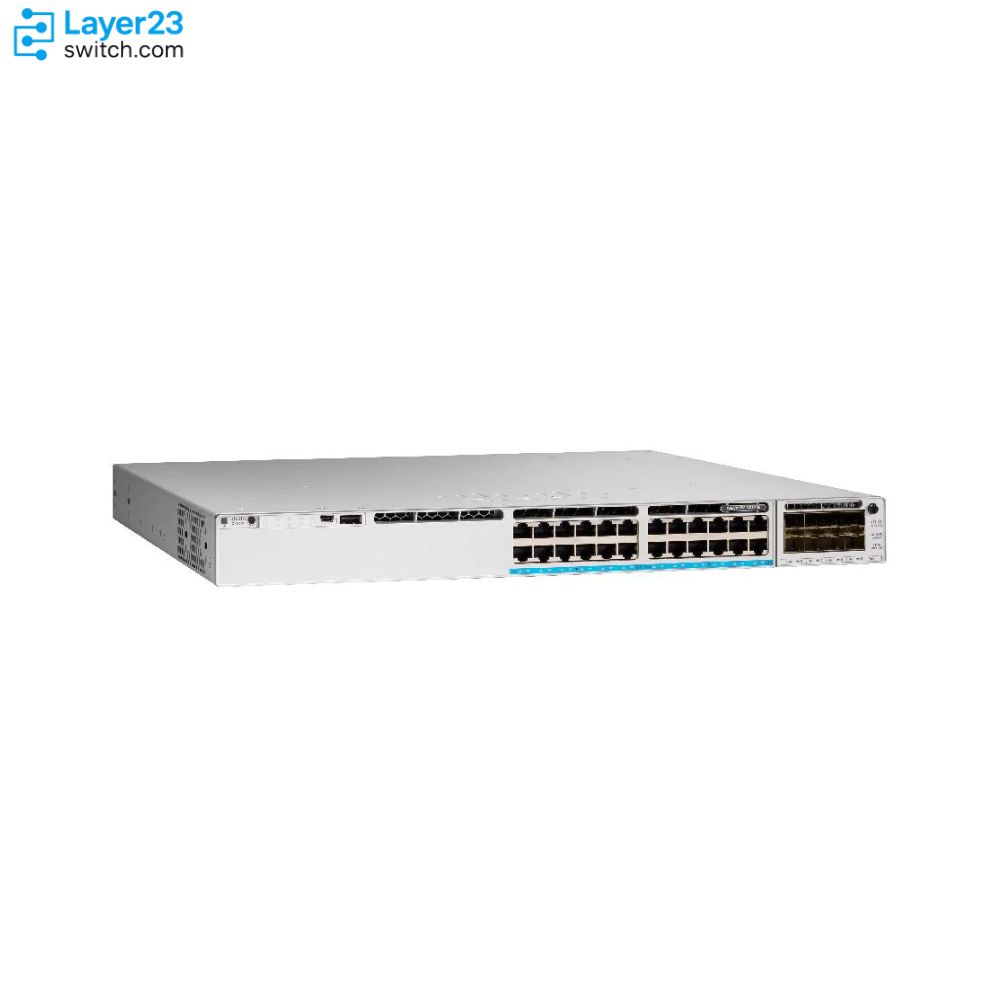

C9300X-24HX-E – 24x10G mGig UPOE+ Ports – Modular C9300X Uplinks – 735W PoE Budget

Name: C9300X-24HX-E Price - 24-Port 10G mGig UPOE+ Catalyst 9300X Switch
Brand: Cisco
SKU: C9300X-24HX-E
Price: 5980.50 USD
Availability: InStock
Rating: 4.9 (10 reviews)

Brand: Cisco Category: Catalyst 9300 Switches Availability:

In Stock

Model: C9300X-24HX-E

100% Genuine
Brand-new Cisco hardware
SN Verifiable
Verify before shipment
-> Check SN
3-Year Warranty
Extended, enterprise-grade

Rated 4.9 out of 5 based on 10 customer ratings

(10 customer reviews)

Questions

9/mo Solds

List Price: ~~$32,004.18~~ 81% OFF

$5,980.50

Related Condition

Quantity

Trusted & Secure Payments

Shipping Express Shipping 2-6 Business Days, via UPS, FedEx, DHL and more

Not Sure If This Fits Your Network?

Ask our Cisco-certified team before buying

Cisco C9300X-24HX-E Compatible Accessories, Modules & Spare Parts

Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco C9300X-24HX-E. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.

Optics & Cables Compatible with Cisco C9300X-24HX-E

SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4
Rated 4.75 out of 5
Original price was: $2,658.11.Current price is: $71.68. Condition: New Factory Sealed
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km Reach
Rated 4.88 out of 5
Original price was: $10,672.47.Current price is: $170.00. Condition: New Factory Sealed
SFP-25G-SR-S
25GBASE-SR SFP28 - 850nm MMF - 100m OM4
Rated 4.75 out of 5
Original price was: $2,658.11.Current price is: $314.00. Condition: New Factory Sealed
SFP-10/25G-LR-S
10/25GBASE-LR SFP28 - 1310nm 10km SMF Transceiver
Rated 4.75 out of 5
Original price was: $5,877.20.Current price is: $333.50. Condition: New Factory Sealed
QSFP-40G-SR4
40G SR4 QSFP - MPO-12 MMF - 4x10G Breakout
Rated 4.86 out of 5
Original price was: $8,001.01.Current price is: $139.00. Condition: New Factory Sealed
QSFP-40G-SR-BD
40G SR-BiDi QSFP - LC MMF - 150m OM4
Rated 5 out of 5
Original price was: $2,925.26.Current price is: $120.00. Condition: New Factory Sealed
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOM
Rated 4.91 out of 5
Original price was: $2,658.11.Current price is: $95.80. Condition: New Factory Sealed
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m Reach
Rated 4.89 out of 5
Original price was: $1,202.16.Current price is: $62.50. Condition: New Factory Sealed
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOM
Rated 5 out of 5
Original price was: $1,335.73.Current price is: $57.00. Condition: New Factory Sealed

Stable Global Supply Chain for Thriving Businesses.

$8,000,000 Inventory
Certified Cisco Partner ships
Collaborating with FedEx, UPS, DHL

Free Expert Support from Planning to Deployment

Assistance with product selection and network solution design
Configuration guidance and best-practice recommendations
Troubleshooting support provided by CCIE-level technical experts

Established Global IT Distributor

With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

C9300X-24HX-E Description

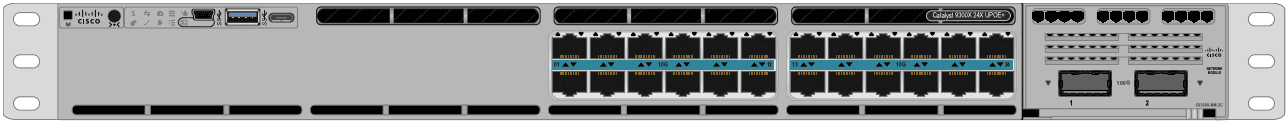

C9300X-24HX-E is a Cisco Catalyst 9300X stackable access switch for high-density campus edge deployments that need 24 100M/1G/2.5G/5G/10G multigigabit copper ports with Cisco UPOE+ and Network Essentials. It uses the C9300X modular uplink architecture, ships with a PWR-C1-1100WAC-P default power supply, provides a 735W default PoE budget, and supports StackWise-1T with StackPower+ for stacked access designs where multigigabit endpoint density, power delivery, and modular uplink choice matter.

Quick Specs

Parameter	Specification
Product ID	C9300X-24HX-E
Product type	Stackable access switch with modular uplinks
Access ports	24 x 100M/1G/2.5G/5G/10G multigigabit copper ports
PoE standard	Cisco UPOE+ with IEEE 802.3bt Type 4 support
Network license	Network Essentials
Cisco software subscription	Cisco DNA Essentials 24-port term license family
Uplink architecture	Modular C9300X network-module slot
Default power supply	PWR-C1-1100WAC-P
Default PoE budget	735W
Stacking and power stack	StackWise-1T with StackPower+ support
Minimum software release	Cisco IOS XE Cupertino 17.9.1
Switching and forwarding	800 Gbps standalone switching; 654.72 Mpps standalone forwarding

Product Performance

10G mGig UPOE+ Access

Default PoE Budget

Standalone Switching Capacity

Key Features

Network Essentials C9300X-24HX order line

The `-E` suffix maps the C9300X-24HX hardware to Network Essentials, while the corresponding `-A` order line changes the same hardware family to Network Advantage.

10G copper on every access port

Each access port on the C9300X-24HX hardware can be planned as a 100M, 1G, 2.5G, 5G, or 10G multigigabit copper connection.

UPOE+ power class

Cisco lists the model as a UPOE+ switch, and the 24-port UPOE+ planning table ties IEEE 802.3bt Type 4 90W operation to specific power-supply combinations.

C9300X modular uplink path

The switch uses the C9300X network-module family, so C9300X-NM uplinks must be selected instead of C9300 network modules.

StackWise-1T access stack member

The C9300X-24HX hardware supports StackWise-1T, which keeps stacking cable selection separate from older StackWise-480 Catalyst 9300 orders.

Cisco IOS XE 17.9.1 baseline

Cisco release notes list C9300X-24HX-E with Cisco IOS XE Cupertino 17.9.1 as the introductory release.

Application Scenarios

Wi-Fi 6E access closet with 10G copper

C9300X-24HX-E fits a wiring closet where 24 multigigabit copper access links need 10G capability and UPOE+ power while the software tier remains Network Essentials.

Essentials-tier Catalyst 9300X stack expansion

The SKU is appropriate when the stack design standardizes on C9300X hardware, StackWise-1T, StackPower+, and Network Essentials rather than the Advantage license suffix.

High-power endpoint refresh

Use the model for access designs that must reserve UPOE+ power planning for devices such as access points, displays, cameras, or building endpoints, while still checking the actual power supply combination before the order is released.

Product Comparison

Parameter	C9300X-24HX-E	C9300X-24HX-A	C9300X-48HX-E	C9300X-24Y-E
Product type	Stackable access switch	Stackable access switch	Stackable access switch	Stackable access switch
Access media	10G multigigabit copper	10G multigigabit copper	10G multigigabit copper	25G/10G/1G SFP28 fiber
Access port count	24 ports	24 ports	48 ports	24 ports
PoE class	Cisco UPOE+	Cisco UPOE+	Cisco UPOE+	No PoE
Network license	Network Essentials	Network Advantage	Network Essentials	Network Essentials
Default power supply	PWR-C1-1100WAC-P	PWR-C1-1100WAC-P	PWR-C1-1100WAC-P	PWR-C1-715WAC-P
Default PoE budget	735W	735W	590W	No PoE
Uplink architecture	C9300X network module	C9300X network module	C9300X network module	C9300X network module
Stacking architecture	StackWise-1T	StackWise-1T	StackWise-1T	StackWise-1T
Minimum software release	Cisco IOS XE Cupertino 17.9.1	Cisco IOS XE Cupertino 17.9.1	Cisco IOS XE Bengaluru 17.5.1	Cisco IOS XE Bengaluru 17.5.1
Switching capacity	800 Gbps standalone; 1,880 Gbps with stacking	800 Gbps standalone; 1,880 Gbps with stacking	1,760 Gbps standalone; 2,760 Gbps with stacking	2,000 Gbps standalone; 3,000 Gbps with stacking
Forwarding rate	654.72 Mpps standalone; 1,398.72 Mpps with stacking	654.72 Mpps standalone; 1,398.72 Mpps with stacking	1,309 Mpps standalone; 2,232 Mpps with stacking	1,488 Mpps standalone; 2,232 Mpps with stacking

C9300X-24HX-E vs C9300X-24HX-A is a license-tier comparison: both rows keep the same 24-port 10G mGig UPOE+ hardware profile, but the current SKU is Network Essentials.
In a C9300X-24HX-E vs C9300X-48HX-E comparison, the difference is access density because the current SKU has 24 copper UPOE+ ports and C9300X-48HX-E has 48 copper UPOE+ ports.
C9300X-24HX-E vs C9300X-24Y-E is a media and power comparison: the current SKU is a 10G mGig copper UPOE+ model, while C9300X-24Y-E is a 25G SFP28 fiber model with no PoE budget.
For buyers comparing which model to choose, C9300X-24HX-E should stay tied to 24-port copper mGig UPOE+ access and Network Essentials.

Selection Guide

1. Choose it for 24-port 10G mGig copper access

Select C9300X-24HX-E when the BOM calls for 24 Catalyst 9300X copper ports with 10G multigigabit capability and UPOE+ power.

2. Change suffix for Network Advantage

Move to C9300X-24HX-A only when the same C9300X-24HX hardware must be ordered with Network Advantage instead of Network Essentials.

3. Increase port count with the C9300X-48HX line

Use C9300X-48HX-E when the design requires 48 10G mGig UPOE+ access ports under Network Essentials instead of 24 ports.

4. Keep fiber access separate

Select C9300X-24Y-E only when the access requirement is 25G/10G/1G SFP28 fiber and the order does not need a PoE budget.

PoE Power Planning

Planning Item	Cisco Confirmed Value	Order Impact
Default PoE budget	C9300X-24HX is listed with 735W available PoE using PWR-C1-1100WAC-P	Check powered-device draw before assuming the default supply is enough
Higher PoE budget options	The data sheet lists 1085W with a 350W secondary supply, 1450W with a 715W secondary supply, 1835W with an 1100W secondary supply, and 2160W with a 1900W secondary supply	Add the secondary supply that matches the endpoint plan and redundancy requirement
90W UPOE+ planning	Cisco lists IEEE 802.3bt Type 4 90W operation on 21 ports for 24-port UPOE+ models	Prevents assuming that all 24 ports can deliver 90W at the same time
Power-stack design	C9300X-24HX supports StackPower+	Include StackPower+ cabling only where the access stack design uses shared power

Ordering Checklist

Check Item	What to Confirm	Why It Matters
Exact hardware SKU	C9300X-24HX-E on the switch line	Prevents substitution with C9300X-24HX-A, C9300X-48HX-E, or C9300X-24Y-E
Access-port profile	24 ports of 100M/1G/2.5G/5G/10G multigigabit copper with UPOE+	Keeps AP, endpoint, and cabling requirements aligned to the C9300X-24HX hardware
License and subscription	Network Essentials plus the correct 24-port Essentials term subscription	Keeps the hardware suffix and software entitlement tier aligned
Uplink module	C9300X-NM-2C default selection, another supported C9300X-NM option, or no-module selection	Avoids mixing C9300X switch orders with C9300 network modules
PoE supply set	Default PWR-C1-1100WAC-P, secondary supply choice, and 90W endpoint count	Matches the powered-device plan to Cisco-listed PoE values
Stack accessories	StackWise-1T cable length and StackPower+ cable choice	Prevents accessory mismatch with older Catalyst 9300 stacking orders

Optional Add-ons

Model	Description
C9300X-NM-2C	Catalyst 9300X 2 x 100G/40G dual-rate QSFP28 network module
C9300X-NM-8M	Catalyst 9300X 8 x 10G/1G multigigabit network module
C9300X-NM-8Y	Catalyst 9300X 8 x 25G/10G/1G multi-rate SFP28 network module
C9300-DNA-E-24-3Y	C9300 Cisco DNA Essentials, 24-port, 3-year term license
C9300-DNA-E-24-5Y	C9300 Cisco DNA Essentials, 24-port, 5-year term license
C9300-DNA-E-24-7Y	C9300 Cisco DNA Essentials, 24-port, 7-year term license
PWR-C1-1100WAC-P	1100W AC Platinum-rated power supply module
PWR-C1-1900WAC-P	1900W AC Platinum-rated power supply module upgrade option

C9300X-24HX-E Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1	Ground connectors	7	StackPower connectors
2	USB3.0–SSD port	8	AC OK (input) status LED
3	BEACON LED	9	PS OK (output) status LED
4	CONSOLE (RJ-45 console port)	10	StackWise-480 port connectors
5	MGMT (RJ-45 10/100/1000 management port)	11	Power supply modules
6	Fan modules	–	–

Rear Panel of a Cisco Catalyst 9300 Series Switch

Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1	Cisco Catalyst 9300 Series switch with optional network module¹ (power supply and fan modules not shown)	9	Eight number-8 Phillips flat-head screws
2	AC power cord	10	Cable guide
3	Product documentation and compliance document	11	M4.0 x 20mm Phillips pan-head screw
4	Four rubber mounting feet	12	(Optional) RJ-45 console cable
5	Ground lug screw and ring terminal	13	(Optional) USB console cable
6	Two 19-inch mounting brackets	14	(Optional) StackWise-480/1T cable (0.5-meter, 1-meter, or 3-meter)
7	Four number-12 pan-head screws	15	(Optional) StackPower cable (0.3-meter or 1.5-meter)
8	Four number-10 pan-head screws	16	(Optional) StackWise-320 cable

Specifications

Parameter	Specification	Parameter	Specification
Product ID	C9300X-24HX-E	Product type	Stackable access switch with modular uplinks
Network license	Network Essentials	Access ports	24 x 100M/1G/2.5G/5G/10G multigigabit copper ports
PoE standard	Cisco UPOE+ with IEEE 802.3bt Type 4 support	Default power supply	PWR-C1-1100WAC-P
Default PoE budget	735W	PoE with 350W secondary supply	1085W
PoE with 715W secondary supply	1450W	PoE with 1100W secondary supply	1835W
PoE with 1900W secondary supply	2160W	Uplink architecture	Optional field-replaceable C9300X network module
Default network-module selection	C9300X-NM-2C in Cisco Commerce Workspace	Supported C9300X modules	C9300X-NM-2C, C9300X-NM-8M, C9300X-NM-8Y
Network module exclusion	C9300X-NM-4C is not listed for C9300X-24HX compatibility	Cisco software subscription	Cisco DNA Essentials 24-port term license family
Minimum software release	Cisco IOS XE Cupertino 17.9.1	Stacking architecture	StackWise-1T
Power stack	StackPower+ supported	Switching capacity	800 Gbps standalone
Switching capacity with stacking	1,880 Gbps	Forwarding rate	654.72 Mpps standalone
Forwarding rate with stacking	1,398.72 Mpps	DRAM	16 GB
Flash	16 GB	FNF entries	64,000 flows for 24-port 10G Multigigabit C9300X
Packet buffer	16 MB buffer for 24-port 10G Multigigabit C9300X	Jumbo frames	9198 bytes
Dimensions with default supply	1.73 x 17.5 x 20.63 in.

Get More Information

Need pricing, stock, or shipping details for the C9300X-24HX-E ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.

Quality Certifications

Customer Reviews

Write A Review

4.9

Rated 4.9 out of 5

(10 reviews)

5 Stars

4 Stars

3 Stars

2 Stars

1 Stars

Denise Baker

Posted on 19/02/2026

Verified Buyer

Rated 4 out of 5

4.0

Best price among the vendors we evaluated. Same product everywhere. Took a little longer to clear customs than expected, otherwise excellent.

Jesse Scott

Posted on 07/01/2026

Verified Buyer

Rated 5 out of 5

5.0

Performance has been steady since the day we installed it.

Jennifer Oliveira

Posted on 30/12/2025

Verified Buyer

Rated 5 out of 5

5.0

Box was sized appropriately — no excessive empty space inside.

Indiana Jones

Posted on 15/07/2025

Verified Buyer

Rated 5 out of 5

5.0

It belongs in a rack! And it got here safely.

James Bond

Posted on 22/05/2025

Verified Buyer

Rated 5 out of 5

5.0

Service was impeccable. Delivered with speed.

Questions & Answers

What ports does C9300X-24HX-E offer?
C9300X-24HX-E offers 24 10G multigigabit copper ports supporting 10G, 5G, 2.5G, 1G, and 100M speeds, plus Cisco UPOE+ and modular uplinks.
Is C9300X-24HX-E made for Wi-Fi 6E access points?
C9300X-24HX-E is a strong match for dense Wi-Fi 6 or Wi-Fi 6E access layers because every downlink can provide mGig speed and 90W Cisco UPOE+ power.
How is C9300X-24HX-E different from C9300X-24HX-A?
C9300X-24HX-E and C9300X-24HX-A share the same 24-port mGig UPOE+ hardware; the E suffix identifies Network Essentials licensing.
What PoE budget detail matters on C9300X-24HX-E?
C9300X-24HX-E ships in the 1100W AC power-supply class, so high-density UPOE+ designs need endpoint wattage totals, redundant supply choices, and StackPower planning.
Can C9300X-24HX-E use 100G uplinks?
C9300X-24HX-E uses C9300X modular uplinks, allowing designs to add higher-speed uplink modules such as 40G or 100G where the access layer needs faster aggregation.
What stacking behavior matters for C9300X-24HX-E?
C9300X-24HX-E supports StackWise-1T with C9300X members, while mixed modular Catalyst 9300 stacks can change effective stack bandwidth and operational assumptions.
Where does C9300X-24HX-E fit against C9300X-48HXN-E?
C9300X-24HX-E fits sites needing 24 full 10G mGig UPOE+ copper ports instead of the 48HXN layout with 40 lower-speed mGig and 8 10G mGig ports.
What cable plant check matters for C9300X-24HX-E?
C9300X-24HX-E deployments need copper cabling checked for the intended 2.5G, 5G, or 10G speeds before access points, cameras, or smart-building endpoints are connected.

Warranty

100% Low Price Guarantee:

Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.

100% Quality Assurance:

All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.

Free CCIE Technical Support:

Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.

100% Money Back Guarantee:

If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.

Flexible & Secure Payment and Shipping:

We support multiple secure payment and logistics options, backed by industry-leading verification:

Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information

Check lifecycle dates

FREE NETWORK TOOLS

Verify, plan, and comparewith confidence

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.

Cisco Serial Number Lookup

Verify authenticity and identify exactmodel, coverage, and lifecycle detailsusing a Cisco serial number.

Verify a serial number >

Product Comparison

Compare specifications, capabilitiesand form factors side-by-side tochoose the right hardware.

Cisco Compare products >

Standard Services

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F3 Team Support

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Shipping

C9300X-24HX-E – 24x10G mGig UPOE+ Ports – Modular C9300X Uplinks – 735W PoE Budget

Cisco C9300X-24HX-E Compatible Accessories, Modules & Spare Parts

Optics & Cables Compatible with Cisco C9300X-24HX-E

Power Supplies & Fans Compatible with Cisco C9300X-24HX-E

C9300X-24HX-E Description

Quick Specs

Product Performance

Key Features

Application Scenarios

Product Comparison

Selection Guide

1. Choose it for 24-port 10G mGig copper access

2. Change suffix for Network Advantage

3. Increase port count with the C9300X-48HX line

4. Keep fiber access separate

PoE Power Planning

Ordering Checklist

Optional Add-ons

C9300X-24HX-E Switch Rear Panel

Components Delivered in the Shipping Box

Specifications

Get More Information

Quality Certifications

Customer Reviews

Questions & Answers

What ports does C9300X-24HX-E offer?

Is C9300X-24HX-E made for Wi-Fi 6E access points?

How is C9300X-24HX-E different from C9300X-24HX-A?

What PoE budget detail matters on C9300X-24HX-E?

Can C9300X-24HX-E use 100G uplinks?

What stacking behavior matters for C9300X-24HX-E?

Where does C9300X-24HX-E fit against C9300X-48HXN-E?

What cable plant check matters for C9300X-24HX-E?

Warranty

Verify, plan, and comparewith confidence

Cisco Serial Number Lookup

Product Comparison

Standard Services

DataSheet Downloads

Related Searches of Catalyst 9300 Switches
