C9300L-24T-4X-E – 24x1G Data Ports – 4x10G Fixed Uplinks – Network Essentials

Brand: Cisco Category: Catalyst 9300 Switches Model: C9300L-24T-4X-E
4.912 reviews9 Questions
List Price: $9,282.93 73% OFF
$2,501.87
Price Alert
In StockShips in as little as 1 business day Brand New
Subscription C9300-DNA-E This item requires a mandatory DNA. + $747.31 Subtotal Price $3,249.18
Related models
Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policyExpress Shipping2-6 Business Daysvia UPS, FedEx, DHL and more
Trusted & Secure Payments

Shop Expert-Recommended Accessories for the C9300L-24T-4X-E

Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.
  • SFP-10G-SR-S

    SFP-10G-SR-S

    10GBASE-SR SFP+ - S-Class - 400m OM4 MMF
    Original price was: $853.95.Current price is: $52.00.
  • SFP-10G-SR

    SFP-10G-SR

    10GBASE-SR SFP+ - 850nm MMF - 400m OM4
    Original price was: $1,213.85.Current price is: $91.68.
  • SFP-10G-SR-X

    SFP-10G-SR-X

    10GBASE-SR SFP+ - Extended Temp - 400m OM4 MMF
    Original price was: $1,942.00.Current price is: $298.70.
  • SFP-10G-LR-S

    SFP-10G-LR-S

    10GBASE-LR SFP+ - S-Class - 10km SMF
    Original price was: $2,439.88.Current price is: $150.00.
  • SFP-10G-LR

    SFP-10G-LR

    10GBASE-LR SFP+ - 1310nm SMF - 10km Reach
    Original price was: $4,873.66.Current price is: $149.00.
  • SFP-10G-LR-X

    SFP-10G-LR-X

    10GBASE-LR SFP+ - Extended Temp - 10km SMF
    Original price was: $11,206.77.Current price is: $306.00.
  • GLC-LH-SMD

    GLC-LH-SMD

    1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOM
    Original price was: $1,260.58.Current price is: $95.80.
  • GLC-TE

    GLC-TE

    1000BASE-T SFP - RJ-45 Cat5 Copper - 100m Reach
    Original price was: $570.10.Current price is: $70.00.
  • GLC-SX-MMD

    GLC-SX-MMD

    1000BASE-SX SFP - MMF 850nm - DOM
    Original price was: $633.46.Current price is: $59.00.
  • GLC-EX-SMD

    GLC-EX-SMD

    1000BASE-EX SFP - 40km SMF - DOM
    Original price was: $2,527.49.Current price is: $205.00.
  • PWR-C1-350WAC-P

    PWR-C1-350WAC-P

    350W AC PSU - Catalyst 9300 C1 - Platinum Rated
    Original price was: $819.12.Current price is: $166.00.

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded
Customers
Units shipped
Countries
Cisco switches in stock at the Layer23-Switch warehouse
Play

Inventory You Can See

Cisco stock on hand
Models ready to ship
Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

  • Advance replacement for in-stock models
  • New unit for dead-on-arrival
  • 14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

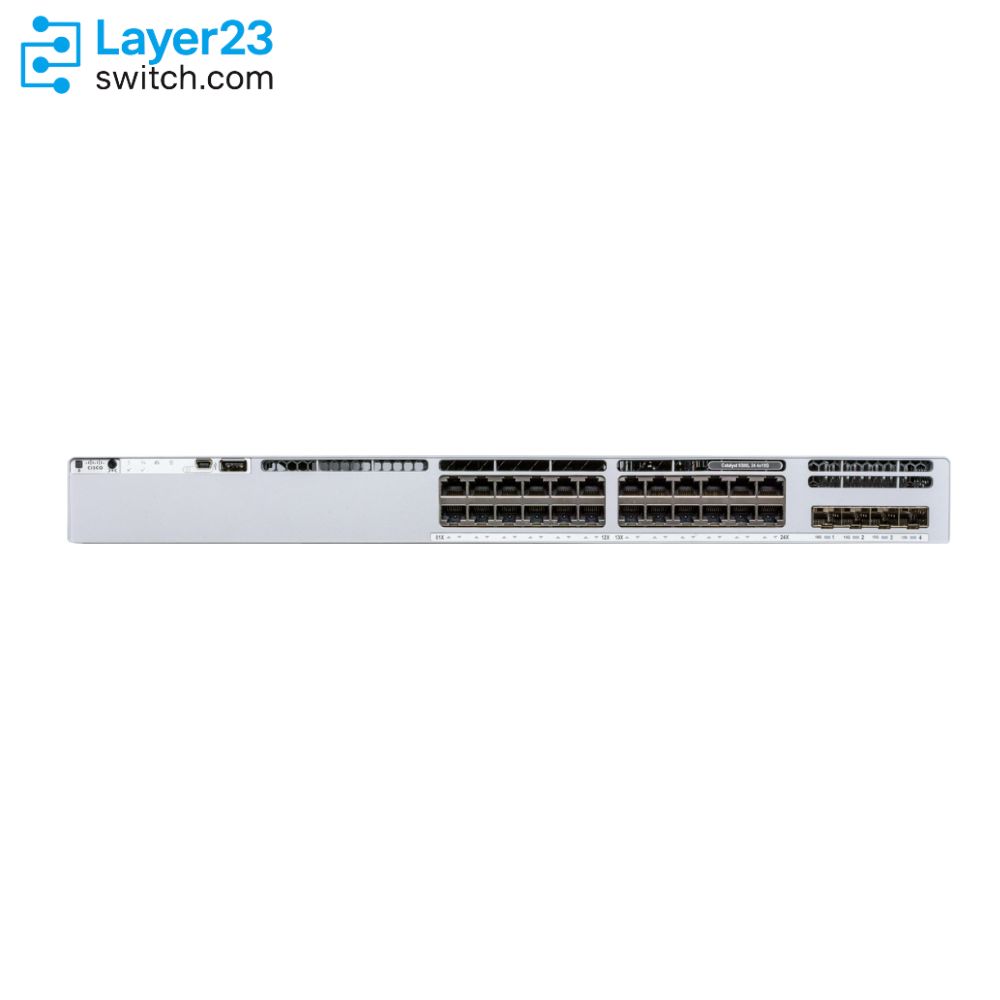

C9300L-24T-4X-E Description

The C9300L-24T-4X-E is a Cisco Catalyst 9300L fixed-uplink stackable access switch for wiring closets that connect data-only devices and need 10G uplinks. The switch has 24 Gigabit copper ports, four fixed 10G/1G SFP+ uplinks and 128 Gbps of switching capacity, and its Network Essentials license covers Layer 2 and routed access with OSPF limited to 1,000 routes. The 350W default supply carries no PoE, and BGP, VXLAN and MPLS are outside the license.

Quick Specs

Parameter

Specification

Product ID

C9300L-24T-4X-E

Product type

Fixed-uplink stackable access switch

Downlink ports

24 x 10/100/1000 Mbps data copper ports

Uplink ports

4 x 10G/1G SFP+ fixed uplink ports

Network license

Network Essentials

Default power supply

PWR-C1-350WAC-P (350W, 1,194 BTU/hr output)

PoE support

Not a PoE Switch (Data Only)

Stacking architecture

StackWise-320, up to 8 members

Switching capacity

128 Gbps standalone; 448 Gbps with stacking

Forwarding rate

95.23 Mpps standalone; 333.33 Mpps with stacking

Minimum software release

Cisco IOS XE Release 16.11.1b

Management port

RJ-45 Ethernet management, RJ-45 console, USB mini-Type B console

Connector type

RJ-45 (1000BASE-T access), LC (SFP+ uplinks)

Product Performance

Standalone Switching Capacity
Stacked Switching Capacity (StackWise-320)
Standalone Forwarding Rate

Key Features

24 Data-Only Gigabit Ports

The 24 10/100/1000 copper ports carry data only, with no PoE output, so they suit desktops, printers and devices powered locally.

Fixed 10G/1G SFP+ Uplinks

Four SFP+ ports are built into the chassis and run at 10G or 1G. The uplink speed is part of the hardware and does not depend on a network module.

128 Gbps Switching Capacity

Standalone switching capacity is 128 Gbps and forwarding reaches 95.23 Mpps, enough to carry the 24 Gigabit ports toward the uplinks at line rate.

Network Essentials Feature Set

The license covers Layer 2 switching, 802.1X, MACsec-128, QoS and routed access with RIP, EIGRP stub and OSPF up to 1,000 routes.

Stack Compatibility And Limits

Up to eight switches join one StackWise-320 stack at 320 Gbps of stacking bandwidth. Members must be Catalyst 9300L or 9300LM switches at the same license level, and fixed-uplink models do not stack with modular-uplink Catalyst 9300 or Catalyst 3850 and 3650 switches.

Dual Power Supply Slots

The 350W AC supply is the default, and the chassis has two internal supply slots. A second 350W, 715W or 1100W supply can fill the second slot, and the configurator selects one matching the first by default (C9300L-SPS-NONE removes it). There is no PoE output to budget for.

Application Scenarios

Wiring Closet With 10G Uplink

In a closet that serves desktops, printers and locally powered devices, the switch sends traffic to the distribution layer over 10G SFP+ uplinks.

Layer 2 Access Edge

A building that keeps routing in the core can run the switch as a Layer 2 access device with VLANs, 802.1X and QoS, using the Network Essentials license.

Stacked Access For A Large Floor

A large floor that needs more ports than one closet switch provides can stack the switch with other Catalyst 9300L members at the same license level.

Product Comparison

Parameter

C9300L-24T-4X-E

C9300L-24P-4G-E

C9300L-48T-4X-E

Total 10/100/1000, Multigigabit copper or SFP fiber

24 x 10/100/1000 data

24 x 10/100/1000 PoE+

48 x 10/100/1000 data

Uplink configuration

4 x 10G/1G SFP+ fixed

4 x 1G SFP fixed

4 x 10G/1G SFP+ fixed

Network license

Network Essentials

Network Essentials

Network Essentials

Default AC power supply

PWR-C1-350WAC-P

PWR-C1-715WAC-P

PWR-C1-350WAC-P

Available PoE power

No PoE

505W

No PoE

Stack bandwidth

320 Gbps

320 Gbps

320 Gbps

Switching capacity

128 Gbps

56 Gbps

176 Gbps

Switching capacity with stacking

448 Gbps

376 Gbps

496 Gbps

C9300L-24T-4X-E is the Network Essentials version of C9300L-24T-4X-A, with 24 data-only 1G ports, four fixed 10G/1G SFP+ uplinks and the 350W PWR-C1-350WAC-P supply, so it fits closets with no powered devices. PoE+ endpoints call for C9300L-24P-4G-E, which has 505W of default available PoE on a 715W supply but only four 1G SFP uplinks and 56 Gbps standalone switching capacity against 128 Gbps. Needing more than 24 ports at the same uplink and license points to C9300L-48T-4X-E. A site that needs Network Advantage from day one orders C9300L-24T-4X-A, while an installed switch can be upgraded later with a C9300L-LIC= term (C9300L-24-E-A-3, -5 or -7), which cannot be added to the original switch order.

Ordering Checklist

  • Subscription: Order a 24-port Essentials term such as C9300L-DNA-E-24-5Y, or the Catalyst equivalent C9300L-DNX-E-24-5Y; terms run 3, 5 or 7 years. The configurator defaults to Advantage at 5 years, which does not match a Network Essentials switch.
  • Second power supply: A second supply matching PWR-C1-350WAC-P is selected by default; choose C9300L-SPS-NONE to remove it. The configurator adds it unless removed, so the order may carry a supply the site does not want.
  • Stack kit: C9300L-STACK-KIT is selected by default with a 50 cm cable; 1 m and 3 m cables are options. A stack needs a cable long enough to reach the neighbouring member, and fixed-uplink switches use the C9300L kit rather than the modular C9300 cables.
  • Power cords: Two power cords ship, defaulting to North America; select the cord type for the destination country. The default cord will not match outlets outside North America.

Optional Add-ons

Model

Description

C9300L-STACK-A

Stacking adapter for Catalyst 9300L and 9300LM Series switches used with STACK-T3A cables

STACK-T3A-50CM

50 cm StackWise-320 stacking cable for Catalyst 9300L and 9300LM Series switches

STACK-T3A-1M

1 m StackWise-320 stacking cable for Catalyst 9300L and 9300LM Series switches

STACK-T3A-3M

3 m StackWise-320 stacking cable for Catalyst 9300L and 9300LM Series switches

PWR-C1-350WAC-P

350W AC Platinum-rated power supply module, same model as the default supply

PWR-C1-715WAC-P

715W AC Platinum-rated power supply module supported in Catalyst 9300 Series power planning

PWR-C1-1100WAC-P

1100W AC Platinum-rated power supply module supported in Catalyst 9300 Series power planning

PWR-C1-715WDC

715W DC power supply module supported in Catalyst 9300 Series power planning

C9300L-DNA-E-24-3Y

C9300L Cisco DNA Essentials 24-port 3-year term license

C9300L-DNA-E-24-5Y

C9300L Cisco DNA Essentials 24-port 5-year term license

C9300L-DNA-E-24-7Y

C9300L Cisco DNA Essentials 24-port 7-year term license

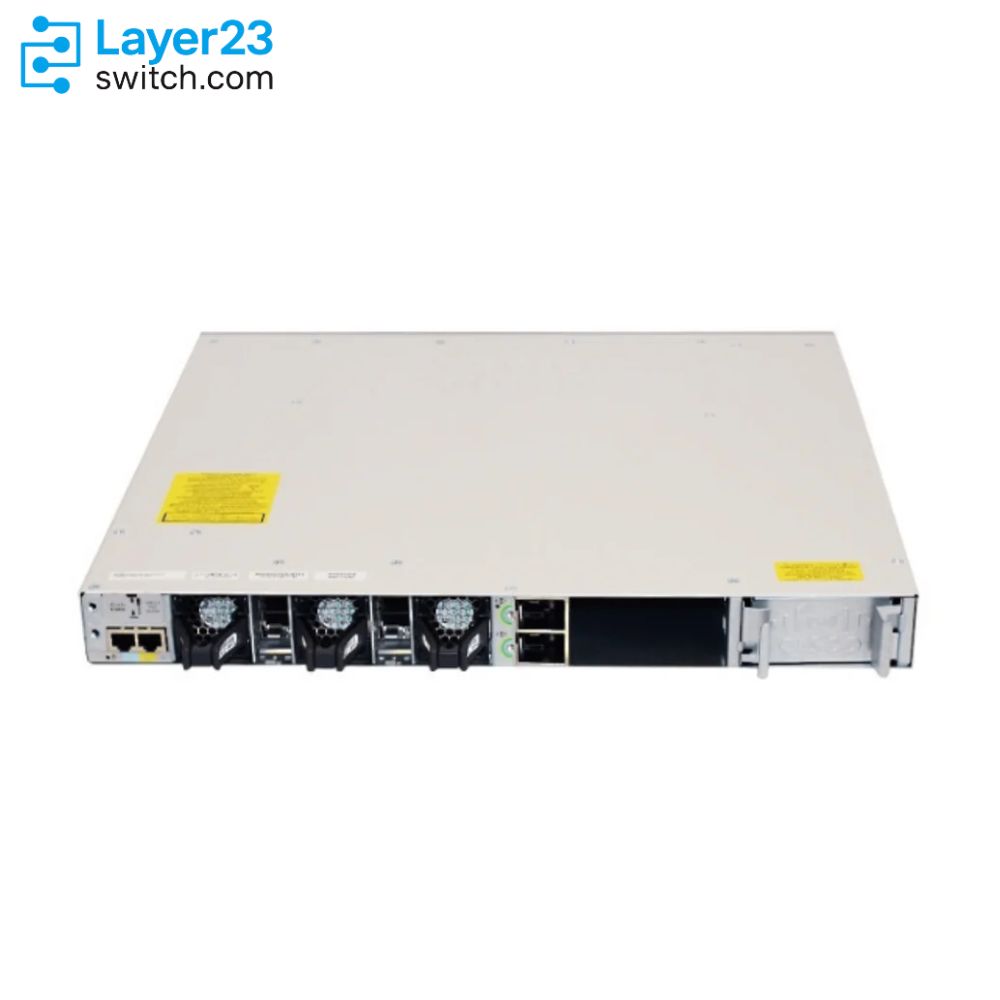

C9300L-24T-4X-E Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1

Ground connectors

7

StackPower connectors

2

USB3.0–SSD port

8

AC OK (input) status LED

3

BEACON LED

9

PS OK (output) status LED

4

CONSOLE (RJ-45 console port)

10

StackWise-480 port connectors

5

MGMT (RJ-45 10/100/1000 management port)

11

Power supply modules

6

Fan modules

–

–

Rear Panel of a Cisco Catalyst 9300 Series Switch

Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1

Cisco Catalyst 9300 Series switch with optional network module1 (power supply and fan modules not shown)

9

Eight number-8 Phillips flat-head screws

2

AC power cord

10

Cable guide

3

Product documentation and compliance document

11

M4.0 x 20mm Phillips pan-head screw

4

Four rubber mounting feet

12

(Optional) RJ-45 console cable

5

Ground lug screw and ring terminal

13

(Optional) USB console cable

6

Two 19-inch mounting brackets

14

(Optional) StackWise-480/1T cable (0.5-meter, 1-meter, or 3-meter)

7

Four number-12 pan-head screws

15

(Optional) StackPower cable (0.3-meter or 1.5-meter)

8

Four number-10 pan-head screws

16

(Optional) StackWise-320 cable

cisco-catalyst-9300-switch-shipping-box

Specifications

Parameter Specification Parameter Specification
Product ID C9300L-24T-4X-E Product type Fixed-uplink stackable access switch
Network license Network Essentials Minimum software release Cisco IOS XE Release 16.11.1b
Downlink ports 24 x 10/100/1000 Mbps data copper ports Uplink ports 4 x 10G/1G SFP+ fixed uplink ports
Connector types RJ-45 (1000BASE-T access ports); LC fiber (SFP+ transceivers) Console port RJ-45 (EIA/TIA-232); USB mini-Type B (5-pin), which takes priority over RJ-45 when connected
Management port RJ-45 Ethernet Switching capacity 128 Gbps
Forwarding rate 95.23 Mpps Switching capacity with stacking 448 Gbps
Forwarding rate with stacking 333.33 Mpps DRAM 8 GB
Flash 16 GB MAC addresses 32,000
VLAN IDs 4,094 Switched virtual interfaces 1,000
IPv4 routes 32,000 total with 24,000 connected and 8,000 indirect routes IPv6 routes 16,000
Multicast routes 8,000 ACL entries 5,120
QoS entries 5,120 Jumbo frames 9,198 bytes
Stacking StackWise-320 Stack bandwidth 320 Gbps
Stack members Up to 8 Stack mixing Catalyst 9300L and 9300LM fixed-uplink models only
Stacking kit C9300L-STACK-A with STACK-T3A cables (0.5 m default, 1 m or 3 m optional) Routed ports per stack 416
Standards supported IEEE 802.1s/802.1w/802.1x/802.3ad/802.1D/802.1p/802.1Q/802.3/802.3u/802.3ab/802.3z/802.3bz/802.3an; RMON I/II; SNMPv1/v2c/v3 Default power supply PWR-C1-350WAC-P 350W
Power supply slots 2 internal slots; unused bay requires a blank module Acoustic noise 44 dB typical / 47 dB max LpA (half rated port count active, AC power); 5.5 B typical / 5.8 B max LwA
Dimensions (H x W x D) 1.73 x 17.5 x 19.2 in (4.4 x 44.5 x 48.8 cm) Operating temperature -5°C to 45°C up to 5,000 ft; -5°C to 35°C at 15,000 ft
Storage temperature -40°C to 70°C Operating humidity 5% to 90% noncondensing
Operating altitude Up to 3,000 m (10,000 ft) MTBF 387,700 hours
Safety certifications UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3 EMC certifications 47 CFR Part 15, EN 300 386, EN 55032 Class A, CISPR 32 Class A, plus C9300L-specific QCVN 118:2018/BTTTT and VCCI-CISPR 32 Class A
Environmental compliance RoHS 5

Quality Certifications

Customer Reviews

Write A Review
4.9
(12 reviews)
5 Stars
11
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0
    Barbara Wilson
    Posted on 16/03/2026
    Verified Buyer
    5.0

    Each new project brings a new Layer23 order. The pattern is clear.

    Jordan Reed
    Posted on 14/03/2026
    Verified Buyer
    5.0

    Product was current, not old stock. Important to us.

    Jacob Shaw
    Posted on 17/02/2026
    Verified Buyer
    5.0

    Smooth transition from old to new. No headaches.

    Legolas
    Posted on 25/07/2025
    Verified Buyer
    5.0

    Your shipping speed is unmatched.

    Naomi Everly
    Posted on 21/04/2025
    Verified Buyer
    5.0

    License features are worth the extra investment.

Questions & Answers

  • Can C9300L-24T-4X-E be stacked?

    Yes, C9300L-24T-4X-E stacks with up to eight Catalyst 9300L or 9300LM fixed-uplink switches over StackWise-320. Members must share the same license level, and modular-uplink Catalyst 9300 and Catalyst 3850 or 3650 switches cannot join the stack.

  • What does Network Essentials on C9300L-24T-4X-E include?

    Network Essentials on C9300L-24T-4X-E covers Layer 2 switching, 802.1X, MACsec-128, QoS and routed access with RIP, EIGRP stub and OSPF up to 1,000 routes. BGP, VXLAN and MPLS are outside the license. Subscription terms run 3, 5 or 7 years.

  • Does C9300L-24T-4X-E support Graceful Insertion and Removal?

    No. GIR belongs to Network Advantage, which adds NSF, GIR and xFSU high availability, and C9300L-24T-4X-E ships with Network Essentials. GIR isolates a node from the IGPs and shuts down Layer 2 in order EGP, IGPs, then L2, using the set-overload-bit for no-downtime maintenance.

  • Is HSRP available on C9300L-24T-4X-E?

    No. HSRP is added by Network Advantage, together with BGP, EIGRP, IS-IS, unlimited OSPF routes and MACsec-256. C9300L-24T-4X-E on Network Essentials keeps OSPF up to 1,000 routes. NETCONF, RESTCONF, gRPC and ZTP automation are also Advantage items, so plan first-hop redundancy before choosing the tier.

  • Which EMC and regional certifications does C9300L-24T-4X-E carry?

    C9300L-24T-4X-E meets EN 55032 Class A, CISPR 32 Class A and ICES-003 Class A under 47 CFR Part 15. Catalyst 9300L SKUs add QCVN 118:2018/BTTTT and VCCI-CISPR 32 Class A. Safety certifications include UL 60950-1 and IEC 60950-1, and environmental compliance is RoHS 5.

  • Which stack kit cable options does C9300L-24T-4X-E offer?

    C9300L-24T-4X-E uses a stack kit with a 0.5 m cable by default, and 1 m and 3 m cables are options. C9300L-STACK-KIT uses STACK-T3 cables and C9300L-STACK-KIT2 uses STACK-T3A cables. Order the kit that matches the cables chosen for the rack layout, since the two cable families are not interchangeable.

  • How does altitude change the operating temperature of C9300L-24T-4X-E?

    C9300L-24T-4X-E operates from -5C to +45C at altitudes up to 1500 m. The ceiling narrows to +35C at 5000 m. Storage is rated -40C to +70C, and relative humidity is 5% to 90% non-condensing. Closets at high elevation need extra cooling margin.

  • Does C9300L-24T-4X-E support MACsec-256?

    No. MACsec-256 requires Network Advantage, and C9300L-24T-4X-E carries Network Essentials, which supports the 128-bit option. The series supports the 256-bit option only with the Advantage tier. Link encryption stays at 128 bits on this switch until its subscription tier is changed, so settle any 256-bit requirement before the order.

  • Is the 1900W AC supply an option for C9300L-24T-4X-E?

    No. The Catalyst 9300 datasheet lists the 350W AC, 715W AC, 715W DC and 1100W AC supplies for the fixed-uplink 9300L, and it does not list the 1900W AC unit for these models. Size the second supply for C9300L-24T-4X-E from those four options. Each switch takes two supplies with N+1 redundancy.

Warranty

100% Low Price Guarantee:

Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.

100% Quality Assurance:

All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.

Free CCIE Technical Support:

Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.

100% Money Back Guarantee:

If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.

Flexible & Secure Payment and Shipping:

We support multiple secure payment and logistics options, backed by industry-leading verification:

Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information

FREE NETWORK TOOLS

Verify, plan, and comparewith confidence

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.

EOL EOSL checker
Check lifecycle dates
cisco switch selector tool

Cisco Switch Selector Tool

Filter Cisco switches by ports, uplinks, PoE, performance, features, license, and budget.

Find matching switches >
cisco sn check tool

Cisco Serial Number Lookup

Verify authenticity and identify exactmodel, coverage, and lifecycle detailsusing a Cisco serial number.

Verify a serial number >

Product Comparison

Compare specifications, capabilitiesand form factors side-by-side tochoose the right hardware.

Cisco Compare products >

DataSheet Downloads

  • C9300L-24T-4X-E Datasheet

  • Cisco Catalyst 9300 Switch Datasheet

Related Searches of Catalyst 9300 Switches
