C9300X-24HX-A Description

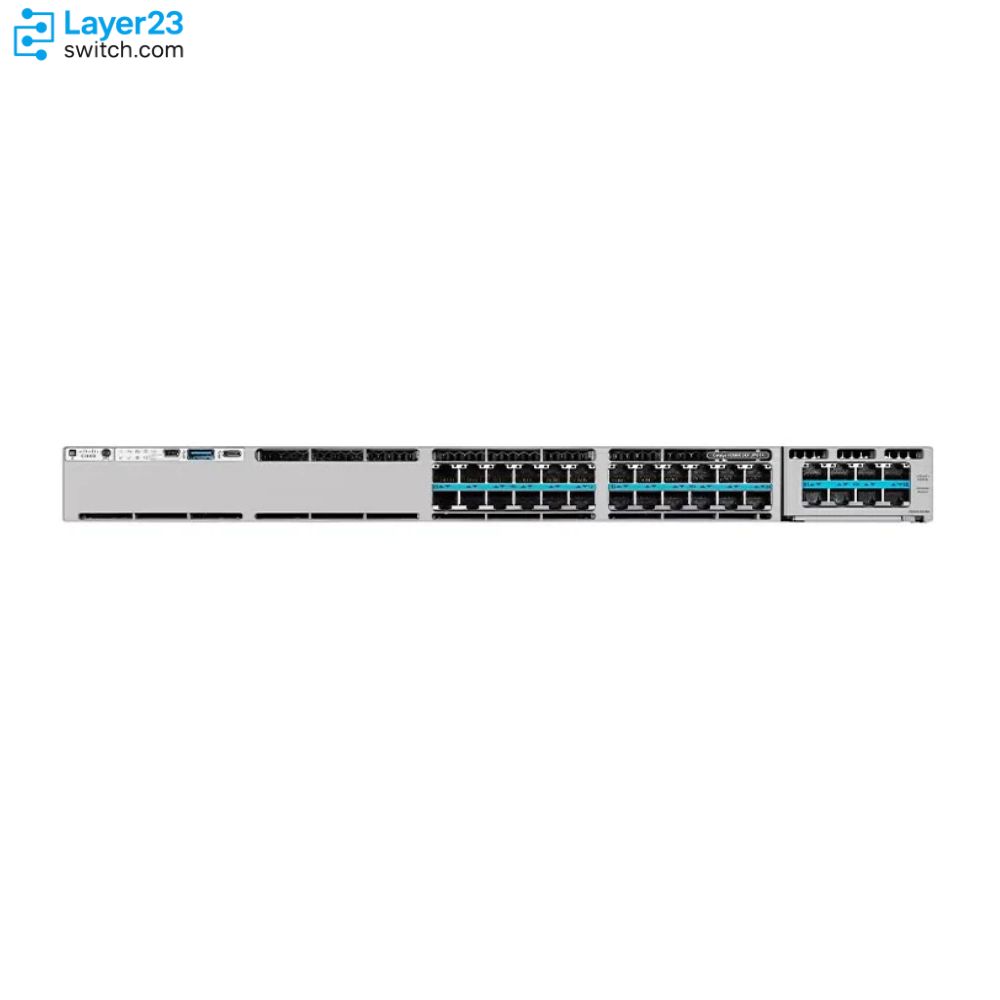

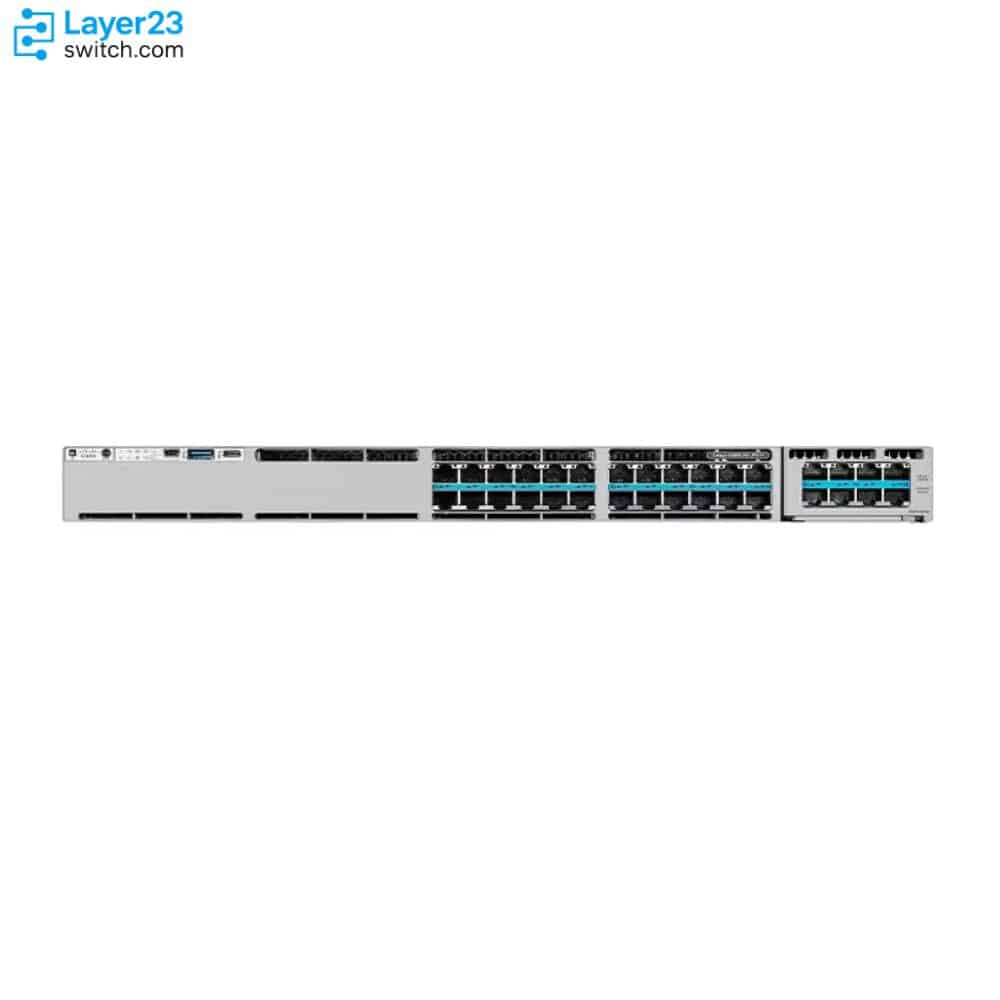

The C9300X-24HX-A is a Cisco Catalyst 9300X Series stackable access switch for 24-port closets that deliver up to 90W per port and need Network Advantage features such as BGP and VXLAN. The switch carries 24 UPOE+ ports at up to 10G Multigigabit with a 735W PoE budget on its default 1100W supply, and 800 Gbps of switching capacity sits behind a modular uplink slot. Cisco IOS XE Cupertino 17.9.1 is the first release for the switch, and its uplink slot does not accept the four-port C9300X-NM-4C module.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300X-24HX-A |
|
Downlink ports |
24 x 10G Multigigabit (10G/5G/2.5G/1G/100M) |
|
PoE standards |
Cisco UPOE+ on all 24 ports, up to 90W per port |
|
Default power supply |
PWR-C1-1100WAC-P (1100W AC) |
|
Default PoE budget |
735W |
|
Maximum PoE budget |
2160W, the limit of 24 ports at 90W |
|
Uplinks |
Modular slot for C9300X-NM-8M, C9300X-NM-8Y and C9300X-NM-2C; C9300X-NM-4C not supported |
|
Network license |
Network Advantage |
|
Switching capacity |
800 Gbps (1,880 Gbps with stacking) |
|
Forwarding rate |
654.72 Mpps (1,398.72 Mpps with stacking) |
|
Stacking |
StackWise-1T at 1 Tbps, up to 8 members |
|
Hardware-based IPsec |
Up to 100G with an HSEC key |
|
Minimum software release |
Cisco IOS XE Cupertino 17.9.1 |
Product Performance
Key Features
The default supply leaves 735W for PoE, which runs eight ports at a full 90W. The second 1100W supply that the configurator adds raises the budget to 1835W, or 20 ports at 90W. With the default primary, only a 1900W secondary supply reaches 2160W, enough for all 24, and that supply delivers its full 1900W only on 230V input.
All 24 ports negotiate 100M, 1G, 2.5G, 5G or 10G. Existing Cat5e carries a port up to 5G, while 10G needs Cat6 for runs up to 55 m or Cat6A for the full 100 m. Half duplex is not supported.
The uplink slot takes C9300X-NM-8M for eight 10G copper ports, C9300X-NM-8Y for eight 25G SFP ports, or C9300X-NM-2C for two 100G ports. The four-port C9300X-NM-4C does not fit this chassis, and modules from non-X Catalyst 9300 switches do not fit either.
Network Advantage removes the 1,000-route OSPF ceiling of the Essentials tier and adds BGP, IS-IS and HSRP. VRF, VXLAN, LISP, Cisco TrustSec and MPLS are available for segmentation, with MACsec-256 on the links and NETCONF, RESTCONF and gRPC for automation.
The UADP 2.0sec ASIC encrypts at up to 100G with AES-256. Tunnels end on the switch itself only when two items are in place: a separately ordered HSEC key and the Advantage tier of the Cisco Catalyst or Cisco DNA subscription.
Eight Catalyst 9300X switches stack at the full 1 Tbps when every member runs the same license level. A non-X Catalyst 9300 member holds the stack to StackWise-480 speed, and the higher-scale C9300-24UB, C9300-24UXB and C9300-48UB cannot join. StackPower+ shares supply capacity across four switches per ring, or eight with an XPS-2200.
Application Scenarios
On a campus built on SD-Access, the switch acts as the fabric edge for a floor of multigigabit access points, and the Advantage subscription tier enables the fabric role.
LED lighting, digital signage and pan-tilt-zoom thermal cameras draw up to 90W each from the UPOE+ ports, while VRF or VXLAN keeps building-system traffic apart from office users on the same switch.
A branch office with a single wiring closet uses a stack of these switches for both access and routing, exchanging routes with the WAN edge over BGP that Network Advantage provides.
Product Comparison
|
Parameter |
C9300X-24HX-A | |||
|---|---|---|---|---|
|
Total 10/100/1000, Multigigabit copper or SFP fiber |
24x 10G Multigigabit |
24x 10G Multigigabit |
48x 10G Multigigabit |
24x 10G Multigigabit |
|
PoE type |
Cisco UPOE+ |
Cisco UPOE+ |
Cisco UPOE+ |
Cisco UPOE |
|
Available PoE with default power supply |
735W |
735W |
590W |
560W |
|
Maximum available PoE |
2160W |
2160W |
3290W |
1440W |
|
Uplink configuration |
Modular; C9300X-NM modules except C9300X-NM-4C |
Modular; C9300X-NM modules except C9300X-NM-4C |
Modular; C9300X-NM modules including C9300X-NM-4C |
Modular; C9300-NM modules |
|
Network license |
Network Advantage |
Network Essentials |
Network Advantage |
Network Advantage |
|
Stacking bandwidth support |
StackWise-1T, 1 Tbps |
StackWise-1T, 1 Tbps |
StackWise-1T, 1 Tbps |
StackWise-480, 480 Gbps |
|
Switching capacity |
800 Gbps |
800 Gbps |
1,760 Gbps |
640 Gbps |
C9300X-24HX-A and C9300X-24HX-E share the same 24 UPOE+ ports and 735W default budget and differ only in license: Network Advantage against Network Essentials. A closet that runs Layer 2 and OSPF within 1,000 routes, with no BGP, VXLAN, MPLS or MACsec-256, can drop to C9300X-24HX-E. Moving that switch back up later takes a C9300-LIC= term such as C9300-24-E-A-5, which cannot sit on the original order. Closets with more than 24 powered endpoints move to C9300X-48HX-A, which doubles the ports and accepts C9300X-NM-4C but starts at 590W of PoE. Where 60W UPOE per port and StackWise-480 are enough, C9300-24UX-A covers 24 Multigigabit ports with a 1440W ceiling. Every member of a stack must run the same license level.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Default power supply |
PWR-C1-1100WAC-P (1100W AC) |
|
Default PoE budget |
735W; eight ports at a full 90W |
|
With a 350W secondary supply |
1085W |
|
With a 715W secondary supply |
1450W |
|
With a second 1100W supply (configurator default) |
1835W; 20 ports at a full 90W |
|
With a 1900W secondary supply |
2160W, the limit of 24 ports at 90W |
|
With a 1900W primary supply |
1535W alone, 1885W with a 350W secondary, 2160W with a 715W or larger secondary |
|
1900W supply at 115V input |
Output limited to 1500W; 1900W needs 230V nominal input |
|
Full 60W on all 24 ports |
1440W, covered by the 1450W of a 715W secondary supply or more |
|
PoE standards |
IEEE 802.3af, 802.3at, 802.3bt Type 3 and Type 4, Cisco UPOE and UPOE+ |
Ordering Checklist
- Subscription tier: Order a 24-port Advantage term of 3, 5 or 7 years, such as C9300-DNA-A-24-5Y for Cisco DNA. New orders need a subscription at the same tier as the Network Advantage license.
- HSEC key: Add the HSEC key when IPsec tunnels will end on the switch. Hardware IPsec stays unavailable without it, even on Network Advantage.
- Uplink module: The configurator adds C9300X-NM-2C; keep it, change it to C9300X-NM-8M or C9300X-NM-8Y, or select C9300X-NM-NONE. C9300X-NM-4C does not fit this switch, and an empty slot needs a blank.
- Second power supply: A second PWR-C1-1100WAC-P is selected by default and C9300-SPS-NONE removes it. Without it the PoE budget stays at 735W instead of 1835W.
- Stack cables: A 3 m StackWise cable and a 150 cm StackPower cable come with each switch unless C9300X-STACK-NONE and C9300-SPWR-NONE are selected. Unstacked switches otherwise arrive with cables they do not use.
- Power cords: Select the cord type for the destination country, because the configurator defaults to North American cords.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Catalyst 9300X network module with 2 x 100G/40G QSFP ports | |
|
Catalyst 9300X network module with 8 x 10G/1G Multigigabit copper ports | |
|
Catalyst 9300X network module with 8 x 25G/10G/1G SFP ports | |
|
Spare 1100W AC Platinum-rated power supply, matching the default supply | |
|
Spare 715W AC Platinum-rated power supply | |
|
PWR-C1-1900WAC= |
Spare 1900W AC power supply for the 2160W PoE budget |
|
PWR-C1-1900WHV-T= |
Spare 1900W HVAC/HVDC Titanium-certified power supply |
|
StackWise-480/1T stacking cable, 50 cm | |
|
StackWise-480/1T stacking cable, 1 m | |
|
StackWise-480/1T stacking cable, 3 m | |
|
CAB-SPWR-30CM= |
StackPower cable, 30 cm |
|
CAB-SPWR-150CM= |
StackPower cable, 150 cm |
|
SSD-120G |
Pluggable USB 3.0 SSD storage, 120 GB |
|
Pluggable USB 3.0 SSD storage, 240 GB | |
|
FAN-T2= |
Spare fan module |
C9300X-24HX-A Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300X-24HX-A | Network license | Network Advantage, perpetual and included with the hardware |
| Downlink ports | 24 x 10G Multigigabit (10G/5G/2.5G/1G/100M) | PoE standards | Cisco UPOE+ on all 24 ports, up to 90W per port; IEEE 802.3af, 802.3at and 802.3bt Type 3 and Type 4 devices |
| Multigigabit cabling | Up to 5G on Cat5e; 10G on Cat6 up to 55 m or Cat6A up to 100 m; full duplex only | Uplink slot | Modular slot for C9300X-NM network modules |
| Supported network modules | C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C; C9300X-NM-4C not supported | Network module slot rule | Operate with a network module or a blank module installed |
| Management port | 10/100/1000 RJ-45 | Console port | RJ-45 console port and USB mini-Type B console port |
| USB port | USB Type A and USB Type C, USB 3.0, 900 mA at 5 V | SSD storage | Pluggable 120 GB or 240 GB USB 3.0 SSD module |
| Switching capacity | 800 Gbps | Switching capacity with stacking | 1,880 Gbps |
| Forwarding rate | 654.72 Mpps | Forwarding rate with stacking | 1,398.72 Mpps |
| Packet buffer | 16 MB | Flexible NetFlow entries | 64,000 flows |
| DRAM | 16 GB | Flash | 16 GB |
| Hardware-based IPsec | Up to 100G, AES-256; requires an HSEC key and the Cisco Catalyst or Cisco DNA Advantage tier | App hosting capacity | 2x the hosting resources of Catalyst 9300 models, Intel QuickAssist Technology, 2 x 10G AppGig ports |
| MAC addresses | 32,000 | IPv4 routes | 39,000 (24,000 direct routes, 15,000 indirect routes) |
| IPv6 routes | 19,500 | Multicast routes | 8,000 |
| QoS entries | 4,000 | ACL entries | 8,000 |
| VLAN IDs | 4094 | PVST instances | 300 |
| STP virtual ports (PVST/MST) | 13,000 | Switched virtual interfaces | 1,000 |
| Jumbo frames | 9198 bytes | Total routed ports per stack | 448 |
| Stacking | StackWise-1T, 1 Tbps, up to 8 members | Mixed stacking | StackWise-480 speeds with standard Catalyst 9300 (non-X) members; not supported with higher-scale C9300-24UB, C9300-24UXB or C9300-48UB; all members share one license level |
| StackPower | StackPower+; up to 4 switches per ring, 8 with XPS-2200 | Network Advantage feature set | BGP, EIGRP, HSRP, IS-IS, OSPF; VRF, VXLAN, LISP, Cisco TrustSec, SGT, MPLS, mVPN; NETCONF, RESTCONF, gRPC, YANG; NSF, GIR, xFSU; AVB, PTP; MACsec-256 |
| Default power supply | PWR-C1-1100WAC-P (1100W AC, Platinum-rated) | Power supply slots | 2; dual redundant power supplies supported |
| Available PoE with default power supply | 735W | Available PoE with 350W secondary supply | 1085W |
| Available PoE with 715W secondary supply | 1450W | Available PoE with 1100W secondary supply | 1835W |
| Available PoE with 1900W secondary supply | 2160W, limited by port number and port rating | Available PoE with 1900W primary supply alone | 1535W |
| Available PoE with 1900W primary, 350W secondary | 1885W | 1900W supply output at 115V input | Limited to 1500W |
| Default supply input voltage | 115 to 240 VAC | Default supply input current | 12-6A |
| Default supply inlet | IEC 320-C16 | Default supply power cord rating | 15A |
| Default supply total output BTU | 3,754 BTU/hr | Fan modules | Three field-replaceable fans with N+1 redundancy |
| Fan module | FAN-T2= | Fan module airflow | 20 cfm |
| Airflow | Front-to-rear and side-to-rear | Operating temperature | -5°C to 45°C (23°F to 113°F) |
| Minimum cold-start temperature | 0°C (32°F) | Storage temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating humidity | 5% to 90%, noncondensing | Operating altitude | Up to 10,000 ft (3000 m) |
| Storage altitude | Up to 15,000 ft (4500 m) | Dimensions, chassis only (H x W x D) | 1.73 x 17.5 x 17.57 in (4.4 x 44.5 x 44.6 cm) |
| Dimensions with default power supply (H x W x D) | 1.73 x 17.5 x 20.63 in (4.4 x 44.5 x 52.4 cm) | Weight with default power supply | 6.25 kg (13.8 lb) |
| MTBF | 220,250 hours | Safety certifications | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1 |
| EMC certifications | 47 CFR Part 15, EN 55032 Class A, CISPR 32 Class A, EN 55035, CISPR 35, EN 300 386, EN 61000-3-2, EN 61000-3-3, ICES-003 Class A, CNS13438, KN32, KN35, TCVN 7189 Class A, TCVN 7317 | Environmental compliance | RoHS 5 |
| IEEE standards | 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3ae, 802.3an, 802.3bz, 802.3af, 802.3at | Management standards | SNMPv1, SNMPv2c, SNMPv3, RMON I and II |
| Minimum software release | Cisco IOS XE Cupertino 17.9.1 |
