What does Network Advantage on C9300L-24P-4X-A include?

Network Advantage on C9300L-24P-4X-A adds BGP, VRF, VXLAN, MPLS, Cisco TrustSec and MACsec-256, plus NETCONF and RESTCONF automation interfaces on top of the Network Essentials feature set. The subscription term must be an Advantage term such as C9300L-DNA-A-24-5Y.

Which MACsec key length can C9300L-24P-4X-A use?

C9300L-24P-4X-A can use MACsec-128 and MACsec-256. The 128-bit option needs Network Essentials and the 256-bit option needs Network Advantage, which the -A suffix provides. No extra license is required for 256-bit link encryption beyond the Advantage subscription term ordered with the switch.

Which VXLAN and MPLS roles can C9300L-24P-4X-A take under Network Advantage?

Under Network Advantage in IOS XE 16.12, C9300L-24P-4X-A can act as a VXLAN BGP EVPN VTEP, with bridging, routing, anycast gateway and border handoff through VRF-Lite and L2 or L3VPN. In MPLS it takes the PE role with 256 VRFs, including mVPN, 6PE, 6VPE and Inter-AS options A and B.

Can C9300L-24P-4X-A join a StackPower ring?

No. StackPower pools power across up to four switches in a ring, or eight with an expandable power system, but it works only on modular-uplink Catalyst 9300 and Catalyst 9300X switches. C9300L-24P-4X-A has fixed uplinks, so each switch depends on its own supplies and PoE budget. A second supply raises that budget from 505W to the 720W ceiling.

What power does a PoE+ port on C9300L-24P-4X-A provide to the device?

A PoE+ port follows IEEE 802.3at Type 2, which provides 30W at the port and 25.5W at the powered device after cable loss. An 802.3af Type 1 device receives 15.4W at the port and 13W at the device. Plan endpoint loads on the device-side figures within the 505W default budget, since many phones and access points draw near their class limit.

How does C9300L-24P-4X-A build its StackWise-320 bandwidth?

StackWise-320 uses 4 rings of 40 Gbps, giving 160G in each direction, with up to 8 members. C9300L-24P-4X-A stacks only with Catalyst 9300L and 9300LM switches, which can mix with each other at 320G. Modular-uplink Catalyst 9300 switches cannot join, and the members must run the same IOS XE release and license level.

What table sizes does C9300L-24P-4X-A offer for MAC addresses and routes?

C9300L-24P-4X-A holds 32K MAC addresses and VLAN IDs 4,094 per the datasheet. Routing scale is 24K host or directly connected routes and 8K indirect IPv4 routes. ACL and QoS tables hold 5,120. IGMP groups and multicast routes each reach 8K, and NetFlow holds 64k per ASIC, so plan the stack inside these limits.

Which IOS XE baseline does the datasheet give for C9300L-24P-4X-A?

The datasheet baseline for Catalyst 9300L fixed-uplink models is Cisco IOS XE 16.11.1b. The release notes list 16.11.1c as the introductory release for most 9300L data and PoE models (16.12.2 applies only to the UXG models). All stack members need the same IOS XE release and license, so match the release before adding C9300L-24P-4X-A to a stack.

Are the fans of C9300L-24P-4X-A field-replaceable?

Yes. C9300L-24P-4X-A has three field-replaceable fans with N+1 redundancy, so cooling continues if one fan fails. Airflow runs front-to-rear and side-to-rear. A failed fan module can be replaced while the switch stays in service. The data-only C9300LM-48T-4Y is the exception in the family, with fixed fans.

C9300L-24P-4X-A – 24x1G PoE+ Ports – 4x10G Fixed Uplinks – 505W PoE Budget

Name: C9300L-24P-4X-A - Cisco 24-Port PoE+ 4x10G Network Advantage Switch
Brand: Cisco
SKU: C9300L-24P-4X-A
Price: 2440.12 USD
Availability: InStock
Rating: 4.83 (12 reviews)

Brand: Cisco Category: Catalyst 9300 Switches Availability:

In Stock

Model: C9300L-24P-4X-A

Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policy

Rated 4.83 out of 5 based on 12 customer ratings

4.812 reviews10 Questions4 sold this month

List Price: ~~$10,120.78~~ 76% OFF

$2,440.12

Price Alert

Condition

Related

Subscription C9300-DNA-A + $728.87 Subtotal Price $3,168.99

Quantity

Shipping Express Shipping 2-6 Business Days, via UPS, FedEx, DHL and more

Trusted & Secure Payments

Shop Expert-Recommended Accessories for the C9300L-24P-4X-A

Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.

SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMF
Original price was: $853.95.Current price is: $52.00.
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4
Original price was: $1,213.85.Current price is: $91.68.
SFP-10G-SR-X
10GBASE-SR SFP+ - Extended Temp - 400m OM4 MMF
Original price was: $1,942.00.Current price is: $298.70.
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMF
Original price was: $2,439.88.Current price is: $150.00.
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km Reach
Original price was: $4,873.66.Current price is: $149.00.
SFP-10G-LR-X
10GBASE-LR SFP+ - Extended Temp - 10km SMF
Original price was: $11,206.77.Current price is: $306.00.
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOM
Original price was: $1,260.58.Current price is: $95.80.
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m Reach
Original price was: $570.10.Current price is: $70.00.
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOM
Original price was: $633.46.Current price is: $59.00.
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOM
Original price was: $2,527.49.Current price is: $205.00.
PWR-C1-715WAC-P
715W AC PSU - Catalyst 9300 C1 - Platinum Rated
Original price was: $1,479.00.Current price is: $403.00.
PWR-C1-1100WAC-P
1100W AC PSU - Catalyst 9300 C1 - Platinum Rated
Original price was: $2,317.88.Current price is: $689.00.

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded

Customers

Units shipped

Countries

Inventory You Can See

Cisco stock on hand

Models ready to ship

Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

Advance replacement for in-stock models
New unit for dead-on-arrival
14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

C9300L-24P-4X-A Description

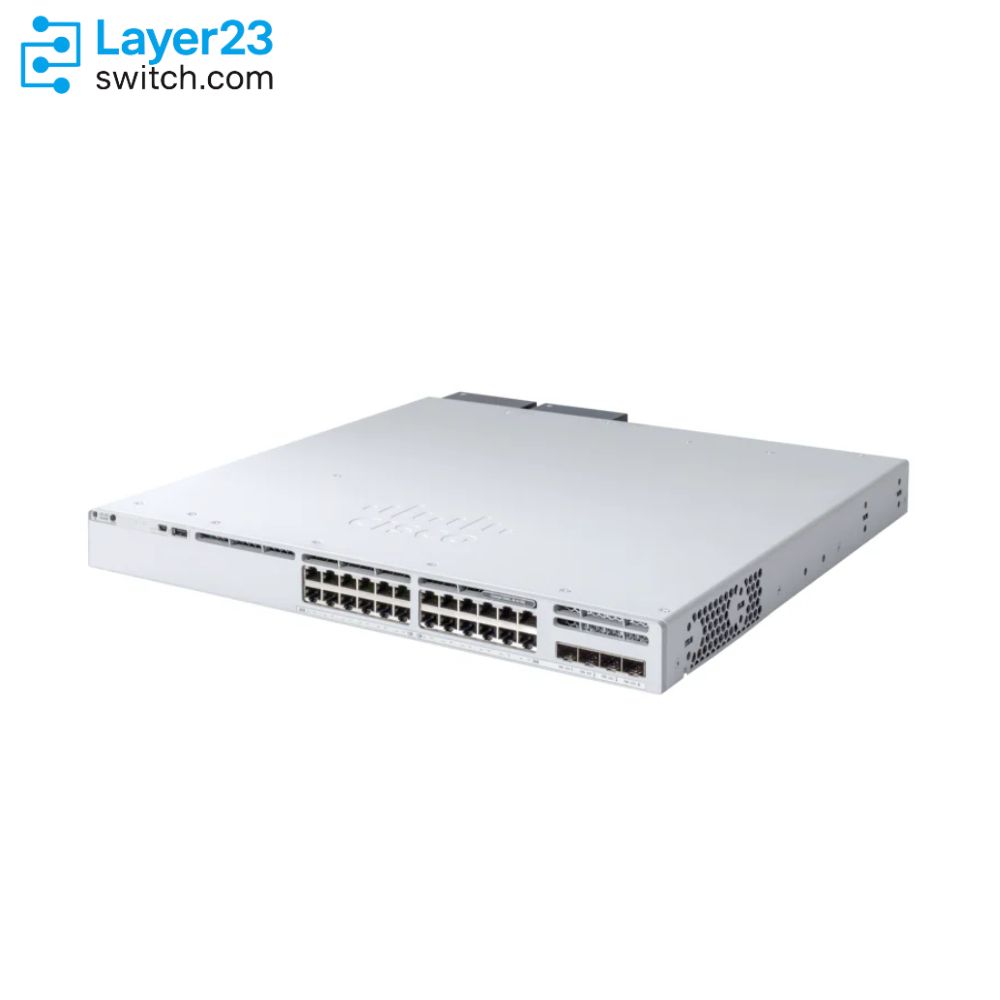

The C9300L-24P-4X-A is a Cisco Catalyst 9300L fixed-uplink stackable access switch for campus and branch closets that power endpoints over Gigabit copper and aggregate over 10G fiber. The switch has 24 10/100/1000 PoE+ ports, four fixed 10G/1G SFP+ uplinks, 128 Gbps of switching capacity and a 505W PoE budget on its default 715W AC supply. The -A suffix carries Network Advantage, which adds BGP, VXLAN, MPLS and MACsec-256 to the Network Essentials feature set.

Quick Specs

Parameter	Specification
Product ID	C9300L-24P-4X-A
Product type	Fixed-uplink stackable access switch
Downlink ports	24 x 10/100/1000 Mbps PoE+ copper ports
Uplink ports	4 x 10G/1G SFP+ fixed uplink ports
Network license	Network Advantage
Default power supply	PWR-C1-715WAC-P
Default PoE budget	505W with 715W AC power supply
Expanded PoE budget	720W with supported secondary power supply configuration
Stacking architecture	StackWise-320
Switching capacity	128 Gbps standalone; 448 Gbps with stacking
Forwarding rate	95.23 Mpps standalone; 333.33 Mpps with stacking
Minimum software release	Cisco IOS XE Gibraltar 16.11.1c introduced this switch

Product Performance

PoE+ Access Port Count

Standalone Switching Capacity

Standalone Forwarding Rate

Key Features

Four Fixed 10G/1G SFP+ Uplinks

Uplinks are built into the chassis, with no network module to select or swap. Each port runs at 10G or 1G, so existing 1G fiber links keep working.

505W PoE Budget

The default 715W supply gives 505W for PoE, about 21W per port across all 24. A second supply raises the budget to 720W, enough for 30W on every port.

Network Advantage Feature Set

Beyond Network Essentials, Network Advantage adds BGP, VRF, VXLAN, MPLS, Cisco TrustSec and MACsec-256, plus NETCONF and RESTCONF automation interfaces.

StackWise-320 With Fixed-Uplink Members

Up to eight switches stack at 320 Gbps. Only Catalyst 9300L and 9300LM members on the same license level can join, not modular-uplink C9300 switches.

128 Gbps Switching Capacity

Standalone capacity is 128 Gbps and 95.23 Mpps, and a stack reaches 448 Gbps and 333.33 Mpps. The four 10G uplinks run at line rate within that figure.

Dual Power Supply Slots

Two internal slots take a second 715W or 1100W supply for redundancy or extra PoE. A blank module covers the slot while it stays empty.

Application Scenarios

Campus Closet With 10G Uplinks

In a campus floor closet, the switch powers phones and access points from its PoE+ ports and uplinks to aggregation over SFP+ fiber at 10G.

Segmented Branch Access

A branch network that separates guest, IoT and staff traffic with VRFs and TrustSec can run those functions at the access layer, since Network Advantage is built in.

Stack Addition Of 24 PoE+ Ports

An existing StackWise-320 stack of Catalyst 9300L or 9300LM switches on Network Advantage can add the switch for 24 more powered ports.

Product Comparison

Parameter	C9300L-24P-4X-A	C9300L-24P-4X-E	C9300L-24P-4G-A	C9300L-24T-4X-A
Total 10/100/1000 ports	24 x 10/100/1000 PoE+	24 x 10/100/1000 PoE+	24 x 10/100/1000 PoE+	24 x 10/100/1000 data only
Uplink configuration	4 x 10G/1G fixed	4 x 10G/1G fixed	4 x 1G fixed	4 x 10G/1G fixed
Network stack license	Network Advantage	Network Essentials	Network Advantage	Network Advantage
Default AC power supply	PWR-C1-715WAC-P	PWR-C1-715WAC-P	PWR-C1-715WAC-P	PWR-C1-350WAC-P
Default available PoE	505W	505W	505W	No PoE
Maximum PoE with 1100W secondary PS	720W	720W	720W	No PoE
Stack bandwidth	StackWise-320 (320 Gbps)	StackWise-320 (320 Gbps)	StackWise-320 (320 Gbps)	StackWise-320 (320 Gbps)
Switching capacity	128 Gbps	128 Gbps	56 Gbps	128 Gbps

C9300L-24P-4X-A and C9300L-24P-4X-E share the same 24 PoE+ ports, 10G/1G SFP+ uplinks and 505W default PoE budget, so the only thing separating them is Network Advantage against Network Essentials. A site that does not need BGP, VXLAN, Cisco TrustSec or MACsec-256 can drop to C9300L-24P-4X-E, which keeps Layer 2, OSPF up to 1,000 routes and MACsec-128. Four 1G SFP uplinks at 56 Gbps standalone are enough only for C9300L-24P-4G-A, and a closet with no powered endpoints fits C9300L-24T-4X-A, which runs on a PWR-C1-350WAC-P supply with no PoE.

PoE Power Planning

Planning Item	Cisco Confirmed Value	Order Impact
PoE access profile	24 x 10/100/1000 Mbps PoE+ ports	Match endpoint power draw to a 24-port PoE+ access design
Default PoE budget	505W with the default 715W AC power supply	Confirm that attached endpoint demand fits the default supply plan
All-port PoE+ planning ceiling	24 ports at 30W per PoE+ port	Treat the port count and PoE+ rating as the maximum all-port planning boundary
Power supply selection	Cisco lists 715W AC, 1100W AC, and 715W DC options for C9300L power planning	Confirm redundancy, secondary supply, AC or DC input, and regional power cord before purchase

Ordering Checklist

Subscription tier and term: Order a Network Advantage term such as C9300L-DNA-A-24-5Y; Cisco Catalyst subscriptions use the C9300L-DNX family. The Advantage term must match the -A hardware, and the configurator default is a 5-year term.
Second power supply: A second power supply of the same type as the primary is selected by default; C9300L-SPS-NONE removes it. Without it the switch has one supply and no power redundancy.
Stack kit: C9300L-STACK-KIT is selected by default with a 50 cm stack cable; 1 m and 3 m cables can be selected instead. Fixed-uplink stacking uses the C9300L stack kit, not the C9300 StackWise cables.
Power cords: Select the cord type for the destination country; two cords ship and the default is North America. A wrong cord type needs a replacement at the site.

Optional Add-ons

Model	Description
C9300L-STACK-KIT	Stack kit for Cisco Catalyst 9300L fixed-uplink switch stacking
STACK-T3-50CM	50 cm Type 3 stacking cable for Catalyst 9300L StackWise-320 stacking
STACK-T3-1M	1 m Type 3 stacking cable for Catalyst 9300L StackWise-320 stacking
STACK-T3-3M	3 m Type 3 stacking cable for Catalyst 9300L StackWise-320 stacking
PWR-C1-715WAC-P	715W AC Platinum-rated power supply module
PWR-C1-1100WAC-P	1100W AC Platinum-rated power supply module
PWR-C1-715WDC	715W DC power supply module
C9300L-DNA-A-24-3Y	C9300L Cisco DNA Advantage 24-port 3-year term license
C9300L-DNA-A-24-5Y	C9300L Cisco DNA Advantage 24-port 5-year term license
C9300L-DNA-A-24-7Y	C9300L Cisco DNA Advantage 24-port 7-year term license

Specifications

Parameter	Specification	Parameter	Specification
Product ID	C9300L-24P-4X-A	Product type	Fixed-uplink stackable access switch
Network license	Network Advantage	Minimum software release	Cisco IOS XE Gibraltar 16.11.1c introduced C9300L-24P-4X
Downlink ports	24 x 10/100/1000 Mbps PoE+ copper ports	Uplink ports	4 x 10G/1G SFP+ fixed uplink ports
Modular uplinks	No for C9300L fixed-uplink models	Default power supply	PWR-C1-715WAC-P
Default PoE budget	505W with 715W AC power supply	Supported power supply options	PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-715WAC-P, PWR-C1-1100WAC-P, PWR-C1-1900WAC-P, PWR-C1-715WDC
Power supply slots	2 internal power supply module slots	Stacking architecture	StackWise-320
Supported stack members	Catalyst 9300L and C9300LM models with the same license level	Switching capacity	128 Gbps standalone
Switching capacity with stacking	448 Gbps	Forwarding rate	95.23 Mpps standalone
Forwarding rate with stacking	333.33 Mpps	MAC addresses	32,000
IPv4 routes	32,000 total with 24,000 direct and 8,000 indirect routes	Packet buffer	16 MB for C9300L 24- and 48-port Gigabit Ethernet models
Flexible NetFlow entries	64,000 flows on C9300L 24- and 48-port Gigabit Ethernet models	DRAM	8 GB
Flash	16 GB	VLAN IDs	4094
Jumbo frames	9198 bytes	Dimensions	1.73 x 17.5 x 19.2 in. (4.4 x 44.5 x 48.8 cm)

Quality Certifications

Customer Reviews

Write A Review

4.8

Rated 4.83 out of 5

(12 reviews)

5 Stars

4 Stars

3 Stars

2 Stars

1 Stars

Jacqueline Hicks

Posted on 25/03/2026

Verified Buyer

Rated 5 out of 5

5.0

We’ve never had a reorder go wrong with Layer23. That’s saying something.

Arthur Fisher

Posted on 24/12/2025

Verified Buyer

Rated 4 out of 5

4.0

Was worried about buying from a third party, but the product is 100% genuine.

Charlotte Powell

Posted on 15/12/2025

Verified Buyer

Rated 5 out of 5

5.0

The protective wrapping gave us confidence the product wasn’t damaged in transit.

Marty McFly

Posted on 30/08/2025

Verified Buyer

Rated 5 out of 5

5.0

Got here so fast, it’s like you have a time machine.

Marcus Fairchild

Posted on 12/05/2025

Verified Buyer

Rated 5 out of 5

5.0

Arrived ahead of schedule, pricing was very fair compared to other quotes.

Questions & Answers

Can C9300L-24P-4X-A be stacked?
Yes, up to eight switches stack at 320 Gbps over StackWise-320. Only Catalyst 9300L and 9300LM members at the same license level can join, not modular-uplink C9300 switches. Fixed-uplink stacking uses the C9300L stack kit, with a 50 cm cable selected by default.
What does Network Advantage on C9300L-24P-4X-A include?
Network Advantage on C9300L-24P-4X-A adds BGP, VRF, VXLAN, MPLS, Cisco TrustSec and MACsec-256, plus NETCONF and RESTCONF automation interfaces on top of the Network Essentials feature set. The subscription term must be an Advantage term such as C9300L-DNA-A-24-5Y.
Which MACsec key length can C9300L-24P-4X-A use?
C9300L-24P-4X-A can use MACsec-128 and MACsec-256. The 128-bit option needs Network Essentials and the 256-bit option needs Network Advantage, which the -A suffix provides. No extra license is required for 256-bit link encryption beyond the Advantage subscription term ordered with the switch.
Which VXLAN and MPLS roles can C9300L-24P-4X-A take under Network Advantage?
Under Network Advantage in IOS XE 16.12, C9300L-24P-4X-A can act as a VXLAN BGP EVPN VTEP, with bridging, routing, anycast gateway and border handoff through VRF-Lite and L2 or L3VPN. In MPLS it takes the PE role with 256 VRFs, including mVPN, 6PE, 6VPE and Inter-AS options A and B.
Can C9300L-24P-4X-A join a StackPower ring?
No. StackPower pools power across up to four switches in a ring, or eight with an expandable power system, but it works only on modular-uplink Catalyst 9300 and Catalyst 9300X switches. C9300L-24P-4X-A has fixed uplinks, so each switch depends on its own supplies and PoE budget. A second supply raises that budget from 505W to the 720W ceiling.
What power does a PoE+ port on C9300L-24P-4X-A provide to the device?
A PoE+ port follows IEEE 802.3at Type 2, which provides 30W at the port and 25.5W at the powered device after cable loss. An 802.3af Type 1 device receives 15.4W at the port and 13W at the device. Plan endpoint loads on the device-side figures within the 505W default budget, since many phones and access points draw near their class limit.
How does C9300L-24P-4X-A build its StackWise-320 bandwidth?
StackWise-320 uses 4 rings of 40 Gbps, giving 160G in each direction, with up to 8 members. C9300L-24P-4X-A stacks only with Catalyst 9300L and 9300LM switches, which can mix with each other at 320G. Modular-uplink Catalyst 9300 switches cannot join, and the members must run the same IOS XE release and license level.
What table sizes does C9300L-24P-4X-A offer for MAC addresses and routes?
C9300L-24P-4X-A holds 32K MAC addresses and VLAN IDs 4,094 per the datasheet. Routing scale is 24K host or directly connected routes and 8K indirect IPv4 routes. ACL and QoS tables hold 5,120. IGMP groups and multicast routes each reach 8K, and NetFlow holds 64k per ASIC, so plan the stack inside these limits.
Which IOS XE baseline does the datasheet give for C9300L-24P-4X-A?
The datasheet baseline for Catalyst 9300L fixed-uplink models is Cisco IOS XE 16.11.1b. The release notes list 16.11.1c as the introductory release for most 9300L data and PoE models (16.12.2 applies only to the UXG models). All stack members need the same IOS XE release and license, so match the release before adding C9300L-24P-4X-A to a stack.
Are the fans of C9300L-24P-4X-A field-replaceable?
Yes. C9300L-24P-4X-A has three field-replaceable fans with N+1 redundancy, so cooling continues if one fan fails. Airflow runs front-to-rear and side-to-rear. A failed fan module can be replaced while the switch stays in service. The data-only C9300LM-48T-4Y is the exception in the family, with fixed fans.

Warranty

100% Low Price Guarantee:

Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.

100% Quality Assurance:

All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.

Free CCIE Technical Support:

Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.

100% Money Back Guarantee:

If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.

Flexible & Secure Payment and Shipping:

We support multiple secure payment and logistics options, backed by industry-leading verification:

Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information

FREE NETWORK TOOLS

Verify, plan, and comparewith confidence

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.

Check lifecycle dates

Cisco Switch Selector Tool

Filter Cisco switches by ports, uplinks, PoE, performance, features, license, and budget.

Find matching switches >

Cisco Serial Number Lookup

Verify authenticity and identify exactmodel, coverage, and lifecycle detailsusing a Cisco serial number.

Verify a serial number >

Product Comparison

Compare specifications, capabilitiesand form factors side-by-side tochoose the right hardware.

Cisco Compare products >

Item	Qty	Amount
C9300L-24P-4X-ANew, factory-sealed · 3-year warranty · In stock
C9300-DNA-ARequired with each C9300L-24P-4X-A

C9300L-24P-4X-A – 24x1G PoE+ Ports – 4x10G Fixed Uplinks – 505W PoE Budget

Shop Expert-Recommended Accessories for the C9300L-24P-4X-A

Stocked, Shipped and Supported by One Team

Inventory You Can See

Ships in 1 Business Day

LSCare Warranty

Free CCIE Support

Verify Before You Pay

C9300L-24P-4X-A Description

Quick Specs

Product Performance

Key Features

Application Scenarios

Product Comparison

PoE Power Planning

Ordering Checklist

Optional Add-ons

Specifications

Quality Certifications

Customer Reviews

Questions & Answers

Can C9300L-24P-4X-A be stacked?

What does Network Advantage on C9300L-24P-4X-A include?

Which MACsec key length can C9300L-24P-4X-A use?

Which VXLAN and MPLS roles can C9300L-24P-4X-A take under Network Advantage?

Can C9300L-24P-4X-A join a StackPower ring?

What power does a PoE+ port on C9300L-24P-4X-A provide to the device?

How does C9300L-24P-4X-A build its StackWise-320 bandwidth?

What table sizes does C9300L-24P-4X-A offer for MAC addresses and routes?

Which IOS XE baseline does the datasheet give for C9300L-24P-4X-A?

Are the fans of C9300L-24P-4X-A field-replaceable?

Warranty

Verify, plan, and comparewith confidence

Cisco Switch Selector Tool

Cisco Serial Number Lookup

Product Comparison

DataSheet Downloads

Related Searches of Catalyst 9300 Switches
