IE-3105-8T2C-E Description

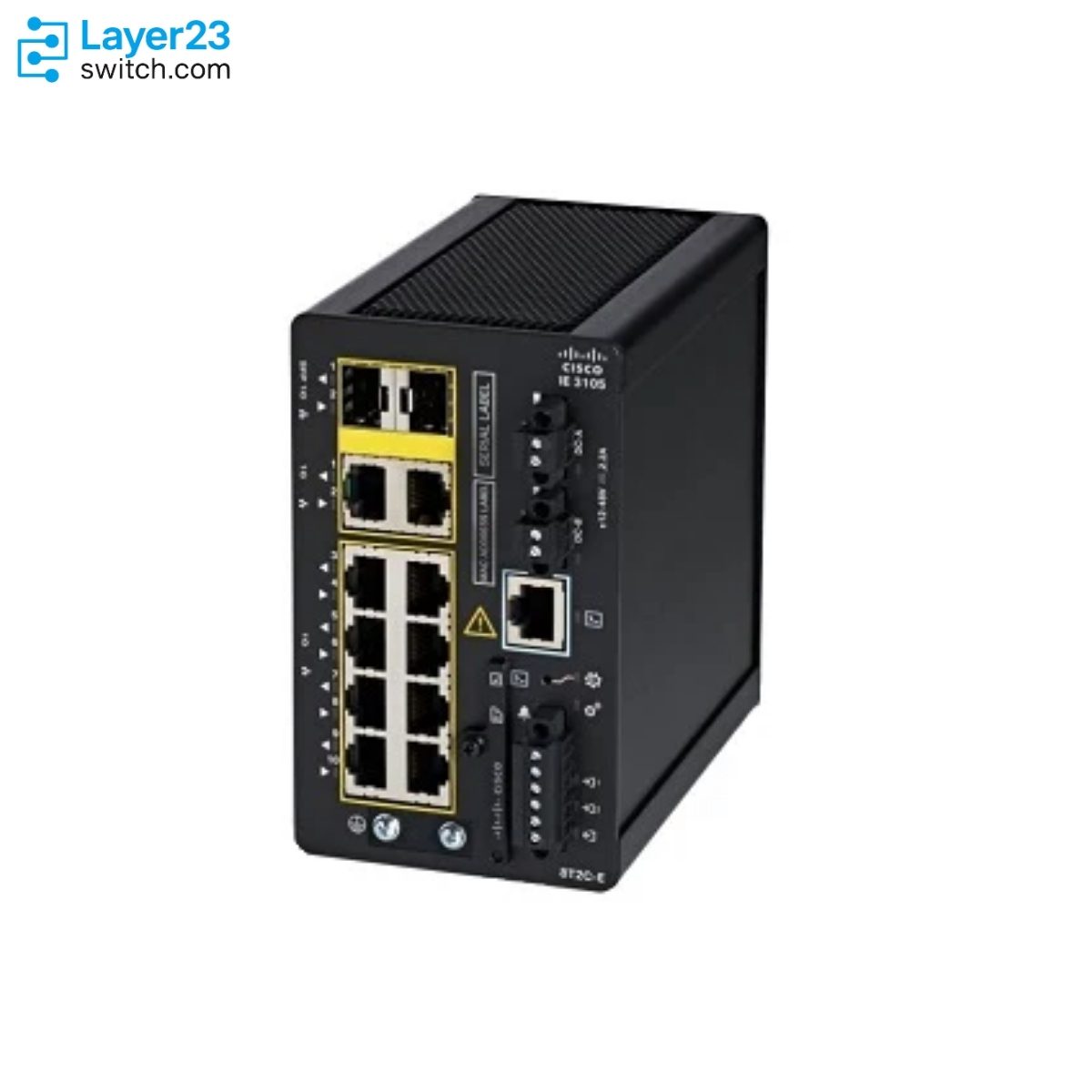

The IE-3105-8T2C-E is a Cisco Catalyst IE3105 Rugged Series industrial switch for small DIN-rail cabinets that need Gigabit copper access and Layer 2 NAT. The switch has eight 10/100/1000 RJ45 ports and two dual-media combo uplinks, with dual DC inputs from 12V to 48V nominal and 28 W power consumption. Layer 2 NAT applies only to the uplink ports, and the switch has no PoE budget.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3105-8T2C-E |
|
Product type |
Industrial Ethernet switch |
|
Network license |
Network Essentials |
|
IE3105 feature scope |
Layer 2 NAT support on IE3105 variants |
|
Total ports |
10 Gigabit Ethernet ports |
|
Copper access ports |
8 x 10/100/1000 RJ45 ports |
|
Combo uplink ports |
2 x 1000BASE-T/1000BASE-X dual-media ports |
|
PoE budget |
Not applicable for this non-PoE model |
|
Power input |
Dual DC inputs |
|
Nominal input voltage |
12V to 48V |
|
Power consumption |
28 W |
|
MTBF |
774,680 hours |
Product Performance
Key Features
Layer 2 NAT is available on the IE3105 models only, applied to the uplink ports GigabitEthernet1/1 and 1/2, with up to 128 rules.
The RJ45 ports carry data only, so powered endpoints need a separate supply or a PoE model.
Each uplink works as copper or SFP. The SFP side wins by default when both are connected, and the media-type command forces one side.
The switch draws 28 W, about 10 W more than the base IE-3100-8T2C-E, and cabinet power budgets should use that figure.
The IE3105 chassis is 5.08 in. deep against 4.33 in. for the base 8T2C model, which matters in shallow enclosures.
Two DC feeds work as primary and backup over 9.6V to 60V absolute, with the higher-voltage feed carrying the load.
Application Scenarios
A small machine cell reuses a private IPv4 plan, and the switch translates those addresses on its uplinks so the cell can join the plant network.
Cabinets in a pump or utility network that differ in uplink media can run the same switch, with RJ45 copper in one cabinet and SFP fiber in another.
Where eight copper endpoints are enough, the switch fits a shallow DIN-rail space and connects sensors and controllers to the site network.
Product Comparison
|
Parameter |
IE-3105-8T2C-E | |||
|---|---|---|---|---|
|
Downlink interfaces |
8 x 10/100/1000 RJ45 |
8 x 10/100/1000 RJ45 |
18 x 10/100/1000 RJ45 |
8 x 10/100/1000 RJ45 PoE/PoE+ |
|
Uplink ports |
2 x 1000BASE-T/1000BASE-X combo |
2 x 1000BASE-T/1000BASE-X combo |
2 x 1000BASE-T/1000BASE-X combo |
2 x 1000BASE-T/1000BASE-X combo |
|
PoE power budget |
Not applicable |
Not applicable |
Not applicable |
240 W |
|
Nominal input voltage |
12V to 48V |
12V to 48V |
12V to 48V |
12V to 54V |
|
FPGA data path |
Yes |
No |
Yes |
No |
|
Layer 2 NAT |
Supported |
Not supported |
Supported |
Not supported |
|
Power consumption |
28 W |
17.7 W |
36.7 W |
26 W (excluding PoE load) |
|
Forwarding bandwidth |
10 Gbps |
10 Gbps |
20 Gbps |
10 Gbps |
|
Dimensions (H x W x D) |
5.00 x 3.00 x 5.08 in. |
5.00 x 3.00 x 4.33 in. |
5.00 x 4.30 x 5.08 in. |
5.00 x 3.00 x 5.08 in. |
IE-3105-8T2C-E is the IE3105 variant of IE-3100-8T2C-E: both have eight copper ports and two combo uplinks, but only IE-3105-8T2C-E has the FPGA data path and Layer 2 NAT, at 28 W against 17.7 W and a 5.08 in. chassis depth against 4.33 in. Designs that do not need Layer 2 NAT and have tight cabinet depth can order IE-3100-8T2C-E. Where 18 copper ports are needed with the same IE3105 feature set, order IE-3105-18T2C-E, which forwards 20 Gbps against 10 Gbps. Cabinets that must power endpoints from the switch need IE-3100-8P2C-E with its 240 W PoE budget, though it is not an IE3105 variant and has no Layer 2 NAT.
Ordering Checklist
- Power supply: Order a separate DIN-rail supply such as PWR-IE50W-AC= (50W, AC 100-240V) or PWR-IE50W-AC-L=. The ordering table lists no default power supply, so the switch arrives with nothing to power it.
- SD card: Add SD-IE-1GB= or SD-IE-16GB= if configuration backup is wanted. The card is optional and not shipped by default, so a replacement switch cannot reload its configuration from it unless ordered.
- DIN-rail mounting: Add STK-RACK-DINRAIL= if the switch goes into a 19-inch rack instead of a DIN rail. The rack kit is a separate item, and the data sheet does not say whether DIN-rail or rack hardware ships with the switch.
- Uplink optics: Choose Cisco-listed 100M or 1G SFPs for the two dual-media uplinks, using -40 to +85°C industrial-grade SFPs for utility, rail or marine sites. Each uplink uses either the SFP or the RJ45 side.
- Subscription: Optionally add Catalyst Center Essentials subscription IE3100-DNA-E-L (up to 12 ports) with a -1Y, -3Y, -5Y, -7Y or -10Y term. IE-3105-8T2C-E is covered by the Network Essentials license with no separate license PID, so this is the only license line that can be added.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Cisco Industrial Ethernet 50 W AC or high-DC power supply option | |
|
Cisco Industrial Ethernet 50 W AC low-profile power supply option | |
|
Cisco Industrial Ethernet 50 W AC power supply with IEC connector | |
|
Cisco rugged 1000BASE-SX SFP listed for IE3100 SFP support | |
|
Cisco rugged 1000BASE-LX/LH SFP listed for IE3100 SFP support | |
|
GLC-ZX-SM-RGD= |
Cisco rugged 1000BASE-ZX SFP listed for IE3100 SFP support |
|
SD-IE-16GB= |
Cisco IE 16 GB SD memory card option |
IE-3105-8T2C-E Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
Number |
Feature |
Number |
Feature |
|---|---|---|---|
|
1 |
Dual-media SFP port LEDs |
6 |
Express Setup LED |
|
2 |
Dual-media copper port LEDs |
7 |
System LED |
|
3 |
1000BASE-T port LEDs |
8 |
Alarm input LEDs |
|
4 |
Power connector LED |
9 |
Alarm output LED |
|
5 |
Management console LED |
10 |
PoE Status LED Note This LED is present in PoE models only. |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3105-8T2C-E | Product type | Industrial Ethernet switch |
| Network license | Network Essentials | Total ports | 10 Gigabit Ethernet ports |
| Copper access ports | 8 x 10/100/1000 RJ45 ports | Combo uplink ports | 2 x 1000BASE-T/1000BASE-X dual-media ports |
| SFP-only uplink ports | No SFP-only uplinks listed | PoE power budget | Not applicable for this non-PoE model |
| IE3105 feature scope | Layer 2 NAT support on IE3105 variants | Operating system | Cisco IOS XE |
| Minimum model-support release | Cisco IOS XE Dublin 17.11.1 | Power input | Dual DC inputs |
| Nominal input voltage | 12V to 48V | Absolute input voltage | 9.6V to 60V |
| Maximum current at 12V | 3.2 A | Maximum current at 24V | 1.6 A |
| Maximum current at 48V | 0.8 A | Power consumption | 28 W |
| Inrush current at 12V | 10 A for 7 ms | Inrush current at 24V or 48V | 6 A for 6 ms |
| Forwarding rate | 14.88 Mpps | Forwarding bandwidth | 10 Gbps |
| Switching capacity | 20 Gbps full-duplex capacity | DRAM | 4 GB |
| Flash | 1.5 GB | SD card capacity | 1 GB, 4 GB, or 16 GB optional SD card |
| MAC addresses | 8000 | VLAN scale | 256 VLANs |
| IGMP multicast groups | 512 | STP instances | 128 |
| Console port | 1 RS-232 via RJ45 and 1 micro USB | Alarm I/O | 2 dry-contact alarm inputs and 1 alarm output |
| Mounting | DIN rail | Dimensions | 5.00 x 3.00 x 5.08 in. / 12.70 x 7.62 x 12.90 cm |
| Weight | 2.3 lb / 1.04 kg switch only | Operating temperature | -40C to 75C in blower-equipped cabinet |
| Storage temperature | -40C to 85C | Operating humidity | 5 percent to 95 percent noncondensing |
| Operating altitude | Up to 15000 ft with no temperature derating | Ingress protection | IP30 |
| MTBF | 774,680 hours | Industrial protocol support | EtherNet/IP CIP, Modbus, SCADA, GOOSE, and PROFINET MRP |
| Management | Cisco Catalyst Center, WebUI, CLI, SNMP, NETCONF, and RESTCONF |
