IE-3105-18T2C-E Description
The IE-3105-18T2C-E is a Cisco Catalyst IE3105 Rugged Series industrial switch for DIN-rail cabinets that need dense Gigabit copper access and Layer 2 NAT. The switch has 18 10/100/1000 RJ45 ports and two dual-media combo uplinks, with dual DC inputs from 12V to 48V nominal and 36.7 W power consumption. Layer 2 NAT applies only to the uplink ports GigabitEthernet1/1 and 1/2, and the switch has no PoE budget.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3105-18T2C-E |
|
Product type |
DIN-rail industrial Ethernet switch |
|
Default software license |
Network Essentials |
|
Total ports |
20 Gigabit Ethernet ports |
|
Downlink ports |
18 x 10/100/1000 RJ45 copper ports |
|
Uplink ports |
2 x 1000BASE-T/1000BASE-X dual-media combo ports |
|
FPGA data path |
Yes |
|
Layer 2 NAT scope |
IE3105 uplink ports GigabitEthernet1/1 and GigabitEthernet1/2 |
|
PoE role |
Non-PoE data model with no PoE budget listed |
|
Power input |
Dual DC inputs |
|
Nominal input voltage |
12V to 48V nominal |
|
Absolute input voltage |
9.6V to 60V absolute |
|
Power consumption |
36.7W |
Product Performance
Key Features
Layer 2 NAT applies to GigabitEthernet1/1 and 1/2 only. It translates IPv4 unicast with one-to-one mappings, up to 128 rules.
The IE3105 models are the only members of the IE3100 family with an FPGA data path, which is what enables Layer 2 NAT.
Eighteen Gigabit RJ45 ports let one switch serve a full machine line with no PoE and no SFP downlinks.
Each uplink runs as copper or as a 100M or 1G SFP. The SFP side takes priority when both are connected, unless the media type is set manually.
The 36.7 W consumption on a 12V to 48V nominal supply, up to 4.2 A, sets the supply size for the cabinet.
At 5.00 x 4.30 x 5.08 in. and 2.8 lb, the switch needs more DIN-rail width than the 8-port models.
Application Scenarios
A cabinet serving a long production line connects up to 18 PLCs, drives and I/O blocks over copper, with the combo uplinks carrying traffic to the plant network.
A machine builder can deploy identical machine networks behind the switch and use Layer 2 NAT on the uplinks to present each one to the plant network with unique IPv4 addresses.
In a roadside cabinet, the switch aggregates cameras and controllers that are powered separately, and hands traffic off over copper or SFP fiber depending on the site.
Product Comparison
|
Parameter |
IE-3105-18T2C-E | ||
|---|---|---|---|
|
Total ports |
20 |
20 |
10 |
|
Downlink interfaces |
18 x 10/100/1000 RJ45 |
18 x 10/100/1000 RJ45 |
8 x 10/100/1000 RJ45 |
|
Uplink ports |
2 x 1000BASE-T/1000BASE-X combo |
2 x 1000BASE-T/1000BASE-X combo |
2 x 1000BASE-T/1000BASE-X combo |
|
PoE power budget |
Not applicable |
Not applicable |
Not applicable |
|
Nominal input voltage |
12V to 48V |
12V to 48V |
12V to 48V |
|
FPGA data path |
Yes |
No |
Yes |
|
Layer 2 NAT |
Supported |
Not supported |
Supported |
|
Power consumption |
36.7 W |
36.7 W |
28 W |
|
MTBF |
642,050 hours |
642,050 hours |
774,680 hours |
IE-3105-18T2C-E and IE-3100-18T2C-E share 18 copper ports, two combo uplinks, Network Essentials and 36.7W power consumption, and what separates them is the FPGA data path and Layer 2 NAT, which only the IE3105 model has, applied to its uplink ports. Projects that do not need Layer 2 NAT can order IE-3100-18T2C-E with the same port layout. Where eight copper downlinks are enough, IE-3105-8T2C-E keeps the IE3105 feature set on 10 ports and 28W, against 20 ports for this model. All three PIDs have no PoE budget, so any design that must power endpoints from the switch has to look outside this group.
Ordering Checklist
- Power supply: Order a separate DIN-rail supply such as PWR-IE50W-AC= (50W, AC 100-240V) or PWR-IE50W-AC-L=. The ordering table lists no default power supply, so the switch arrives with nothing to power it.
- SD card: Add SD-IE-1GB= or SD-IE-16GB= if configuration backup is wanted. The card is optional and not shipped by default, so a replacement switch cannot reload its configuration from it unless ordered.
- DIN-rail mounting: Add STK-RACK-DINRAIL= if the switch goes into a 19-inch rack instead of a DIN rail. The rack kit is a separate item, and the data sheet does not say whether DIN-rail or rack hardware ships with the switch.
- Uplink optics: Choose Cisco-listed 100M or 1G SFPs for the two dual-media uplinks, using -40 to +85°C industrial-grade SFPs for utility, rail or marine sites. Each uplink uses either the SFP or the RJ45 side.
- Subscription: Optionally add Catalyst Center Essentials subscription IE3100-DNA-E-M (up to 24 ports) with a -1Y, -3Y, -5Y, -7Y or -10Y term. IE-3105-18T2C-E is covered by the Network Essentials license with no separate license PID, so this is the only license line that can be added.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Cisco Industrial Ethernet 50W AC power supply option for IE deployments | |
|
Cisco Industrial Ethernet 50W AC low-profile power supply option | |
|
Cisco Industrial Ethernet 65W DC power supply option | |
|
Cisco Industrial Ethernet 65W AC power supply option | |
|
Cisco rugged 1000BASE-SX SFP listed for IE3100 SFP support | |
|
Cisco rugged 1000BASE-LX/LH SFP listed for IE3100 SFP support | |
|
GLC-ZX-SM-RGD= |
Cisco rugged 1000BASE-ZX SFP listed for IE3100 SFP support |
|
SD-IE-16GB= |
Cisco IE 16GB SD card option for industrial Ethernet switches |

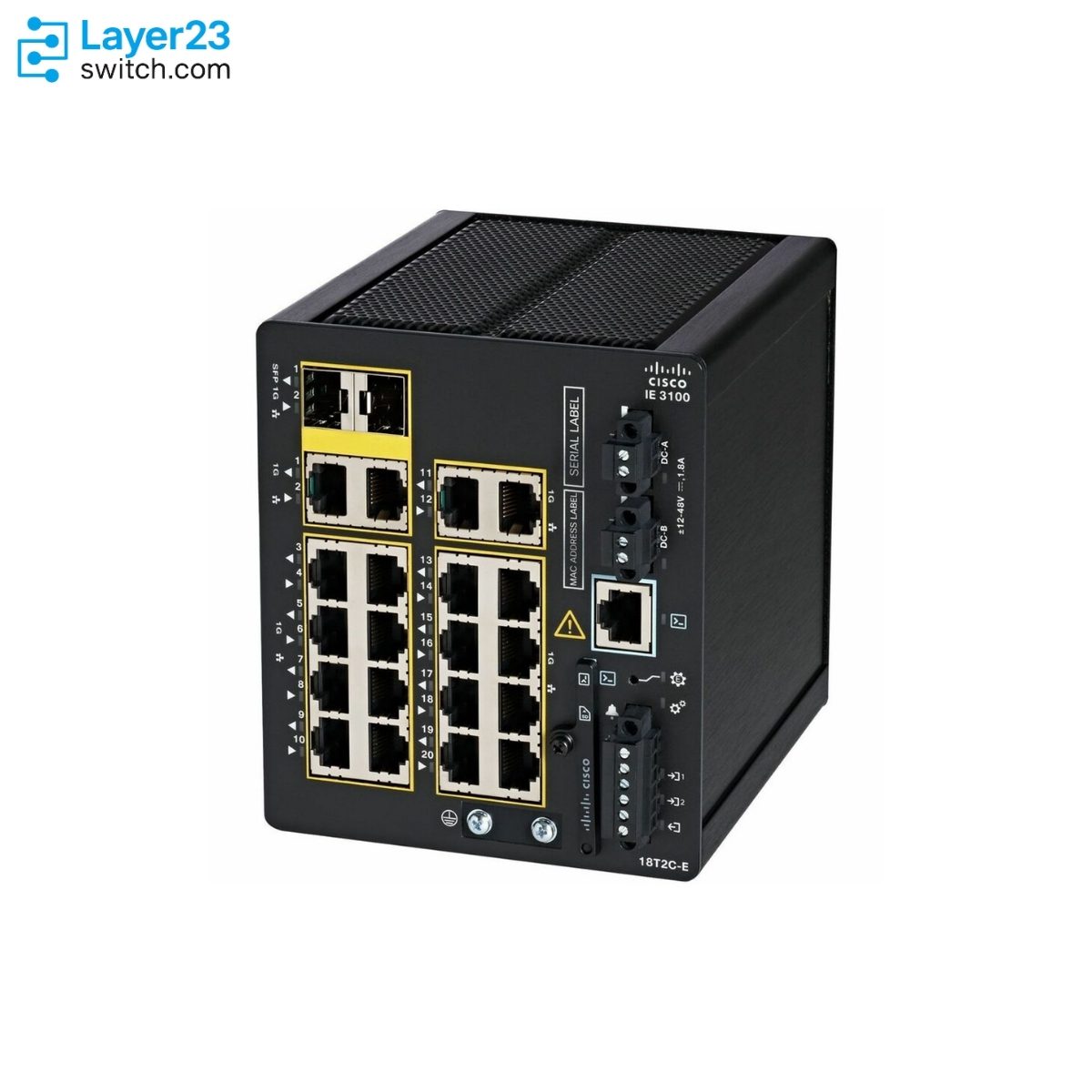

IE-3105-18T2C-E Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
Number |
Feature |
Number |
Feature |
|---|---|---|---|
|
1 |
Dual-media SFP ports (uplinks) |
6 |
Power connectors A and B |
|
2 |
Dual-media copper ports (uplinks) |
7 |
RJ-45 console connector |
|
3 |
1000BASE-T ports (downlinks) |
8 |
Express Setup button |
|
4 |
SD card slot and USB micro port cover |
9 |
Alarm connector |
|
5 |
Protective ground connection |
|
|
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3105-18T2C-E | Product type | DIN-rail industrial Ethernet switch |
| Default software license | Network Essentials | Total ports | 20 Gigabit Ethernet ports |
| RJ45 copper downlinks | 18 x 10/100/1000 ports | Dual-media uplinks | 2 x 1000BASE-T/1000BASE-X combo ports |
| Fixed SFP-only ports | No fixed SFP-only ports listed for this PID | FPGA data path | Yes |
| Layer 2 NAT scope | IE3105 uplink ports GigabitEthernet1/1 and GigabitEthernet1/2 | PoE budget | No PoE budget listed for this data model |
| Power input | Dual DC inputs | Nominal input voltage | 12V to 48V |
| Absolute input voltage | 9.6V to 60V | Max current at 12V | 4.2A |
| Max current at 24V | 2.6A | Max current at 48V | 1.3A |
| Power consumption | 36.7W | DRAM | 4GB |
| Flash | 1.5GB | SD card capacity | 1GB, 4GB, or 16GB optional SD card |
| Removable storage note | SD card is optional and not shipped by default | Alarm I/O | 2 dry-contact alarm inputs and 1 alarm output |
| Console port | 1 RS-232 via RJ45 and 1 micro USB | Mounting | DIN rail |
| Operating system | Cisco IOS XE | Forwarding rate | 29.76 Mpps |
| Forwarding bandwidth | 20 Gbps | Queues | 8 egress queues |
| MAC addresses | 8000 | VLAN scale | 256 VLANs |
| IPv4 indirect routes | 2000 | Operating temperature | -40C to 75C in blower-equipped cabinet |
| Storage temperature | -40C to 85C | Operating humidity | 5% to 95% noncondensing |
| Operating altitude | Up to 15000 ft with no temperature derating | Ingress protection | IP30 |
| MTBF | 642,050 hours | Industrial protocol support | EtherNet/IP CIP, Modbus, SCADA, GOOSE, and PROFINET MRP |
| Management | Cisco Catalyst Center, WebUI, CLI, SNMP, and open APIs | L2NAT rule scale | 128 Layer 2 NAT rules |
