IE-3200-8T2S-E Description
The IE-3200-8T2S-E is a Cisco Catalyst IE3200 Rugged Series fixed industrial switch for DIN rail control cabinets that network Gigabit Ethernet devices without powering them. Eight 10/100/1000 RJ45 data-only copper ports and two 100/1000 SFP uplinks make up the port count, and the switch draws 23W from redundant DC inputs between 9.6 and 60VDC while operating from -40°C to +70°C in a vented enclosure. The fixed system takes no expansion module, and Network Essentials limits routing to inter-VLAN and static routes.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3200-8T2S-E |
|
Downlink ports |
8x 10/100/1000 RJ45, data-only (no PoE) |
|
Uplink ports |
2x 100/1000 SFP |
|
Network license |
Network Essentials (perpetual) |
|
System configuration |
Fixed system, no expansion module |
|
Forwarding rate |
Line rate for all ports and packet sizes |
|
MAC addresses |
8K |
|
Input voltage |
Dual DC inputs, 9.6 to 60VDC |
|
Power consumption |
23W (measured at 12V) |
|
Operating temperature |
-40°C to +70°C (40 LFM vented enclosure) |
|
Cisco IOS XE support |
From 16.10.1; listed in Release 26.2.x |
|
Mounting and cooling |
DIN rail; fanless, convection cooled |
Product Performance
Key Features
Ring topologies recover through REP, REP Preferred or Fast REP, and PROFINET plants can run MRP on the same switch. Since Cisco IOS XE 17.7.1, MRP needs neither the ring manager nor the ring client license.
CIP EtherNet/IP and PROFINET are native, and the switch can be managed from Siemens STEP 7 or TIA Portal alongside the controllers it connects. IEEE 1588 PTPv2 runs in both the default and the power profile, and GOOSE and MODBUS TCP/IP traffic can be classified for SCADA networks.
The DC-A and DC-B inputs can both stay live; the switch takes power from the higher-voltage feed and moves to the other when that one fails. An alarm relay rated 1.0 A at 24 VDC or 0.5 A at 48 VDC can drive a cabinet bell or light, and two alarm inputs read dry contacts.
With the optional SD-IE-16GB= card in its slot, a failed unit can be replaced and the new switch loads the stored configuration without being set up again. The card is not shipped by default.
IEEE 1613 and IEC 61850-3 cover substation use, EN50121-4 and EN50155 cover railway use, and Class I Div 2 and Class I Zone 2 IIC approvals cover hazardous locations. IEC 61850-3 voltage dip performance holds only when the switch runs on a redundant power configuration.
The two SFP ports accept LC fiber optics at either 100M or 1G over multimode or single-mode fiber. Existing Fast Ethernet runs can stay on GLC-FE-100FX-RGD for 2 km over multimode, while GLC-ZX-SM-RGD extends a Gigabit link to 70 km.
Application Scenarios
On a manufacturing line, the switch connects PLCs, drives and HMIs over its copper ports and joins the line to a PROFINET MRP or REP ring through its SFP uplinks.
A remote pumping station mounts the switch in its control cabinet, where MODBUS TCP/IP traffic from pump controllers rides a single-mode fiber uplink back to the utility SCADA center.
Along a rail line, the switch sits in trackside cabinets and links wayside controllers and sensors, with EN50121-4 railway compliance and a -40°C to +70°C operating range behind it.
Product Comparison
|
Parameter |
IE-3200-8T2S-E | |||
|---|---|---|---|---|
|
10/100/1000 RJ45 copper ports |
8, data-only |
8, PoE/PoE+ |
8, data-only |
8, data-only |
|
100/1000 SFP ports |
2 |
2 |
2 |
2 |
|
PoE power budget |
Not applicable |
240W |
Not applicable |
Not applicable |
|
Input voltage range |
Redundant DC, 9.6 to 60VDC |
Redundant DC, 9.6 to 60VDC; 48VDC for PoE, 54VDC for PoE+ |
Redundant DC, 9.6 to 60VDC |
Redundant DC, 9.6 to 60VDC |
|
Operating temperature |
-40°C to +70°C (40 LFM vented) |
-40°C to +70°C (40 LFM vented) |
-40°C to +70°C (40 LFM vented) |
-40°C to +70°C (40 LFM vented) |
|
Redundancy |
REP, REP Preferred, Fast REP, PROFINET MRP |
REP, REP Preferred, Fast REP, PROFINET MRP |
REP, Fast REP, REP ZTP, PROFINET MRP |
REP, Fast REP, PROFINET MRP, PRP, HSR-SAN, HSR-PRP Dual Redbox, DLR |
|
Mounting |
DIN rail, fixed system |
DIN rail, fixed system |
DIN rail, one IEM-3300 expansion bay (up to 26 GE ports) |
DIN rail, one expansion module bay (up to 26 GE ports) |
|
Software license (default) |
Network Essentials; no upgrade license listed |
Network Essentials; no upgrade license listed |
Network Essentials; IE3300-NW-A= upgrade |
Network Essentials; IE3400-NW-A= upgrade |
IE-3200-8T2S-E and IE-3200-8P2S-E share the same fixed layout of eight copper and two SFP ports, but only IE-3200-8P2S-E powers its copper ports, from a 240W PoE/PoE+ budget that needs a 48VDC or 54VDC input. Cabinets feeding cameras or access points over the cable belong on that model. Where the port count may grow, IE-3300-8T2S-E keeps the same data-only base and adds one IEM-3300 expansion bay for up to 26 GE ports, along with the IE3300-NW-A= upgrade to Network Advantage, which has no IE3200 equivalent. Plants that run PRP, HSR-SAN or DLR need IE-3400-8T2S-E, which includes those protocols in Network Essentials and also takes an expansion module.
Ordering Checklist
- Power supply: Add a separate IE DIN rail supply, such as PWR-IE50W-AC= for 100-240VAC or 125-250VDC sites. IE3200 supplies are separate PIDs, and the 23W switch load must stay within the supply wattage.
- Redundant power for substations: Order a redundant power configuration where the cabinet must meet IEC 61850-3. A single supply does not meet its voltage dip and interruption requirements.
- Supply certification: Avoid PWR-IE50W-AC-L= at hazardous-location or smart grid sites. The -L supplies are rated IP20 and carry neither certification.
- SD card: Include SD-IE-16GB= if SwapDrive replacement is planned. The SD card is an optional accessory and is not shipped with the switch by default.
- Catalyst Center license: Order IE3200-DNA-E or a 3, 5 or 7-year term (IE3200-DNA-E-3Y, -5Y, -7Y) only if Catalyst Center will manage the switch. The license is optional and purchased separately.
- SFP temperature grade: Choose industrial SFPs such as GLC-SX-MM-RGD or GLC-LX-SM-RGD for the uplinks. Extended and commercial-grade SFPs require the switch operating temperature to be derated.
- Mounting and grounding: Mount on a TH 35-7.5 or TH 35-15 DIN rail, or add STK-RACK-DINRAIL= for a 19-inch rack. The ground lug is not supplied, and the protective ground needs at least a 10 AWG conductor.
Optional Add-ons
|
Model |
Description |
|---|---|
|
50W DIN rail power supply, 100-240VAC or 125-250VDC input | |
|
50W DIN rail power supply, 90-264VAC input | |
|
50W DIN rail power supply, 100-240VAC input, IP20 | |
|
65W DIN rail power supply, 100-240VAC or 125-250VDC input | |
|
65W DIN rail power supply, 24-48VDC input | |
|
170W DIN rail power supply, 100-240VAC or 125-250VDC input | |
|
170W DIN rail power supply, 12-54VDC input | |
|
GLC-FE-100FX-RGD |
Industrial 100BASE-FX SFP, 2 km over multimode fiber |
|
GLC-FE-100LX-RGD |
Industrial 100BASE-LX10 SFP, 10 km over single-mode fiber |
|
Industrial 1000BASE-SX SFP, 220-550 m over multimode fiber | |
|
Industrial 1000BASE-LX/LH SFP, 550 m MMF or 10 km SMF | |
|
GLC-ZX-SM-RGD |
Industrial 1000BASE-ZX SFP, 70 km over single-mode fiber |
|
GLC-T-RGD= |
Industrial 1000BASE-T copper SFP, 100 m |
|
SD-IE-16GB= |
16GB SD card for configuration storage and SwapDrive |
|
STK-RACK-DINRAIL= |
19-inch DIN rail mount kit |
|
IE3200-DNA-E |
Cisco Catalyst Center Essentials license for IE3200 |

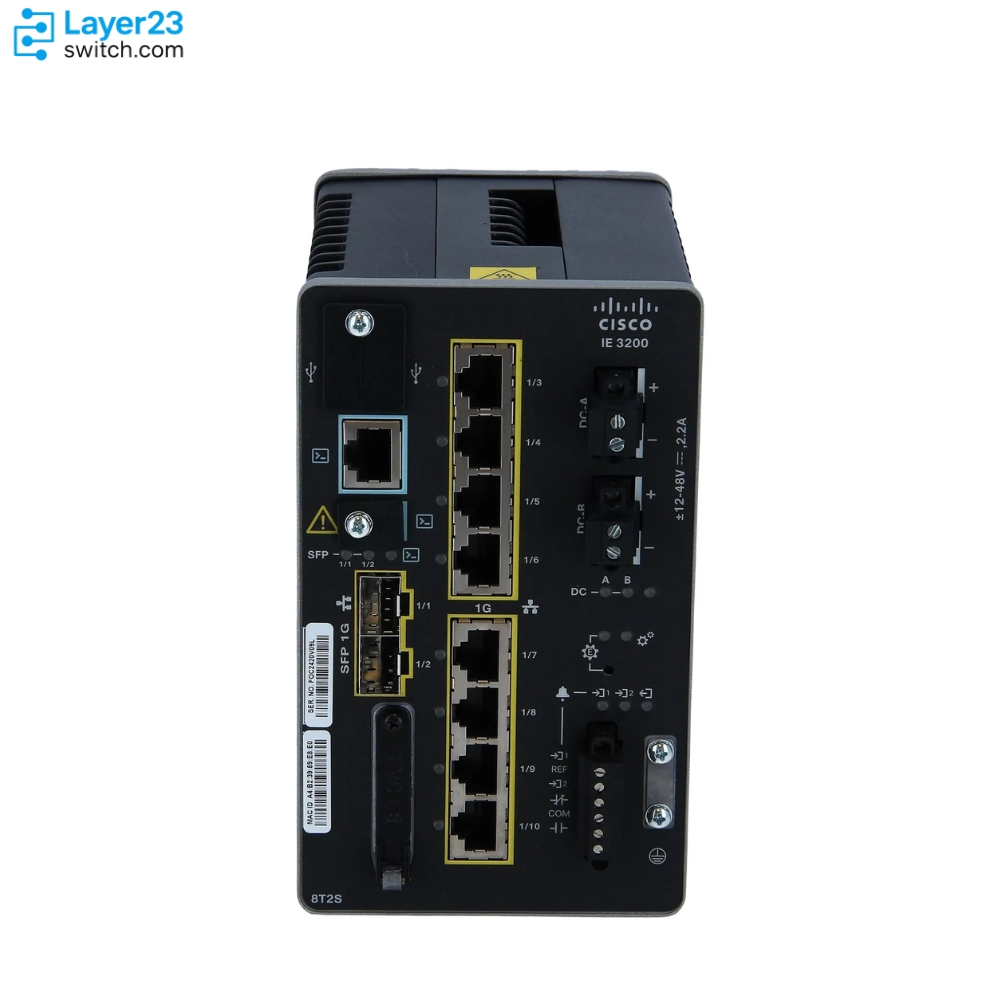

IE-3200-8T2S-E Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
1 |
10/100/1000 Copper Ethernet ports (downlink ports) |
7 |
Flash memory card slot |
|---|---|---|---|
|
2 |
Power connector DC-B |
8 |
SFP module slots (uplink ports) |
|
3 |
Power connector DC-A |
9 |
USB mini-Type B (console) port |
|
4 |
Protective ground connection |
10 |
RJ-45 console port |
|
5 |
Alarm connector |
11 |
USB mini-Type A port |
|
6 |
10/100/1000 Copper Ethernet ports (downlink ports) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3200-8T2S-E | Software license (default) | Network Essentials (perpetual) |
| System configuration | Fixed system | Total ports | 10 |
| 10/100/1000 RJ45 copper ports | 8, non-PoE | 100/1000 SFP ports | 2 |
| Console port | 1 RS-232 (via RJ-45), 1 USB Mini Type B | Alarms | 2 alarms in, 1 alarm out |
| Alarm output rating | 1.0 A at 24 VDC or 0.5 A at 48 VDC | Removable storage | USB 2.0 and SD card (optional, not shipped by default) |
| Forwarding rate | Line rate for all ports and all packet sizes | Number of queues | 8 |
| MAC addresses | 8K | IGMP multicast groups | 1K |
| No. of VLANs | 256 | STP instances | 128 |
| Access control entries (PACL/VACL/RACL) | 3K | Jumbo frames | 8996 bytes |
| DRAM | 2 GB | Flash (user accessible) | 1.5 GB |
| SD card capacity | 4 GB, 16 GB (optional) | Copper port operation | 10/100/1000 Mb/s, full or half duplex, autonegotiation, auto-MDIX; 100 m maximum cable length |
| Layer 2 switching | 802.1Q, PVST+, MSTP, RSTP, LACP, PAgP, EtherChannel, Q-in-Q, voice VLAN, VTPv2, VTPv3, UDLD, CDP, LLDP | Multicast | IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier |
| Layer 3 routing | Inter-VLAN routing, static routing | Redundancy | REP ring, REP Preferred, Fast REP, PROFINET MRP |
| Industrial Ethernet | CIP EtherNet/IP, PROFINET, IEEE 1588 PTP v2 (default and power profile) | Utility | Dying gasp; SCADA protocol classification for GOOSE and MODBUS TCP/IP |
| Security | Port security, 802.1X, MAC authentication bypass, DHCP snooping, dynamic ARP inspection, IP source guard, storm control, BPDU guard, PACL/RACL/VACL, MACsec-128, FIPS 140-2, SUDI 2099 | Management | WebUI, SNMP, syslog, DHCP server, SPAN, RSPAN, FSPAN, Express setup, NETCONF, RESTCONF, YANG, SwapDrive |
| IEEE standards | 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.1AB, IEEE 1588v2, 802.3ad, 802.3ah, 802.3, 802.3u, 802.3ab, 802.3z | Cisco IOS XE support | From 16.10.1 (earliest IE3200 release notes); listed as supported hardware in Release 26.2.x |
| Software image (IOS XE 26.2.1) | ie3x00-universalk9.26.02.01.SPA.bin | Input voltage range | Redundant DC input, 9.6 to 60VDC |
| Power inputs | Dual DC power inputs (DC-A, DC-B) | Maximum input current | 2.4A |
| Power consumption | 23W (measured at 12V) | Cooling | Fanless, convection cooled |
| Operating temperature | -40°C to +70°C (40 LFM vented enclosure); -40°C to +60°C (sealed enclosure); -40°C to +75°C (min. 200 LFM fan or blower-equipped enclosure); +85°C type tested for 16 hours | Operating altitude | Up to 15,000 ft |
| Storage temperature | -40°C to +85°C | Operating humidity | 5% to 95% relative humidity, non-condensing |
| Dimensions (H x W x D) | 6 x 3.6 x 5.3 in (15.2 x 9.1 x 13.5 cm) | Weight | 3.8 lbs (1.7 kg) |
| Mounting | DIN rail (IEC/EN 60715 TH 35-7.5 or TH 35-15), vertical orientation | Ingress protection | IP30 |
| MTBF | 641,150 hours | Industrial automation control system | IEC 62443-4-1, IEC 62443-4-2 |
| Industry standards | EN 61000-6-2, EN 61000-6-4, EN 61000-6-1, EN 61326-1, IEEE 1613, EN/IEC 61850-3, ODVA EtherNet/IP, NEMA TS 2-2016, AREMA C&S sections 11 and 19 | Electromagnetic emissions | FCC 47 CFR Part 15 subpart B Class A, EN 55032/CISPR 32 Class A, VCCI Class A, AS/NZS CISPR 32 Class A, CISPR 11 Class A, ICES 003 Class A, CNS 13438 Class A, KN 32 Class A, EN 300 386 |
| Electromagnetic immunity | CISPR 24, EN 55024, KN 35, EN 61000-4-2, -3, -4, -5, -6, -8, -10, -16, -17, -18, -29 | Safety certifications | UL/CSA 60950-1, IEC 60950-1 CB, UL/CSA 62368-1, IEC 62368-1 CB, UL/CSA 61010-2-201, IEC/EN 61010-2-201 CB |
| Hazardous locations | UL121201 and CSA 213 Class I Div 2 Groups A-D; UL/CSA, IEC (IECEx) and EN (ATEX) 60079-0, -15 Class I Zone 2 Gc/IIC (ATEX requires a cabinet enclosure) | Railway | EN50125-1:2014, EN50125-3:2003, EN50121-4, EN50155 (specific requirements, exclusion clauses apply) |
| Marine | DNV-CG-0339, IEC 60945, IACS UR E10 | Shock | IEC 60068-2-27 (operational 50G, 3 ms, half sine; non-operational 65-80G, 9 ms, trapezoidal); MIL-STD-810 Method 514.4 |
| Vibration | IEC 60068-2-6 (sinusoidal, 5-150 Hz) | Corrosion | IEC 60068-2-52 (salt fog), IEC 60068-2-60 (flowing mixed gas) |
| Supported SFPs | 100M: GLC-FE-100FX-RGD, GLC-FE-100LX-RGD and commercial GLC-FE-100 models; 1G: GLC-SX-MM-RGD, GLC-LX-SM-RGD, GLC-ZX-SM-RGD, GLC-T-RGD=, GLC-BX-U-I=, GLC-BX-D-I=, GLC-BX40-U-I=, GLC-BX40-D-I=, GLC-BX80-U-I=, GLC-BX80-D-I=, plus extended and commercial-temperature GE SFPs |
Quality Certifications
Customer Reviews
Questions & Answers
-
What operating temperature range does IE-3200-8T2S-E support?
-
What DC input voltage does IE-3200-8T2S-E need?
-
How many VLANs and what jumbo frame size does IE-3200-8T2S-E support?
-
Which UL and CSA hazardous-location standards apply to IE-3200-8T2S-E?
-
What DIN rail types and clearance does IE-3200-8T2S-E need?
-
What input current rating applies to IE-3200-8T2S-E?
