IE-2000-4TS-G-B – 4xFE Copper – 2xGE SFP Uplinks – LAN Base
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
IE-2000-4TS-G-B Description

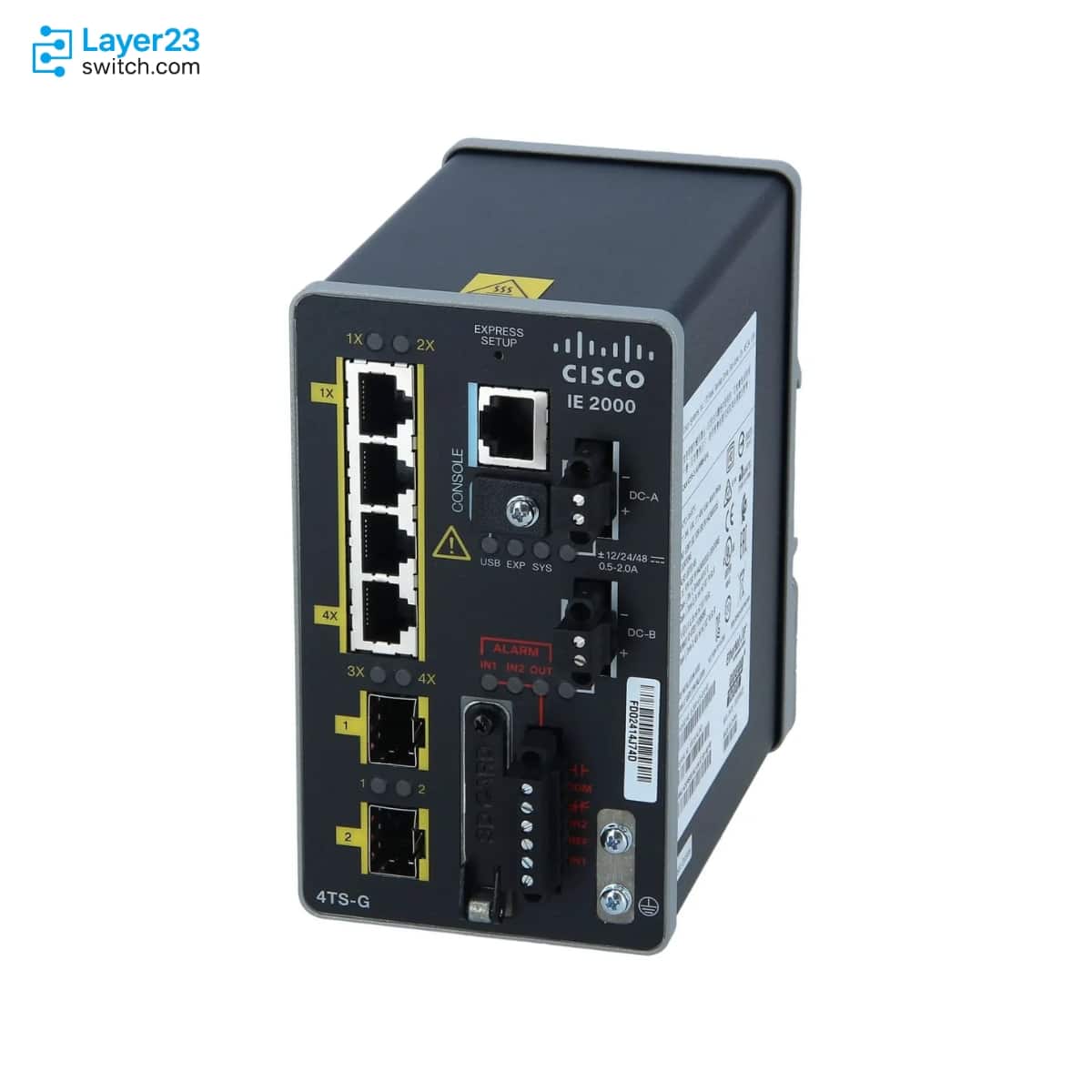

IE-2000-4TS-G-B is a Cisco Industrial Ethernet 2000 Series managed industrial switch for compact industrial access deployments, using a ruggedized DIN-rail form factor with four 10/100BASE-T copper downlink ports and two 100/1000 Mb/s SFP uplink ports. This LAN Base model fits cabinet and machine-network aggregation roles where a small IE 2000 switch needs dual-input DC power connectors, alarm relay I/O, and Cisco IE 2000 switching capacity of 7.6 Gbps with 5.66 Mpps forwarding.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
SKU |
IE-2000-4TS-G-B |
|
Product type |
Managed industrial Ethernet switch |
|
Mounting |
DIN rail |
|
Total ports |
6 |
|
Downlink ports |
4 x 10/100BASE-T copper |
|
Uplink slots |
2 x 100/1000 Mb/s SFP |
|
Software license |
LAN Base |
|
Upgrade path |
LAN Base to IP Lite Cisco IOS Software Upgrade |
|
Maximum switching bandwidth |
7.6 Gbps |
|
Maximum forwarding rate |
5.66 Mpps with 64-byte packets |
|
Power consumption |
9.5-15 W for 4-port downlink models |
|
DRAM |
256 MB with ECC memory |
|
Flash memory |
64 MB on-board flash |
Product Performance
Key Features
Four 10/100BASE-T downlink ports keep the switch sized for a small machine cell, utility panel, roadside cabinet, or compact control network segment.
The two 100/1000 Mb/s SFP uplink slots let buyers plan fiber or SFP-based copper uplinks instead of using a copper-only GE uplink model.
IE-2000-4TS-G-B ships as the LAN Base version, which separates it from the LAN Lite IE-2000-4TS-G-L on the same port count and uplink media.
Cisco marks this SKU with upgrade type 1, which maps LAN Base to IP Lite Cisco IOS Software Upgrade in the IE 2000 data sheet.
The IE 2000 product specifications list 9.5-15 W power consumption for 4-port downlink models, so the external power supply should be chosen with the site power design in mind.
Cisco lists a 1 GB ruggedized SD memory card as optional, along with a wall-mount kit for IE 2000 4-port downlink PIDs and a 19 in. DIN rail mount kit.
Application Scenarios
Use IE-2000-4TS-G-B for PLCs, HMIs, sensors, gateways, or small controller groups that need four Fast Ethernet copper access ports and two SFP uplinks.
Fits existing OT cabinets that require a 6-port Cisco IE 2000 footprint with SFP uplinks rather than the copper Gigabit uplinks used by IE-2000-4T-G-B.
Choose the LAN Base model when the project should not use the LAN Lite IE-2000-4TS-G-L but does not require an Enhanced LAN Base or PoE IE 2000 variant.
Product Comparison
|
Parameter |
IE-2000-4TS-G-B |
IE-2000-4TS-G-L |
IE-2000-4TS-B |
IE-2000-4T-G-B |
|---|---|---|---|---|
|
Total ports |
6 |
6 |
6 |
6 |
|
RJ45 copper downlinks |
4 FE |
4 FE |
4 FE |
4 FE |
|
SFP uplink slots |
2 GE |
2 GE |
2 FE |
No SFP uplink slots listed |
|
Gigabit copper uplinks |
No GE copper uplinks listed |
No GE copper uplinks listed |
No GE copper uplinks listed |
2 GE copper uplinks |
|
Software license |
LAN Base |
LAN Lite |
LAN Base |
LAN Base |
|
Type of possible upgrade |
1 |
3 |
1 |
1 |
|
Upgrade description |
LAN Base to IP Lite |
LAN Lite to LAN Base |
LAN Base to IP Lite |
LAN Base to IP Lite |
|
Uplink media emphasis |
SFP fiber or SFP module uplink planning |
SFP fiber or SFP module uplink planning |
Fast Ethernet SFP uplink planning |
Copper Gigabit uplink planning |
- In an IE-2000-4TS-G-B vs IE-2000-4TS-G-L comparison, the confirmed difference is LAN Base versus LAN Lite on the same 4 FE copper and 2 GE SFP layout.
- The IE-2000-4TS-G-B difference from IE-2000-4TS-B is uplink speed: the current SKU uses 2 GE SFP uplinks while IE-2000-4TS-B is listed with 2 FE SFP uplinks.
- For IE-2000-4TS-G-B vs IE-2000-4T-G-B, the buyer should choose based on uplink media, because the current SKU uses SFP uplink slots and IE-2000-4T-G-B is the LAN Base model with 2 GE copper uplinks.
- Which model to choose depends on the verified BOM requirement for LAN Base, SFP uplinks, and Gigabit uplink speed.
Selection Guide
1. Match the cabinet to four Fast Ethernet copper endpoints
Choose IE-2000-4TS-G-B when the installed design needs four 10/100BASE-T downlinks rather than an 8-port or 16-port IE 2000 chassis.
2. Keep this SKU for GE SFP uplinks
Select IE-2000-4TS-G-B when the uplink design is based on 100/1000 Mb/s SFP modules. Use IE-2000-4T-G-B only when the design calls for two Gigabit copper uplinks.
3. Verify LAN Base instead of LAN Lite
Order IE-2000-4TS-G-B when LAN Base is required on the 4TS-G port layout. IE-2000-4TS-G-L is the LAN Lite alternative.
4. Plan external accessories separately
Check the power supply, SD card, mounting kit, and SFP module list because Cisco lists these as separate IE 2000 accessories or transceiver choices.
Ordering Checklist
|
Check item |
What to confirm |
Why it matters |
|---|---|---|
|
Port count |
4 FE copper downlinks and 2 GE SFP uplink slots |
Prevents substituting an 8-port or copper-uplink SKU |
|
Software image |
LAN Base on IE-2000-4TS-G-B |
Avoids accidental selection of the LAN Lite IE-2000-4TS-G-L |
|
Uplink media |
Cisco-supported FE or GE SFP modules for the required fiber or copper link |
The base switch line does not define the optic type or distance |
|
Power supply |
External IE 2000 industrial power supply and site input range |
The switch uses front-panel DC power connectors and external power planning |
|
Mounting |
DIN rail as the base mounting style plus any wall or rack DIN rail accessory |
Cabinet and rack installations can require separate mounting hardware |
|
Removable storage |
SD-IE-1GB= only if removable SD storage is needed |
Cisco lists the ruggedized SD card as optional rather than included by default |
Optional Add-ons
|
Model |
Description |
|---|---|
|
SD-IE-1GB= |
1 GB ruggedized SD memory card, optional and not included by default |
|
STK-RACK-DINRAIL= |
19 in. DIN rail mount kit |
|
Wallmount-IE2k-04= |
Wall mount kit accessory for IE 2000 4-port downlink PID |
|
50W industrial power supply with AC 100-240V or DC 125-250V input and no PoE/PoE+ support | |
|
LIC-IE2000-IP-L= |
IE 2000 LAN Base or Enhanced LAN Base to IP Lite e-license |
|
1000BASE-SX GE SFP for multimode fiber, industrial temperature range | |
|
GLC-LX-SM-RGD= |
1000BASE-LX/LH GE SFP for MMF or SMF, industrial temperature range |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| SKU | IE-2000-4TS-G-B | Device type | Managed industrial Ethernet switch |
| Mounting | DIN rail | Total ports | 6 |
| RJ45 copper downlinks | 4 FE | SFP uplink slots | 2 GE |
| Software license | LAN Base | Type of possible upgrade | 1 |
| Upgrade meaning | LAN Base to IP Lite Cisco IOS Software Upgrade | Maximum forwarding bandwidth | 3.8 Gbps |
| Maximum switching bandwidth | 7.6 Gbps | Maximum forwarding rate | 5.66 Mpps with 64-byte packets |
| Egress buffer | 2 MB | Unicast MAC addresses | 8000 |
| IGMP multicast groups | 255 | Maximum VLANs | 1005 |
| IPv4 MAC security ACEs | 384 with default TCAM template | DRAM | 256 MB with ECC memory |
| On-board flash memory | 64 MB | Removable SD flash memory card | 1 GB optional |
| Mini-USB connector | Supported | Alarm I/O | Two alarm inputs and one alarm output relay |
| Power consumption | 9.5-15 W for 4-port downlink models | Power connector design | Dual-feed DC power connectors DC-A and DC-B |
| Listed non-PoE power supply option | PWR-IE50W-AC= | Dimensions including DIN rail | 5.1 x 2.95 x 4.51 in. (130 x 74.9 x 115 mm) |
| Weight | 2.45 lb (1.11 kg) | Operating temperature | -40C to +70C in vented enclosure with 40 LFM airflow |
| Relative humidity | 5% to 95% non-condensing |
