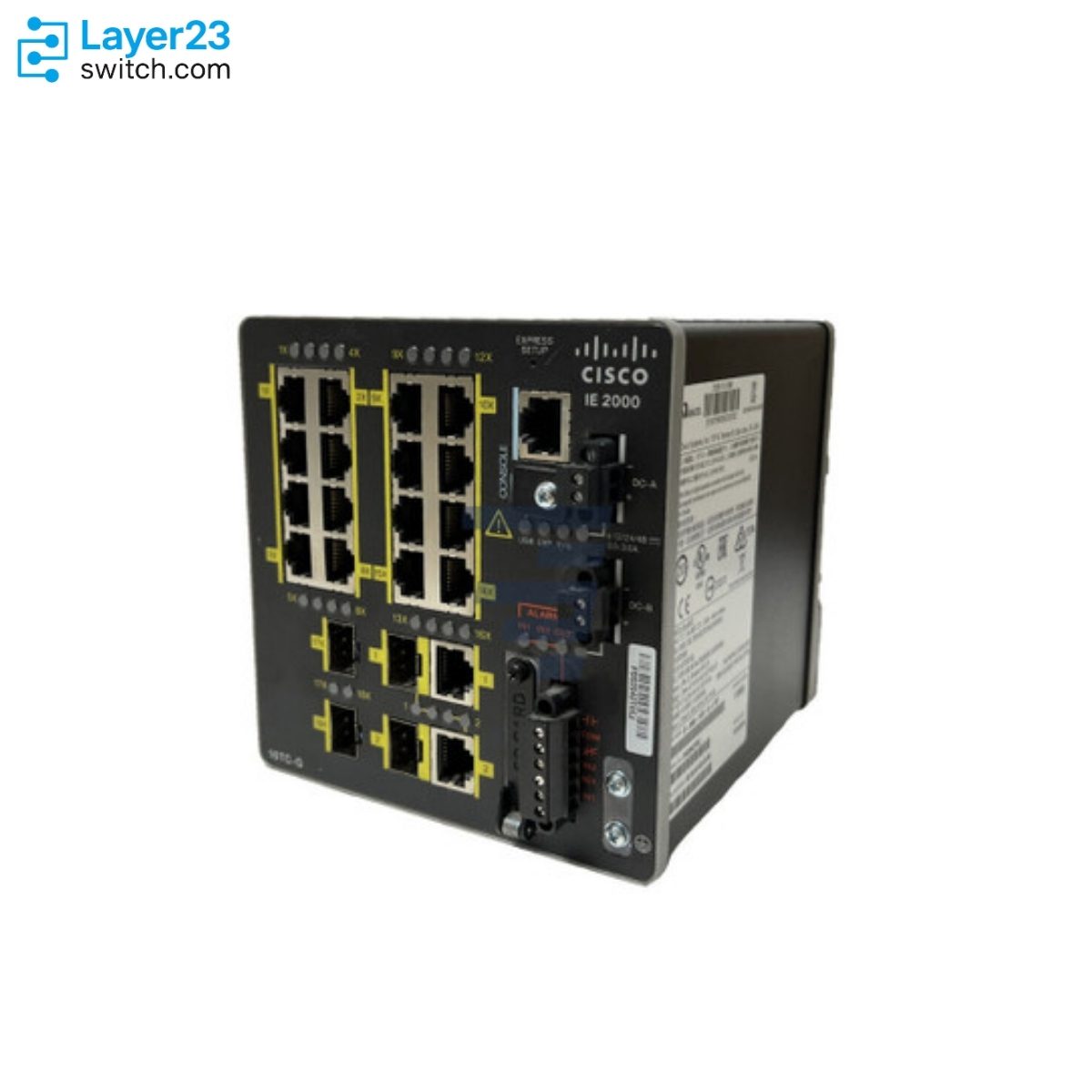

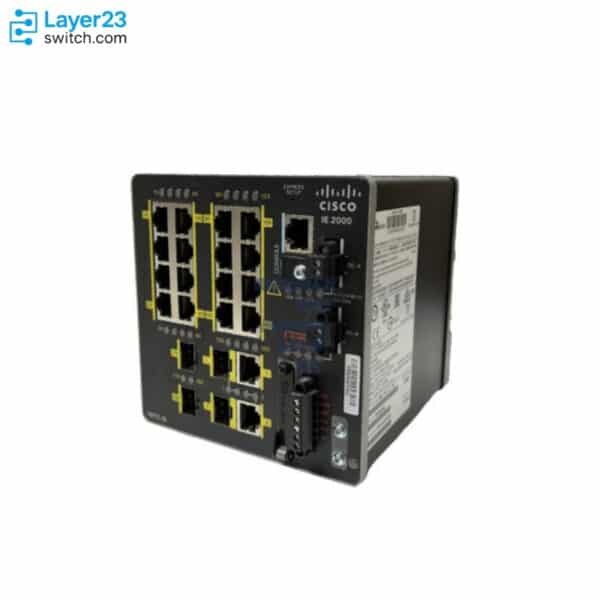

IE-2000-16TC-G-E Description
IE-2000-16TC-G-E is a Cisco Industrial Ethernet 2000 Series managed industrial switch for DIN-rail industrial edge access deployments. It provides 16 10/100BASE-T copper downlink ports, 2 Gigabit Ethernet dual-purpose uplinks that can operate as SFP or RJ-45 ports, and 2 additional 100 Mb/s SFP uplink slots, giving the switch 20 total ports for mixed copper and fiber industrial Ethernet connections. The SKU ships with LAN Base software, supports IEEE 1588 timing, and can add L2NAT through an Enhanced LAN Base or IP Lite license upgrade when that feature boundary is required.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
SKU |
IE-2000-16TC-G-E |
|
Product type |
Managed industrial Ethernet switch |
|
Mounting |
DIN rail |
|
Total ports |
20 |
|
Downlink ports |
16 x 10/100BASE-T copper |
|
Gigabit combo uplinks |
2 x GE SFP or RJ-45 |
|
Fast Ethernet SFP uplinks |
2 x 100 Mb/s SFP |
|
Software license |
LAN Base |
|
IEEE 1588 |
Supported |
|
L2NAT |
Upgradable by license |
|
Power consumption |
21-30 W for 16-port downlink models |
|
Dimensions |
5.1 x 5.0 x 5.26 in. including DIN rail |
Product Performance
Key Features
The ordered hardware gives plant or utility cabinets 16 Fast Ethernet copper access ports while keeping both GE combo uplinks and FE SFP uplink slots available for upstream design.
IE-2000-16TC-G-E is the LAN Base member of the 16TC-G group, so it should not be substituted with the LAN Lite IE-2000-16TC-G-L when LAN Base features are part of the bill of materials.
Cisco marks this PID for IEEE 1588 support, making the SKU relevant when timing support is part of the industrial Ethernet design.
The L2NAT row is marked as upgradable for this SKU, so NAT should be treated as a software line-item check instead of an included Enhanced LAN Base capability.
The 16TC-G-E row is not the PoE model, which keeps the order separate from IE-2000-16PTC-G-E when powered endpoints are in scope.
Cisco lists separate IE 2000 power, SD memory, wall mount, rack DIN rail, and license PIDs, so the base switch should be quoted with only the accessories the cabinet actually needs.
Application Scenarios
Use IE-2000-16TC-G-E where PLCs, HMIs, drives, sensors, controllers, or gateways need 16 copper 10/100 ports in a DIN-rail IE 2000 form factor.
Select this SKU when the site wants the LAN Base 16TC-G model and each GE uplink may be planned as RJ-45 copper or SFP media instead of committing to a single uplink media type.
This model fits projects that need IEEE 1588 and an official path for L2NAT or IP Lite licensing, but do not need conformal coating or PoE endpoint power in the selected PID.
Product Comparison
|
Parameter |
IE-2000-16TC-G-E |
IE-2000-16TC-G-L |
IE-2000-16TC-G-X | |
|---|---|---|---|---|
|
Total ports |
20 |
20 |
20 |
20 |
|
RJ45 copper downlinks |
16 FE |
16 FE |
16 FE |
16 FE |
|
Gigabit combo ports |
2 GE |
2 GE |
2 GE |
2 GE |
|
Fast Ethernet SFP ports |
2 FE |
2 FE |
2 FE |
2 FE |
|
Software license |
LAN Base |
LAN Lite |
Enhanced LAN Base |
LAN Base |
|
Type of possible upgrade |
1, 2, 4 |
3 |
1, 2 |
1, 2, 4 |
|
IEEE 1588 |
Yes |
Not marked in Cisco table |
Yes |
Yes |
|
L2NAT |
Upgradable |
Not marked in Cisco table |
Yes |
Upgradable |
|
PoE/PoE+ |
Not listed for this PID |
Not listed for this PID |
Not listed for this PID |
Not listed for this PID |
|
Conformal coating |
Not listed for this PID |
Not listed for this PID |
Not listed for this PID |
Yes |
- In an IE-2000-16TC-G-E vs IE-2000-16TC-G-L comparison, both SKUs keep the 20-port 16TC-G hardware layout, but IE-2000-16TC-G-E is LAN Base while IE-2000-16TC-G-L is LAN Lite.
- The IE-2000-16TC-G-E difference from IE-2000-16TC-G-N is the software tier and NAT treatment: the current SKU is LAN Base with L2NAT as an upgrade path, while IE-2000-16TC-G-N is Enhanced LAN Base with L2NAT marked Yes.
- For IE-2000-16TC-G-E vs IE-2000-16TC-G-X, the table shows the same LAN Base software row, but IE-2000-16TC-G-X adds conformal coating.
- Which model to choose should be tied to LAN Base versus LAN Lite or Enhanced LAN Base, the L2NAT requirement, and whether conformal coating is needed.
Selection Guide
1. Keep IE-2000-16TC-G-E for LAN Base 16TC-G orders
Choose this SKU when the BOM requires 16 Fast Ethernet copper downlinks, 2 GE combo uplinks, 2 FE SFP uplinks, IEEE 1588, and LAN Base software.
2. Use IE-2000-16TC-G-L only for LAN Lite scope
Select the -L alternative only when the same 16TC-G port layout can run under LAN Lite and the Cisco table does not need the LAN Base row on the order.
3. Move to IE-2000-16TC-G-N when NAT must be included
Use the -N model when the project requires Enhanced LAN Base and L2NAT marked on the selected PID instead of relying on the upgrade path of the current SKU.
4. Separate coating and PoE decisions from this PID
Use IE-2000-16TC-G-X when conformal coating is required, or a 16PTC-G model when the endpoint plan includes PoE or PoE+ power.
Ordering Checklist
|
Check item |
What to confirm |
Why it matters |
|---|---|---|
|
Exact PID |
IE-2000-16TC-G-E rather than IE-2000-16TC-G-L, IE-2000-16TC-G-N, or IE-2000-16TC-G-X |
The suffix changes software tier, NAT status, or conformal coating |
|
Port layout |
16 FE copper downlinks, 2 GE combo uplinks, and 2 FE SFP uplinks |
Prevents mixing this 20-port TC-G design with 8-port or PoE PTC models |
|
Software upgrade |
L2NAT, Enhanced LAN Base, or IP Lite requirement |
Cisco marks NAT as upgradable for this SKU rather than included |
|
Power and mounting |
External industrial power supply, DIN-rail location, and wall mount or rack DIN rail kit |
IE 2000 installations commonly need separate power and mounting line items |
|
Optional storage |
SD-IE-1GB= if removable SD flash is required |
Cisco lists the 1 GB ruggedized SD card as optional and not included by default |
Optional Add-ons
|
Model |
Description |
|---|---|
|
SD-IE-1GB= |
1 GB ruggedized SD memory card that must be ordered separately when required |
|
STK-RACK-DINRAIL= |
19 in. DIN rail mount kit |
|
Wallmount-IE2k-16= |
Wall mount kit accessory for IE 2000 16-port downlink PID |
|
PWR-IE50W-AC= |
50W non-PoE industrial power supply with AC or high-voltage DC input |
|
L-IE2000-B-E= |
IE 2000 LAN Base to Enhanced LAN Base e-license |
|
LIC-IE2000-IP-L= |
IE 2000 LAN Base or Enhanced LAN Base to IP Lite e-license |
|
IE2000-DNA-E-M |
Cisco Catalyst Center Essentials license for IE 2000 up to 24 ports |
Front Panel View
|
1 |
10/100 Ethernet ports (downlink ports) |
6 |
Power connector DC-B2 |
|
2 |
Dual-purpose ports (uplink ports) |
7 |
Alarm connector |
|
3 |
USB mini-Type B (console) port1 |
8 |
Protective ground connection |
|
4 |
RJ-45 console port |
9 |
Flash memory card slot1 |
|
5 |
Power connector DC-A2 |
10 |
SFP module slots (uplink ports) |
|
1 Use a screwdriver to remove the port cover and access the port. |
|
2 Remove the plastic cover to access the power connector. |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| SKU | IE-2000-16TC-G-E | Device type | Managed industrial Ethernet switch |
| Mounting | DIN rail | Total ports | 20 |
| RJ45 copper downlinks | 16 FE | Gigabit combo ports | 2 GE SFP or RJ-45 |
| Fast Ethernet SFP ports | 2 FE | Software license | LAN Base |
| Type of possible upgrade | 1, 2, 4 | Upgrade type 1 | LAN Base to IP Lite Cisco IOS Software Upgrade |
| Upgrade type 4 | LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade | IEEE 1588 | Supported |
| L2NAT | Upgradable via Enhanced LAN Base or IP Lite license | PoE/PoE+ | Not listed for this PID |
| Conformal coating | Not listed for this PID | Minimum Cisco IOS release | Cisco IOS Release 15.0(2)EA1 |
| Maximum forwarding bandwidth | 3.8 Gbps | Maximum switching bandwidth | 7.6 Gbps |
| Maximum forwarding rate | 5.66 Mpps with 64-byte packets | Egress buffer | 2 MB |
| Unicast MAC addresses | 8000 | IGMP multicast groups | 255 |
| Maximum VLANs | 1005 | IPv4 MAC security ACEs | 384 with default TCAM template |
| DRAM | 256 MB with ECC memory | On-board flash memory | 64 MB |
| Removable SD flash memory card | 1 GB optional | Mini-USB connector | Supported |
| Alarm I/O | Two alarm inputs and one alarm output relay | Power consumption | 21-30 W for 16-port downlink models |
| Power supply option | PWR-IE50W-AC= 50W non-PoE supply | Dimensions including DIN rail | 5.1 x 5.0 x 5.26 in. (130 x 127 x 134 mm) |
| Weight | 4.35 lb (1.97 kg) |
