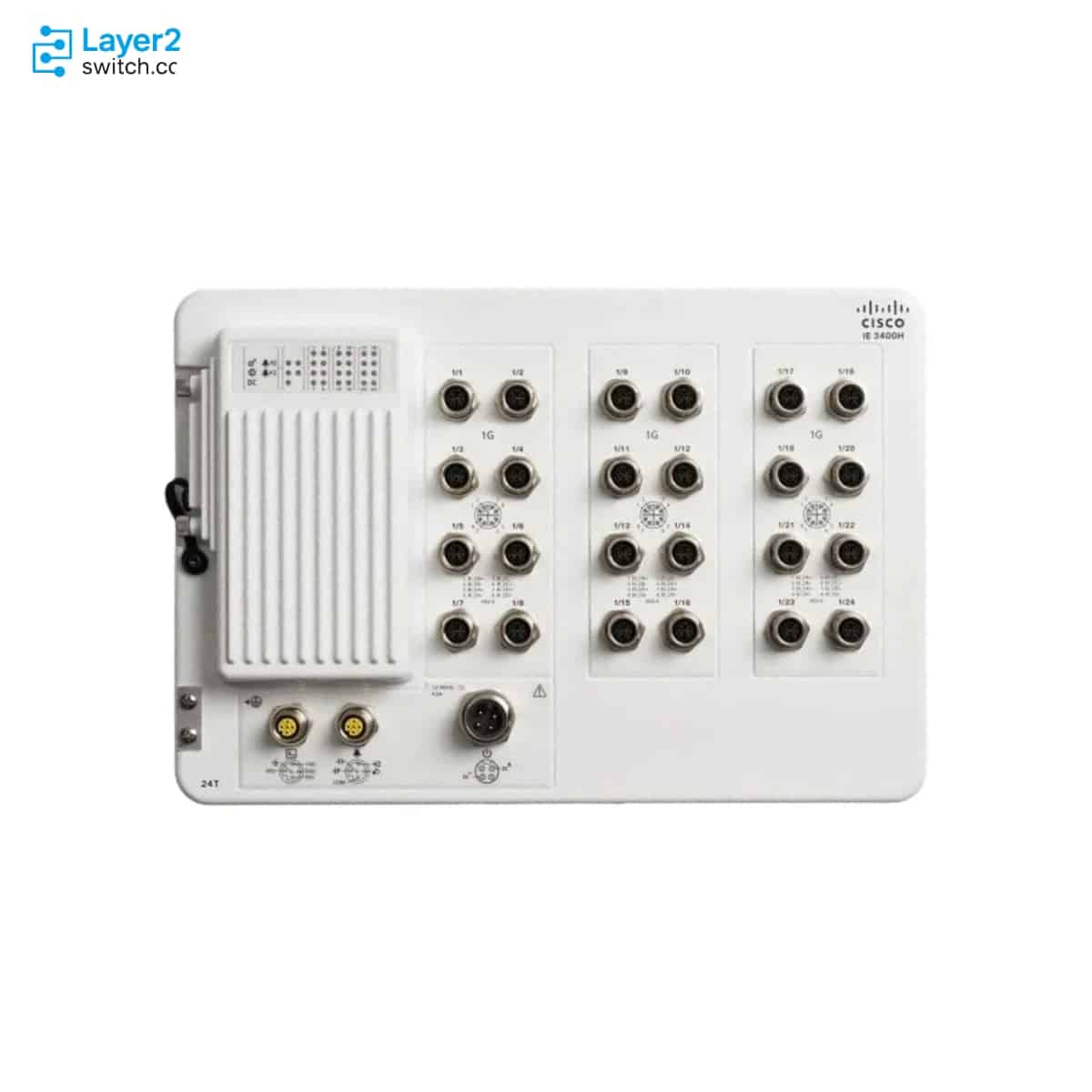

IE-3500H-24T-E – 24xGE X-coded M12 Ports – IP67 Wall Mount
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
IE-3500H-24T-E Description
IE-3500H-24T-E is a Cisco IE3500 Heavy Duty Series industrial Ethernet switch for IP66/IP67 field access deployments that need 24 non-PoE 10/100/1000 M12 X-coded copper ports in one wall-mount platform, ships with the Network Essentials feature set, uses a 12 to 48 VDC power input, and is intended for harsh-environment machine, utility, and transportation networks where sealed industrial cabling and copper endpoint density matter.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
SKU |
IE-3500H-24T-E |
|
Product type |
IP66/IP67-rated industrial Ethernet switch |
|
Default IOS XE feature set |
Network Essentials |
|
Upgradeable feature set |
Network Advantage |
|
Total ports |
24 |
|
Gigabit Ethernet ports |
24 x 10/100/1000 M12 X-coded ports |
|
PoE support |
Non-PoE model |
|
SFP uplink ports |
No SFP ports listed for the 24T model |
|
Power input |
Mini-change single power source |
|
Input voltage range |
12 to 48 VDC |
|
Power consumption |
42 W |
|
Removable storage |
Optional SD card |
|
Ingress protection |
IP66 and IP67 with required IP67 cabling or supplied dust caps |
Product Performance
Key Features
IE-3500H-24T-E is the Cisco-listed 24T PID with Network Essentials, so it belongs in a BOM that needs the high-port-count copper model without the Network Advantage default tier.
The 24T hardware concentrates the order around GE M12 X-coded cabling for 24 endpoint links, not Fast Ethernet D-coded cables, SFP optics, or multigigabit ports.
Cisco does not list a PoE budget for this PID, which makes endpoint power a separate field-device decision instead of a switch PoE budget calculation.
The 24T model uses the 13.90 in. wide IE3500H housing and weighs 13.90 lb with the mounting bracket, so cabinet doors, wall space, and service clearance should be checked before ordering.
The hardware guide ties the IP66/IP67 and NEMA Type 4X rating to IP67 cables being mated and torqued correctly or unused connectors being protected by the supplied dust caps.
Network Essentials includes Cisco IOS XE switching, management, security, QoS, IPv6, routing, industrial Ethernet, redundancy, automation, and IOx feature groups documented by Cisco.
Application Scenarios
IE-3500H-24T-E fits industrial zones where many cameras, controllers, panels, gateways, or machine endpoints need 1G M12 X-coded copper links from one IP66/IP67 wall-mounted switch.
The SKU suits projects that standardize on Network Essentials for the IE3500H access layer and keep any Network Advantage or Catalyst Center entitlement as a separate design choice.
Covers replacements targeting a 24-port GE M12 industrial switch where the design does not require PoE ports, SFP uplinks, mGig ports, or D-coded Fast Ethernet cabling.
Product Comparison
|
Parameter |
IE-3500H-24T-E |
IE-3500H-24T-A | |
|---|---|---|---|
|
Product type |
Industrial Ethernet switch |
Industrial Ethernet switch |
Industrial Ethernet switch |
|
Default IOS XE feature set |
Network Essentials |
Network Advantage |
Network Essentials |
|
Network Advantage upgrade |
IE3500-NW-A= listed as an optional upgrade |
Network Advantage is the default tier |
IE3500-NW-A= listed as an optional upgrade |
|
Total ports |
24 |
24 |
16 |
|
Gigabit M12 X-coded ports |
24 |
24 |
16 |
|
Fast Ethernet D-coded ports |
No D-coded ports listed |
No D-coded ports listed |
No D-coded ports listed |
|
SFP ports |
No SFP ports listed |
No SFP ports listed |
No SFP ports listed |
|
PoE budget |
No PoE budget listed |
No PoE budget listed |
No PoE budget listed |
|
Lossless redundancy protocol support |
N |
N |
N |
|
Input voltage range |
12 to 48 VDC |
12 to 48 VDC |
12 to 48 VDC |
|
Power consumption |
42 W |
42 W |
41 W |
|
Dimensions |
9.58 x 13.90 x 3.16 in. |
9.58 x 13.90 x 3.16 in. |
9.58 x 10.90 x 3.16 in. |
|
Weight with mounting bracket |
13.90 lb (6.30 kg) |
13.90 lb (6.30 kg) |
11.25 lb (5.10 kg) |
- In an IE-3500H-24T-E vs IE-3500H-24T-A comparison, the confirmed hardware values match for port count, GE M12 layout, voltage range, power consumption, dimensions, and weight; the difference is Network Essentials versus Network Advantage.
- The IE-3500H-24T-E vs IE-3500H-16T-E difference is copper port density and chassis size: IE-3500H-24T-E provides 24 GE M12 ports in the 13.90 in. wide housing, while IE-3500H-16T-E provides 16 GE M12 ports in the 10.90 in. wide housing.
- For buyers deciding which model to choose, the IE-3500H-24T-E comparison should confirm the need for 24 non-PoE X-coded ports first, then verify whether Network Essentials or Network Advantage should be the default software tier.
Selection Guide
1. Match this SKU to 24-port GE M12 requirements
Select IE-3500H-24T-E when the design needs 24 X-coded 10/100/1000 M12 copper ports in one IE3500H field-mounted switch.
2. Use the A variant for default Network Advantage
Choose IE-3500H-24T-A only when the same 24-port hardware must ship with Network Advantage as the default Cisco feature set.
3. Step down to 16T when space or port count is lower
Use IE-3500H-16T-E when 16 GE M12 ports are enough and the narrower 10.90 in. chassis better fits the enclosure or wall location.
4. Keep PoE and fiber out of this line item
Confirm separate hardware if the project needs PoE powered endpoints, SFP uplinks, mGig ports, or D-coded Fast Ethernet interfaces, because Cisco does not list those roles for the 24T-E model.
Ordering Checklist
|
Review area |
Required confirmation |
Procurement risk |
|---|---|---|
|
PID and software tier |
Cisco PID IE-3500H-24T-E with Network Essentials |
Prevents substituting the 24T-A Network Advantage SKU or a lower-port 16T model |
|
Data cable type |
24 x 10/100/1000 M12 X-coded copper ports |
Avoids ordering D-coded Fast Ethernet cabling or fiber optics for this copper-only model |
|
Endpoint power design |
No PoE budget listed for IE-3500H-24T-E |
Keeps powered-device requirements from being assigned to a non-PoE switch |
|
Field power input |
12 to 48 VDC through the Mini-Style 4-pin power connector |
Confirms the site DC source and power cable plan before staging |
|
Mounting clearance |
9.58 x 13.90 x 3.16 in. chassis and 13.90 lb weight with mounting bracket |
Reduces fit risk in wall-mounted or cabinet-adjacent industrial locations |
|
IP67 completion |
IP67 cables torqued correctly or supplied dust caps installed |
Maintains the Cisco-documented IP66/IP67 and NEMA Type 4X condition |
|
Optional accessories and licenses |
SD-IE-16GB, CAB-CONSOLE-M12=, IE3500-NW-A=, or Catalyst Center licenses only when required |
Keeps separately ordered storage, console, and software items from being assumed as included |
Optional Add-ons
|
Model |
Description |
|---|---|
|
SD-IE-16GB |
IE 16GB SD memory card |
|
CAB-CONSOLE-M12= |
Console cable 6 ft with M12 and DB9F for Cisco IE3500 Heavy Duty Series switch |
|
IE3500-NW-A= |
Cisco Network Advantage license for IE3500 Series |
|
IE3500-DNA-E |
Cisco Catalyst Center DNA Essentials license for IE3500 and IE3500H Series switches |
|
IE3500-DNA-E-3Y |
IE3500 and IE3500H Cisco DNA Essentials 3-year term license |
|
IE3500-DNA-E-5Y |
IE3500 and IE3500H Cisco DNA Essentials 5-year term license |
|
IE3500-DNA-E-7Y |
IE3500 and IE3500H Cisco DNA Essentials 7-year term license |
|
IE3500-DNA-A |
Cisco Catalyst Center DNA Advantage license for IE3500 and IE3500H Series switches when paired with Network Advantage |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| SKU | IE-3500H-24T-E | Device type | IP66/IP67-rated industrial Ethernet switch |
| Default IOS XE feature set | Network Essentials | Upgradeable feature set | Network Advantage |
| Total ports | 24 | Gigabit Ethernet ports | 24 x 10/100/1000 M12 X-coded ports |
| Fast Ethernet D-coded ports | No D-coded ports listed for the 24T model | SFP ports | No SFP ports listed for the 24T model |
| mGig ports | No mGig ports listed for the 24T model | PoE budget | No PoE budget listed for the 24T model |
| Lossless redundancy protocol support | N | Network Advantage upgrade | IE3500-NW-A= optional upgrade listed by Cisco |
| Power input | Mini-change single power source | Power input connector | Mini-Style 4-pin connector |
| Input voltage range | 12 to 48 VDC | Input current | 3.5 A |
| Power consumption | 42 W | Alarm I/O | 1 alarm output relay and 1 alarm input |
| Alarm relay rating | 30 VDC at 1 A or 60 VDC at 0.5 A | Console port | 1 M12 A-coded 5-pin console port |
| Removable storage | SD card optional and not shipped by default | Mounting | Wall mount |
| Dimensions | 9.58 x 13.90 x 3.16 in. (24.33 x 35.31 x 8.03 cm) | Weight | 13.90 lb (6.30 kg) including mounting bracket |
| Operating temperature | -40C to +70C in vented enclosures, -40C to +60C in sealed enclosures, -34C to +75C with 200 LFM airflow | Operating humidity | 5 to 95 percent noncondensing |
| Ingress protection | IP66 and IP67 with required IP67 cabling or supplied dust caps | NEMA rating | Type 4X |
| Data cable type | Copper GE M12 X-coded 8-pole shielded cable | Power input cable type | Mini-Style 4-pin connector for power input |
| Forwarding rate | Line rate for all ports and all packet sizes | Queues | 8 |
| Unicast MAC addresses | 24000 | IGMP multicast groups | 1024 |
| Active VLANs | 1024 | VLAN IDs | 4096 |
| IPv4 indirect routes | 7000 | IPv6 indirect routes | 3500 |
| PACL entries | 1536 | DRAM | 8 GB |
| User-accessible flash | 5.1 GB | SD card capacity | 16 GB |
| Jumbo frames | 9198 bytes | SVIs | 32 |
| MTBF | 387020 hours | Operating system | Cisco IOS XE |
