IE-3500-8T3X-E Description

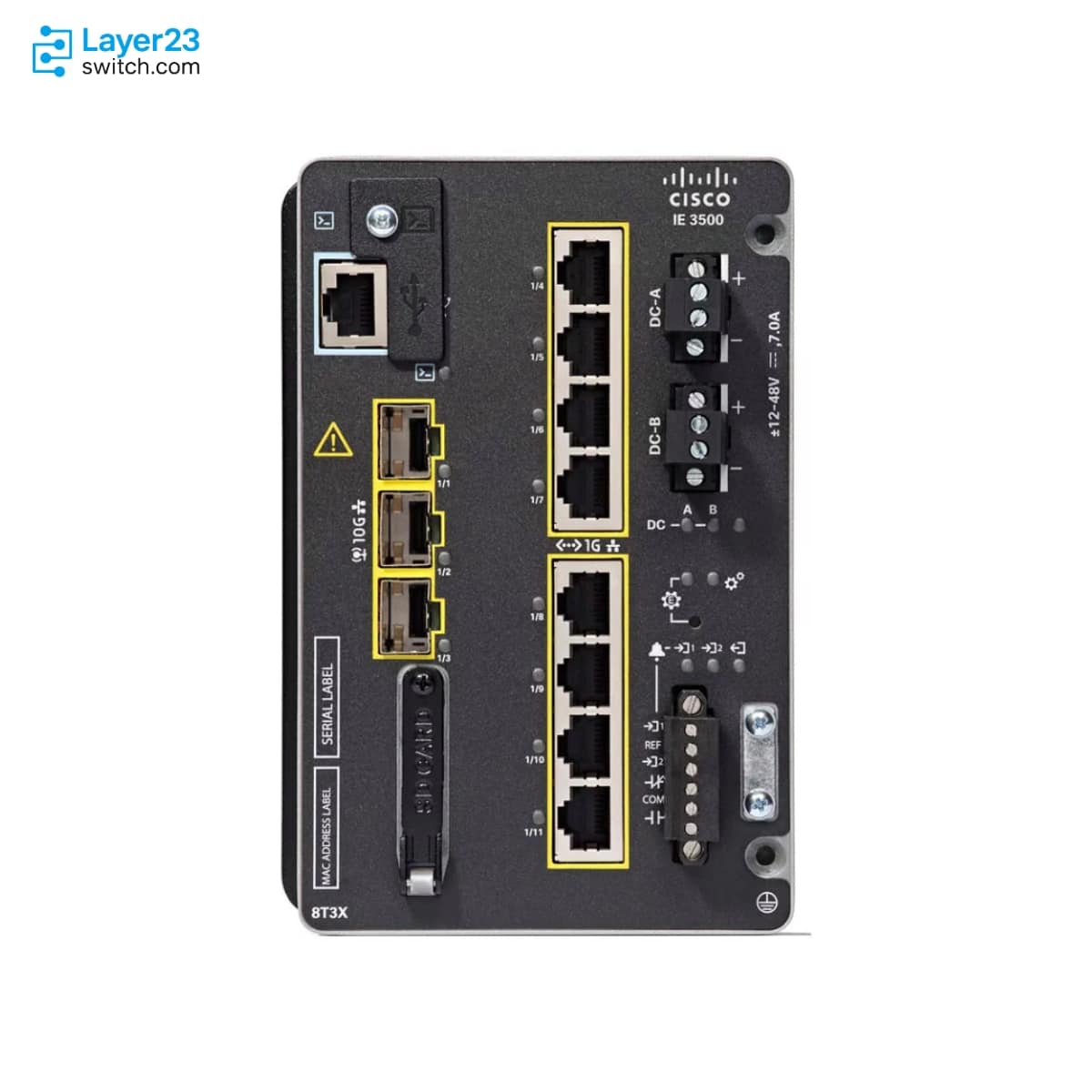

The IE-3500-8T3X-E is a Cisco IE3500 Rugged Series modular industrial Ethernet switch for DIN-rail cabinets that aggregate copper field devices onto 10G fiber. The switch has eight Gigabit RJ45 copper ports and three 10G/1G SFP+ uplinks, on a 12V to 48V DC input at 37W, with an operating range of -40 to +75°C in a forced-air enclosure. The Fast Ethernet SFPs that fit 1G uplink variants are not supported on the SFP+ slots, and the switch has no PoE.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3500-8T3X-E |
|
Product type |
Modular industrial Ethernet switch |
|
Network license |
Network Essentials |
|
Total base ports |
11 |
|
Copper downlink ports |
8 x Ethernet 10/100/1000 RJ45 ports |
|
Fiber uplink ports |
3 x 10G/1G SFP+ ports |
|
PoE support |
Non-PoE base switch |
|
Input voltage rating |
12 to 48 VDC |
|
Maximum input current |
7.0A |
|
Power consumption |
37W |
|
Mounting |
DIN rail |
Product Performance
Key Features
All three uplinks accept 10G SFP+ optics and also 1G SFP parts. SFP+ optics such as SFP-10G-SR=, SFP-10G-LR= and SFP-10G-ER= are supported on this variant only, and non-industrial optics reduce the operating temperature range.
The 12V to 48V nominal input is rated at 7A, with a power consumption of 37W and two DC terminals for separate feeds. Without PoE, the supply only has to cover the switch and any attached expansion module.
Non-PoE IEM-3500 modules add 8 or 16 ports for a system of 19 or 27, with 6W to 16W drawn through the host input. PoE modules do not attach to a non-PoE base.
Application Scenarios
In a manufacturing plant, the switch gathers copper links from line controllers in a cabinet and sends them to the plant core over 10G fiber. The uplinks keep several cells from competing for a gigabit trunk.
At an oil and gas site, the switch sits in an enclosure in a Class I Division 2 area, linking process controllers over copper and returning data on single-mode SFP+ optics to the control building.
In a water treatment plant, the switch joins SCADA controllers and instruments in a pump-house cabinet and uplinks to the plant network over 10G fiber.
Product Comparison
|
Parameter |
IE-3500-8T3X-E |
IE-3500-8T3X-A | ||
|---|---|---|---|---|
|
1000/100/10M RJ45 copper ports |
8 |
8 |
8 |
8 PoE/PoE+/4PPoE |
|
SFP ports |
3x 10G/1G |
3x 10G/1G |
3x 1G/100M |
3x 10G/1G |
|
PoE power budget |
Not applicable |
Not applicable |
Not applicable |
480W |
|
Input voltage range |
12V to 48V nominal; 9.6V to 60V absolute |
12V to 48V nominal; 9.6V to 60V absolute |
12V to 48V nominal; 9.6V to 60V absolute |
12V to 54V nominal; 9.6V to 60V absolute |
|
Input current |
7A |
7A |
7A |
11.5A |
|
Power consumption |
37W |
37W |
29W |
49W |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
Mounting |
DIN rail |
DIN rail |
DIN rail |
DIN rail |
IE-3500-8T3X-E puts three 10G/1G SFP+ uplinks on eight non-PoE copper ports, while IE-3500-8T3S-E has three 100/1000 SFP uplinks and draws 29W against 37W, which is the right choice only when the uplinks stay at gigabit speed. Powered endpoints need IE-3500-8U3X-E, which keeps the SFP+ uplinks and adds PoE/PoE+/4PPoE with a 480W budget on a 12 to 54 VDC input. IE-3500-8T3X-E is Network Essentials; IE-3500-8T3X-A is the Network Advantage version of the same hardware, and an installed switch can be upgraded with IE3500-NW-A=. Its input is rated 12 to 48 VDC at 7.0A.
Ordering Checklist
- Power supply: No supply is included; for this non-PoE switch order a DIN rail unit such as PWR-IE50W-AC=, PWR-IE50W-AC-IEC= or PWR-IE50W-AC-L=. Without one the cabinet has no power source.
- Expansion module: Add an IEM-3500 module such as IEM-3500-8T=, IEM-3500-8S=, IEM-3500-16T=, IEM-3500-6T2S= or IEM-3500-14T2S=, or none. Modules are separate orderable items, and their power draw is counted against the host.
- SD card: Add SD-IE-16GB= if configuration backup or switch replacement from card is wanted. The card is optional and not fitted by default.
- Software tier: Network Essentials ships as ordered; IE3500-NW-A= (perpetual) upgrades to Network Advantage later, and IE3500-DNA-E or IE3500-DNA-A adds a Catalyst Center subscription. DNA Advantage works only with the Network Advantage license, so the tiers must match.
- Uplink optics: Select GE SFP or 10G SFP+ modules from the supported lists, for example SFP-10G-LR= or SFP-10G-SR=. The 3 uplinks take SFP+ only on this 10GE variant, and non-industrial SFPs force a lower operating temperature.
- Mounting: Choose DIN rail mounting; STK-RACK-DINRAIL= is the 19-inch DIN rail mount kit. The rack mount kit is a separate item.
Optional Add-ons
|
Model |
Description |
|---|---|
|
IEM-3500-8T= |
IE3500 expansion module with 8 GE copper ports |
|
IEM-3500-8S= |
IE3500 expansion module with 8 GE SFP fiber ports |
|
IEM-3500-16T= |
IE3500 expansion module with 16 GE copper ports |
|
IEM-3500-6T2S= |
IE3500 expansion module with 6 GE copper ports and 2 GE SFP ports |
|
IEM-3500-14T2S= |
IE3500 expansion module with 14 GE copper ports and 2 GE SFP ports |
|
50W DIN rail power supply option without PoE or PoE+ support | |
|
50W DIN rail power supply option without PoE or PoE+ support | |
|
50W DIN rail power supply option without PoE or PoE+ support | |
|
IE3500-NW-A= |
Cisco Network Advantage license upgrade for IE3500 Series |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3500-8T3X-E | Product type | Modular industrial Ethernet switch |
| Network license | Network Essentials | Operating system family | Cisco IOS XE |
| Total base ports | 11 | Copper downlink ports | 8 x Ethernet 10/100/1000 RJ45 ports |
| Fiber uplink ports | 3 x fiber 10G/1G SFP+ ports | Uplink interface IDs | TenGigabit Ethernet 1/1-3 |
| Downlink interface IDs | Gigabit Ethernet 1/4-11 | PoE support | Non-PoE base switch |
| Maximum PoE power budget | No PoE budget listed for IE-3500-8T3X-E | Data-path FPGA | No |
| Expansion module family | IE3500 expansion modules | Power inputs | Dual DC power input |
| Input voltage rating | 12 to 48 VDC | Input voltage range | 9.6 to 60 VDC absolute |
| Maximum input current | 7.0A | Power consumption | 37W |
| Console port | 1 RS-232 via RJ-45 and 1 USB Type-C | Removable storage | USB and SD card |
| Alarm interfaces | 2 alarm inputs and 1 alarm output | Forwarding rate | Line rate for all ports and all packet sizes |
| Queues | 8 | MAC addresses | 24000 |
| IGMP multicast groups | 1024 | Active VLANs | 1024 |
| VLAN IDs | 4096 | IPv4 indirect routes | 7000 |
| IPv6 indirect routes | 3500 | Jumbo frames | 9198 bytes |
| SVIs | 32 | DRAM | 8 GB |
| Flash | 5.1 GB | Dimensions | 3.98 x 6.00 x 5.29 in. / 10.11 x 15.24 x 13.44 cm |
| Weight | 4.70 lb / 2.13 kg | Mounting | DIN rail |
| MTBF | 518,082 hours |
