IE-3500-8P3S-E Description

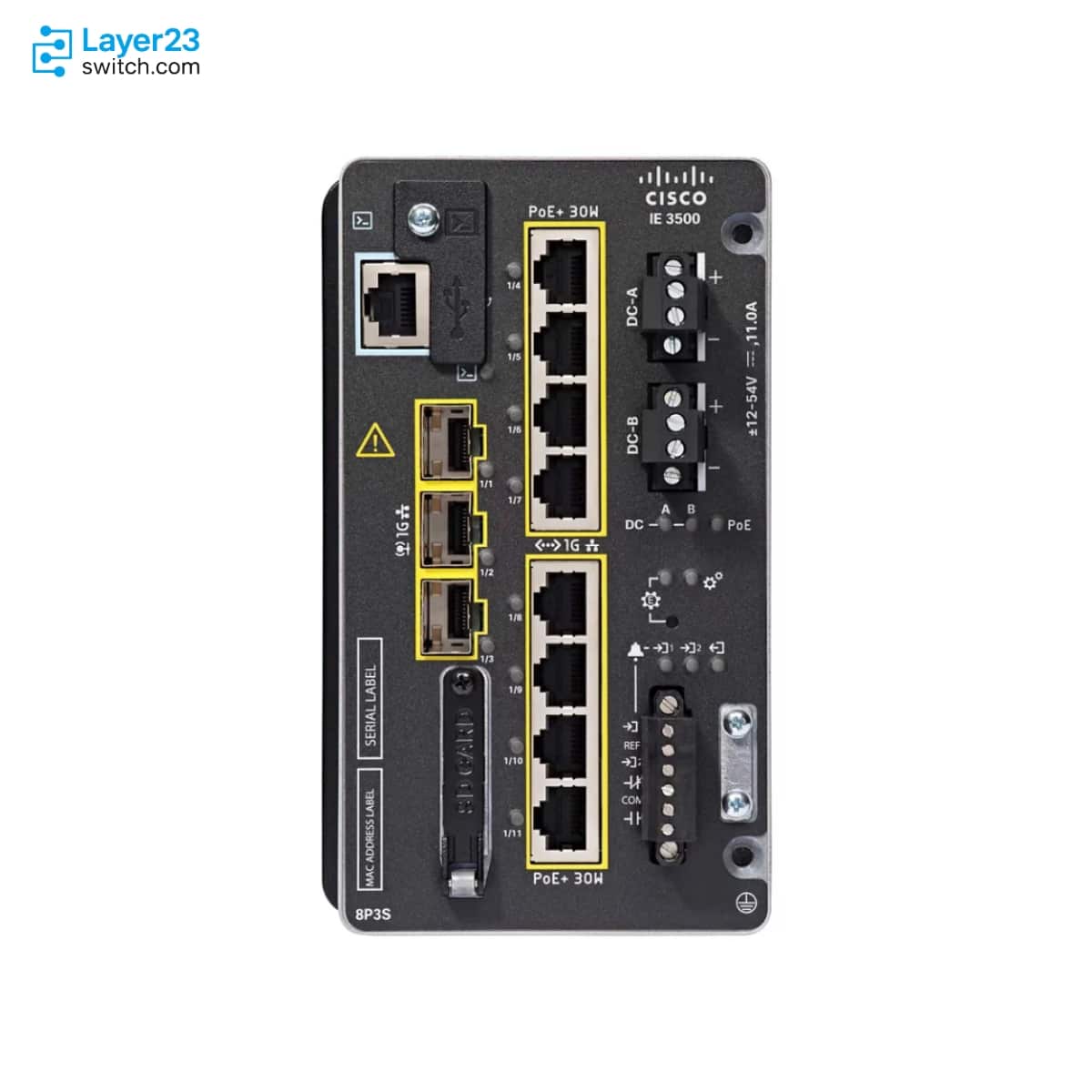

IE-3500-8P3S-E is a Cisco IE3500 Rugged Series modular industrial Ethernet switch for DIN-rail industrial access deployments that need Network Essentials software, local PoE device connectivity, and fiber uplinks from a compact DC-powered platform. The switch provides eight 10/100/1000 PoE/PoE+ copper ports and three 100/1000 SFP ports, with a 240 W PoE power budget that can reach 360 W when used with an expansion module. Cisco hardware specifications list dual DC power input, a 12 to 54 VDC nominal input rating, 11.0A maximum input current, and 32 W base power consumption excluding the powered-device load, making this SKU a fit for field cabinets, transportation, utility, and industrial edge sites where powered endpoints and GE fiber aggregation need to stay in the same rugged access switch.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3500-8P3S-E |
|
Product type |
Modular industrial Ethernet switch |
|
Network license |
Network Essentials |
|
Total base ports |
11 |
|
Powered copper ports |
8 x Ethernet 10/100/1000 PoE/PoE+ ports |
|
Fiber uplink ports |
3 x 100/1000 SFP ports |
|
PoE power budget |
240 W |
|
Maximum PoE budget |
360 W including expansion module |
|
Input voltage rating |
12 to 54 VDC |
|
Maximum input current |
11.0A |
|
Power consumption |
32 W excluding connected powered-device load |
Product Performance
Key Features
Cisco identifies IE-3500-8P3S-E as the Network Essentials PID for the IE3500 modular 8-port PoE/PoE+ copper and 3-port GE SFP hardware profile.
The eight 10/100/1000 copper ports support PoE/PoE+, making this SKU a different purchase from non-PoE IE3500 8T3S models even though the GE SFP uplink count is the same.
The uplink side is documented as 3 fiber 100/1000 SFP ports, so buyers needing 1G/10G SFP+ uplinks should not substitute this SKU for an 8T3X or 8U3X order.
Cisco lists IE-3500-8P3S-E with 12 to 54 VDC input and 11.0A maximum current, which must match the industrial DC power design before PoE load is assigned.
The 240 W base-switch PoE value and 360 W maximum with expansion module keep the endpoint worksheet tied to the full IE3500 modular system instead of the base unit alone.
Cisco lists IE3500 expansion modules, memory, mounting, power-supply, and Network Advantage upgrade options that should be reviewed as separate order lines when the deployment needs them.
Application Scenarios
IE-3500-8P3S-E fits DIN-rail industrial cabinets where cameras, sensors, panels, or access points need Gigabit PoE/PoE+ copper connections and upstream fiber stays on GE SFP.
Use this order line when an IE3500 design similar to 8T3S needs powered copper endpoints without changing to the 10G SFP+ uplink class.
This SKU suits IE3500 projects that need Network Essentials by default while leaving expansion modules, GE SFP optics, and any Network Advantage upgrade as separate BOM checks.
Product Comparison
|
Parameter |
IE-3500-8P3S-E |
IE-3500-8P3S-A | |
|---|---|---|---|
|
Product type |
Modular industrial Ethernet switch |
Modular industrial Ethernet switch |
Modular industrial Ethernet switch |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
|
Total base ports |
11 |
11 |
10 |
|
Copper downlink ports |
8 x 10/100/1000 PoE/PoE+ ports |
8 x 10/100/1000 PoE/PoE+ ports |
8 x 10/100/1000 PoE/PoE+ ports |
|
Fiber uplink ports |
3 x 100/1000 SFP ports |
3 x 100/1000 SFP ports |
2 x 100/1000 SFP ports |
|
PoE power budget |
240 W |
240 W |
240 W |
|
Maximum PoE power budget |
360 W including expansion module |
360 W including expansion module |
480 W with expansion module |
|
Power input detail |
12 to 54 VDC; 11.0A maximum current |
12 to 54 VDC; 11.0A maximum current |
9.6 to 60 VDC; 48 VDC for PoE and 54 VDC for PoE+ |
|
Power consumption |
32 W excluding connected powered-device load |
32 W excluding connected powered-device load |
47 W excluding powered-device load |
|
MAC addresses |
24000 |
24000 |
16K |
|
Active VLANs |
1024 |
1024 |
256 VLANs |
|
Dimensions |
3.48 x 6.00 x 5.29 in. |
3.48 x 6.00 x 5.29 in. |
6 x 4.4 x 5.3 in. |
|
Weight |
3.90 lb / 1.77 kg |
3.90 lb / 1.77 kg |
5.0 lb / 2.3 kg |
- In an IE-3500-8P3S-E vs IE-3500-8P3S-A comparison, the hardware profile matches and the confirmed difference is Network Essentials versus Network Advantage.
- In an IE-3500-8P3S-E vs IE-3400-8P2S-E comparison, both platforms provide 8 PoE/PoE+ copper ports and Network Essentials, but IE-3500-8P3S-E adds a third GE SFP uplink.
- The IE-3500-8P3S-E difference from IE-3400-8P2S-E is also switching scale and PoE headroom: Cisco lists 24000 MAC addresses, 1024 active VLANs, and 360 W maximum PoE budget for IE3500, while the IE3400 counterpart is listed with 16K MAC addresses, 256 VLANs, and 480 W with expansion module.
- Buyers deciding which model to choose should compare uplink count, IE3500 versus IE3400 switching scale, Network Essentials scope, and total PoE budget before replacing one series with the other.
Selection Guide
1. Select this PID for Essentials-tier PoE access
Choose IE-3500-8P3S-E when the BOM requires Network Essentials with 8 Gigabit PoE/PoE+ copper ports and 3 GE SFP uplinks on the IE3500 modular platform.
2. Move the suffix only for Network Advantage
Use IE-3500-8P3S-A when the same 8P3S hardware must be ordered with Network Advantage instead of Network Essentials.
3. Route non-PoE and higher-power needs to separate SKUs
Move to IE-3500-8T3S-E when powered copper ports are not required, or select IE-3500-8U3X-E when the order needs 4PPoE and 1G/10G SFP+ uplinks.
4. Verify the power budget before adding endpoints
Confirm the 12 to 54 VDC feed, PoE or PoE+ class, 240 W base-switch budget, 360 W maximum system budget, and external power-supply capacity before finalizing powered-device counts.
PoE Power Planning
|
Planning item |
Cisco-confirmed value |
Procurement check |
|---|---|---|
|
PoE power budget |
240 W |
Size the eight base copper ports before expansion modules are added |
|
Maximum PoE budget |
360 W including expansion module |
Keep the full system load within the documented maximum |
|
PoE-capable access ports |
8 x Ethernet 10/100/1000 PoE/PoE+ ports |
Match endpoint count and power class to the port plan |
|
Required input for PoE Type 1 |
46 VDC minimum |
Confirm the DC source supports PoE classes 1 through 3 |
|
Required input for PoE+ Type 2 |
52 VDC minimum |
Use this check for PoE class 4 endpoints |
|
Power consumption note |
32 W excludes power delivered to attached PoE devices |
Add endpoint draw separately during power and UPS review |
Ordering Checklist
|
Review area |
Required confirmation |
Procurement risk |
|---|---|---|
|
Exact Cisco PID |
IE-3500-8P3S-E with Network Essentials |
Prevents a Network Advantage suffix or non-PoE 8T3S SKU from entering the order |
|
Powered endpoint worksheet |
8 PoE/PoE+ copper ports and 360 W maximum system budget |
Keeps cameras, access points, and other powered devices within the documented limit |
|
DC power source |
12 to 54 VDC input and 11.0A maximum current |
Confirms the industrial power feed before PoE load is staged |
|
Uplink optics |
3 GE 100/1000 SFP ports and supported GE SFP modules |
Avoids quoting 10G SFP+ optics for a GE SFP uplink design |
|
Expansion modules |
IE3500 module type and PoE load impact |
Prevents an expansion choice from exceeding the system PoE budget |
|
Software tier |
Network Essentials unless the BOM requires the A-suffix or upgrade license |
Keeps the software scope aligned with the purchase requirement |
|
Mounting and accessories |
DIN rail mounting, optional SD card, rack kit, and power-supply lines as needed |
Keeps installation items separate from the base switch PID |
Optional Add-ons
|
Model |
Description |
|---|---|
|
IEM-3500-8P= |
IE3500 expansion module with 8 PoE/PoE+ ports |
|
IEM-3500-16P= |
IE3500 expansion module with 16 PoE/PoE+ ports |
|
IEM-3500-8S= |
IE3500 expansion module with 8 GE SFP fiber ports |
|
IEM-3500-8T= |
IE3500 expansion module with 8 GE copper ports |
|
IEM-3500-16T= |
IE3500 expansion module with 16 GE copper ports |
|
IEM-3500-6T2S= |
IE3500 expansion module with 6 GE copper ports and 2 GE SFP ports |
|
IEM-3500-14T2S= |
IE3500 expansion module with 14 GE copper ports and 2 GE SFP ports |
|
IEM-3500-4MU= |
IE3500 expansion module with 4 multigigabit PoE/PoE+/4PPoE ports |
|
SD-IE-16GB= |
Cisco IE 16GB SD memory card option |
|
STK-RACK-DINRAIL= |
19-inch DIN Rail mount kit |
|
PWR-IE240W-PCAC-L= |
240 W AC-to-DC PoE power supply option |
|
PWR-IE480W-PCAC-L= |
480 W AC-to-DC PoE power supply option |
|
IE3500-NW-A= |
Cisco Network Advantage license upgrade for IE3500 Series |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3500-8P3S-E | Product type | Modular industrial Ethernet switch |
| Network license | Network Essentials | Operating system family | Cisco IOS XE |
| Total base ports | 11 | Powered copper ports | 8 x Ethernet 10/100/1000 PoE/PoE+ ports |
| Fiber uplink ports | 3 x fiber 100/1000 SFP ports | Uplink interface IDs | Gigabit Ethernet 1/1-3 |
| Downlink interface IDs | Gigabit Ethernet 1/4-11 | PoE power budget | 240 W |
| Maximum PoE budget | 360 W including expansion module | PoE standards | PoE and PoE+ |
| Required voltage for PoE Type 1 | 46 VDC minimum | Required voltage for PoE+ Type 2 | 52 VDC minimum |
| Power inputs | Dual DC power input | Input voltage rating | 12 to 54 VDC nominal |
| Input voltage range | 9.6 to 60 VDC absolute | Maximum input current | 11.0A |
| Power consumption | 32 W excluding power delivered to attached PoE devices | Removable storage | USB and SD card |
| Alarm interfaces | 2 alarm inputs and 1 alarm output | Console ports | 1 RS-232 via RJ-45 and 1 USB Type-C |
| Forwarding rate | Line rate for all ports and all packet sizes | Queues | 8 |
| Unicast MAC addresses | 24000 | IGMP multicast groups | 1024 |
| Active VLANs | 1024 | VLAN IDs | 4096 |
| Jumbo frames | 9198 bytes | DRAM | 8 GB |
| User-accessible flash | 5.1 GB | SVIs | 32 |
| Dimensions | 3.48 x 6.00 x 5.29 in. / 8.84 x 15.24 x 13.44 cm | Weight | 3.90 lb / 1.77 kg |
| Mounting | DIN rail | MTBF | 474469 hours |
| Expansion module family | IE3500 expansion modules |
