IE-3505-8T3S-E Description

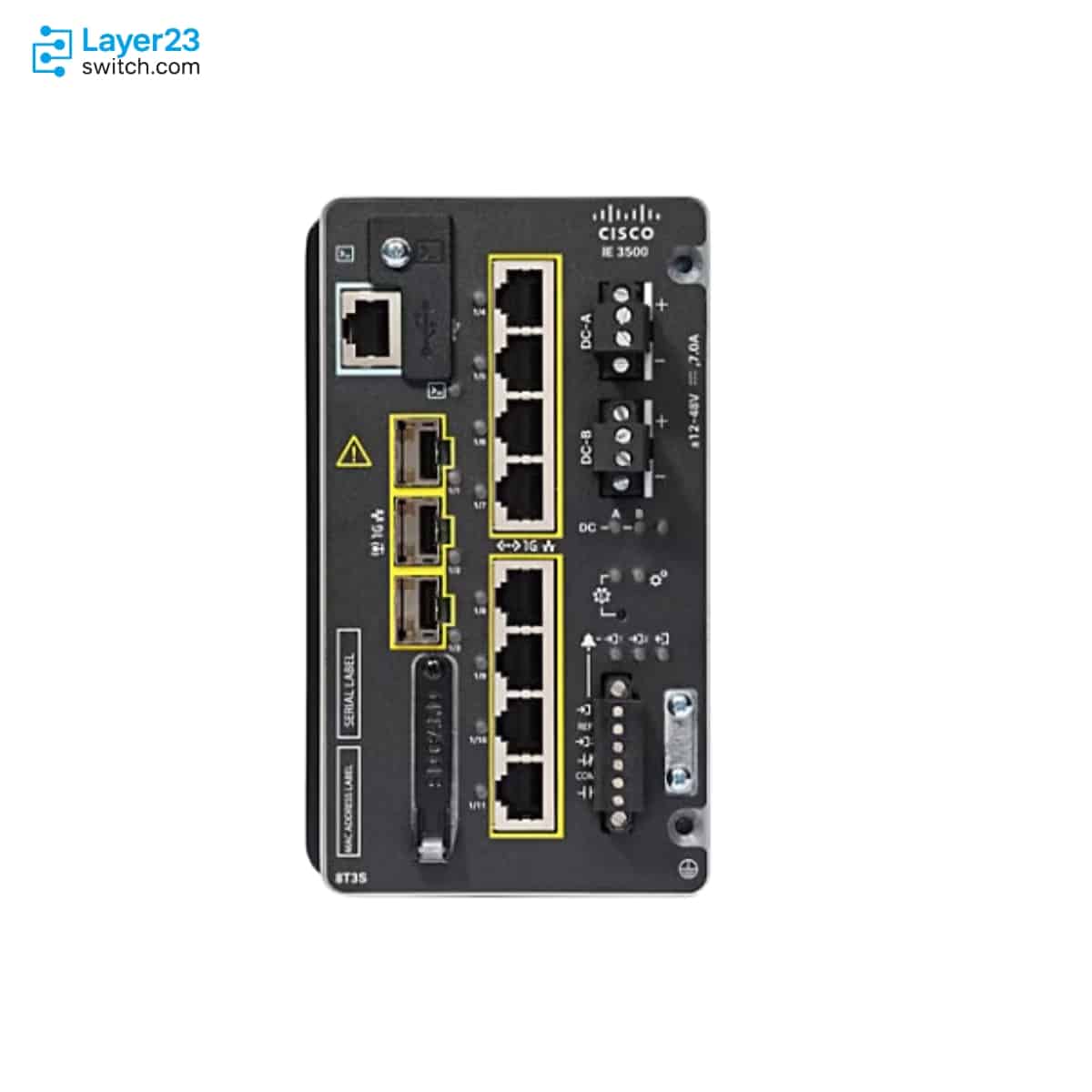

The IE-3505-8T3S-E is a Cisco Catalyst IE3500 Rugged Series advanced modular industrial switch for DIN-rail cabinets that aggregate wired devices over fiber. The switch has eight Gigabit copper ports, three 1G/100M SFP uplinks, a 12V to 48V DC input at 7A and 41W of power consumption. The copper ports carry no PoE, and IEM-3500 PoE expansion modules cannot be installed on this host.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3505-8T3S-E |
|
Product type |
Advanced modular industrial Ethernet switch |
|
Network license |
Network Essentials |
|
Total base ports |
11 |
|
Copper downlink ports |
8 x Ethernet 10/100/1000 RJ45 ports |
|
Fiber uplink ports |
3 x 100/1000 SFP ports |
|
PoE support |
Non-PoE base switch |
|
Input voltage rating |
12 to 48 VDC |
|
Maximum input current |
7.0A |
|
Power consumption |
41 W |
|
Mounting |
DIN rail |
Product Performance
Key Features
Eight 10/100/1000 RJ45 ports connect controllers and sensors that draw power from their own supplies.
Three 1G/100M SFP ports take fiber or industrial-grade FE and GE optics for runs between cabinets.
IE3505 variants add Parallel Redundancy Protocol, High-availability Seamless Redundancy and Device Level Ring for zero-delay failover.
Two DC inputs rated 12V to 48V draw up to 7A, so a failed feed does not take the cabinet offline.
Copper and SFP IEM-3500 modules extend the 11 base ports to 19 or 27 ports in the same DIN-rail footprint.
The fanless DIN-rail body works from -40 to +70°C with 40 LFM airflow and carries IP30 protection.
Application Scenarios
On a packaging line, the switch connects PLCs, drives and HMI panels over its eight copper ports and uplinks to the plant network over SFP fiber.
A trackside cabinet can join a seamless-redundancy ring, because PRP, HSR and DLR are supported on IE3505 variants only.
A water site that outgrows its eleven base ports can attach IEM-3500 copper or SFP expansion modules, up to 27 total ports.
Product Comparison
|
Parameter |
IE-3505-8T3S-E |
IE-3505-8T3S-A | ||
|---|---|---|---|---|
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
1000/100/10M RJ45 copper ports |
8 |
8 |
8 |
8 PoE/PoE+ |
|
SFP ports |
3x 1G/100M |
3x 1G/100M |
3x 1G/100M |
3x 1G/100M |
|
PoE power budget |
Not applicable |
Not applicable |
Not applicable |
240W |
|
PRP, HSR, DLR |
Supported |
Supported |
Not supported |
Supported |
|
Input voltage range |
12V to 48V nominal |
12V to 48V nominal |
12V to 48V nominal |
12V to 54V nominal |
|
Input current |
7A |
7A |
7A |
11A |
|
Power consumption |
41W |
41W |
29W |
42W |
IE-3505-8T3S-E and IE-3500-8T3S-E share eight copper ports, three 100/1000 SFP uplinks, no PoE and Network Essentials, but only IE-3505-8T3S-E supports PRP, HSR and DLR, at 41 W of power consumption against 29 W. Sites running seamless ring redundancy need IE-3505-8T3S-E; plain non-PoE access cabinets can use IE-3500-8T3S-E. PoE loads such as cameras or access points powered from the switch itself call for IE-3505-8P3S-E, which adds a 240 W PoE budget and a 12 to 54 VDC, 11.0A input against 12 to 48 VDC, 7.0A here. Network Advantage on this hardware is IE-3505-8T3S-A, or the IE3500-NW-A= upgrade license.
Ordering Checklist
- Power supply: Order a supply separately, such as PWR-IE50W-AC=, PWR-IE50W-AC-IEC= or PWR-IE50W-AC-L=, which are 50W non-PoE units. No supply ships with the switch, and it must cover the 41 W switch plus module draw.
- Expansion modules: Choose IEM-3500-8T=, IEM-3500-8S=, IEM-3500-16T=, IEM-3500-6T2S= or IEM-3500-14T2S=; the PoE modules IEM-3500-8P=, IEM-3500-16P= and IEM-3500-4MU= fit only PoE hosts. A PoE module ordered for this non-PoE switch cannot be installed.
- SD card: Add SD-IE-16GB= for the optional SD slot. The card does not ship with the switch by default.
- License and subscription: Network Essentials ships with this PID; IE3500-NW-A= adds Network Advantage, and IE3500-DNA-A subscriptions require Network Advantage. A DNA Advantage subscription ordered on a Network Essentials switch cannot be used.
- SFP optics: Select industrial-grade SFPs such as GLC-FE-100FX-RGD= or GLC-FE-100LX-RGD= for the 100/1000 SFP uplinks. EXT or COM temperature SFPs force the switch operating temperature to be derated.
Optional Add-ons
|
Model |
Description |
|---|---|
|
IEM-3500-8T= |
IE3500 expansion module with 8 GE copper ports |
|
IEM-3500-8S= |
IE3500 expansion module with 8 GE SFP fiber ports |
|
IEM-3500-16T= |
IE3500 expansion module with 16 GE copper ports |
|
IEM-3500-6T2S= |
IE3500 expansion module with 6 GE copper ports and 2 GE SFP ports |
|
IEM-3500-14T2S= |
IE3500 expansion module with 14 GE copper ports and 2 GE SFP ports |
|
SD-IE-16GB= |
Cisco IE 16GB SD memory card option |
|
STK-RACK-DINRAIL= |
19-inch DIN Rail mount kit |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3505-8T3S-E | Product type | Advanced modular industrial Ethernet switch |
| Network license | Network Essentials | Operating system family | Cisco IOS XE |
| Total base ports | 11 | Copper downlink ports | 8 x Ethernet 10/100/1000 RJ45 ports |
| Fiber uplink ports | 3 x fiber 100/1000 SFP ports | Uplink interface IDs | Gigabit Ethernet 1/1-3 |
| Downlink interface IDs | Gigabit Ethernet 1/4-11 | PoE support | Non-PoE base switch |
| Maximum PoE power budget | No PoE budget listed for IE-3505-8T3S-E | Removable storage | USB and SD card |
| Alarm interfaces | 2 alarm inputs and 1 alarm output | Console port | 1 RS-232 via RJ-45 and 1 USB Type-C |
| Input voltage rating | 12 to 48 VDC | Input voltage range | 9.6 to 60 VDC absolute |
| Maximum input current | 7.0A | Power consumption | 41 W |
| Forwarding rate | Line rate for all ports and all packet sizes | Queues | 8 |
| MAC addresses | 24000 | IGMP multicast groups | 1024 |
| Active VLANs | 1024 | VLAN IDs | 4096 |
| Jumbo frames | 9198 bytes | DRAM | 8 GB |
| User-accessible flash | 5.1 GB | SVIs | 32 |
| Dimensions | 3.48 x 6.00 x 5.29 in. / 8.84 x 15.24 x 13.44 cm | Weight | 3.95 lb / 1.79 kg |
| Mounting | DIN rail | MTBF | 496,476 hours |
| Expansion module family | IE3500 expansion modules |
