IE-3400-8P2S-E Description
The IE-3400-8P2S-E puts the Catalyst IE3400 platform's powered hardware under the Network Essentials license: 8 Gigabit PoE/PoE+ copper downlinks, 2 Gigabit SFP uplinks, a 240W base PoE budget that reaches 480W with a PoE expansion module, and the advanced-modular chassis whose baseline already includes PRP on base ports, HSR-SAN, HSR-PRP Dual Redbox, DLR, REP and MRP rings, PROFINET, EtherNet/IP (CIP), dual-profile IEEE 1588 PTPv2, L2NAT on uplinks, MACsec-128, and IOx edge compute. That Essentials scope carries a Layer 2 powered edge completely - rings, timing, industrial protocols, and endpoint power - while sites that later need TrustSec segmentation, VRF-lite, dynamic routing, or MACsec-256 raise the same installed unit through the perpetual IE3400-NW-A= license rather than replacing hardware. Fanless -40°C to +70°C vented operation, dual 9.6-60VDC feeds, and substation, rail, marine, and Class I Div 2 approvals complete a cost-tiered powered node for OT builds.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3400-8P2S-E |
|
Downlink ports |
8x 10/100/1000M RJ45, PoE/PoE+ |
|
Uplink ports |
2x 100/1000M SFP |
|
PoE power budget |
240W base, 480W with PoE expansion module |
|
Network license |
Network Essentials (perpetual) |
|
Expansion |
1x module bay (IEM-3400/IEM-3300), up to 26 GE system ports |
|
Forwarding |
Line rate on all ports and packet sizes |
|
Unicast MAC addresses |
16K |
|
Input power |
Dual DC inputs, 9.6-60VDC (48V PoE, 54V PoE+) |
|
Power consumption |
47W (excluding PoE output) |
|
Operating temperature |
-40°C to +70°C (40 LFM vented enclosure) |
|
Alarm and console |
2 alarm in / 1 alarm out; RJ-45 + USB Mini-B console |
|
Mounting |
DIN rail |
Product Performance
Key Features
PRP on ports Gig1/1-1/4, HSR-SAN, HSR-PRP Dual Redbox, DLR, REP, and MRP all live in the base license, so seamless-failover powered designs need no tier upgrade on this PID.
The Essentials tier matches a ring-and-VLAN powered edge exactly: cameras, access points, and instruments get their 240W-480W of power while routing and segmentation stay upstream where the design already handles them.
Dual-profile IEEE 1588 PTPv2 – including the C37.238 Power Profile – ships in the baseline, so utility timing distribution does not depend on the license tier chosen.
This platform extends 1:1 Layer 2 NAT to its uplink ports, letting serially built machines with duplicate addressing integrate at the cabinet boundary without a routed hop.
IE3400-NW-A= is a perpetual in-place upgrade: TrustSec SGT/SGACL, VRF-lite, OSPF/BGP/EIGRP, MACsec-256, and PIM multicast arrive by license when the design matures, with zero hardware churn.
IEC 62443, IEEE 1613, IEC 61850-3, EN50155 rail, DNV marine, NEMA TS 2, and Class I Div 2 approvals qualify the unit across regulated OT environments.
Application Scenarios
Placed as REP or MRP ring members that also feed PoE+ cameras and wireless access points, keeping transport resilience and endpoint power in one DIN unit.
Deployed inside PROFINET production lines whose controllers stay in Layer 2 domains while the switch powers vision systems and operator panels at the cell.
Installed at water and energy sites running PRP or HSR where frame loss is unacceptable and the local instruments draw PoE from the same node.
Product Comparison
|
Parameter |
IE-3400-8P2S-E | ||
|---|---|---|---|
|
Downlink ports |
8x GE PoE/PoE+ |
8x GE PoE/PoE+ |
8x GE copper |
|
Uplink ports |
2x 100/1000M SFP |
2x 100/1000M SFP |
2x 100/1000M SFP |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
|
PoE power budget |
240W base, 480W with module |
240W base, 480W with module |
Not a PoE switch (data only) |
|
Segmentation and routing |
Static and inter-VLAN routing |
SGT/SGACL, TrustSec, VRF-lite, OSPF/BGP/EIGRP, PIM |
Static and inter-VLAN routing |
|
MACsec |
MACsec-128 |
MACsec-256 |
MACsec-128 |
|
Power consumption |
47W |
47W |
36W |
|
MTBF |
401,313 hours |
401,313 hours |
549,808 hours |
- IE-3400-8P2S-E and IE-3400-8P2S-A share every port, watt, and redundancy protocol; what the -A adds is policy and routing – TrustSec SGT/SGACL, VRF-lite, dynamic routing, MACsec-256, PIM – and the perpetual IE3400-NW-A= license delivers exactly that set to an installed -E whenever it becomes necessary.
- IE-3400-8T2S-E keeps this PID’s license tier but strips the PoE system, dropping draw to 36W and lifting MTBF to 549,808 hours, so cabinets whose endpoints power themselves save both the PoE premium and the supply class by stepping to the data-only sibling.
- For deciding which SKU to order, the powered-endpoint list picks the hardware (8P2S versus 8T2S), and deployment-day feature needs pick the suffix: upstream-routed L2 designs start here on IE-3400-8P2S-E, while day-one segmentation or routing specifies IE-3400-8P2S-A.
Selection Guide
1. The Essentials Envelope For Powered Edges
Rings, PRP/HSR failover, PROFINET, PTP Power Profile, and 480W of endpoint power all sit inside this license tier – a powered cabinet whose intelligence lives upstream has no functional reason to pay for Advantage at order time.
2. Watch For The Upgrade Triggers
TrustSec microsegmentation, VRF termination at the cabinet, OSPF/BGP adjacencies, MACsec-256, or PIM routing each signal the IE3400-NW-A= license line for installed units – plan it as an operating expense rather than a hardware refresh.
3. Module Discipline Still Applies
Even at Essentials, choose IEM-3400 modules if TrustSec is on the roadmap: an IEM-3300 module on this base blocks SGT/SGACL after an upgrade, quietly undoing the license investment.
4. Data-Only Cabinets Step Sideways
Where nothing draws PoE, IE-3400-8T2S-E provides the identical Essentials feature set at lower draw, higher MTBF, and a lighter supply class – the PoE premium buys nothing in that cabinet.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
PoE standards |
IEEE 802.3af (PoE) and 802.3at (PoE+) on 8 downlinks; 802.3bt Type 4 via IEM-3300-4MU= module ports |
|
PoE power budget |
240W base switch; 480W system with PoE expansion module |
|
Input voltage for PoE |
48VDC minimum for PoE; 54VDC for PoE+ |
|
Powered-device count |
Up to 8 base ports (24 with 16P module); sum per-port class draw against the active budget |
|
Supply sizing rule |
Switch consumption (47W) plus PoE budget must stay within the external supply wattage per the datasheet minimum power requirements |
|
Supply pairing |
PWR-IE480W-PCAC-L= carries the 480W system path; PWR-IE240W-PCAC-L= covers base-budget builds; verify hazardous-location certification per site |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
PoE-class supply |
Order a PoE-capable DIN supply sized for 47W switch draw plus the planned budget (240W or 480W path). |
An undersized supply sheds PoE load at peak draw, appearing as endpoint reboots. |
|
54V for PoE+ |
Wire 54VDC input when any port must deliver PoE+ class power. |
A 48V feed caps ports at basic PoE and starves PoE+ endpoints. |
|
License PID on upgrades |
Use IE3400-NW-A= when raising an installed unit to Network Advantage. |
Ordering a new -A switch instead of the license doubles hardware spend for a feature change. |
|
Module family discipline |
Prefer IEM-3400 modules when TrustSec may arrive later; IEM-3300 modules disable SGT on the base. |
A module chosen without checking its family can block the platform’s segmentation after upgrade. |
|
Jumbo frame planning |
Note the 2000-byte jumbo limit when ERSPAN, DLR, PRP, HSR, or SGT are enabled. |
Applications tuned for 8996-byte frames break quietly once those features activate. |
|
Classified-area parts |
Avoid -L supplies in Class I Div 2 / Zone 2 areas and plan the required enclosure. |
IP20 uncertified supplies fail acceptance in classified zones. |
Optional Add-ons
|
Model |
Description |
|---|---|
|
IE3400-NW-A= |
Network Advantage upgrade license for IE3400, perpetual (in-place upgrade from Network Essentials) |
|
8x GE PoE/PoE+ expansion module (preserves SGT capability; 480W system budget) | |
|
8x GE copper expansion module (preserves SGT capability) | |
|
16x GE PoE/PoE+ expansion module | |
|
4x 1GE/2.5G copper module with 802.3bt Type 4 PoE | |
|
240W PoE-capable DIN rail power supply, AC input, IP20 light-duty variant | |
|
480W PoE-capable DIN rail power supply, AC input, IP20 light-duty variant | |
|
Industrial-grade 1000BASE-SX SFP, multimode, 220-550 m | |
|
SD-IE-16GB= |
16GB SD card for configuration and SwapDrive replacement |
|
STK-RACK-DINRAIL= |
19-inch rack mount kit for DIN rail switches |

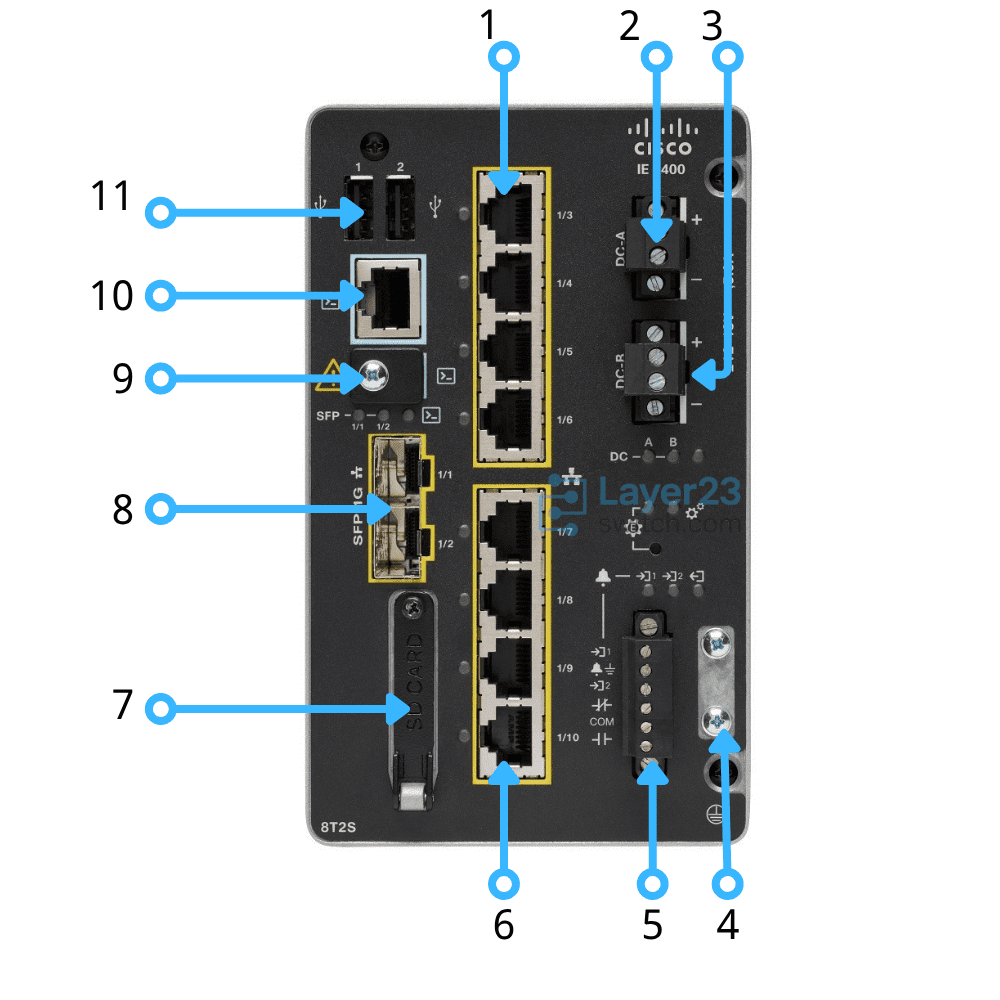

IE-3400-8P2S-E Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
1 |
10/100/1000 Copper Ethernet ports (downlink ports) |
7 |
Flash memory card slot |
|---|---|---|---|
|
2 |
Power connector DC-B |
8 |
SFP module slots (uplink ports) |
|
3 |
Power connector DC-A |
9 |
USB mini-Type B (console) port |
|
4 |
Protective ground connection |
10 |
RJ-45 console port |
|
5 |
Alarm connector |
11 |
USB mini-Type A port |
|
6 |
10/100/1000 Copper Ethernet ports (downlink ports) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3400-8P2S-E | Network license | Network Essentials, perpetual; in-place upgrade via IE3400-NW-A= |
| Downlink ports | 8x 10/100/1000M RJ45, PoE/PoE+ | Uplink ports | 2x 100/1000M SFP |
| PoE power budget | 240W base; 480W with PoE expansion module | PoE input requirement | 48VDC for PoE; 54VDC for PoE+ |
| Expansion | 1x bay; 10 compatible IEM-3400/IEM-3300 modules; up to 26 GE system ports; Type 4 via IEM-3300-4MU= | Forwarding | Line rate, all ports and packet sizes; 8 egress queues |
| MAC / routes | 16K MAC; 3000 IPv4 + 512 IPv6 indirect routes (route scale requires Network Advantage) | VLANs / ACL | 256 VLANs; 128 STP instances; 3K ACL entries |
| Memory | 4 GB DRAM; 1.5 GB user flash; optional 4/16 GB SD | Jumbo frames | 8996 bytes (2000 bytes with ERSPAN/DLR/PRP/HSR/SGT) |
| Essentials features | L2 switching, REP/Fast REP/Negotiated/Autodiscovery/ZTP, MRP, PRP (Gig1/1-1/4), PTP over PRP, HSR-SAN, HSR-PRP Dual Redbox, DLR, PROFINET, CIP, L2NAT (incl. uplinks), MACsec-128, FIPS 140-2, FNF, IOx | Advantage adds (via upgrade) | SGT/SGACL + TrustSec, VRF-lite, VRF-Aware SGT, OSPF/BGP/ISIS/RIP/EIGRP, PBR, VRRP/HSRP, BFD, MACsec-256, PIM multicast |
| PTP timing | IEEE 1588 PTPv2, Default and Power Profile; no PTP on IEM-3300-4MU ports | SGT boundary | SGT/SGACL (post-upgrade) on base and IEM-3400 modules only; IEM-3300 modules disable it |
| Input power | Dual redundant DC, 9.6-60VDC; 10.6A input | Power consumption | 47W at 54V, excluding PoE output |
| Compatible DIN rail supplies | PoE-capable 65W/170W/240W/480W external units, ordered separately | Alarms / console | 2 alarm in, 1 alarm out; RS-232 RJ-45 + USB Mini-B console; optional USB storage |
| Operating temperature | -40°C to +70°C vented; +60°C sealed; +75°C at 200 LFM; +85°C type-tested 16 h | Altitude / humidity | To 15,000 ft; 5-95% non-condensing; storage -40°C to +85°C |
| Dimensions (H x W x D) | 6 x 4.4 x 5.3 in (15.2 x 11.2 x 13.5 cm) | Weight / MTBF | 5.0 lbs (2.3 kg); 401,313 hours |
| Supported uplink optics | 100M/1G SFP incl. GLC-SX-MM-RGD, GLC-LX-SM-RGD, GLC-ZX-SM-RGD (70 km), GLC-T-RGD, BX single-strand to 80 km; COM/EXT grades derate temperature | Industrial compliance | IEC 62443-4-1/-4-2, IEEE 1613, EN/IEC 61850-3, ODVA CIP, NEMA TS 2-2016, AREMA C&S 11/19, DNV Marine, EN50121/EN50125/EN50155, IP30 |
| Safety / hazloc | UL/CSA 60950-1, 62368-1, 61010-2-201; UL121201/CSA 213 Class I Div 2 A-D; Class I Zone 2 ATEX/IECEx (cabinet required) | Warranty | 5-year limited hardware warranty (all IE3400 PIDs and IE power supplies) |
