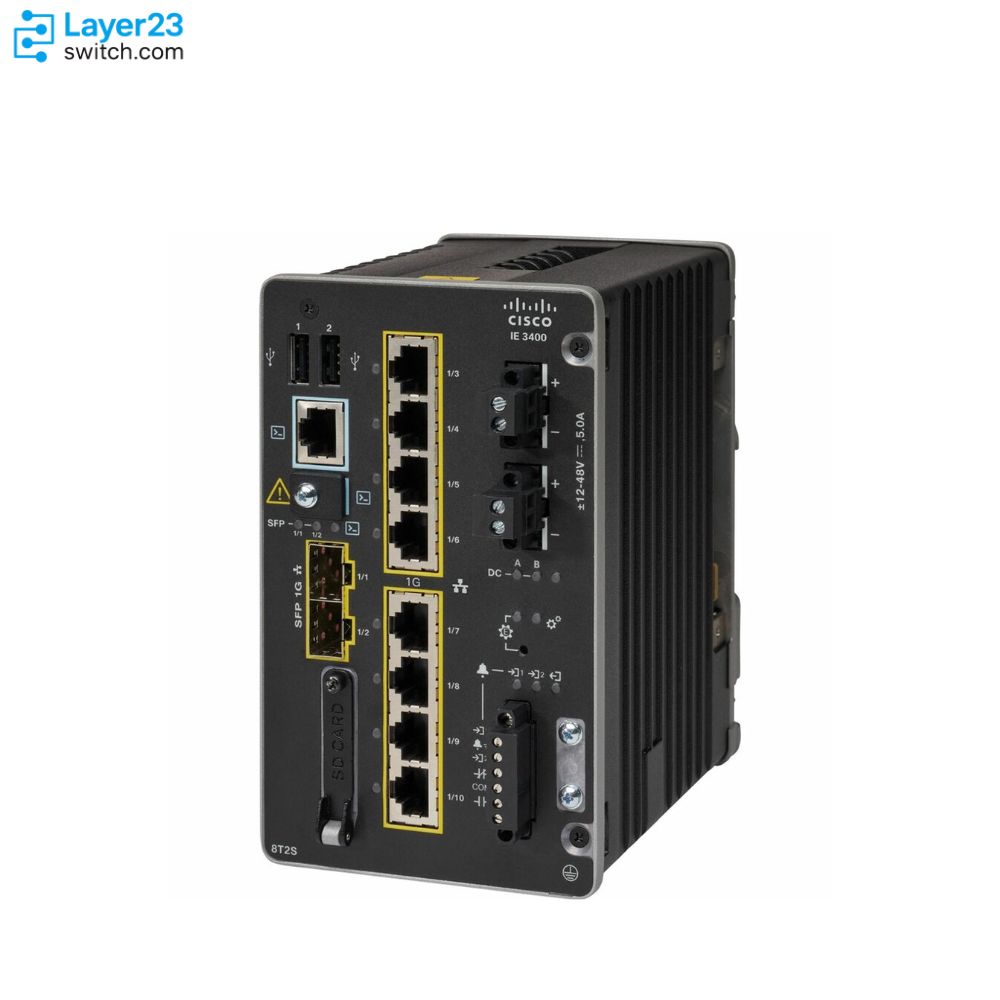

IE-3400-8T2S-A Description
The IE-3400-8T2S-A is a Cisco Catalyst IE3400 Rugged Series advanced modular industrial switch for DIN-rail cabinets that connect controllers and HMIs over copper. The switch has eight 10/100/1000 copper ports, two 100/1000 SFP uplinks and no PoE, runs on dual DC inputs of 9.6 to 60VDC, draws 36W and carries Network Advantage licensing. The base accepts only non-PoE expansion modules, and any IEM-3300 module removes SGT/SGACL support.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3400-8T2S-A |
|
Downlink ports |
8x 10/100/1000 RJ45 copper |
|
Uplink ports |
2x 100/1000 SFP |
|
PoE budget |
Not applicable (data-only) |
|
Network license |
Network Advantage (perpetual) |
|
Dynamic routing |
OSPF, BGP, IS-IS, RIP, EIGRP (IPv4 and IPv6) |
|
SGT/SGACL and Cisco TrustSec |
Base switch and IEM-3400 expansion modules |
|
Redundancy protocols |
PRP, HSR-SAN, DLR, REP, PROFINET MRP |
|
Expansion |
1 expansion module, up to 26 GE system ports |
|
Input voltage |
Dual DC inputs, 9.6 to 60VDC |
|
Power consumption |
36W (measured at 12V) |
|
Operating temperature |
-40°C to +70°C (40 LFM vented enclosure) |
|
Mounting and cooling |
DIN rail; fanless, convection cooled |
Product Performance
Key Features
SGT/SGACL and Cisco TrustSec classify controllers, HMIs and service laptops by role, so access rules follow the device rather than its VLAN or IP address. VRF-Aware SGT carries the same tags into separate routing tables on one switch.
The switch can peer with the plant core or WAN edge over OSPF, BGP, IS-IS or EIGRP for IPv4 and IPv6, with VRRP or HSRP for gateway redundancy and BFD echo mode for OSPFv3. The 3000 IPv4 and 512 IPv6 indirect route entries apply on this tier.
PIM sparse and dense mode, MSDP, BSR, Auto RP and Embedded RP let multicast streams cross routed boundaries instead of staying inside one VLAN. Up to 1K IGMP groups are tracked.
Links that leave the cabinet can be encrypted with MACsec-256. Network Essentials stops at MACsec-128, so the stronger cipher is one of the features Network Advantage adds.
PRP runs on ports Gig1/1 to Gig1/4 as a single instance, alongside PTP over PRP, HSR-SAN, HSR-PRP Dual Redbox and DLR. While DLR, PRP, HSR or SGT is active, jumbo frames are capped at 2000 bytes instead of 8996.
The non-PoE base accepts seven modules. IEM-3400-8T= or IEM-3400-8S= brings the system to 18 ports and keeps SGT/SGACL, while IEM-3300-16T= or IEM-3300-14T2S= reaches 26 ports but removes SGT/SGACL support.
Application Scenarios
In a manufacturing plant divided into cells and zones, the switch assigns each machine cell’s PLCs, HMIs and engineering stations to security groups so cross-cell traffic follows a central policy.
At an electric substation, the switch connects bay controllers and protection relays and runs OSPF toward the utility WAN router, inside a chassis rated to IEC 61850-3 and IEEE 1613.
Road tunnels, ports and similar shared sites often host SCADA, traffic control and operator networks in one cabinet, where the switch keeps each system in its own VRF-lite instance.
Product Comparison
|
Parameter |
IE-3400-8T2S-A | |||
|---|---|---|---|---|
|
10/100/1000 RJ45 copper ports |
8 |
8 |
8 (PoE/PoE+) |
8 |
|
100/1000 SFP ports |
2 |
2 |
2 |
2 |
|
Software license (default) |
Network Advantage |
Network Essentials |
Network Advantage |
Network Advantage |
|
PoE power budget |
None (data-only) |
None (data-only) |
240W base, 480W with expansion module |
None (data-only) |
|
IP routing protocols |
OSPF, BGP, IS-IS, EIGRP, RIP, PBR, VRRP, HSRP, PIM multicast routing, VRF-lite |
Inter-VLAN and static routing |
OSPF, BGP, IS-IS, EIGRP, RIP, PBR, VRRP, HSRP, PIM multicast routing, VRF-lite |
OSPF, BGP, IS-IS, EIGRP, RIP, PBR, VRRP, HSRP, PIM multicast routing, VRF-lite |
|
Security |
MACsec-256, SGT/SGACL, Cisco TrustSec |
MACsec-128 |
MACsec-256, SGT/SGACL, Cisco TrustSec |
MACsec-256 |
|
Input voltage range |
Redundant DC, 9.6 to 60VDC |
Redundant DC, 9.6 to 60VDC |
Redundant DC, 9.6 to 60VDC |
Redundant DC, 9.6 to 60VDC |
|
Redundancy |
REP, Fast REP, PROFINET MRP, PRP, HSR-SAN, HSR-PRP Dual Redbox, DLR |
REP, Fast REP, PROFINET MRP, PRP, HSR-SAN, HSR-PRP Dual Redbox, DLR |
REP, Fast REP, PROFINET MRP, PRP, HSR-SAN, HSR-PRP Dual Redbox, DLR |
REP, Fast REP, REP ZTP, PROFINET MRP |
|
Power consumption |
36W |
36W |
47W |
36W |
IE-3400-8T2S-A is the data-only model, with eight copper ports, no PoE and a 36W draw, while IE-3400-8P2S-A adds PoE/PoE+ from a 240W base budget, or 480W with a PoE expansion module, at 47W, so cabinets that power cameras or access points belong on the 8P2S model. PoE modules plug only into PoE base switches, so this chassis cannot gain powered ports later. Where a Layer 2 cabinet needs neither dynamic routing nor SGT/SGACL, IE-3400-8T2S-E keeps PRP, HSR-SAN, DLR and REP on Network Essentials, and IE3400-NW-A= can add Advantage later. If the design uses only REP and MRP rings, IE-3300-8T2S-A offers the same port layout with Advantage routing and MACsec-256 at 23W, without PRP, HSR, DLR or SGT/SGACL.
Ordering Checklist
- DC power supply: Deliver 9.6 to 60VDC to the DC inputs, or add an IE DIN rail supply. With IEM-3400-8S= the load is 63W, within the 65W PWR-IE65W-PC-AC= but above the 50W PWR-IE50W-AC=. Class I Div 2 or Zone 2 cabinets use a supply without the -L suffix.
- Expansion module: Choose a non-PoE module: IEM-3400-8T=, IEM-3400-8S=, IEM-3300-8T=, IEM-3300-8S=, IEM-3300-16T=, IEM-3300-6T2S= or IEM-3300-14T2S=. PoE modules plug only into PoE base switches.
- SFP temperature grade: Use industrial optics such as GLC-SX-MM-RGD= or GLC-LX-SM-RGD= in cabinets that reach the temperature limits. Commercial or extended-temperature SFPs require the switch operating temperature to be derated.
- SD card: Add SD-IE-16GB= when SwapDrive configuration backup and replacement is planned. The card is optional and not shipped with the switch.
- Catalyst Center license: Add IE3400-DNA-A or IE3400-DNA-E, or a 3, 5 or 7-year term version, when Catalyst Center manages the switch. The licenses are optional, sold separately and carry no network-tier features.
- 19-inch rack kit: Add STK-RACK-DINRAIL= when the switch goes into a 19-inch rack. The switch itself mounts only on DIN rail.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Expansion module, 8x GE copper ports (18 system ports, keeps SGT/SGACL) | |
|
Expansion module, 8x GE SFP ports (18 system ports, keeps SGT/SGACL) | |
|
Expansion module, 8x GE copper ports (18 system ports) | |
|
Expansion module, 8x GE SFP ports (18 system ports) | |
|
Expansion module, 16x GE copper ports (26 system ports) | |
|
Expansion module, 6x GE copper + 2x GE SFP (18 system ports) | |
|
Expansion module, 14x GE copper + 2x GE SFP (26 system ports) | |
|
50W DIN rail power supply, 100-240VAC or 125-250VDC input | |
|
50W DIN rail power supply, 90-264VAC input | |
|
65W DIN rail power supply, 100-240VAC or 125-250VDC input | |
|
65W DIN rail power supply, 24-48VDC input | |
|
GLC-FE-100FX-RGD= |
Industrial 100BASE-FX SFP, 2 km over multimode fiber |
|
Industrial 1000BASE-SX SFP, 220-550 m over multimode fiber | |
|
Industrial 1000BASE-LX/LH SFP, 550 m MMF or 10 km SMF | |
|
GLC-ZX-SM-RGD= |
Industrial 1000BASE-ZX SFP, 70 km over single-mode fiber |
|
GLC-T-RGD= |
Industrial 1000BASE-T copper SFP, 100 m |
|
SD-IE-16GB= |
16GB SD card for configuration storage and SwapDrive |
|
STK-RACK-DINRAIL= |
19-inch DIN rail mount kit |
|
IE3400-DNA-A |
Cisco Catalyst Center Advantage license for IE3400 Series |

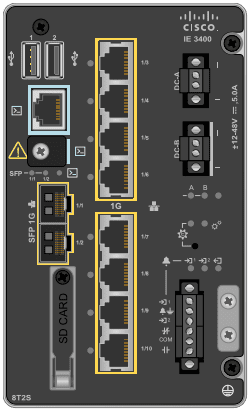

IE3400 Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
1 |
10/100/1000 Copper Ethernet ports (downlink ports) |
7 |
Flash memory card slot |
|---|---|---|---|
|
2 |
Power connector DC-B |
8 |
SFP module slots (uplink ports) |
|
3 |
Power connector DC-A |
9 |
USB mini-Type B (console) port |
|
4 |
Protective ground connection |
10 |
RJ-45 console port |
|
5 |
Alarm connector |
11 |
USB mini-Type A port |
|
6 |
10/100/1000 Copper Ethernet ports (downlink ports) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3400-8T2S-A | Network license | Network Advantage (perpetual; includes all Network Essentials features) |
| Total base ports | 10 | Downlink ports | 8x 10/100/1000 RJ45 copper |
| Uplink ports | 2x 100/1000 SFP | PoE power budget | Not applicable (data-only copper ports) |
| Expansion | 1 expansion module; up to 26 GE system ports | Supported expansion modules | IEM-3400-8T=, IEM-3400-8S=, IEM-3300-8T=, IEM-3300-8S=, IEM-3300-16T=, IEM-3300-6T2S=, IEM-3300-14T2S= (non-PoE modules only) |
| Expansion module width | Single-wide module adds 2 in; double-wide module adds 3 in | Console port | 1 RS-232 (via RJ-45), 1 USB Mini Type B |
| Alarms | 2 alarm inputs, 1 alarm output | Removable storage | USB 2.0 and SD card (optional, not shipped by default) |
| Forwarding rate | Line rate for all ports and all packet sizes | Number of queues | 8 |
| MAC addresses | 16K | IGMP multicast groups | 1K |
| No. of VLANs | 256 | STP instances | 128 |
| Access control entries (PACL/VACL/RACL) | 3K | IPv4 indirect routes | 3000 |
| IPv6 indirect routes | 512 | DRAM | 4 GB |
| Flash (user accessible) | 1.5 GB | SD card capacity | 4 GB, 16 GB (optional) |
| Jumbo frames | 8996 bytes; 2000 bytes when using ERSPAN, DLR, PRP, HSR or SGT | Layer 2 switching | IEEE 802.1Q, 802.1w, 802.1s, 802.1ab, 802.3ad, PVST+, MSTP, RSTP, LACP, PAgP, VTPv2/v3, Q-in-Q, selective Q-in-Q, voice VLAN, UDLD |
| IP routing protocols | OSPF, BGP, IS-IS, EIGRP (IPv4 and IPv6), RIP v1/v2, PBR, VRRP, HSRP, BFD echo mode for OSPFv3; inter-VLAN and static routing | Virtualization | VRF-lite, VRF-Aware SGT |
| IP multicast | PIM-SM, PIM-DM, MSDP, BSR (IPv4/IPv6), Auto RP (IPv4), Embedded RP (IPv6); IGMP v1/v2/v3 snooping, filtering and querier | Security | MACsec-256, SGT/SGACL, Cisco TrustSec, 802.1X, DHCP snooping, dynamic ARP inspection, IP source guard, FIPS 140-2, SUDI 2099, Full Flexible NetFlow |
| SGT/SGACL support | Base switch and IEM-3400 expansion modules; an IEM-3300 module prevents SGT/SGACL | Redundancy | REP ring, Fast REP, REP Negotiated, REP Autodiscovery, REP ZTP, PROFINET MRP, PRP (Gig1/1 to Gig1/4, single instance), PTP over PRP, HSR-SAN, HSR-PRP Dual Redbox, DLR |
| Industrial protocols | CIP EtherNet/IP, PROFINET, IEEE 1588 PTPv2 (default and power profiles); GOOSE and MODBUS TCP/IP classification | Industrial management | Layer 2 switching with 1:1 L2NAT (supported on uplink ports) |
| IOx edge compute | Native Docker containers, Cisco Cyber Vision, Secure Equipment Access | Automation | YANG, NETCONF, RESTCONF |
| Management | WebUI, Cisco Catalyst Center, SNMP, syslog, SPAN/RSPAN, Express setup, SwapDrive zero-configuration replacement | Operating system | Cisco IOS XE with secure boot, image signing and Trust Anchor module |
| Input voltage range | Redundant DC input, 9.6 to 60VDC (dual DC power inputs) | Input current | 6.3A |
| Power consumption | 36W (measured at 12V) | Supported DIN rail power supplies | PWR-IE50W-AC=, PWR-IE50W-AC-IEC=, PWR-IE50W-AC-L=, PWR-IE65W-PC-AC=, PWR-IE65W-PC-DC=, PWR-IE170W-PC-AC=, PWR-IE170W-PC-DC=, PWR-IE240W-PCAC-L=, PWR-IE480W-PCAC-L= |
| Cooling | Fanless, convection cooled | Operating temperature | -40°C to +70°C (40 LFM vented enclosure); -40°C to +60°C (sealed enclosure); -40°C to +75°C (min. 200 LFM fan or blower-equipped enclosure); +85°C type tested for 16 hours |
| Operating altitude | Up to 15,000 ft | Storage temperature | -40°C to +85°C |
| Operating humidity | 5% to 95% relative humidity, non-condensing | Dimensions (H x W x D) | 6 x 3.6 x 5.3 in (15.2 x 9.1 x 13.5 cm) |
| Weight | 1.7 kg (3.8 lb) | Mounting | DIN rail |
| Ingress protection | IP30 | MTBF | 549,808 hours (Telcordia Issue 3) |
| Industrial automation control system | IEC 62443-4-1, IEC 62443-4-2 | Industry standards | EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61326-1, EN 61131-2, IEEE 1613, EN/IEC 61850-3, ODVA EtherNet/IP, NEMA TS 2-2016, AREMA C&S sections 11 and 19 |
| Electromagnetic emissions | FCC 47 CFR Part 15 Class A, EN 55032/CISPR 32 Class A, VCCI Class A, AS/NZS CISPR 32 Class A, CISPR 11 Class A, ICES-003 Class A, CNS 13438 Class A, KN 32 Class A, EN 300 386 | Electromagnetic immunity | CISPR 24/CISPR 35, EN 55024/EN 55035, KN 35, EN 61000-4-2, -3, -4, -5, -6, -8, -10, -16, -17, -18, -29 |
| Safety certifications | UL/CSA 60950-1, IEC 60950-1 CB, UL/CSA 62368-1, IEC 62368-1 CB, UL/CSA 61010-2-201, IEC/EN 61010-2-201 | Hazardous locations | UL121201 and CSA 213 Class I Div 2 Groups A-D; UL/CSA, IECEx and ATEX 60079-0/-15 Class I Zone 2 Gc/IIC (ATEX requires a cabinet enclosure) |
| Railway | EN50125-1:2014, EN50125-3:2003, EN50121-4, EN50121-3-2/EN50155 | Marine | DNV-CG-0339, IEC 60945, IACS UR E10 |
| Shock | IEC 60068-2-27 (operational 50G, 3 ms half sine; non-operational 65-80G, 9 ms trapezoidal) | Vibration | IEC 60068-2-6 (sinusoidal, 5-150 Hz) |
| Corrosion | IEC 60068-2-52 (salt fog), IEC 60068-2-60 (flowing mixed gas) | Supported SFPs | 100M: GLC-FE-100FX-RGD=, GLC-FE-100LX-RGD=; 1G: GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD=, GLC-T-RGD=, GLC-BX40-U-I=, GLC-BX40-D-I=, GLC-BX80-U-I=, GLC-BX80-D-I=; non-industrial SFPs require temperature derating |
