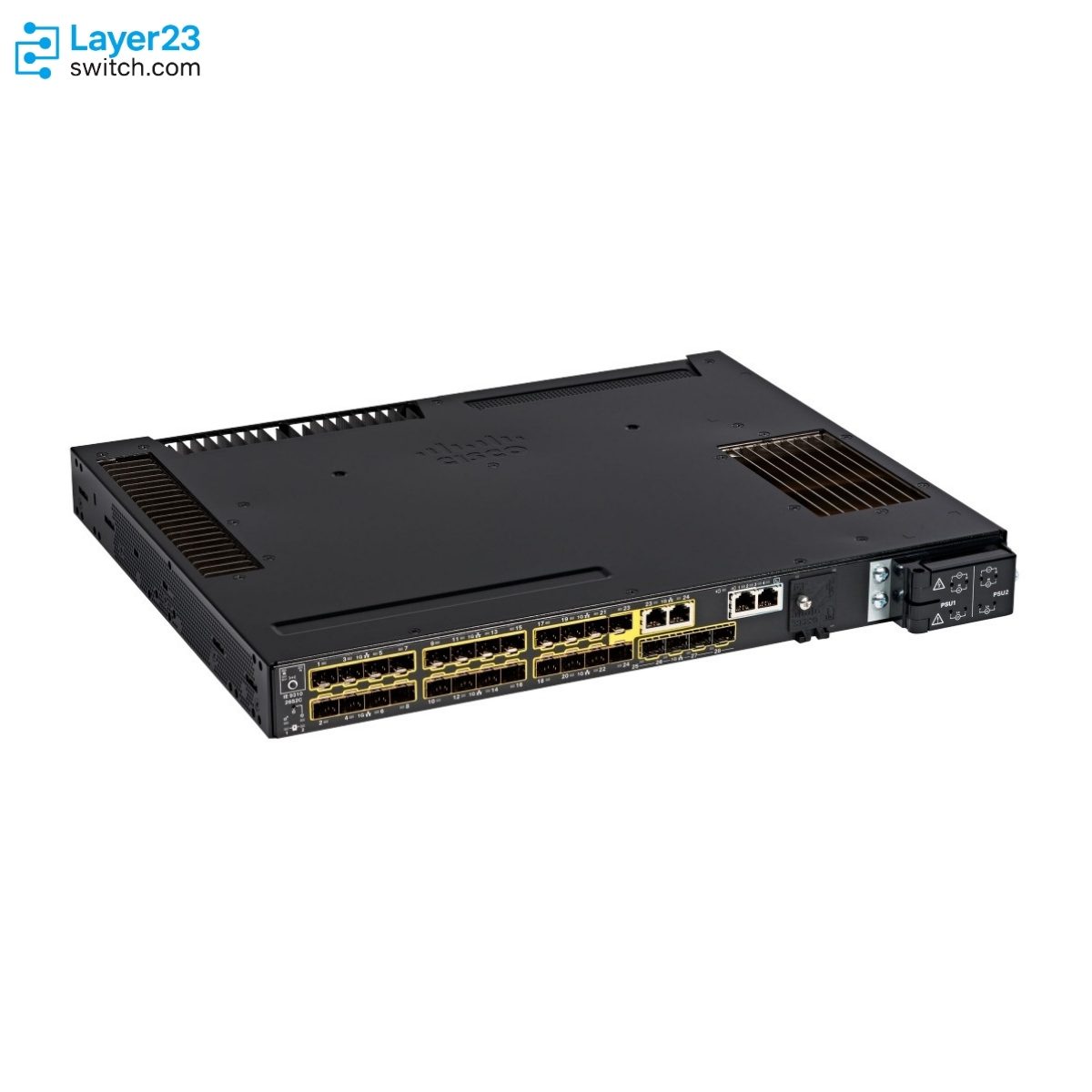

IE-9320-26S2C-A Description
The IE-9320-26S2C-A is the all-fiber stackable model of the Cisco Catalyst IE9300 Rugged Series, a fanless 1RU rack-mount industrial switch that presents 22 Gigabit SFP downlinks, 2 dual-media combo downlinks, and 4 Gigabit SFP uplinks under the perpetual Network Advantage license. Cisco StackWise joins up to four units into one managed node, and two field-replaceable power modules with electrically isolated outputs feed the chassis from AC or DC. Its utility-grade credentials run deep: IEC 61850-3 and IEEE 1613 substation compliance, IEC 61850-9-3 Power Utility Profile timing, HSR and PRP seamless redundancy with TrustSec over PRP, and hazardous-location approvals. The Advantage tier adds BGP, EIGRP, VRF-lite, BGP-EVPN over VXLAN, TrustSec segmentation, MACsec-256, L3 NAT, multicast routing, and SD-Access Fabric Edge duty above an Essentials baseline that already carries OSPF, REP, MRP over Stacking, PROFINET, CIP, and PTP Power Profile - making this the fiber aggregation point for substations, ITS corridors, and dispersed process plants.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-9320-26S2C-A |
|
Downlink ports |
22x 100/1000M SFP + 2x dual-media (SFP or RJ45) |
|
Uplink ports |
4x 100/1000M SFP |
|
Network license |
Network Advantage (perpetual) |
|
Stacking |
Cisco StackWise, 2 stack ports, up to 4 members |
|
Forwarding rate |
41.66 Mpps |
|
Switching bandwidth |
56 Gbps (full duplex) |
|
MAC addresses |
24,000 (IOS XE 17.17.1 and later) |
|
Power modules |
2x modular slots; 150W/250W/400W AC-DC and 150W low-voltage DC options |
|
Power consumption |
64W (indicative) |
|
Operating temperature |
-40°C to +75°C (forced-air cabinet); -40°C to +60°C sealed |
|
Alarm and console |
4 alarm in / 1 Form-C alarm out; RJ-45 + Micro USB console |
|
Mounting |
1RU rack mount, fanless, IP30 |
Product Performance
Key Features
The 22 SFP downlinks, 2 combo ports, and 4 SFP uplinks take everything from 100M FE optics to 80 km BX single-strand and CWDM/DWDM modules, terminating long fiber runs from bays, cabinets, and field sites in one rugged chassis.
StackWise links up to four IE9320 units through dual stack ports into a single management plane, and MRP over Stacking extends ring redundancy across the members – a capability the non-stackable IE9310 line does not offer.
BGP, EIGRP, IS-IS, VRF-lite, BGP-EVPN over VXLAN, and SD-Access Fabric Edge Node roles ship perpetually on this PID, letting the aggregation layer join a campus or utility fabric rather than terminating at static routes.
As a 26S2C model it runs HSR and PRP with PTP over PRP, and the -A license adds TrustSec over PRP, so zero-loss duplicated paths carry group-based policy into protection-relay and control networks.
IEC 61850-9-3 Power Utility Profile, PTP Power Profile 2011/2017, and NTP-PTP interworking meet grid synchronization requirements, with IEEE 1613 and IEC 61850-3 compliance covering the electrical environment itself.
Two field-replaceable power slots accept 150W low-voltage DC, 150W/250W/400W AC-DC modules with electrically isolated outputs and hazardous-location compliance, giving true A/B feed redundancy in a 1RU footprint.
Application Scenarios
Positioned in IEC 61850-3 control houses to terminate fiber from protection relays, merging units, and bay controllers, distributing Power Utility Profile timing while PRP keeps dual LANs lossless.
Aggregating intersection and roadside cabinets across ITS and smart-city networks under NEMA TS2:2021, where the 4 SFP uplinks and stackable chassis grow with each corridor phase.
Serving mining, oil and gas, and water infrastructure where field devices sit kilometers apart on single-mode fiber and the switch itself must tolerate Class I Div 2 classified electrical rooms.
Product Comparison
|
Parameter |
IE-9320-26S2C-A | ||
|---|---|---|---|
|
Downlink ports |
22x GE SFP + 2x combo |
22x GE SFP + 2x combo |
22x GE SFP + 2x combo |
|
Uplink ports |
4x 100/1000M SFP |
4x 100/1000M SFP |
4x 1/10G SFP+ |
|
Network license |
Network Advantage |
Network Essentials |
Network Advantage |
|
Forwarding rate |
41.66 Mpps |
41.66 Mpps |
95.23 Mpps |
|
Switching bandwidth |
56 Gbps |
56 Gbps |
128 Gbps |
|
GNSS / IRIG-B timing interfaces |
No |
No |
Yes |
|
Conformal coating |
No |
No |
Yes |
|
Power consumption |
64W |
64W |
73W |
|
MTBF |
492,370 hours |
492,370 hours |
323,733 hours |
- The IE-9320-26S2C-A and IE-9320-26S2C-E share identical stackable fiber hardware; because Essentials on this platform already includes OSPF, HSR/PRP, and MRP over Stacking, the -A premium buys specifically BGP/EIGRP, VRF-lite, TrustSec (including over PRP), MACsec-256, L3 NAT, multicast routing, and fabric roles – features a segmented utility or SD-Access design consumes on day one.
- IE-9320-22S2C4X-A is the step up in backhaul and timing rather than access: the same 24 fiber downlinks gain 4x 10G uplinks, GNSS and IRIG-B time interfaces, and conformal coating, at 9W more draw and a lower MTBF, which matters when the uplinks aggregate multiple rings or the site is a timing source.
- For deciding which SKU to order, fix the license question first – VRF, TrustSec, or fabric membership requires -A – then the uplink question: GE uplinks and this model close most bay-level roles, while 10G aggregation, GNSS timing, or corrosive-atmosphere coating move the order to IE-9320-22S2C4X-A.
Selection Guide
1. Advantage Where Segmentation Is Real
Utilities and plants that run VRF-separated OT domains, TrustSec policy, MACsec-256 on inter-site links, or SD-Access fabric edges need this -A PID; a fiber ring that only asks for OSPF and PRP can start on IE-9320-26S2C-E and upgrade in place with IE9300-NW-A= later.
2. Size The Stack, Not Just The Switch
Up to four chassis stack into one node with CAB-STK-0.5M= or CAB-STK-1M= cables, so a growing fiber plant can add 28-port members instead of new managed devices – order stack cables with the first pair, since MRP over Stacking assumes the ring spans members.
3. Optic Discipline On Combo Ports
Plan industrial -RGD or -I graded optics for temperature extremes, and keep GLC-TE/GLC-T/GLC-T-RGD copper SFPs off the design: they degrade PTP accuracy and are not supported on the two dual-media combo ports at all.
4. Power Modules Are A Separate Line
The chassis ships with two empty module slots; pick PWR-RGD-LOW-DC-H for 24-60V DC plants, PWR-RGD-AC-DC-H/-250/-400 for high-voltage AC/DC feeds, and order two modules whenever the site claims redundant A/B power.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Power module pair |
Select the module class matching the site feed (24-60V DC or 85-264V AC / 88-300V DC) and order two for A/B redundancy. |
The dual slots are empty at purchase, and mixed-voltage sites need the right module family per feed. |
|
Optic bill of materials |
Line up SFPs for up to 26 fiber positions plus 4 uplinks, using -RGD/-I grades where temperature demands. |
Non-industrial optics derate the operating range, and the port count makes optics the larger order line. |
|
Combo port usage |
Decide SFP or RJ45 per dual-media port and avoid copper SFPs there. |
GLC-T family modules are unsupported on combo ports and degrade PTP elsewhere. |
|
Stack provisioning |
Add CAB-STK-0.5M= / CAB-STK-1M= when more than one chassis is planned. |
Stack ports without cables leave the second chassis as a separately managed switch. |
|
Rack kit selection |
Match RM-RGD-19IN=, RM-RGD-23IN=, or RM-RGD-ETSI= to the rack standard. |
Substation and telecom racks differ, and the kits are ordered separately. |
|
Timing feature scope |
Confirm no GNSS/IRIG-B requirement sits at this node. |
Those interfaces exist only on IE-9320-22S2C4X models; this PID cannot add them. |
Optional Add-ons
|
Model |
Description |
|---|---|
|
150W AC-DC power module, 85-264V AC / 88-300V DC input | |
|
150W low-voltage DC power module, 18-75V input range | |
|
250W AC-DC power module | |
|
CAB-STK-0.5M= |
StackWise stacking cable, 0.5 m |
|
CAB-STK-1M= |
StackWise stacking cable, 1 m |
|
RM-RGD-19IN= |
19-inch rack mount kit |
|
SD-IE-16GB= |
16GB SD card for configuration and SwapDrive replacement |
|
GLC-LX-SM-RGD= |
Industrial-grade 1000BASE-LX/LH SFP |

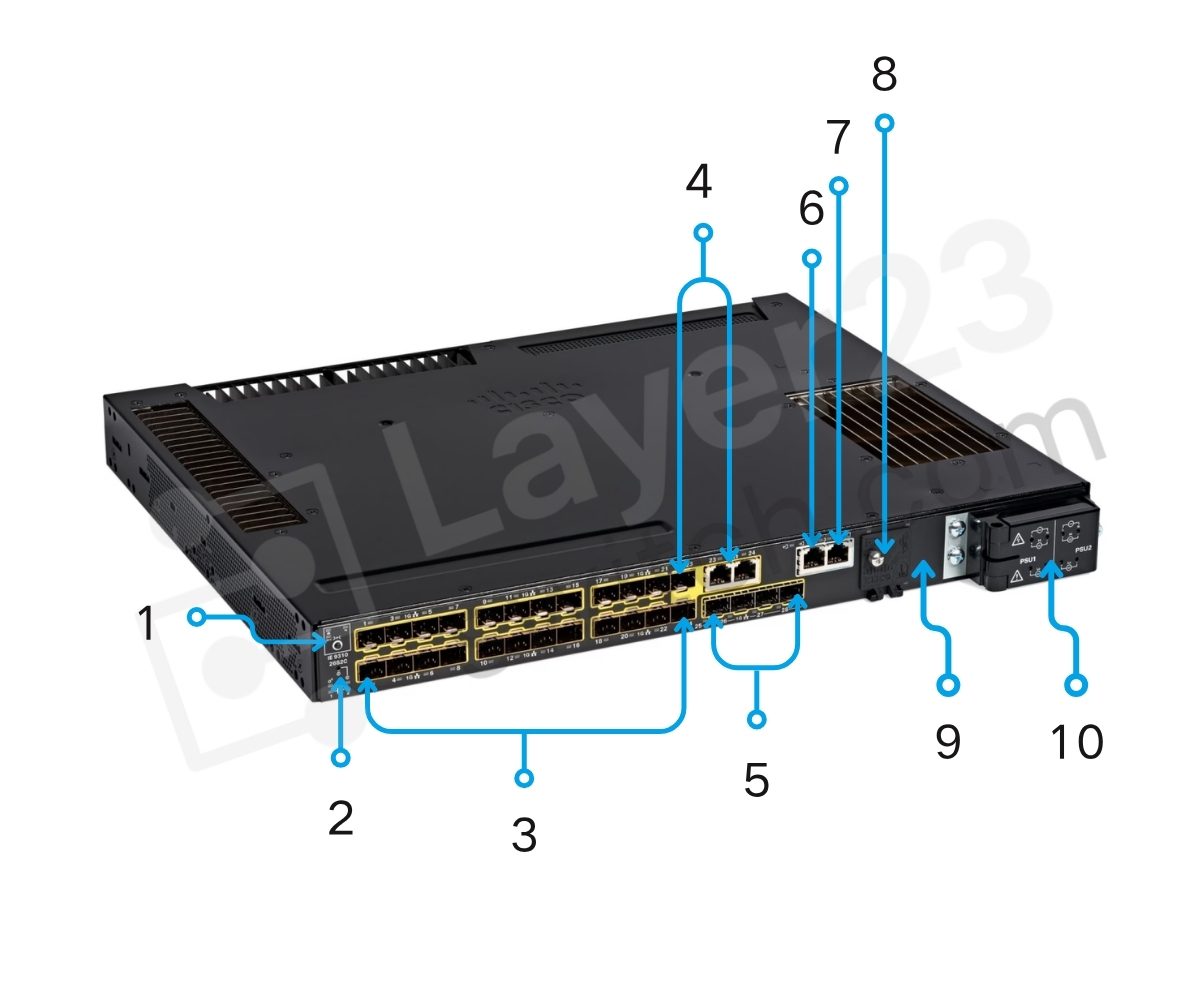

IE-9320-26S2C-A Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
1 |
Display mode button |
6 |
Alarms |
|---|---|---|---|
|
2 |
Express Setup button |
7 |
RJ-45 console port |
|
3 |
Ethernet SFP downlinks |
8 |
(Beneath cover) Micro-USB console port, USB-A host port, and SD slot |
|
4 |
Dual-media downlink ports |
9 |
Stacking interface (IE9320 switches only) |
|
5 |
Ethernet SFP uplinks |
10 |
AC/DC power input |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-9320-26S2C-A | Network license | Network Advantage, perpetual (upgrade PID for -E units: IE9300-NW-A=) |
| Downlink ports | 22x 100/1000M SFP + 2x dual-media (SFP or 10/100/1000M RJ45) | Uplink ports | 4x 100/1000M SFP |
| Stacking | Cisco StackWise, 2 stack ports, up to 4 members; MRP over Stacking | Performance | 41.66 Mpps; 28 Gbps forwarding, 56 Gbps switching bandwidth |
| Scale (IOS XE 17.17.1+) | 24,000 MAC; 7,000 IPv4 indirect + 8,192 connected routes; 3,500 IPv6 indirect; 1,024 active VLANs; 1,536 ACL entries | Memory | 4 GB DRAM; 8 GB flash (~2.5 GB user); optional 16 GB SD card |
| Advantage features | BGP, EIGRP, IS-IS, HSRP, LISP, BGP-EVPN over VXLAN, VRF-lite, TrustSec (SGACL), TrustSec over PRP, MACsec-256, L3 NAT, PIMv2/Auto-RP/MSDP, SD-Access Fabric Edge, GRE, IP SLA | Essentials baseline | OSPF (1,000 routes), OSPFv3, RIP, PBR, REP/REP Fast, MRP/Fast MRP, HSR, PRP, PTP over PRP, PROFINET, CIP, GOOSE/SCADA classification, L2 NAT, Modbus TCP, IOx, MACsec-128, FNF, TLS 1.3 |
| PTP timing | IEEE 1588 PTPv2 Default and Power Profile (2011/2017); IEC 61850-9-3 PUP; NTP-PTP interworking | Model boundaries | HSR/PRP supported on this 26S2C model; GNSS/IRIG-B only on 22S2C4X models; AVB not supported on this PID |
| Management | WebUI, Cisco Catalyst Center, SNMP, NETCONF/RESTCONF/YANG, EEM, PnP, Day-0 ZTP | Security hardware | IOS XE Secure Boot, image signing, Trust Anchor module; FIPS 140-2 |
| Power modules | 2x field-replaceable slots, isolated outputs: PWR-RGD-LOW-DC-H (150W, 18-75V DC), PWR-RGD-AC-DC-H (150W), -250 (250W), -400 (400W) | Power consumption | 64W (indicative) |
| Alarms / console | 4 dry-contact alarm in, 1 Form-C alarm out; RS-232 RJ-45 + Micro USB console; optional USB 2.0 and SD card | Operating temperature | -40°C to +75°C forced-air cabinet; +70°C vented; +60°C sealed (safety approval to 60°C) |
| Altitude / humidity | 15,000 ft without derating, to 40,000 ft derated to 25°C; 5-95% non-condensing; storage -40°C to +85°C | Dimensions / weight | 1.72 x 17.5 x 14.0 in with -H modules; 12.2 lb (5.53 kg) chassis without power modules; 1RU, fanless, IP30 |
| MTBF | 492,370 hours | Industrial compliance | IEC 61850-3, IEEE 1613, IEC 61850-9-3 PUP, NEMA TS2:2021, EN 50121-4, EN 50121-3-2, EN 50125-1/-3, AREMA 2019, IEC 62443-4-1/-4-2, ODVA EtherNet/IP |
| Safety / hazloc | UL/CSA 60950-1, 62368-1, 61010-2-201, CSA C22.2 No.142; UL 121201 / CSA 213 Class I Div 2 A-D; Class I Zone 2 ATEX/IECEx | Warranty | 5-year limited hardware warranty (all IE9300 PIDs and power modules) |
