PWR-RGD-LOW-DC-H Description

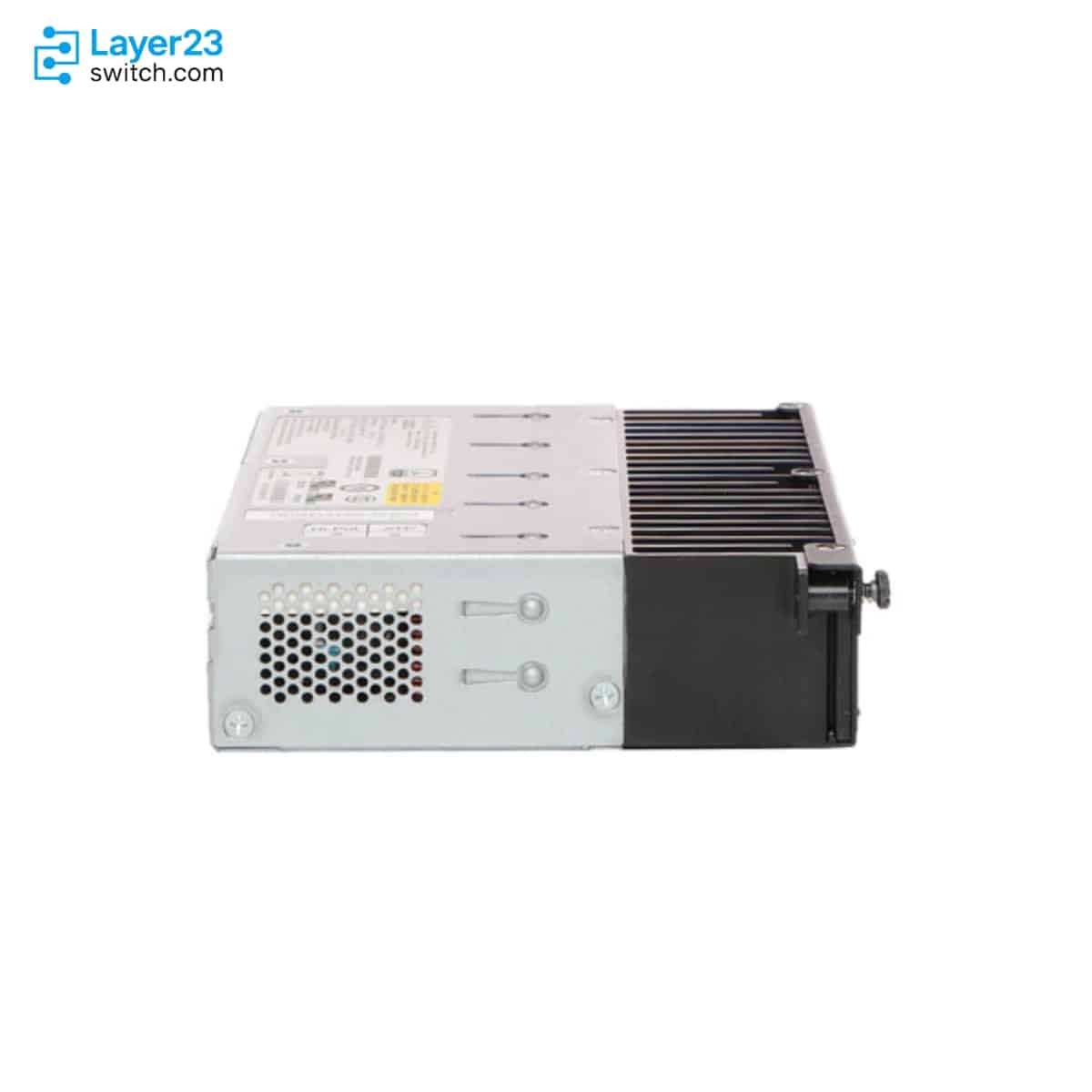

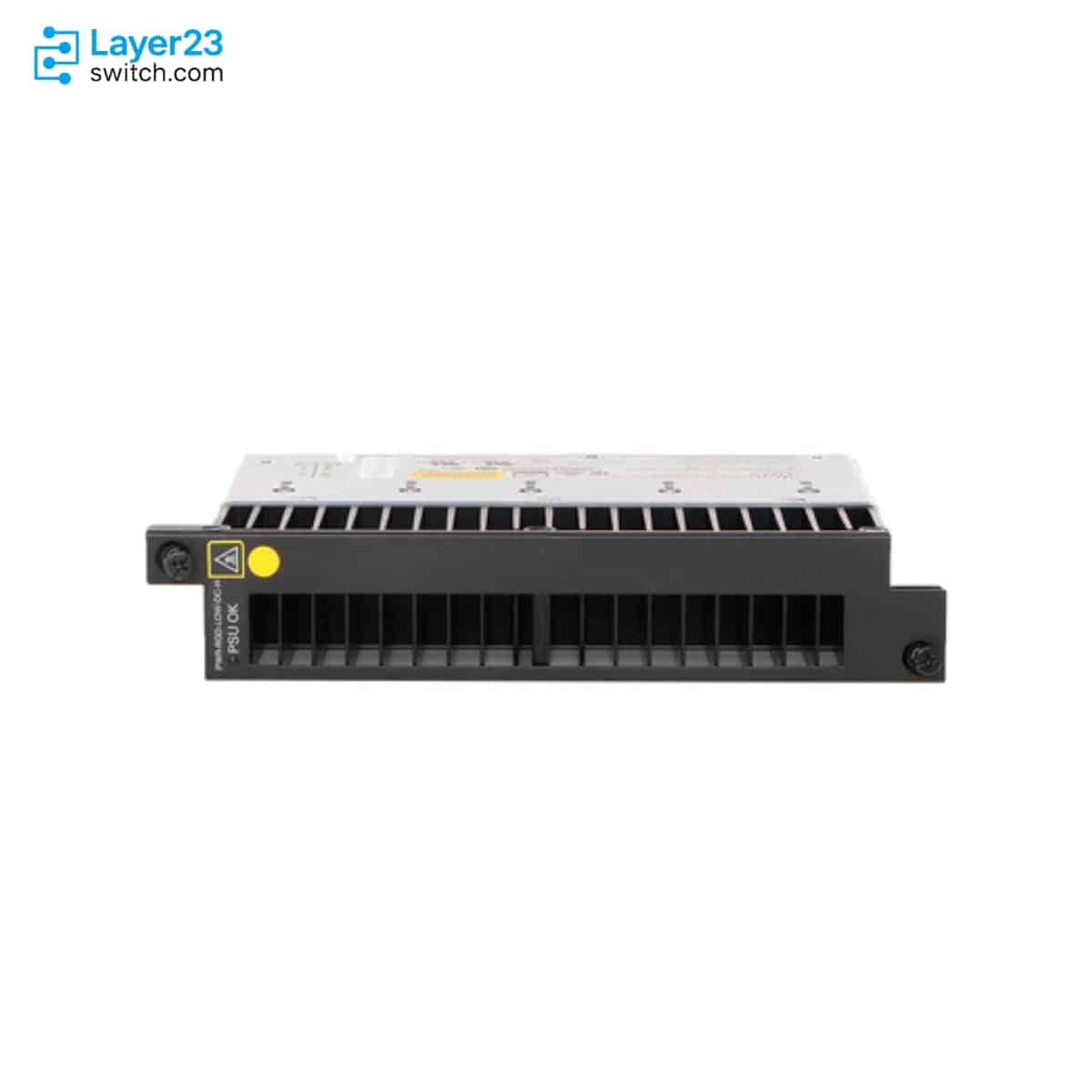

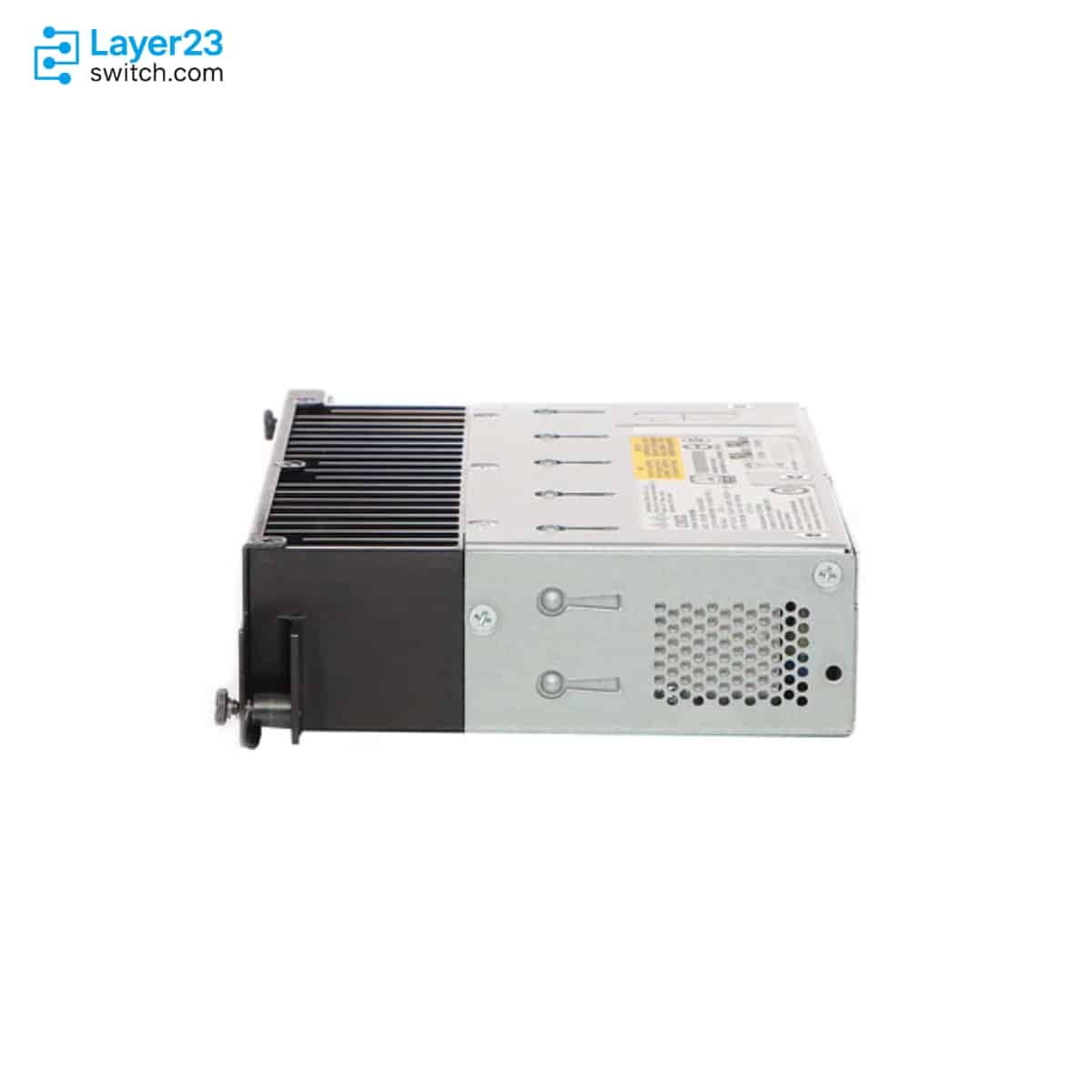

PWR-RGD-LOW-DC-H is a Cisco 150W low-voltage DC rugged power supply for hazardous-location PoE/PoE+ deployments on compatible Cisco Industrial Ethernet switches.
This power supply is used when an IE 4010 or IE 5000 industrial switch needs DC 24-60V nominal input, DC 18-75V supported input, and PoE/PoE+ power support in a rugged cabinet or industrial network design.
Before requesting a quote, confirm the switch model, DC input range, PoE load, hazardous-location requirement, and whether the site needs low-voltage DC rather than AC/DC input.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
SKU |
PWR-RGD-LOW-DC-H |
|
Product Type |
Low-voltage DC rugged power supply |
|
Product Family |
Cisco Industrial Ethernet power supply |
|
Output Power |
150 W |
|
Input Type |
Low-voltage DC |
|
Nominal Input Voltage |
DC 24-60V/10A |
|
Input Voltage Range |
DC 18-75V |
|
PoE Support |
PoE/PoE+ |
|
Hazardous Location |
Yes |
|
Output Isolation |
Galvanically isolated from power input |
|
Weight |
2.5 lb (1.13 kg) |
|
Dimensions |
1.58 x 7 x 5 in. without mounting flanges |
|
Supported Platforms |
Cisco IE 4010 and Cisco IE 5000 Series |
Application Scenarios
Use PWR-RGD-LOW-DC-H when the site power design provides low-voltage DC input and the compatible Cisco industrial switch must run from a DC 24-60V nominal source.
Choose this SKU when the installation calls for a power supply with the -H hazardous-location suffix and the switch must support PoE/PoE+ field devices such as cameras, access points, or industrial endpoints.
Use PWR-RGD-LOW-DC-H as a replacement or spare for compatible IE 4010 and IE 5000 installations already standardized on 150W low-voltage DC power supplies.
Product Comparison
|
Parameter |
PWR-RGD-LOW-DC-H |
PWR-RGD-AC-DC-H |
PWR-RGD-AC-DC-250 |
|---|---|---|---|
|
Product Type |
Low-voltage DC power supply |
High-voltage AC or DC power supply |
High-voltage AC or DC power supply |
|
Output Power |
150 W |
150 W |
250 W |
|
Nominal Input Voltage |
DC 24-60V/10A |
AC 100-240V/2.0A 50-60Hz or DC 100-250V/2.0A |
AC 100-240V 3.3A 50-60Hz or DC 100-250V 3.3A |
|
Input Voltage Range |
DC 18-75V |
AC 85-264V or DC 88-300V |
AC 85-264V or DC 88-300V |
|
PoE Support |
Yes |
Yes |
Yes |
|
Hazardous-Location Power Application |
Yes |
Yes |
Yes |
|
Output Isolation |
Galvanically isolated from power input |
Galvanically isolated from power input |
Galvanically isolated from power input |
|
Weight |
2.5 lb (1.13 kg) |
2.55 lb (1.16 kg) |
3.1 lb (1.4 kg) |
- Choose PWR-RGD-LOW-DC-H when the cabinet or industrial power system provides low-voltage DC input.
- Choose PWR-RGD-AC-DC-H when the same 150W class is needed but the site uses high-voltage AC or DC input.
- Choose PWR-RGD-AC-DC-250 when the compatible switch design needs the higher 250W power class.
- Confirm the switch model before ordering because power supply support is platform-specific.
Selection Guide
1. Choose PWR-RGD-LOW-DC-H for low-voltage DC input
Select PWR-RGD-LOW-DC-H when the project requires a Cisco rugged 150W power supply with DC 24-60V nominal input and DC 18-75V supported input.
2. Choose an AC/DC model if the site power source is different
If the installation uses high-voltage AC or high-voltage DC input, compare PWR-RGD-AC-DC-H or PWR-RGD-AC-DC-250 instead of ordering a low-voltage DC module.
3. Check PoE budget against the switch model
PoE/PoE+ power available to powered devices depends on the installed switch platform and power supply count. Confirm the required PoE load before quoting quantity.
4. Verify hazardous-location and installation requirements
Confirm whether the site requires an -H suffix power supply, the target Cisco Industrial Ethernet switch model, wiring requirements, and local electrical compliance before purchase.
PoE Power Planning
|
Platform |
One 150W Power Supply |
Two 150W Power Supplies |
Planning Note |
|---|---|---|---|
|
Cisco IE 4010 Series |
80 W available PoE power |
200 W available PoE power |
Budget applies to IE-4010-16S12P and IE-4010-4S24P with 150W supply wattage |
|
Cisco IE 5000 Series |
65 W available PoE power |
185 W available PoE power |
Budget applies to IE-5000-12S12P-10G and IE-5000-16S12P with 150W supply wattage |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Target Switch Platform |
Cisco IE 4010 or Cisco IE 5000 compatibility |
Confirms the power supply is being used with a documented Cisco industrial switch platform |
|
Exact SKU |
PWR-RGD-LOW-DC-H |
Prevents confusion with high-voltage AC/DC or 250W rugged power supplies |
|
Input Power Source |
DC 24-60V nominal, DC 18-75V supported |
Confirms the site power source matches the low-voltage DC module |
|
Output Power Class |
150 W |
Confirms the power supply class used in PoE budget planning |
|
PoE/PoE+ Requirement |
Powered-device load and number of power supplies |
Available PoE power depends on platform and supply count |
|
Hazardous-Location Requirement |
Whether the installation requires the -H suffix |
Hazardous-location installations require the correct certified power supply version |
|
Wiring and Installation |
Low-voltage DC wiring, terminals, grounding, and local electrical code |
Industrial power installations must match the documented wiring approach |
|
Purchase Details |
Quote, stock status, lead time, warranty handling, and shipping destination |
Helps confirm availability and delivery before the maintenance window |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| SKU | PWR-RGD-LOW-DC-H | Product Type | Low-voltage DC rugged power supply |
| Product Family | Cisco Industrial Ethernet power supply | Output Power | 150 W |
| Input Type | Low-voltage DC | Nominal Input Voltage | DC 24-60V/10A |
| Input Voltage Range | DC 18-75V | PoE Support | Yes |
| Application | Low voltage DC power source, for hazardous locations PoE power application | Hazardous Location | Yes |
| Output Isolation | Galvanically isolated from power input | Weight | 2.5 lb (1.13 kg) |
| Dimensions Without Mounting Flanges | 1.58 x 7 x 5 in. (4 x 17.8 x 12.7 cm) | Dimensions With Mounting Flanges | 1.58 x 8.15 x 5 in. (4 x 20.7 x 12.7 cm) |
| Field Replaceable | Yes | Supported Platforms | Cisco IE 4010 and Cisco IE 5000 Series |
