PWR-RGD-AC-DC-250 Description

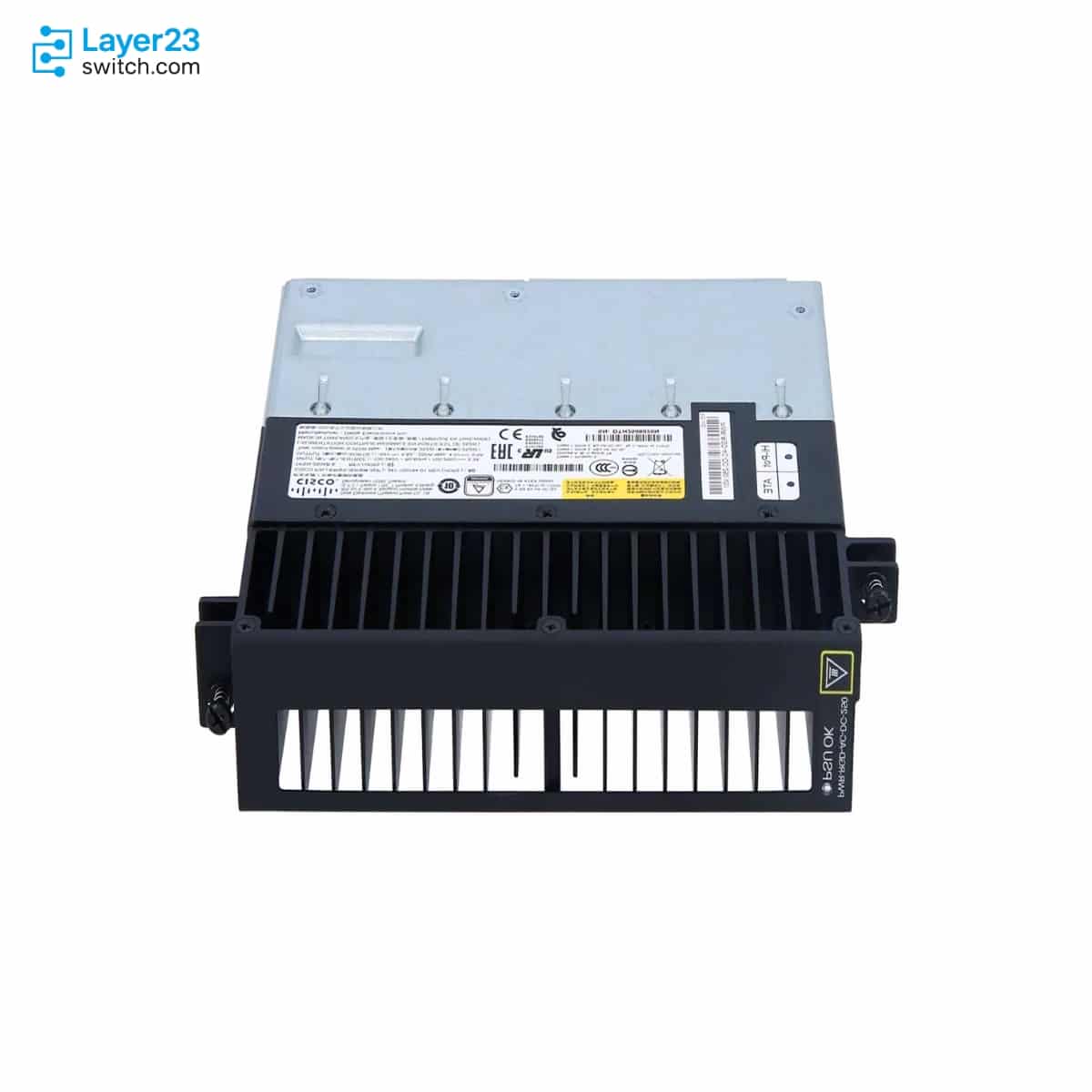

PWR-RGD-AC-DC-250 is a Cisco rugged 250W AC/DC power supply for supported industrial and rugged Cisco platforms. It supports AC or high-voltage DC input, 100 to 240 VAC nominal AC input, 100 to 250 VDC nominal DC input, 85 to 264 VAC and 88 to 300 VDC input ranges, PoE/PoE+ support on supported switch platforms, hazardous-location suitability, and galvanic isolation from power input. Cisco platform context includes IE 4010, IE 5000, IE9300 Rugged Series, and IR8340 Rugged Series deployments that require field-replaceable rugged power.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
SKU |
PWR-RGD-AC-DC-250 |
|
Product Type |
AC/DC power supply |
|
Output Power |
250 W |
|
Input Type |
AC or high-voltage DC |
|
Nominal AC Input |
100 to 240 VAC, 50 to 60 Hz |
|
Nominal DC Input |
100 to 250 VDC |
|
AC Input Range |
85 to 264 VAC |
|
DC Input Range |
88 to 300 VDC |
|
PoE Support |
PoE/PoE+ on supported switch platforms |
|
Hazardous Location |
Yes |
|
Weight |
3.1 lb (1.4 kg) |
|
Output Isolation |
Galvanically isolated from power input |
|
Supported Platforms |
Cisco IE 4010, IE 5000, IE9300 Rugged Series, and IR8340 Rugged Series |
Application Scenarios
Use PWR-RGD-AC-DC-250 when a supported Cisco industrial switch needs more PoE/PoE+ budget than a 150W PSU design can provide.
Choose this PSU when the site power source is AC 100-240V or high-voltage DC 100-250V and the target platform is documented for PWR-RGD-AC-DC-250.
Use PWR-RGD-AC-DC-250 as a spare or replacement when the installed Cisco IE 4010, IE 5000, IE9300, or IR8340 platform already uses the 250W AC/DC power supply family.
Product Comparison
|
Parameter |
PWR-RGD-AC-DC-250 | ||
|---|---|---|---|
|
Product Type |
High-voltage AC/DC power supply |
High-voltage AC/DC power supply |
Low-voltage DC power supply |
|
Output Power |
250 W |
150 W |
150 W |
|
Input Type |
AC or high-voltage DC |
AC or high-voltage DC |
Low-voltage DC |
|
Nominal Input Voltage |
AC 100-240V 50-60Hz or DC 100-250V |
AC 100-240V 50-60Hz or DC 100-250V |
DC 24-60V/10A |
|
Input Voltage Range |
AC 85-264V or DC 88-300V |
AC 85-264V or DC 88-300V |
DC 18-75V |
|
PoE Support |
PoE/PoE+ on supported switch platforms |
PoE/PoE+ on supported switch platforms |
PoE/PoE+ on supported switch platforms |
|
Hazardous Location |
Yes |
Yes |
Yes |
|
Weight |
3.1 lb (1.4 kg) |
2.55 lb (1.16 kg) |
2.5 lb (1.13 kg) |
- Choose PWR-RGD-AC-DC-250 when the platform uses high-voltage AC/DC input and the PoE budget needs more than the 150W PSU option.
- Choose PWR-RGD-AC-DC-H when a 150W AC/DC PSU is enough for the supported platform.
- Choose PWR-RGD-LOW-DC-H only when the cabinet power source is low-voltage DC.
- For IE9300 designs, confirm whether the 250W PSU is enough or whether the 400W PSU is required for higher PoE classes.
Selection Guide
1. Choose PWR-RGD-AC-DC-250 for higher PoE budget on supported switches
Select PWR-RGD-AC-DC-250 when the installation uses AC or high-voltage DC input and the PoE-capable switch needs the 250W power class.
2. Choose the 150W AC/DC model when the PoE load is lower
If the target platform does not need the extra PoE budget, PWR-RGD-AC-DC-H may be the cleaner 150W AC/DC option.
3. Choose a low-voltage DC model when the cabinet uses 24-60VDC
If the site power source is low-voltage DC, compare PWR-RGD-LOW-DC-H instead of ordering a high-voltage AC/DC PSU.
4. Verify platform, PSU mix, and cabinet clearance
Confirm the exact switch or router model, PSU slot count, high-voltage versus low-voltage PSU mix, and rear clearance before ordering PWR-RGD-AC-DC-250.
PoE Power Planning
|
Platform |
One 250W Power Supply |
250W + 150W Power Supplies |
Two 250W Power Supplies |
|---|---|---|---|
|
Cisco IE 4010 Series |
180 W available PoE power |
285 W available PoE power |
360 W to 385 W available PoE power depending on model |
|
Cisco IE 5000 Series |
165 W available PoE power |
270 W available PoE power |
360 W available PoE power |
|
Cisco IE-9310-16P8S4X |
150 W available PoE power |
260 W available PoE power |
350 W available PoE power |
|
Cisco IE9320 PoE Models |
170 W available PoE power |
280 W available PoE power |
370 W available PoE power |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Target Platform |
Cisco IE 4010, IE 5000, IE9300, or IR8340 support |
Confirms the PSU is being selected for a documented Cisco rugged platform |
|
Exact SKU |
PWR-RGD-AC-DC-250 |
Prevents confusion with 150W AC/DC, low-voltage DC, or 400W power supplies |
|
Input Power Source |
AC 100-240V or DC 100-250V nominal input |
Confirms the site power source matches the AC/DC PSU |
|
Output Power |
250 W |
Confirms the PSU class used in PoE and power planning |
|
PoE Budget |
Platform model, powered-device count, and PSU count |
The available PoE budget changes by switch model and power supply combination |
|
PSU Mix |
150W, 250W, or 400W power supply combination |
Cisco notes restrictions when mixing 150W or 250W PSUs with 400W PSUs |
|
Rear Clearance |
Cabinet depth and cable clearance behind the platform |
The 250W PSU can extend farther from supported IE switch chassis than 150W models |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| SKU | PWR-RGD-AC-DC-250 | Product Type | AC/DC power supply |
| Output Power | 250 W | Input Type | AC or high-voltage DC |
| Nominal AC Input | 100 to 240 VAC, 50 to 60 Hz | Nominal DC Input | 100 to 250 VDC |
| Input Current | 3.3 A | AC Input Range | 85 to 264 VAC |
| DC Input Range | 88 to 300 VDC | PoE Support | PoE/PoE+ on supported switch platforms |
| Hazardous Location | Yes | Output Isolation | Galvanically isolated from power input |
| Weight | 3.1 lb (1.4 kg) | Field Replaceable | Yes |
| Supported Platforms | Cisco IE 4010, IE 5000, IE9300 Rugged Series, and IR8340 Rugged Series |
