PWR-RGD-AC-DC-H Description

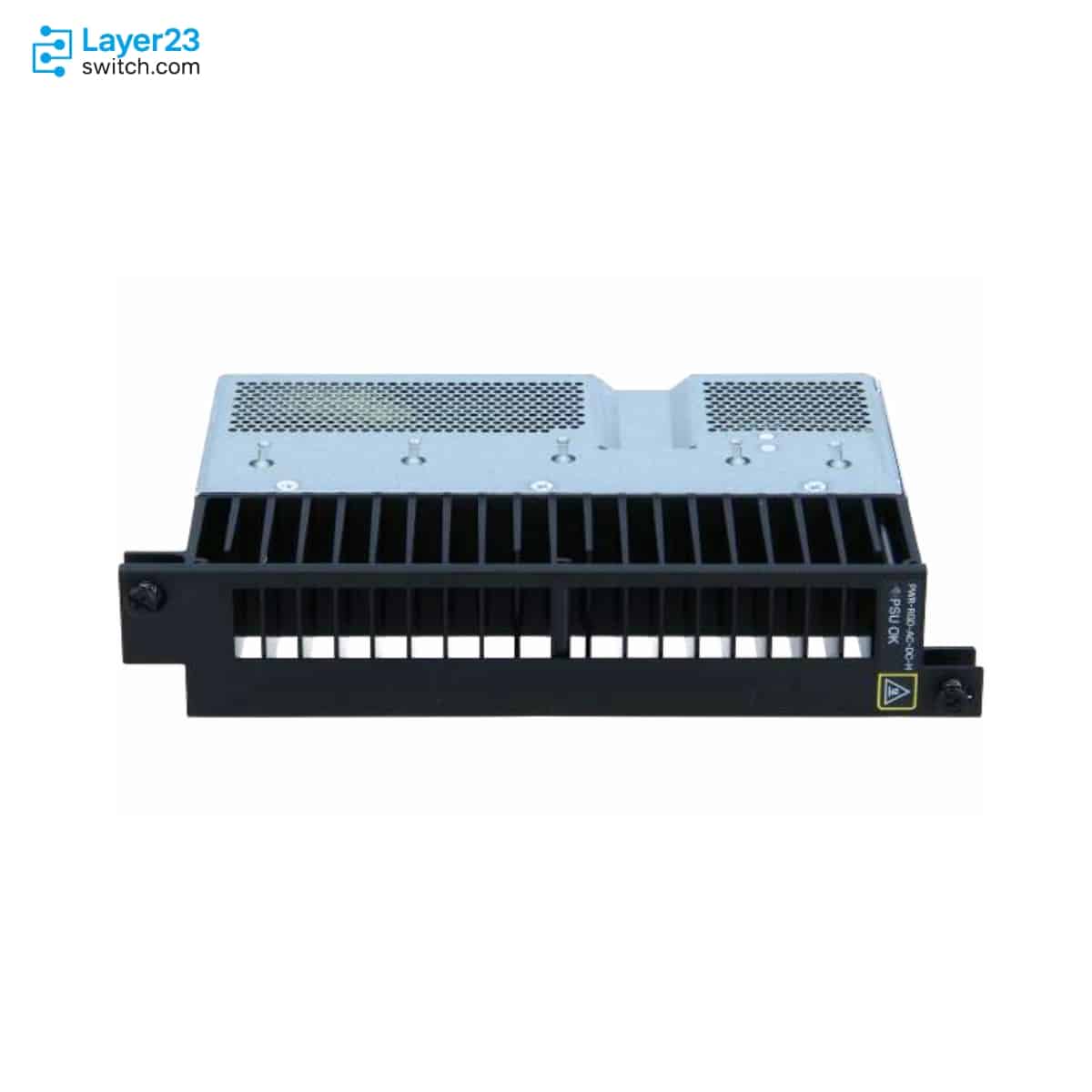

PWR-RGD-AC-DC-H is a Cisco 150W rugged AC/DC power supply for compatible Cisco IE4010, IE5000, IE9300, and IR8340 industrial platforms.
This SKU is used when a Cisco industrial switch or rugged router needs AC 100-240V input or high-voltage DC 100-250V input instead of a low-voltage DC power supply. On PoE-capable switch platforms, it is used in PoE/PoE+ power designs where the PSU count and platform model determine the available power budget.
Before requesting a quote, confirm the target platform, input power source, PSU quantity, hazardous-location requirement, and whether the project needs this 150W AC/DC module or a higher-wattage alternative.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
SKU |
PWR-RGD-AC-DC-H |
|
Product Type |
AC/DC power supply |
|
Product Family |
Cisco rugged power supply |
|
Output Power |
150 W |
|
Input Type |
AC or high-voltage DC |
|
Nominal AC Input |
100 to 240 VAC, 50 to 60 Hz |
|
Nominal DC Input |
100 to 250 VDC |
|
AC Input Range |
85 to 264 VAC |
|
DC Input Range |
88 to 300 VDC |
|
PoE Support |
PoE/PoE+ on supported switch platforms |
|
Hazardous Location |
Yes |
|
Weight |
2.55 lb (1.15 kg) |
|
Dimensions |
1.58 x 7 x 5 in. without mounting flanges |
|
Supported Platforms |
Cisco IE 4010, IE 5000, IE9300 Rugged Series, and IR8340 Rugged Series |
Application Scenarios
Use PWR-RGD-AC-DC-H when the site provides AC 100-240V input or high-voltage DC input and the compatible Cisco rugged platform must use a 150W AC/DC power supply.
Choose this SKU when the installation requires the -H hazardous-location version and the connected Cisco industrial switch or router is documented for PWR-RGD-AC-DC-H.
Use PWR-RGD-AC-DC-H as a spare or replacement when the installed Cisco IE 4010, IE 5000, IE9300, or IR8340 platform already uses the 150W AC/DC power supply family.
Product Comparison
|
Parameter |
PWR-RGD-AC-DC-H |
PWR-RGD-LOW-DC-H |
PWR-RGD-AC-DC-250 |
|---|---|---|---|
|
Product Type |
High-voltage AC/DC power supply |
Low-voltage DC power supply |
High-voltage AC/DC power supply |
|
Output Power |
150 W |
150 W |
250 W |
|
Input Type |
AC or high-voltage DC |
Low-voltage DC |
AC or high-voltage DC |
|
Nominal Input Voltage |
AC 100-240V 50-60Hz or DC 100-250V |
DC 24-60V/10A |
AC 100-240V 50-60Hz or DC 100-250V |
|
Input Voltage Range |
AC 85-264V or DC 88-300V |
DC 18-75V |
AC 85-264V or DC 88-300V |
|
PoE Support |
PoE/PoE+ on supported switch platforms |
PoE/PoE+ on supported switch platforms |
PoE/PoE+ on supported switch platforms |
|
Hazardous Location |
Yes |
Yes |
Yes |
|
Weight |
2.55 lb (1.15 kg) |
2.5 lb (1.13 kg) |
3.1 lb (1.4 kg) |
- Choose PWR-RGD-AC-DC-H when the cabinet power source is AC or high-voltage DC and a 150W rugged PSU is enough.
- Choose PWR-RGD-LOW-DC-H when the same 150W class is needed but the site power source is low-voltage DC.
- Choose PWR-RGD-AC-DC-250 when the compatible platform needs the higher 250W power class for a larger PoE budget.
- Do not mix high-voltage and low-voltage power supplies in platforms where Cisco documentation warns against HV/LV mixing.
Selection Guide
1. Choose PWR-RGD-AC-DC-H for AC or high-voltage DC input
Select PWR-RGD-AC-DC-H when the installation provides AC 100-240V, 50-60Hz input or high-voltage DC input and the target Cisco rugged platform supports this PSU.
2. Choose a low-voltage DC model when the cabinet uses 24-60VDC
If the site power design is low-voltage DC, compare PWR-RGD-LOW-DC-H instead of ordering the AC/DC model.
3. Check PoE budget before deciding between 150W and 250W
The 150W PSU can support PoE/PoE+ on supported platforms, but available PoE power depends on the platform and the number of installed power supplies. Use the higher-wattage PSU only when the PoE design requires it and the platform supports it.
4. Verify hazardous-location approval and platform compatibility
Confirm the exact switch or router model, hazardous-location requirement, PSU slot count, wiring method, and local electrical code before purchase.
PoE Power Planning
|
Platform |
One 150W Power Supply |
Two 150W Power Supplies |
Planning Note |
|---|---|---|---|
|
Cisco IE 4010 Series |
80 W available PoE power |
200 W available PoE power |
Budget applies to IE 4010 PoE-capable models with 150W power supplies |
|
Cisco IE 5000 Series |
65 W available PoE power |
185 W available PoE power |
Budget applies to IE-5000-12S12P-10G and IE-5000-16S12P with 150W power supplies |
|
Cisco IE9310 Mixed-Port |
50 W available PoE power |
170 W available PoE power |
Budget applies to IE-9310-16P8S4X with 150W power supplies |
|
Cisco IE9320 PoE Models |
70 W available PoE power |
190 W available PoE power |
Budget applies to listed IE9320 PoE models with 150W power supplies |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Target Platform |
Cisco IE 4010, IE 5000, IE9300, or IR8340 support |
Confirms the PSU is being quoted for a documented Cisco rugged platform |
|
Exact SKU |
PWR-RGD-AC-DC-H |
Prevents confusion with low-voltage DC, 250W, or non-H power supplies |
|
Input Power Source |
AC 100-240V or DC 100-250V nominal input |
Confirms the site power source matches the AC/DC module |
|
Output Power |
150 W |
Confirms the PSU class used in power and PoE planning |
|
PoE Load |
Powered-device count and total wattage |
Available PoE power depends on platform and PSU count |
|
Hazardous Location |
Whether the deployment requires the -H version |
Older non-H power supplies are not approved for hazardous-location applications |
|
PSU Mix |
High-voltage versus low-voltage PSU type |
Cisco documentation warns against mixing HV and LV power supplies |
|
Purchase Details |
Quote, stock status, lead time, warranty handling, and shipping destination |
Helps confirm availability before the installation or maintenance window |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| SKU | PWR-RGD-AC-DC-H | Product Type | AC/DC power supply |
| Product Family | Cisco rugged power supply | Output Power | 150 W |
| Input Type | AC or high-voltage DC | Nominal AC Input | 100 to 240 VAC, 50 to 60 Hz |
| Nominal DC Input | 100 to 250 VDC | AC Input Range | 85 to 264 VAC |
| DC Input Range | 88 to 300 VDC | PoE Support | PoE/PoE+ on supported switch platforms |
| Hazardous Location | Yes | Application | High voltage AC or DC power source for hazardous-location PoE power application |
| Weight | 2.55 lb (1.15 kg) | Dimensions Without Mounting Flanges | 1.58 x 7 x 5 in. (4 x 17.8 x 12.7 cm) |
| Field Replaceable | Yes | Supported Platforms | Cisco IE 4010, IE 5000, IE9300 Rugged Series, and IR8340 Rugged Series |
