PWR-CC1-500WAC Description

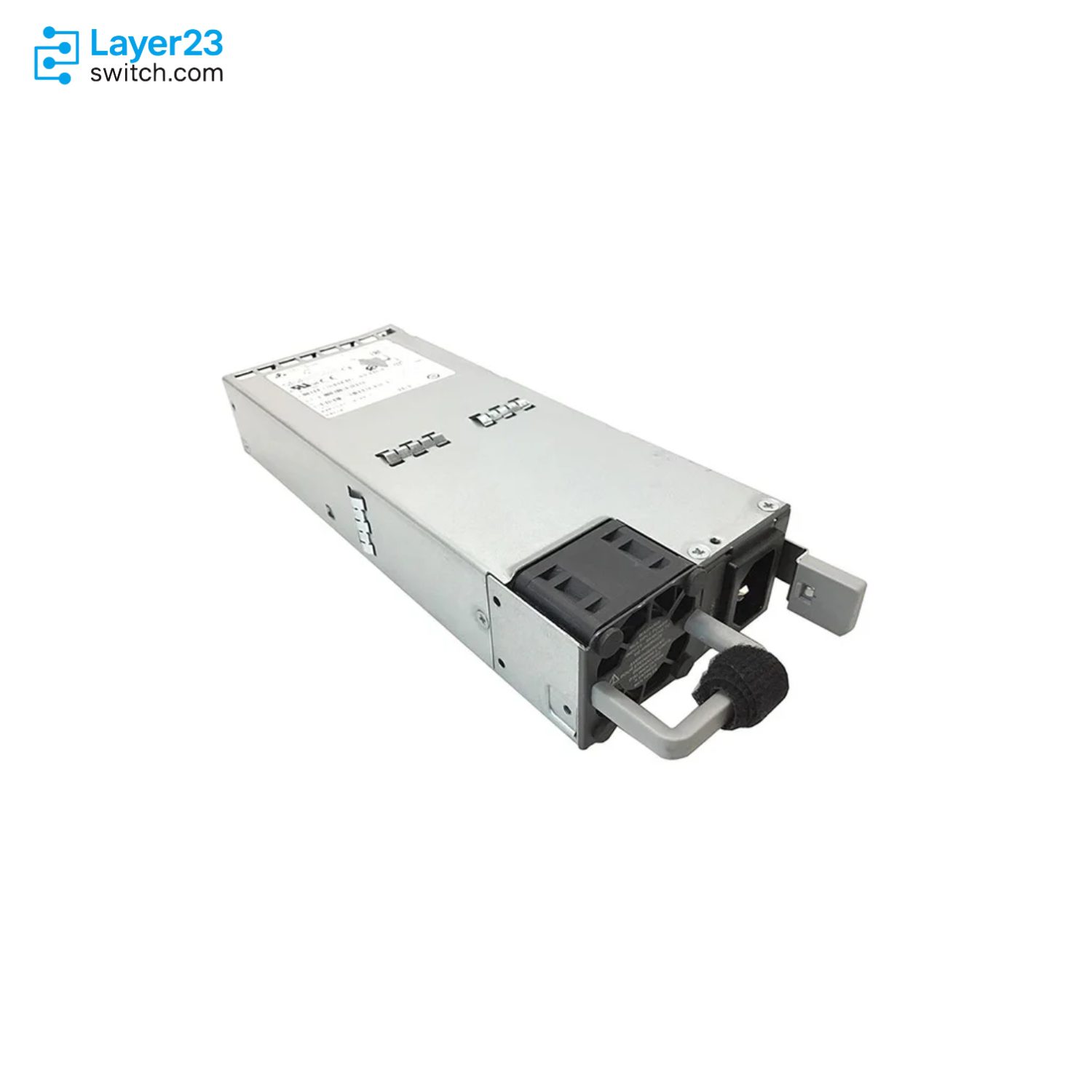

PWR-CC1-500WAC is a Cisco Catalyst 8300 Series 500W AC PoE power supply for the 1RU Catalyst 8300 Edge Platform models C8300-1N1S-4T2X and C8300-1N1S-6T. It serves as a field-replaceable AC power module for branch edge router deployments that need PoE support from the platform power subsystem, with Cisco-confirmed 100 to 240 VAC, 50 to 60 Hz input, IEC C14 input receptacle, 80 Plus Silver efficiency, and a 250W PoE budget for supported 1RU systems.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-CC1-500WAC |
|
Product type |
AC PoE power supply |
|
Compatible platform class |
Catalyst 8300 1RU edge platforms |
|
Compatible platform models |
C8300-1N1S-4T2X and C8300-1N1S-6T |
|
Power maximum rating |
500W |
|
PoE support |
Yes |
|
Default PoE budget |
250W |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
|
Power supply efficiency |
80 Plus Silver |
|
Input current |
6A to 2.5A |
|
Output rating |
12V, 21A and 54V, 4.5A |
Application Scenarios
PWR-CC1-500WAC fits C8300-1N1S-4T2X or C8300-1N1S-6T deployments that need the Cisco-listed AC PoE power supply instead of the default non-PoE 250W AC unit.
Service teams can reserve this SKU for Catalyst 8300 1RU sites where the replacement PSU must keep the 500W AC class and 250W PoE budget available.
Procurement teams should keep PWR-CC1-500WAC in the AC PoE lane and keep PWR-CC1-400WDC for the same 1RU platform group when the rack is designed around -40 to -72 VDC input.
Product Comparison
|
Parameter |
PWR-CC1-500WAC | ||
|---|---|---|---|
|
Product type |
AC PoE power supply |
AC power supply |
DC power supply |
|
Compatible platform models |
C8300-1N1S-4T2X and C8300-1N1S-6T |
C8300-1N1S-4T2X and C8300-1N1S-6T |
C8300-1N1S-4T2X and C8300-1N1S-6T |
|
Spare part number |
PWR-CC1-500WAC= |
PWR-CC1-250WAC= |
PWR-CC1-400WDC= |
|
Power maximum rating |
500W with PoE support |
250W |
400W |
|
Default PoE budget |
250W |
Not listed as PoE supply |
Not listed as PoE supply |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
-40 to -72 VDC |
|
Power supply efficiency |
80 Plus Silver |
80 Plus Silver |
85 percent |
|
Input current |
6A to 2.5A |
3A to 1.25A |
13A to 7.25A |
|
Output rating |
12V, 21A and 54V, 4.5A |
12V, 21A |
12V, 33.5A |
|
Output holdup time |
20 ms |
20 ms |
2 ms |
|
Input receptacle |
IEC 320 C14 |
IEC 320 C14 |
Terminal block |
|
Power cord rating |
10A |
5A |
15A #14 wire |
- In a PWR-CC1-500WAC vs PWR-CC1-250WAC comparison, the main difference is the PoE power path: PWR-CC1-500WAC is the 500W AC PoE supply with a 250W PoE budget, while PWR-CC1-250WAC is the 250W AC default supply.
- The PWR-CC1-500WAC difference from PWR-CC1-400WDC is input design and output class. PWR-CC1-500WAC uses 100 to 240 VAC with an IEC 320 C14 receptacle, while PWR-CC1-400WDC uses -40 to -72 VDC with a terminal block.
- For buyers comparing which model to choose, the comparison should start with C8300 1RU chassis fit, AC or DC input, and whether the BOM requires Cisco’s AC PoE power option.
Selection Guide
1. Lock the chassis to the 1RU C8300 family
Order this PSU for C8300-1N1S-4T2X or C8300-1N1S-6T hardware. The 2RU Catalyst 8300 AC supplies use different part numbers and are not interchangeable with the 1RU AC supplies.
2. Treat PoE as the deciding AC supply requirement
Pick the 500W AC PoE line when the BOM must preserve Cisco’s 250W PoE budget on the 1RU router. Stay with PWR-CC1-250WAC only for the default non-PoE AC supply role.
3. Split facility power paths before sourcing
Use this PSU for 100 to 240 VAC racks with an IEC 320 C14 inlet. A DC plant request belongs on PWR-CC1-400WDC because Cisco lists that option with -40 to -72 VDC input and a terminal block.
4. Record base PID and spare PID separately
Quote records should distinguish PWR-CC1-500WAC from the spare part number PWR-CC1-500WAC=. That check keeps service-stock purchases aligned with Cisco’s ordering-guide notation.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Fact |
Quote Check |
|---|---|---|
|
PSU class |
500W AC PoE power supply |
Confirm the requirement is PoE-capable AC power rather than default 250W AC power |
|
PoE budget |
250W PoE budget |
Match the module and endpoint power plan to the Cisco-listed budget |
|
Platform scope |
C8300-1N1S-4T2X and C8300-1N1S-6T |
Keep the PSU tied to Catalyst 8300 1RU router models |
|
Service work |
Cisco warns to consider total power consumption when removing supplies in boost mode |
Check redundancy and load before a field replacement |
Ordering Checklist
|
Check Area |
Evidence to Confirm |
Risk Controlled |
|---|---|---|
|
PID formatting |
Base PID PWR-CC1-500WAC and spare PID PWR-CC1-500WAC= |
Avoids mixing the installed PSU identifier with the spare ordering line |
|
Router fit |
C8300-1N1S-4T2X or C8300-1N1S-6T |
Keeps the order inside the Catalyst 8300 1RU platform group |
|
PoE scope |
500W rating with Cisco-listed 250W PoE budget |
Prevents a default PWR-CC1-250WAC replacement from being used where PoE power is required |
|
Facility feed |
100 to 240 VAC at 50 to 60 Hz |
Separates this AC PSU from the PWR-CC1-400WDC DC input path |
|
Electrical output |
12V 21A plus 54V 4.5A |
Confirms the supply matches both system output and PoE output requirements |
|
Maintenance window |
Redundant PSU status and total load during boost-mode service |
Reduces the risk of removing a supply that is carrying more load than the remaining PSU can support |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-CC1-500WAC | Spare part number | PWR-CC1-500WAC= |
| Product type | AC PoE power supply | Compatible platform class | Catalyst 8300 1RU edge platforms |
| Compatible platform models | C8300-1N1S-4T2X and C8300-1N1S-6T | Power maximum rating | 500W |
| Default PoE budget | 250W | Input voltage and frequency | 100 to 240 VAC, 50 to 60 Hz |
| Power supply efficiency | 80 Plus Silver | Input current | 6A to 2.5A |
| Output rating | 12V, 21A and 54V, 4.5A | Output holdup time | 20 ms |
| Input receptacle | IEC 320 C14 | Power cord rating | 10A |
| Default platform power design | Dual redundant AC power supplies on Catalyst 8300 platforms | Default 1RU AC alternative | PWR-CC1-250WAC, 250W AC supply |
| Primary 1RU DC alternative | PWR-CC1-400WDC, 400W DC supply | Field replacement note | AC power supply replacement procedure documented for C8300-1N1S-4T2X and C8300-1N1S-6T |
| Country power cable note | Power cables must be chosen by deployment country |
