PWR-CC1-250WAC Description

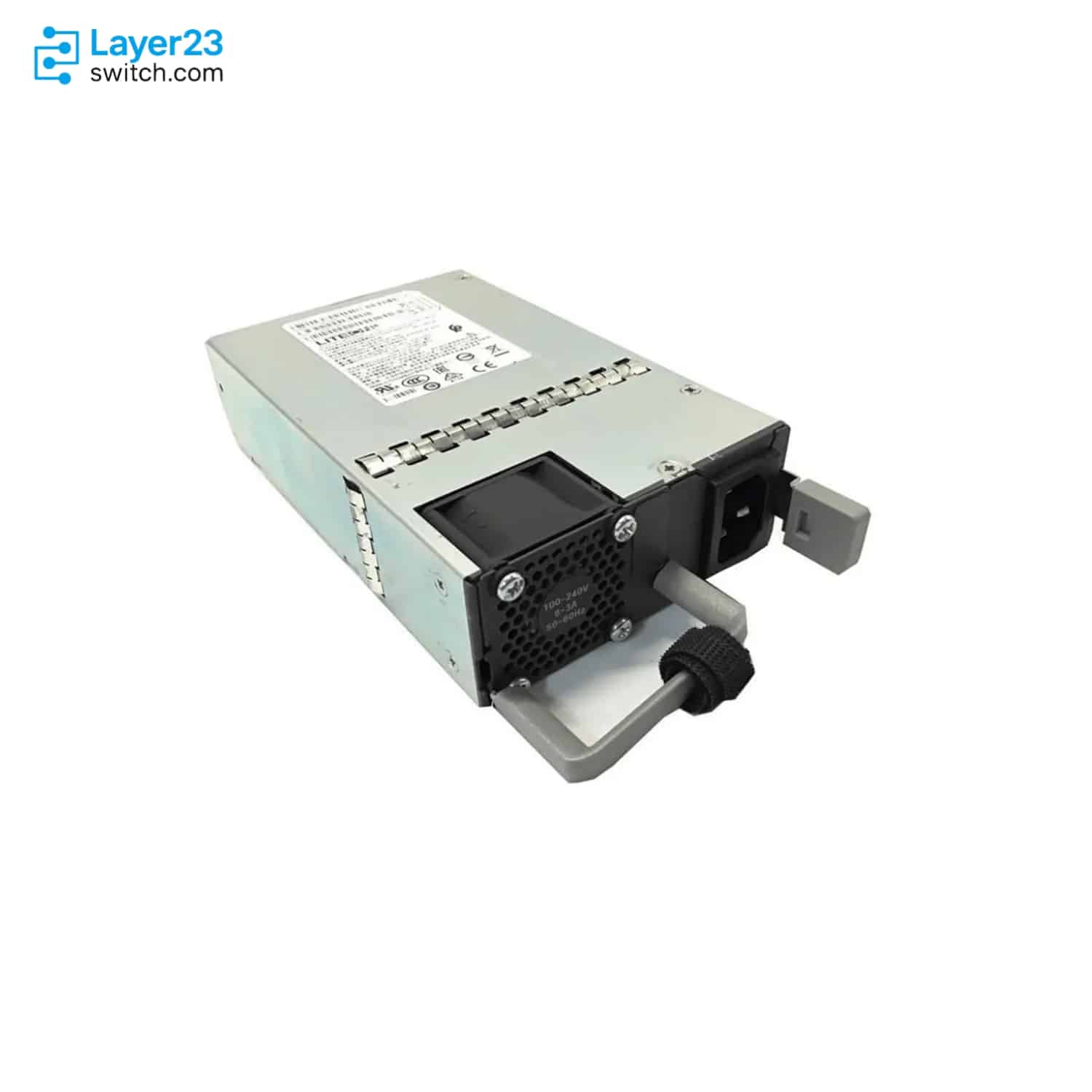

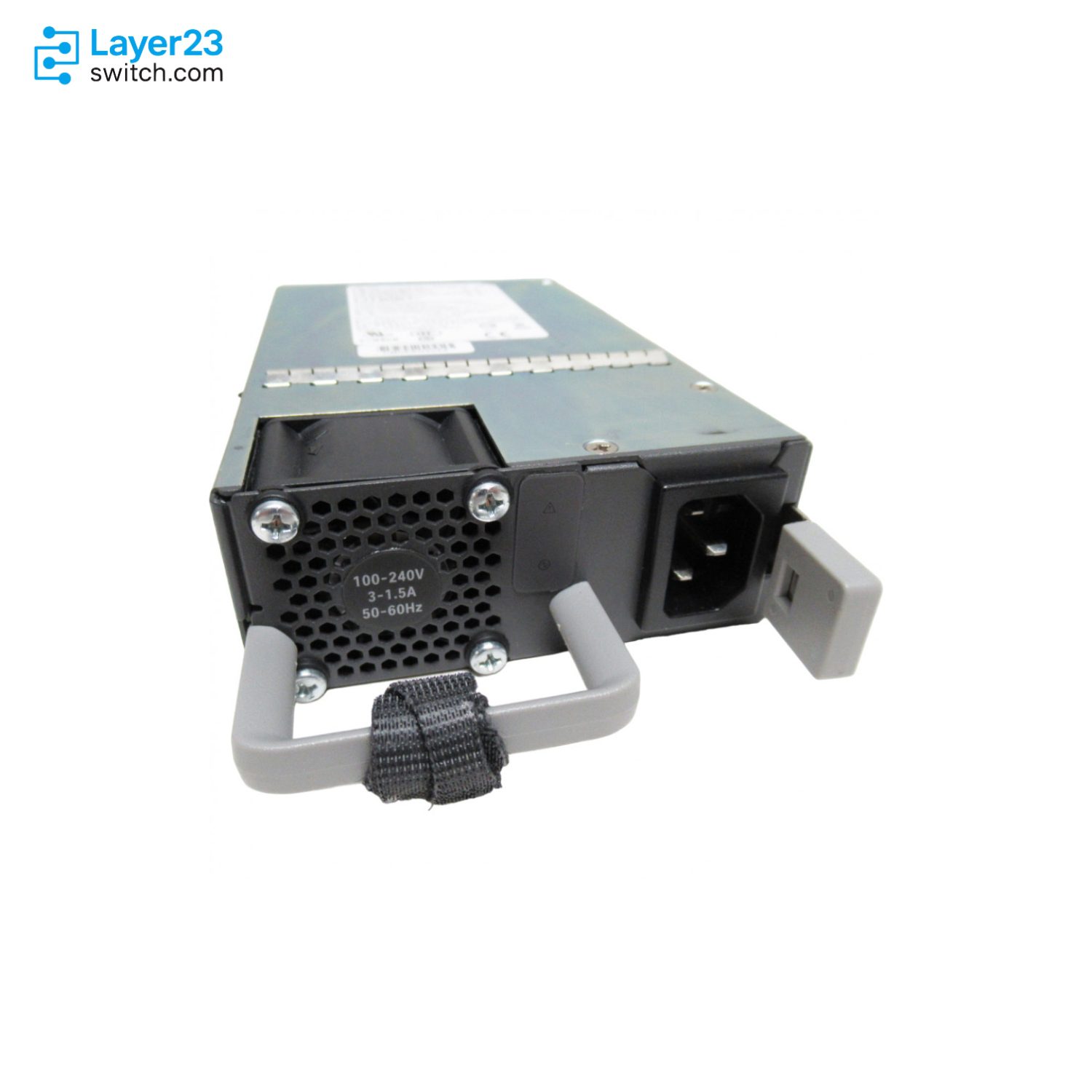

The PWR-CC1-250WAC is a Cisco Catalyst 8300 Series 250W AC power supply for 1RU edge routers. The supply takes 100 to 240 VAC at 50 to 60 Hz, draws 3A to 1.25A, delivers 12V at 21A and holds up its output for 20 ms. It is the default supply in C8300-1N1S-4T2X and C8300-1N1S-6T, both of which ship with two for redundancy, and PoE ports on those routers need at least one PoE-capable supply.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-CC1-250WAC |
|
Product type |
AC power supply |
|
Compatible platform class |
Catalyst 8300 1RU edge platforms |
|
Compatible platform models |
C8300-1N1S-4T2X and C8300-1N1S-6T |
|
Power maximum rating |
250W |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
|
Power supply efficiency |
80 Plus Silver |
|
Input current |
3A to 1.25A |
|
Output rating |
12V, 21A |
|
Output holdup time |
20 ms |
|
Input receptacle |
IEC 320 C14 |
Application Scenarios
At a branch WAN edge, a C8300-1N1S-6T runs on a pair of 250W AC supplies so that one supply can fail while the router keeps forwarding traffic.
In a data closet on 100 to 240 VAC facility power, a C8300-1N1S-4T2X takes its 12V output from this supply through a standard IEC 320 C14 cord and needs no PoE-capable supply when its modules carry no PoE endpoints.
Product Comparison
|
Parameter |
PWR-CC1-250WAC | ||
|---|---|---|---|
|
Power maximum rating |
250W |
500W; PoE budget 250W |
400W |
|
Input-voltage range and frequency |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
DC: -40 to -72V |
|
Output ratings |
12V, 21A |
12V, 21A and 54V, 4.5A |
12V, 33.5A |
|
Power supply input receptacles |
IEC 320 C14 |
IEC 320 C14 |
Terminal block |
|
Power cord rating |
5A |
10A |
15A #14 wire |
PWR-CC1-250WAC is the 250W AC supply for C8300-1N1S-4T2X and C8300-1N1S-6T and the default supply in both routers, while PWR-CC1-500WAC raises the rating to 500W with a 54V, 4.5A output next to the 12V, 21A output, which makes it the PoE option; a build whose NIM or SM ports must power PoE endpoints needs at least one PoE-capable supply such as PWR-CC1-500WAC. Sites wired for -40 to -72 VDC take PWR-CC1-400WDC instead, which connects to a terminal block with 15A #14 wire rather than an IEC 320 C14 cord. All three supplies are listed for the same two routers, so the power feed and the PoE need decide the order line, not the chassis.
Ordering Checklist
- Catalyst 8300 1RU hosts: Match the supply to C8300-1N1S-6T and C8300-1N1S-4T2X, which ship with dual redundant AC supplies and PWR-CC1-250WAC as the default. Other Catalyst 8300 chassis and Catalyst 8200 platforms are not covered by this listing.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-CC1-250WAC | Spare PID | PWR-CC1-250WAC= |
| Product type | AC power supply | Compatible platform class | Catalyst 8300 1RU edge platforms |
| Compatible platform models | C8300-1N1S-4T2X and C8300-1N1S-6T | Power maximum rating | 250W |
| AC input voltage | 100 to 240 VAC | AC input frequency | 50 to 60 Hz |
| Power supply efficiency | 80 Plus Silver | Input current | 3A to 1.25A |
| Output rating | 12V, 21A | Output holdup time | 20 ms |
| Input receptacle | IEC 320 C14 | Power cord rating | 5A |
| Default platform power design | Dual redundant AC power supplies on Catalyst 8300 platforms | Field replacement note | Catalyst 8300 power supplies are field-replaceable |
| Primary AC PoE alternative | PWR-CC1-500WAC, 500W AC PoE supply | Primary DC alternative | PWR-CC1-400WDC, 400W DC supply |
| Temporary substitute note | PWR-CC1-400WAC retained the same support as PWR-CC1-250WAC | Country power cable note | Power cables must be chosen by deployment country |
Get More Information
Need pricing, stock, or shipping details for the PWR-CC1-250WAC ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Can PWR-CC1-250WAC be removed while the router is running?
-
Which PID orders a spare PWR-CC1-250WAC?
-
Can PWR-CC1-250WAC power PoE endpoints on a C8300-1N1S-6T?
-
Which routers use PWR-CC1-250WAC as the default supply?
