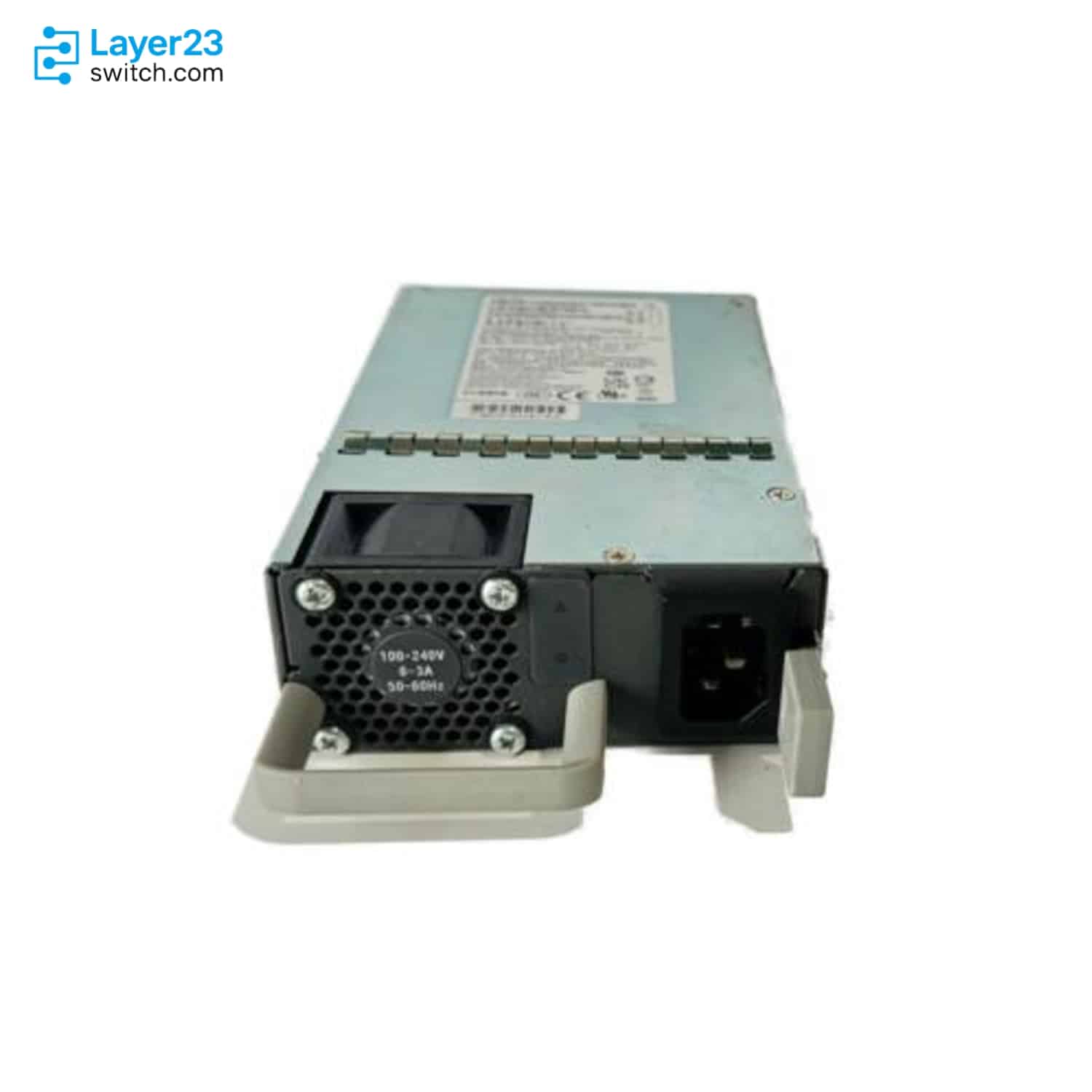

PWR-CC1-400WAC – 400W AC PSU – Catalyst 8300 1RU uCPE
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
PWR-CC1-400WAC Description
PWR-CC1-400WAC is a Cisco Catalyst 8300 Series 400W AC power supply for Catalyst 8300 Edge uCPE deployments, with C8300-UCPE-1N20 listed by Cisco as its primary 1RU platform context. It is an AC PSU and spare-orderable part, with Cisco listing PWR-CC1-400WAC= as the spare PID, 100 to 240 VAC at 50 to 60 Hz input, 80 Plus Silver efficiency, 12V 33A output, 20 ms holdup time, and an IEC 320 C14 input receptacle for AC power-cable matching.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-CC1-400WAC |
|
Product type |
AC power supply |
|
Primary compatible platform |
C8300-UCPE-1N20 |
|
uCPE platform role |
Catalyst 8300 1RU AC power supply |
|
Power maximum rating |
400W |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
|
Power supply efficiency |
80 Plus Silver |
|
Input current |
6A to 3A |
|
Output rating |
12V, 33A |
|
Output holdup time |
20 ms |
|
Input receptacle |
IEC 320 C14 |
Application Scenarios
PWR-CC1-400WAC fits C8300-UCPE-1N20 deployments that are standardized on AC facility power and need a Cisco-listed 400W PSU or spare.
Operations teams can keep PWR-CC1-400WAC for AC-fed C8300-UCPE-1N20 sites and reserve PWR-CC1-400WDC for DC plant locations that use terminal-block input.
For non-uCPE Catalyst 8300 1RU edge platforms, this PID should be checked against Cisco’s temporary substitute notice rather than treated as the current default 250W AC supply line.
Product Comparison
|
Parameter |
PWR-CC1-400WAC | ||
|---|---|---|---|
|
Product type |
AC power supply |
DC power supply |
AC power supply |
|
Documented platform context |
C8300-UCPE-1N20 and legacy 1RU substitute notice |
C8300-UCPE-1N20 and Catalyst 8300 1RU DC power option |
C8300-1N1S-4T2X and C8300-1N1S-6T |
|
Spare part number |
PWR-CC1-400WAC= |
PWR-CC1-400WDC= |
PWR-CC1-250WAC= |
|
Power maximum rating |
400W in uCPE power-supply specifications |
400W |
250W |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
-40 to -72 VDC |
100 to 240 VAC, 50 to 60 Hz |
|
Power supply efficiency |
80 Plus Silver |
85 percent |
80 Plus Silver |
|
Input current |
6A to 3A |
13A to 7.25A |
3A to 1.25A |
|
Output rating |
12V, 33A |
12V, 33.5A |
12V, 21A |
|
Output holdup time |
20 ms |
2 ms |
20 ms |
|
Input receptacle |
IEC 320 C14 |
Terminal block |
IEC 320 C14 |
|
Power cord rating |
10A |
15A #14 wire |
5A |
- In a PWR-CC1-400WAC vs PWR-CC1-400WDC comparison, the main difference is input power: PWR-CC1-400WAC uses 100 to 240 VAC with an IEC 320 C14 receptacle, while PWR-CC1-400WDC uses -40 to -72 VDC with a terminal block.
- The PWR-CC1-400WAC difference from PWR-CC1-250WAC is platform context and rating. PWR-CC1-400WAC is listed as the 400W AC PSU for C8300-UCPE-1N20, while PWR-CC1-250WAC is the 250W AC supply for C8300-1N1S-4T2X and C8300-1N1S-6T.
- For buyers comparing which model to choose, the comparison should separate C8300-UCPE-1N20 service order, 1RU edge-platform 250W AC replacement, and DC input requirements before the order line is released.
Selection Guide
1. Start with the platform family
Choose PWR-CC1-400WAC for C8300-UCPE-1N20 AC power-supply requirements.
2. Do not mix AC and DC PSU orders
Select PWR-CC1-400WDC instead when the C8300-UCPE-1N20 deployment is wired for -40 to -72 VDC input.
3. Keep the 250W edge-platform line separate
For C8300-1N1S-4T2X or C8300-1N1S-6T default AC replacement, verify whether the order should remain on PWR-CC1-250WAC or references Cisco’s older temporary substitute notice.
4. Confirm spare-part formatting
Use PWR-CC1-400WAC= when procurement needs the Cisco spare PSU part number rather than the base power-supply PID.
Ordering Checklist
|
Control Point |
Required Evidence |
Ordering Risk |
|---|---|---|
|
Exact power supply ID |
PWR-CC1-400WAC or spare PWR-CC1-400WAC= |
Prevents a DC PSU or 250W AC PSU from being placed on the same replacement order |
|
AC input feed |
100 to 240 VAC, 50 to 60 Hz |
Matches the Cisco-listed input range for this AC supply |
|
Output class |
400W, 12V, 33A |
Separates the uCPE 400W PSU from the 250W AC supply used on C8300-1N1S models |
|
Power cord |
IEC 320 C14 receptacle with 10A regional cord rating |
Keeps the rack power cable aligned with the Cisco-listed receptacle and cord rating |
|
Redundancy plan |
C8300-UCPE-1N20 ships with two power supplies for redundancy |
Determines whether the order is a single spare replacement or part of a matched redundant pair |
|
Substitute boundary |
Cisco states PWR-CC1-400WAC is no longer shipped with current Catalyst 8300 1RU edge platforms |
Prevents a legacy supply-chain substitution from being misread as the normal 1RU edge-platform default |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-CC1-400WAC | Spare part number | PWR-CC1-400WAC= |
| Product type | AC power supply | Primary compatible platform | C8300-UCPE-1N20 |
| uCPE platform role | Catalyst 8300 1RU AC power supply | Power maximum rating | 400W |
| Input voltage and frequency | 100 to 240 VAC, 50 to 60 Hz | Power supply efficiency | 80 Plus Silver |
| Input current | 6A to 3A | Output rating | 12V, 33A |
| Output holdup time | 20 ms | Input receptacle | IEC 320 C14 |
| Power cord rating | 10A | uCPE default power design | Two power supplies for redundancy |
| DC alternative | PWR-CC1-400WDC, 400W DC supply | Legacy 1RU substitute note | Temporary substitute for PWR-CC1-250WAC with same support |
| Current 1RU edge-platform note | No longer shipped with current Catalyst 8300 1RU edge platforms | Country power cable note | Power cables must be chosen by deployment country |
