FPR3K-PWR-AC-400 – 400W AC PSU – Secure Firewall 3100 Series
No related products found.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.

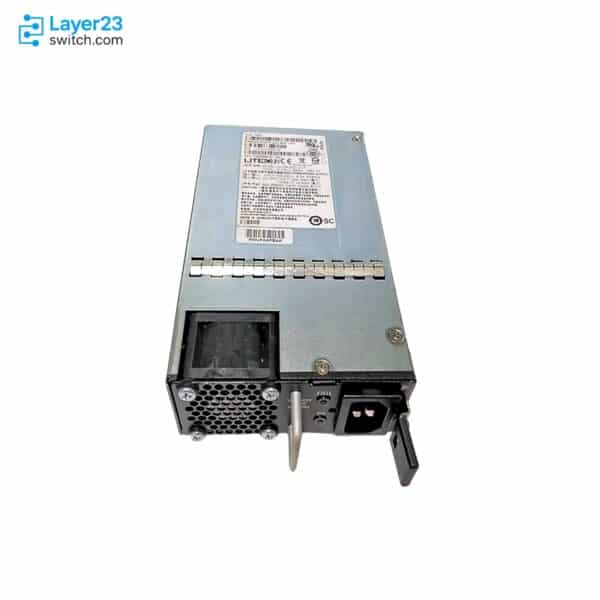

FPR3K-PWR-AC-400 Description
The FPR3K-PWR-AC-400 is a Cisco Secure Firewall 3100 Series hot-swappable 400W AC power supply module for Secure Firewall 3105, 3110, 3120, 3130 and 3140 appliances. The module accepts 100 to 240 VAC at 50 to 60 Hz, delivers 400W of output power per module and gives 1+1 redundancy when two modules are installed. A pair provides redundancy, not 800W of usable power. AC and DC power supplies cannot be mixed in one chassis, so a chassis fitted with this module stays on AC input.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
FPR3K-PWR-AC-400 |
|
Product type |
AC power supply module |
|
Cisco PID description |
400-W AC power supply |
|
Supported platform family |
Cisco Secure Firewall 3100 |
|
Supported chassis models |
FPR3105, FPR3110, FPR3120, FPR3130, and FPR3140 |
|
Input voltage |
100 to 240 VAC |
|
Maximum input current |
<3 A at 200 VAC; <6 A at 100 VAC |
|
Maximum output power |
400 W per module |
|
Frequency |
50 to 60 Hz |
|
Redundancy |
1+1 redundancy with dual power supply modules; the rating stays 400 W, not additive |
|
PSU mixing rule |
AC and DC power supply modules cannot be mixed in the chassis |
|
Spare PID |
FPR3K-PWR-AC-400= |
Application Scenarios
A branch or edge rack with standard 100 to 240 VAC outlets can run a Secure Firewall 3105, 3110 or 3120 on one of these modules, because those appliances start with a single 400W AC supply.
An edge cabinet with two independent AC circuits can seat a pair of modules in a Secure Firewall 3130 or 3140, where the two supplies share the load and the firewall stays powered if one feed or module drops out.
Product Comparison
|
Parameter |
FPR3K-PWR-AC-400 |
FPR3K-PWR-AC-400= | |
|---|---|---|---|
|
Maximum output power |
400 W |
400 W |
400 W |
|
Input voltage |
100 to 240 VAC |
-48 to -60 VDC |
100 to 240 VAC |
|
Redundancy |
1+1 with dual power supply modules |
1+1 with dual power supply modules |
1+1 with dual power supply modules |
|
AC/DC mixing rule |
AC and DC supplies cannot be mixed in one chassis |
AC and DC supplies cannot be mixed in one chassis |
AC and DC supplies cannot be mixed in one chassis |
|
Supported chassis models |
Secure Firewall 3105, 3110, 3120, 3130, 3140 |
Secure Firewall 3105, 3110, 3120, 3130, 3140 |
Secure Firewall 3105, 3110, 3120, 3130, 3140 |
|
Spare unit |
No |
No |
Yes |
FPR3K-PWR-AC-400 is the AC module of this group, taking 100 to 240 VAC input, while PWR-CC1-400WDC delivers the same 400 W output from -48 to -60 VDC. A rack fed by DC power needs PWR-CC1-400WDC, and Cisco does not allow AC and DC power supplies to be mixed in one Secure Firewall 3100 chassis. FPR3K-PWR-AC-400= is the spare ordering form of the same 400 W AC module, so it fits a spare purchase rather than a different electrical option. All three PIDs are rated 400 W per module and support 1+1 redundancy when two modules are installed, so a pair gives redundancy rather than 800 W of output.
Ordering Checklist
- Secure Firewall 3100 hosts: Confirm the host is a Secure Firewall 3105, 3110, 3120, 3130 or 3140 appliance, such as FPR3120-NGFW-K9. The module is listed in the Secure Firewall 3100 PID table and belongs to the power supply bays of that chassis family.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | FPR3K-PWR-AC-400 | Product type | AC power supply module |
| Cisco PID description | 400-W AC power supply | Supported platform family | Cisco Secure Firewall 3100 |
| Supported chassis models | FPR3105, FPR3110, FPR3120, FPR3130, and FPR3140 | AC input voltage | 100 to 240 VAC |
| Maximum input current | <3 A at 200 VAC; <6 A at 100 VAC | Maximum output power | 400 W per module |
| Frequency | 50 to 60 Hz | Power redundancy | 1+1 redundancy with dual power supply modules; the rating stays 400 W, not additive |
| Dual-supply behavior | Load is shared when both power supply modules are running | AC/DC mixing rule | AC and DC power supply modules cannot be mixed in the chassis |
| Active PSU rule | One power supply module must always be active | 3105 to 3120 AC configuration | Single 400W AC; dual 400W AC optional |
| 3130 and 3140 AC configuration | Dual 400W AC | Spare PID | FPR3K-PWR-AC-400= |
| Comparable DC PID | PWR-CC1-400WDC |
Get More Information
Need pricing, stock, or shipping details for the FPR3K-PWR-AC-400 ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What type of power supply is FPR3K-PWR-AC-400?
-
Which chassis models support FPR3K-PWR-AC-400?
-
What input does FPR3K-PWR-AC-400 require?
-
Does FPR3K-PWR-AC-400 support redundant operation?
-
Can FPR3K-PWR-AC-400 be mixed with a DC supply?
-
How does FPR3K-PWR-AC-400 differ from PWR-CC1-400WDC?
