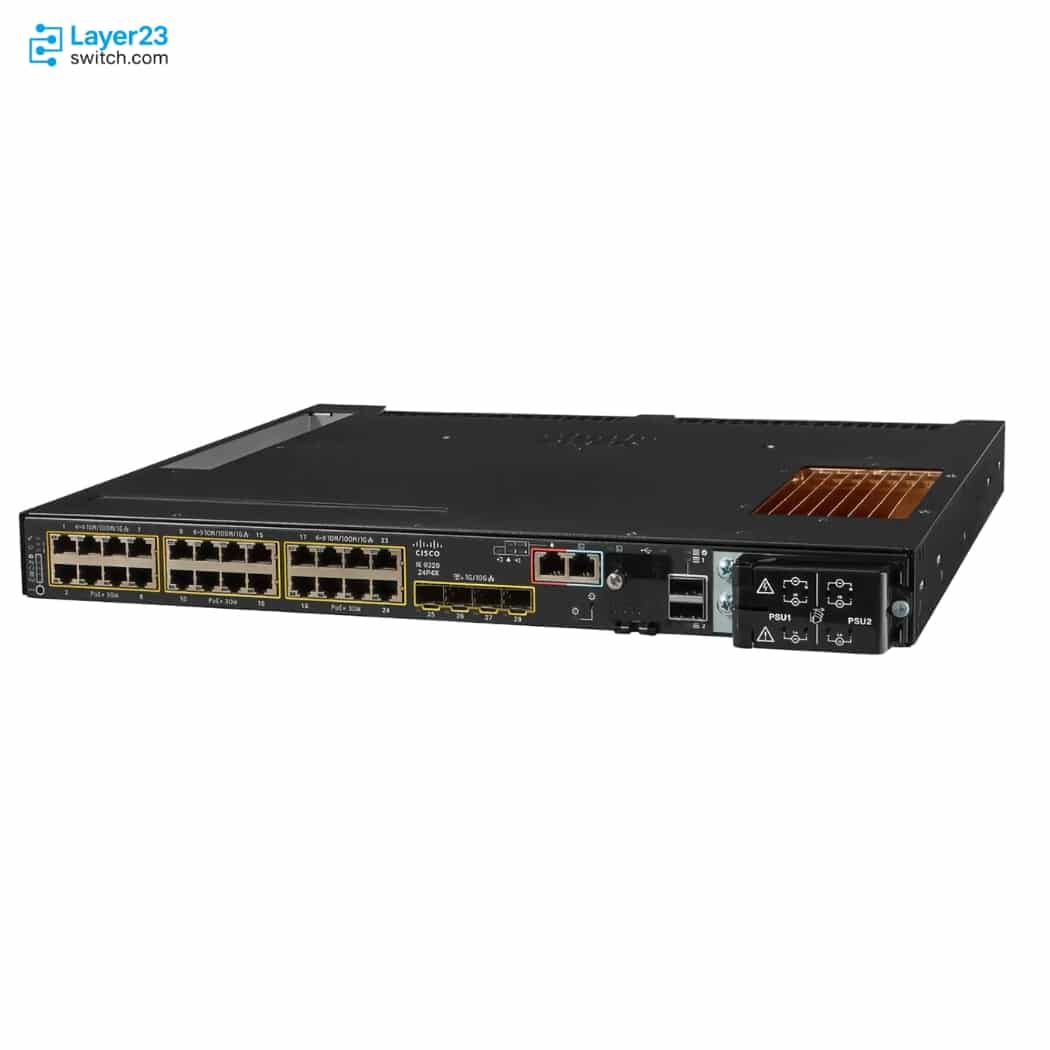

IE-9320-24P4X-E Description
The IE-9320-24P4X-E is a Cisco Catalyst IE9300 Rugged Series industrial switch for rack-mounted PoE+ cabinets where cameras and access points aggregate onto 10G fiber. The switch has 24 Gigabit PoE+ copper ports, four 1/10G SFP+ uplinks and a PoE budget of 70W to 720W set by its two power modules, which take 18-75V DC or 85-264V AC input, in a 1RU chassis rated -40°C to 75°C in a forced-air cabinet. The 720W budget needs dual 400W modules, and 150W or 250W modules cannot load-share with a 400W module.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-9320-24P4X-E |
|
Downlink ports |
24x 10/100/1000M RJ45, PoE/PoE+ (IEEE 802.3af/at) |
|
Uplink ports |
4x 1/10G SFP+ |
|
PoE power budget |
70W to 720W, set by power-module combination |
|
Network license |
Network Essentials (upgradeable via IE9300-NW-A=) |
|
Stacking |
Cisco StackWise, 2 stack ports, up to 4 members |
|
Forwarding rate |
95.23 Mpps |
|
Switching capacity |
128 Gbps (full duplex) |
|
PoE resilience |
Perpetual PoE and Fast PoE |
|
Power modules |
2x modular slots; 150W/250W/400W AC-DC and 150W low-voltage DC options |
|
Power consumption |
39W (excluding PoE output) |
|
Operating temperature |
-40°C to +75°C (forced-air cabinet); -40°C to +60°C sealed |
|
Mounting |
1RU rack mount, fanless, IP30 |
Product Performance
Key Features
Two 400W modules give a 720W pool, which covers 24 ports at 30W each. This is the highest PoE budget among the 24-port IE9320 models.
Four SFP+ slots run 1G or 10G optics, so a closet can start on Gigabit fiber and move to 10G later by changing the modules. The 95.23 Mpps forwarding rate keeps dense camera traffic from queuing at the uplinks.
Single and mixed 150W, 250W and 400W combinations give budgets from 70W to 370W below the dual-400W maximum. 150W and 250W modules cannot load-share with a 400W module.
Perpetual PoE keeps endpoints powered while the switch reloads, and Fast PoE re-energizes ports before IOS XE finishes booting. Surveillance and safety devices skip the blackout.
Network Essentials includes OSPF with 1,000 routes, OSPFv3, RIP and policy-based routing, with REP and MRP rings across stacked members. The perpetual IE9300-NW-A= upgrade adds BGP, VRF-lite and TrustSec.
Two field-replaceable modules with electrically isolated outputs cover 18-75V DC plants and 85-264V AC or 88-300V DC feeds, which allows separate A and B sources in a 1RU chassis.
Application Scenarios
At a yard, terminal or perimeter, the switch powers walls of PTZ cameras from its PoE+ ports and sends the combined video onto 10G SFP+ uplinks toward the recording servers.
Across a large production or logistics hall, the switch feeds Wi-Fi access points, location beacons and connected tools, and stacked chassis extend the powered port count as radios are added.
A major ITS junction built to NEMA TS2 can place the switch where cameras, signal controllers and roadside units concentrate and the corridor backbone already runs on 10G fiber.
Product Comparison
|
Parameter |
IE-9320-24P4X-E | ||
|---|---|---|---|
|
Downlinks |
24 ports 10/100/1000M RJ45 PoE+ |
24 ports 10/100/1000M RJ45 PoE+ |
24 ports 10/100/1000M RJ45 |
|
Uplinks |
4 ports 1/10G SFP+ |
4 ports 1000M SFP |
4 ports 1/10G SFP+ |
|
Software license (default) |
Network Essentials |
Network Essentials |
Network Essentials |
|
PoE power budget |
Up to 720W (dual 400W) |
Up to 480W (dual 400W, IOS XE 17.18.1+) |
No PoE (data only) |
|
Forwarding rate |
95.23 Mpps |
41.66 Mpps |
95.23 Mpps |
|
Switching capacity |
128 Gbps |
56 Gbps |
128 Gbps |
|
HSR and PRP |
Not supported |
Not supported |
Not supported |
|
Power consumption |
39W |
37W |
35W |
|
Rated MTBF (hours) |
489,710 |
489,710 |
651,580 |
IE-9320-24P4X-E and IE-9320-24P4S-E both feed 24 PoE+ copper ports, but IE-9320-24P4X-E adds four 1/10G SFP+ uplinks and 95.23 Mpps and reaches 720W with dual 400W modules, against four 1G SFP uplinks, 41.66 Mpps and 480W on IE-9320-24P4S-E. Closets with Gigabit backhaul and no more than 480W of powered devices can drop to IE-9320-24P4S-E. Racks with no PoE endpoints fit IE-9320-24T4X-E, which keeps the same uplinks and 95.23 Mpps at 35W. HSR/PRP is not supported on IE-9320-24P4X-E; it needs IE-9320-26S2C-E, and GNSS/IRIG-B timing needs IE-9320-22S2C4X-E.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
PoE standards |
IEEE 802.3af (PoE) and 802.3at (PoE+) on all 24 downlinks |
|
PoE power budget ladder |
70W (1x 150W) / 190W (2x 150W) / 170W (1x 250W) / 280W (250W+150W) / 370W (2x 250W) / 320W (1x 400W) / 720W (2x 400W) |
|
Full-load capability |
720W supports all 24 ports at complete 802.3at draw simultaneously |
|
Module pairing rule |
150W/250W modules do not load-share with a 400W module; reach 720W only with dual 400W units |
|
PoE resilience |
Perpetual PoE holds power through reloads; Fast PoE restores power before OS boot |
|
Powered-device count |
Up to 24 PDs; verify per-port class draw when running mixed module configurations below 720W |
Ordering Checklist
- Power modules: Order two PWR-RGD-AC-DC-400 modules for the 720W budget; the other options are PWR-RGD-LOW-DC-H and PWR-RGD-AC-DC-H (150W) and PWR-RGD-AC-DC-250 (250W), and 150W/250W cannot load-share with 400W. The PoE budget is 320W with one 400W and 720W only with dual 400W.
- License tier: Network Essentials is the default on this -E PID; Network Advantage is the perpetual upgrade IE9300-NW-A=. Catalyst Center term licenses are IE9300-DNA-E, 3, 5 or 7 years, and optional. BGP, EIGRP, TrustSec and MACsec-256 are Advantage features, so match the license line to the design.
- SD card: Add SD-IE-16GB= if the switch needs a configuration backup for replacement. The 16 GB SD card is optional and is not added unless ordered.
- Stack cables: Add CAB-STK-0.5M= or CAB-STK-1M= for each added member, up to 4 members. Stack members need these cables, which are ordered as separate parts.
- Industrial optics: Order SFP-10G-SR-I, SFP-10G-LR-X or other -I/-RGD optics for the 4 SFP+ uplinks; GLC-T, GLC-TE and GLC-T-RGD are not recommended. Non-industrial SFPs need temperature derating.
Optional Add-ons
|
Model |
Description |
|---|---|
|
IE9300-NW-A= |
Perpetual Network Advantage upgrade license for -E units |
|
PWR-RGD-AC-DC-400= |
400W AC-DC power module; two required for the 720W PoE budget |
|
250W AC-DC power module | |
|
150W low-voltage DC power module, 18-75V input range | |
|
CAB-STK-0.5M= |
StackWise stacking cable, 0.5 m |
|
CAB-STK-1M= |
StackWise stacking cable, 1 m |
|
RM-RGD-19IN= |
19-inch rack mount kit |
|
SD-IE-16GB= |
16GB SD card for configuration and SwapDrive replacement |

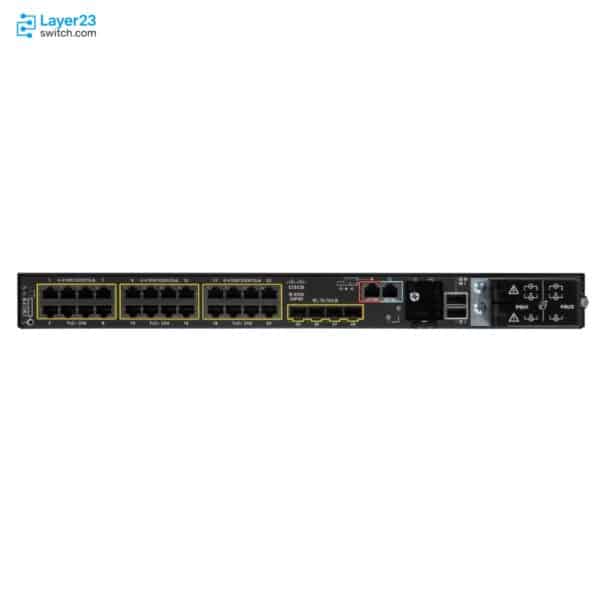

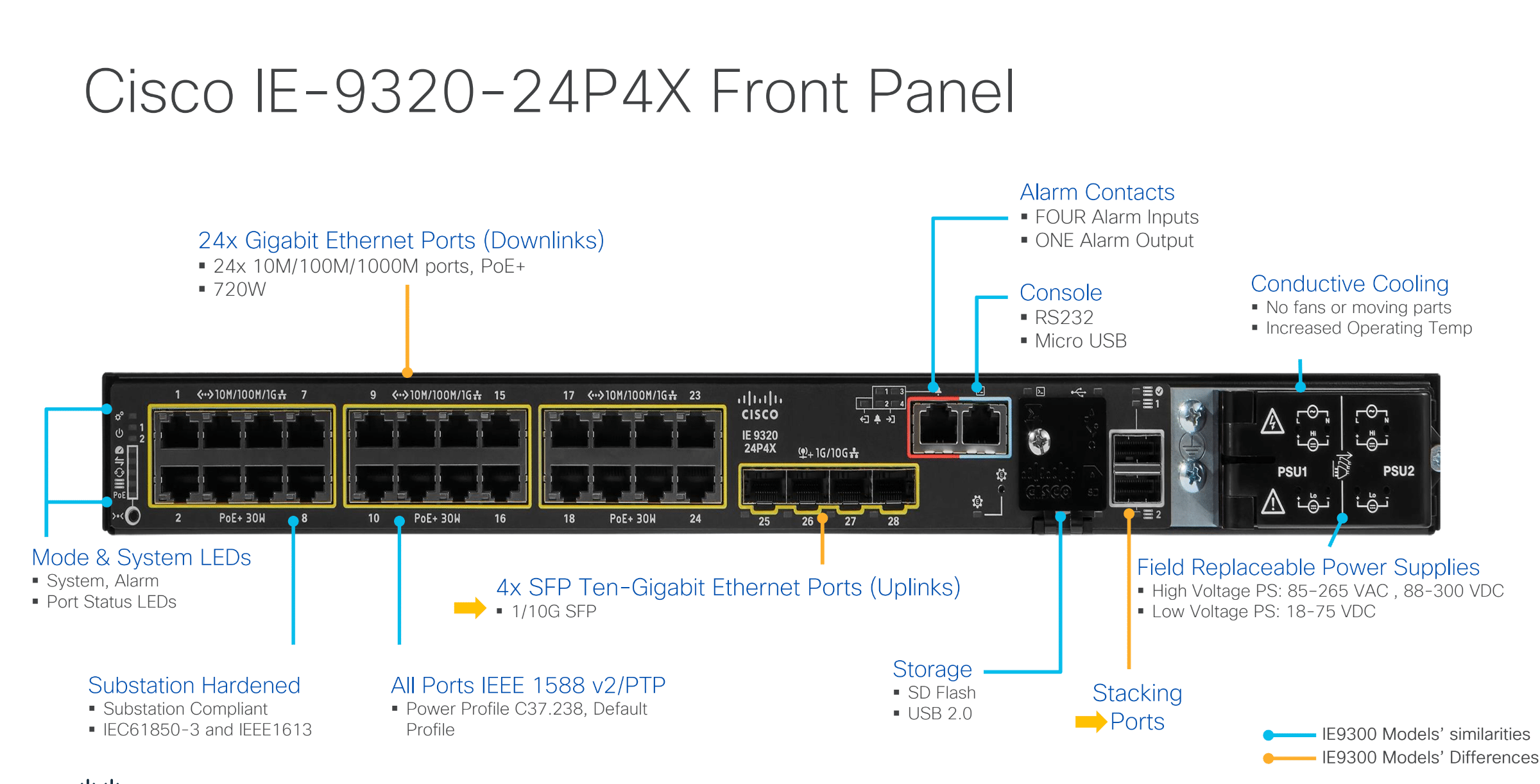

IE-9320-24P4X-E Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.
|
1 |
Display mode button |
6 |
Alarms |
|---|---|---|---|
|
2 |
Express Setup button |
7 |
RJ-45 console port |
|
3 |
Ethernet RJ-45 downlinks |
8 |
(Beneath cover) Micro-USB console port, USB-A host port, and SD slot |
|
4 |
Dual-media downlink ports |
9 |
Stacking interface (IE9320 switches only) |
|
5 |
Ethernet SFP uplinks |
10 |
AC/DC power input |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-9320-24P4X-E | Network license | Network Essentials; perpetual in-place upgrade via IE9300-NW-A= |
| Downlink ports | 24x 10/100/1000M RJ45, IEEE 802.3af/at PoE/PoE+ | Uplink ports | 4x 1/10G SFP+ |
| PoE budget ladder | 70/190/170/280/370/320W by module mix; 720W with dual 400W modules (full 802.3at on all 24 ports) | PoE resilience | Perpetual PoE; Fast PoE |
| Stacking | Cisco StackWise, 2 stack ports, up to 4 members; MRP over Stacking | Performance | 95.23 Mpps; 64 Gbps forwarding, 128 Gbps switching bandwidth |
| Scale (IOS XE 17.17.1+) | 24,000 MAC; 4,096 VLAN IDs, 1,024 active VLANs; 128 STP instances; 1,536 ACL entries | Memory | 4 GB DRAM; 8 GB flash (~2.5 GB user); optional 16 GB SD card |
| Essentials features | Static routing, OSPF (1,000 routes), OSPFv3, RIP, PBR; REP/REP Fast, MRP/Fast MRP, PTP over MRP; PROFINET, CIP, GOOSE/SCADA classification, L2 NAT, Modbus TCP, ERSPAN, IOx; 802.1X, DAI, DHCP snooping, IPv6 FHS, FNF, MACsec-128, TLS 1.3 | Advantage upgrade adds | BGP, EIGRP, IS-IS, HSRP, LISP, BGP-EVPN over VXLAN, VRF-lite, TrustSec (SGACL), MACsec-256, L3 NAT, multicast routing suite, SD-Access fabric roles, GRE, IP SLA |
| PTP timing | IEEE 1588 PTPv2 Default and Power Profile (2011/2017); IEC 61850-9-3 PUP; NTP-PTP interworking | Model boundaries | HSR/PRP/PTP over PRP not supported on 24P4X; GNSS/IRIG-B only on 22S2C4X models |
| Power modules | 2x field-replaceable slots, isolated outputs: PWR-RGD-LOW-DC-H (150W, 18-75V DC), PWR-RGD-AC-DC-H (150W), -250 (250W), -400 (400W); 150W/250W do not load-share with 400W | Power consumption | 39W excluding PoE output |
| Alarms / console | 4 dry-contact alarm in, 1 Form-C alarm out; RS-232 RJ-45 + Micro USB console; optional USB 2.0 and SD card | Operating temperature | -40°C to +75°C forced-air cabinet; +70°C vented; +60°C sealed (safety approval to 60°C) |
| Altitude / humidity | 15,000 ft without derating, to 40,000 ft derated to 25°C; 5-95% non-condensing; storage -40°C to +85°C | Dimensions / weight | 1.72 x 17.5 x 14.0/15.18/15.57 in (depth per module); 4.4 kg (9.7 lb); 1RU, fanless, IP30 |
| MTBF | 489,710 hours | Compliance | IEC 61850-3, IEEE 1613, NEMA TS2:2021, EN 50121-4, AREMA 2019, IEC 62443-4-1/-4-2, hazloc Class I Div 2 / Zone 2 |
Quality Certifications
Customer Reviews
Questions & Answers
-
What is the operating temperature range of IE-9320-24P4X-E?
-
What input voltage does IE-9320-24P4X-E need for its full 720W PoE budget?
-
Can IE-9320-24P4X-E supply 4PPoE Type 4 power above 60W?
-
How many MAC addresses and routes does IE-9320-24P4X-E support on releases before IOS XE 17.17.1?
-
Which hazardous-location approvals does IE-9320-24P4X-E carry?
-
How many switches can a stack of IE-9320-24P4X-E hold before IOS XE 17.12?
-
Which security and IPv6 certifications does IE-9320-24P4X-E list?
-
Which railway standards does IE-9320-24P4X-E meet?
-
Can IE-9320-24P4X-E apply TrustSec SGACL policy?
