IE-4010-16S12P Description
The IE-4010-16S12P is a Cisco Industrial Ethernet 4010 Series rugged managed switch for industrial cabinets that bring fiber field links and PoE devices into one rack or wall-mounted unit. The switch has 12 100/1000M SFP access ports, 12 10/100/1000 PoE/PoE+ copper ports and 4 SFP uplinks, runs LAN Base, and operates from -40 to +75 C. The PoE budget is 80 W with one 150 W supply and reaches 360 W only with two 250 W supplies.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-4010-16S12P |
|
Product type |
Industrial Ethernet switch |
|
Default software license |
LAN Base |
|
Total ports |
28 |
|
SFP uplink ports |
4 x SFP, 100/1000M |
|
SFP fiber access ports |
12 x SFP, 100/1000M |
|
Copper PoE/PoE+ ports |
12 x 10/100/1000 |
|
Power supply selection |
PWR-RGD-AC-DC-H 150W or PWR-RGD-LOW-DC-H 150W module; PWR-RGD-AC-DC-250 250W module for higher PoE budget |
|
Maximum PoE power budget |
360 W with 2 x 250 W power supplies |
|
Switching capacity |
56 Gbps |
|
Forwarding rate |
41.67 mpps |
|
Dimensions and weight |
1.75 x 17.5 x 14.0 in. with 150W supplies, 15.18 in. deep with PWR-RGD-AC-DC-250; 12.7 lb without power supply |
Product Performance
Key Features
Twelve 100/1000M SFP ports serve fiber drops to field devices, and 4 more SFP uplinks sit outside that block. Fiber access and uplinks are planned separately.
One 150 W supply gives 80 W of PoE and two give 200 W. A single 250 W supply gives 180 W, a 250 W plus 150 W pair gives 285 W, and two 250 W supplies give 360 W, which is 30 W on each of the 12 PoE+ ports.
Both slots take field-replaceable AC or DC supplies, including a mix of high-voltage and low-voltage DC. If one supply fails, low-priority PoE ports drop first and high-priority ports stay powered.
LAN Base includes REP, PRP, HSR and MRP ring protocols, plus IEEE 1588 PTP v2 for time synchronization. The same feature set covers CIP EtherNet/IP, PROFINET v2 and MODBUS.
LAN Base routes with IPv4 static routes only. The L-IE4000-RTU= electronic license adds OSPF, EIGRP, BGP, MACsec and VRF-lite.
The switch is rated -40 to +75 C and is certified to IEC 61850-3, IEEE 1613 and EN 50121-4. Class 1 Division 2 and ATEX Zone 2 installations need an enclosure.
Application Scenarios
A transportation cabinet along a highway can land fiber spurs from nearby field devices on the 12 SFP access ports and power IP cameras from the PoE+ copper ports. The 4 SFP uplinks carry the traffic back to the control center.
A utility substation can use the switch for protection relays and meters over fiber and copper, with PRP, HSR or REP rings and IEEE 1588 PTP timing from the LAN Base feature set. Dual power slots let the switch run from the station’s DC battery system.
A manufacturing cell cabinet can join remote machine controllers on fiber with local HMIs and access points on PoE copper ports. CIP EtherNet/IP and PROFINET v2 support keep the cell on common industrial protocols.
Product Comparison
|
Parameter |
IE-4010-16S12P | ||
|---|---|---|---|
|
Total ports |
28 |
28 |
12 |
|
Copper ports |
12 x 10/100/1000 PoE/PoE+ |
24 x 10/100/1000 PoE/PoE+ |
8 x 10/100/1000 non-PoE |
|
SFP access ports |
12 x 100/1000M |
No SFP access ports |
No SFP access ports |
|
SFP uplink ports |
4 x 100/1000M |
4 x 100/1000M |
4 x GE combo (SFP or RJ-45) |
|
PoE power budget |
80 W with one 150 W supply; 360 W with two 250 W supplies |
80 W with one 150 W supply; 385 W with two 250 W supplies |
No PoE ports |
|
Input voltage |
AC 85-264 V or DC 88-300 V; DC 18-75 V with low-voltage supply |
AC 85-264 V or DC 88-300 V; DC 18-75 V with low-voltage supply |
9.6-60 VDC nominal, redundant |
|
Operating temperature |
-40 to +75 C |
-40 to +75 C |
Not published |
|
Default software license |
LAN Base |
LAN Base |
LAN Base |
|
Switching capacity |
56 Gbps |
56 Gbps |
20 Gbps |
IE-4010-16S12P and IE-4010-4S24P share the 28-port IE 4010 platform with 4 SFP uplinks, but IE-4010-16S12P replaces half of the copper PoE block with 12 SFP fiber access ports, leaving 12 copper PoE/PoE+ ports and a 360W maximum PoE budget with two 250W supplies, against 24 copper ports and 385W on IE-4010-4S24P. Cabinets that power more than 12 endpoints over copper move to IE-4010-4S24P, while 12 fiber access links to field devices keep the order on IE-4010-16S12P. Both default to LAN Base, and L-IE4000-RTU= is the upgrade to IP Services. A small cabinet with 8 non-PoE copper ports and 4 GE combo uplinks can use IE-4000-8GT4G-E at 20 Gbps.
PoE Power Planning
|
Review area |
Cisco-confirmed value |
Procurement check |
|---|---|---|
|
PoE-capable copper ports |
12 x 10/100/1000 PoE/PoE+ ports |
Match endpoint count and PoE class before sizing supplies |
|
One 150 W power supply |
80 W maximum PoE power |
Use only where the endpoint load fits the lower budget |
|
Two 150 W power supplies |
200 W maximum PoE power |
Check whether redundancy and load-sharing assumptions match the site design |
|
One 250 W power supply |
180 W maximum PoE power |
Confirm the higher-capacity supply is included in the order |
|
One 250 W plus one 150 W supply |
285 W maximum PoE power |
Avoid treating mixed supplies as the same as dual 250 W supplies |
|
Two 250 W power supplies |
360 W maximum PoE power |
Use this value only when both 250 W supplies are ordered |
Ordering Checklist
- Power supply: Order PWR-RGD-AC-DC-H or PWR-RGD-LOW-DC-H (150W), or PWR-RGD-AC-DC-250 (250W), matched to the site AC or DC feed. The supply mix sets the PoE budget: 80W with one 150W supply, 180W with one 250W supply, 360W with two 250W supplies.
- IP Services license: Order L-IE4000-RTU= to move from the default LAN Base to IP Services. LAN Base has no OSPF, EIGRP or BGP routing, and the upgrade is a separate order line.
- Industrial SFP optics: Select rugged SFPs such as GLC-SX-MM-RGD=, GLC-LX-SM-RGD= or GLC-FE-100FX-RGD= from the IE 4010 support table. These are industrial-temperature (RGD) SFPs, and only SFPs in that table are supported.
- Spare SD card: Add SD-IE-1GB= if a spare is wanted; a 1 GB SD card is included with the switch. The card holds the configuration for switch replacement, and a spare avoids a gap when the card is swapped.
- Rack brackets: Add 21-inch or 23-inch ETSI rack brackets, listed as accessories, if the rack is not 19-inch. Racks of those widths need the matching bracket, ordered separately.
Optional Add-ons
|
Model |
Description |
|---|---|
|
High-voltage AC or DC power supply module listed for Cisco IE 4010 switches | |
|
Low-voltage DC power supply module listed for Cisco IE 4010 switches | |
|
250 W AC or DC power supply module listed for Cisco IE 4010 PoE budget planning | |
|
L-IE4000-RTU= |
Electronic software license for upgrading IE4010 switches from LAN Base to IP Services |
|
IE-LICENSE-SPARE |
Spare software license option for Layer 2 to Layer 3 or MRP protocol upgrades |
|
LIC-MRP-Manager= |
MRP ring manager license listed for the IE 4010 license options |
|
LIC-MRP-Client= |
MRP ring client license listed for the IE 4010 license options |
|
1 GB SD memory card spare listed for Cisco Industrial Ethernet switches |

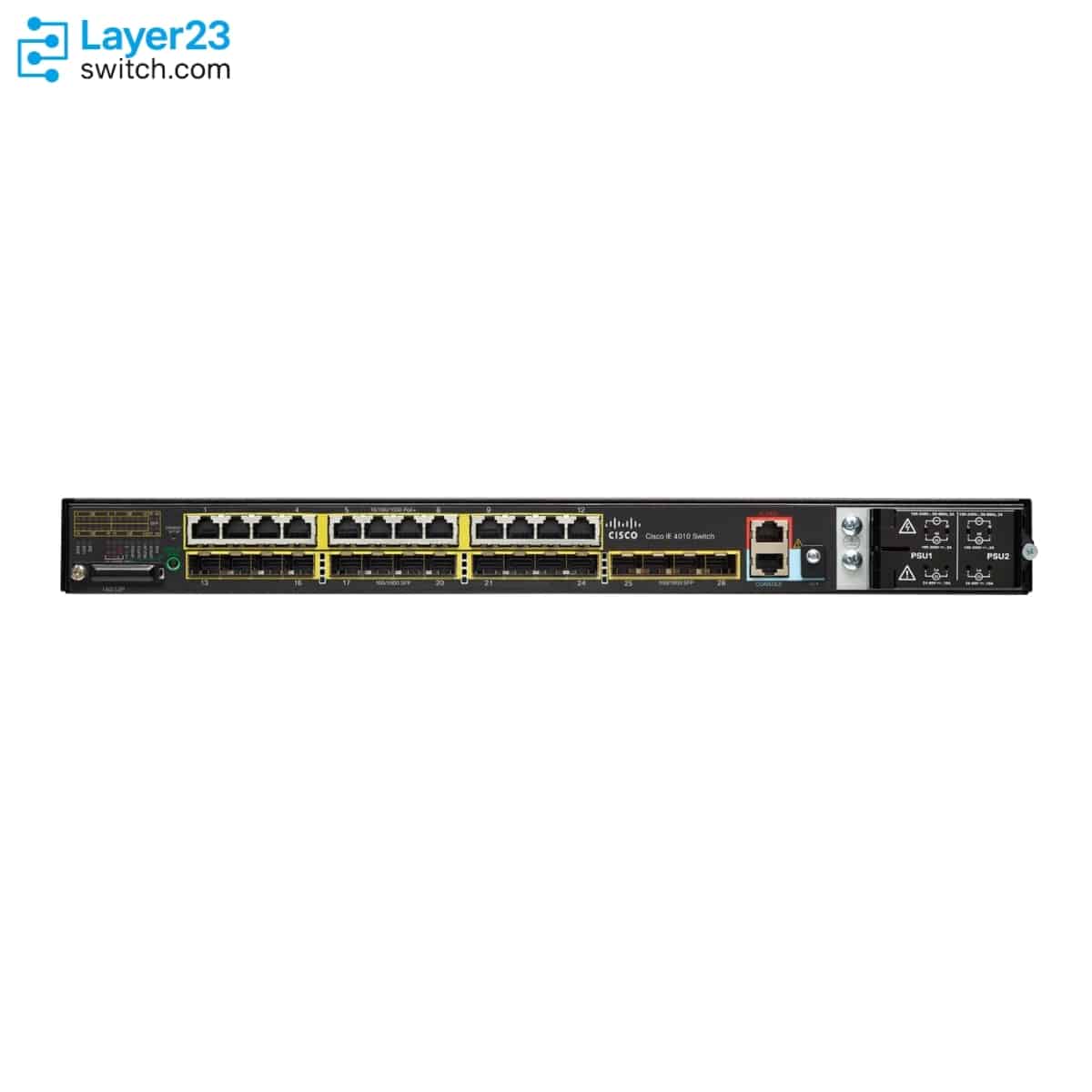

Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
1 |
LEDs |
6 |
Power-input terminal |
|
2 |
Express Setup button |
7 |
Flash memory card slot |
|
3 |
Twelve 10/100/1000 PoE/PoE+ Ports (Downlinks) |
8 |
Display mode button |
|
4 |
Alarm port |
9 |
Twelve 100/1000 SFP Ports |
|
5 |
USB (mini-Type B) console port |
10 |
Console port |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-4010-16S12P | Product type | Industrial Ethernet switch |
| Default software license | LAN Base | License upgrade path | L-IE4000-RTU= for IP Services |
| Total ports | 28 | SFP uplink ports | 4 x SFP, 100/1000M |
| SFP fiber access ports | 12 x SFP, 100/1000M | Copper PoE/PoE+ ports | 12 x 10/100/1000 |
| PoE standards | IEEE 802.3af and IEEE 802.3at compliant powered devices | Maximum PoE power | 360 W with 2 x 250 W power supplies |
| Power-supply slots | 2 field-replaceable redundant power supplies | Power-supply options | AC or DC modules |
| Maximum power consumption without PoE | 70 W | Switching capacity | 56 Gbps |
| Forwarding bandwidth | 28 Gbps | Forwarding rate | 41.67 mpps |
| MAC addresses | 16000 | IGMP multicast groups | 1000 |
| VLANs | 1000 | NAT translation entries | 128 unique subnet NAT translation entries |
| DRAM | 1 GB | Flash | 128 MB |
| Removable storage | 1 GB removable SD card included | Console port | USB mini-Type B and RJ45 console ports |
| Alarm I/O | 4 alarm inputs and 1 Form C alarm output relay | Alarm output rating | 30 VDC at 1 A or 48 VDC at 0.5 A |
| Dimensions | 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm) with PWR-RGD-AC-DC-H or PWR-RGD-LOW-DC-H; 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm) with PWR-RGD-AC-DC-250 | Weight | 5.78 kg (12.7 lb) without power supply |
| Operating temperature | -40 to +75 C | Operating humidity | 5 to 95 percent, noncondensing |
| Operating altitude | Up to 13,800 ft | Thermal spacing | 1.75 in. (4.4 cm) |
| Installation options | Rack or wall installation | Software support example | Cisco IOS Release 15.2(4)EC2 runs on all Cisco Industrial Ethernet IE 4010 switches |
