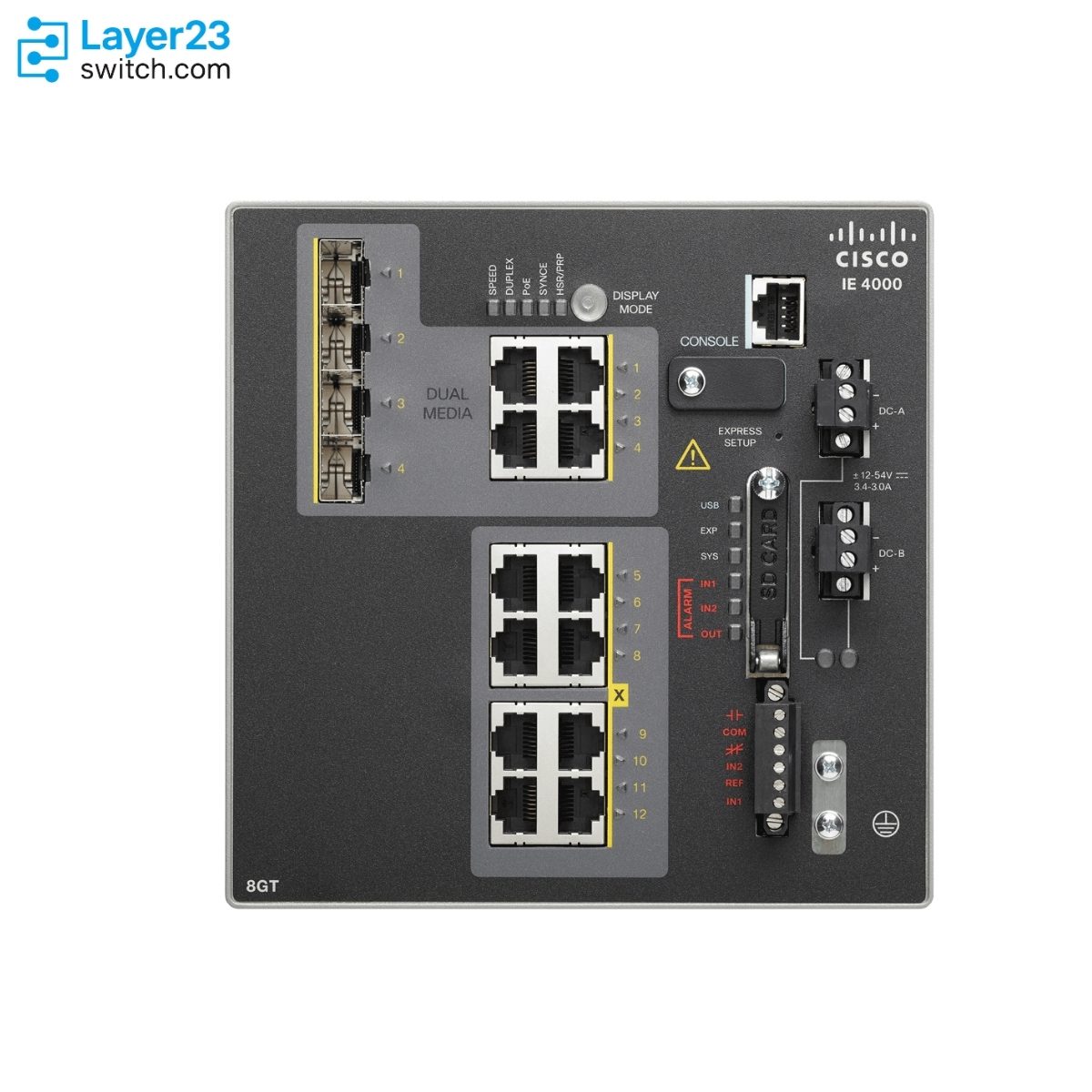

IE-4000-8GT4G-E Description
The IE-4000-8GT4G-E is a Cisco Industrial Ethernet 4000 Series managed switch for DIN-rail industrial edge cabinets that connect copper endpoints. The switch has eight Gigabit Ethernet RJ45 downlinks, four Gigabit Ethernet combo uplinks, a redundant 9.6 to 60 VDC input and 35 W power consumption, with operation from -40C to +70C in a vented enclosure. It runs LAN Base and has no PoE ports, so connected endpoints need their own power.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-4000-8GT4G-E |
|
Product type |
Managed industrial Ethernet switch |
|
Total ports |
12 |
|
Downlink ports |
8 x Gigabit Ethernet copper |
|
Uplink ports |
4 x Gigabit Ethernet combo SFP or RJ45 |
|
Default software feature set |
LAN Base |
|
Power input |
Redundant DC input |
|
Input voltage range |
9.6 to 60 VDC nominal |
|
Maximum input current |
3.7 A |
|
Power consumption |
35 W measured at 9.6 V without PoE power |
|
Dimensions |
6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm) |
|
Weight |
2.88 kg (6.35 lb) |
Product Performance
Key Features
The downlinks are RJ45 copper ports, so cabinet wiring stays on standard Ethernet cable. None of the ports supplies PoE, and endpoints take power from their own supply.
Each Gigabit combo uplink can use SFP fiber or RJ45 copper. The uplink media can follow the cabling at the site.
LAN Base is the default software feature set. Upgrades to IP Services and MRP roles are available as separate software licenses.
The redundant 9.6 to 60 VDC input draws a maximum of 3.7 A. Measured consumption is 35 W at 9.6 V without PoE power.
CIP Ethernet/IP, PROFINET v2, IEEE 1588 PTP v2, NTP to PTP translation and CIP Time Sync are in the feature set. They let the switch sit in a controller network and distribute timing.
The operating range is -40C to +70C in a vented enclosure, -40C to +60C in a sealed enclosure and -34C to +75C with a fan or blower. The enclosure design therefore sets the usable ambient limit.
Application Scenarios
In a machine-cell cabinet, the switch connects eight Gigabit controllers, cameras and drives that are powered separately, and sends their traffic upstream on the combo uplinks.
A wayside cabinet along a rail or road corridor can use the redundant DC input from a battery-backed supply and take a fiber SFP on a combo uplink toward the next cabinet.
In a substation, the switch aggregates copper-connected meters and gateways and runs the CIP Ethernet/IP, PROFINET v2 and IEEE 1588 PTP v2 functions of its LAN Base feature set.
Product Comparison
|
Parameter |
IE-4000-8GT4G-E |
IE-4000-8GT8GP4G-E | |
|---|---|---|---|
|
Total ports |
12 |
12 |
20 |
|
Downlink ports |
8 x GE RJ45 copper |
8 x GE SFP |
8 x GE RJ45 copper plus 8 x GE PoE+ |
|
Combo uplink ports |
4 x GE |
4 x GE |
4 x GE |
|
PoE ports |
0 |
0 |
8 x GE PoE+ |
|
Default PoE budget |
0 W |
0 W |
Not published |
|
Software license |
LAN Base |
LAN Base |
LAN Base |
|
Input voltage range |
9.6 to 60 VDC nominal |
9.6 to 60 VDC nominal |
9.6 to 60 VDC nominal |
|
Maximum input current |
3.7 A |
5.0 A |
4.3 A |
|
Power consumption |
35 W measured at 9.6 V without PoE power |
42 W measured at 9.6 V without PoE power |
40 W measured at 9.6 V without PoE power |
IE-4000-8GT4G-E has eight Gigabit copper downlinks and no PoE, while IE-4000-8GS4G-E replaces them with eight Gigabit SFP downlinks, so fiber access runs move to IE-4000-8GS4G-E. Endpoints that need power from the switch require IE-4000-8GT8GP4G-E, which keeps eight copper downlinks and adds eight Gigabit PoE+ ports for 20 ports in total. The PoE+ model also lists 4.3 A and 40 W against 3.7 A and 35 W here, both measured without PoE output. For an unpowered copper cabinet, IE-4000-8GT4G-E is the smallest of the three.
Ordering Checklist
- SD card: Add SD-IE-1GB= only if a spare card is wanted. A 1-GB removable SD card is included with IE 4000 switches and SD-IE-1GB= is the spare PID, so adding it duplicates the card already in the box.
- DIN rail kit: Add STK-RACK-DINRAIL=, the 19 in. DIN rail mount kit. It is a separate accessory PID, not part of the switch order.
- MRP ring role: Add LIC-MRP-Manager= for the ring manager and LIC-MRP-Client= for each client switch. MRP ring roles are separate license PIDs and are not added by the switch order.
Optional Add-ons
|
Model |
Description |
|---|---|
|
IE-LICENSE-SPARE |
Spare license for software upgrade from Layer 2 to Layer 3 features or MRP protocols |
|
L-IE4000-RTU= |
Electronic software license upgrade from LAN Base Layer 2 to IP Services Layer 3 features |
|
LIC-MRP-Manager= |
MRP ring manager license |
|
LIC-MRP-Client= |
MRP ring client license |
|
STK-RACK-DINRAIL= |
19 in. DIN-rail mount kit |
|
IE 1 GB SD memory card spare | |
|
IE4000-DNA-E-L |
Cisco Catalyst Center Essentials license for up to 12 ports |
|
IE4000-DNA-A-L |
Cisco Catalyst Center Advantage license for up to 12 ports |

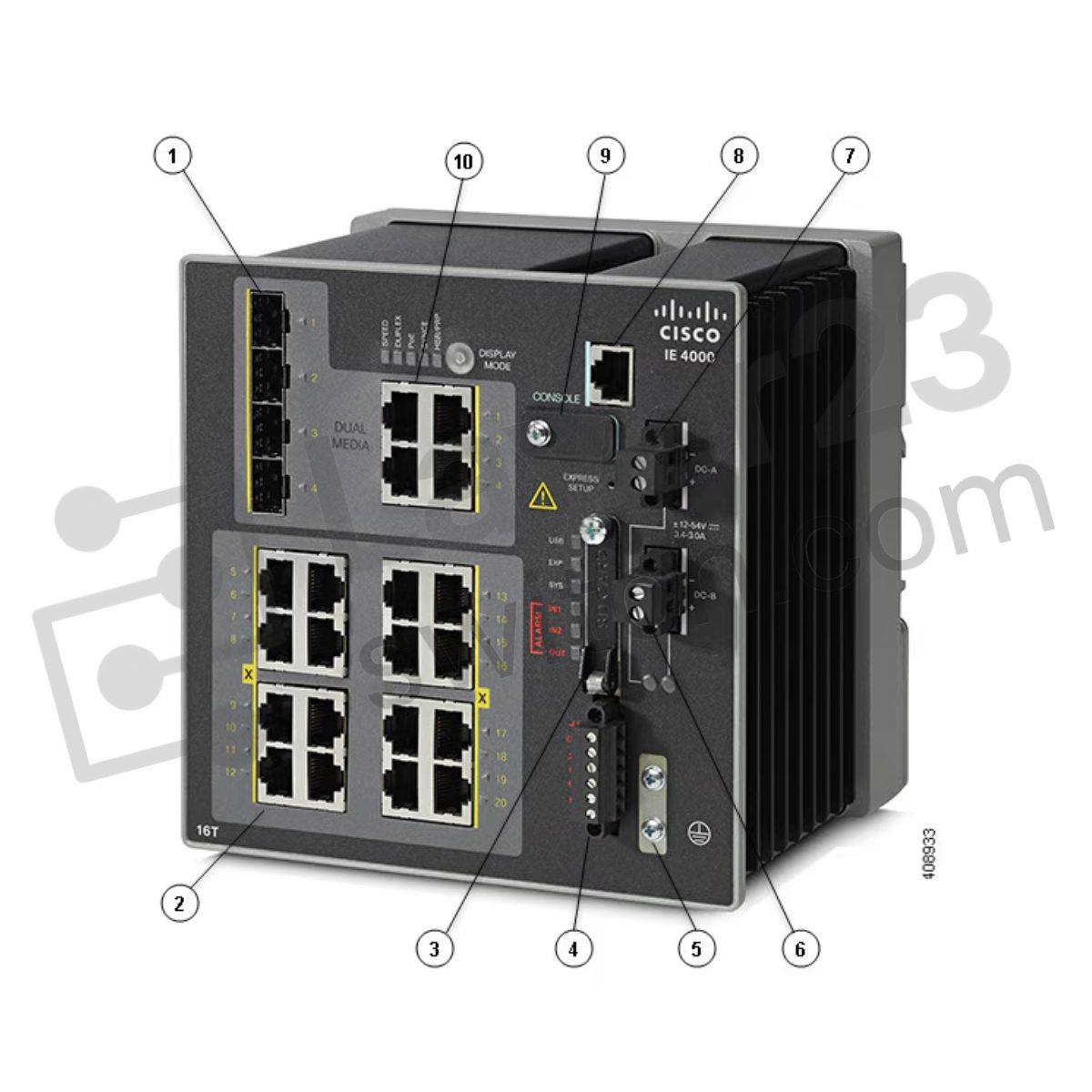

Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
1 |
SFP module slots (uplink ports) |
6 |
Power connector DC-B |
|
2 |
10/100/1000 Ethernet ports (downlink ports) |
7 |
Power connector DC-A |
|
3 |
Flash memory card slot |
8 |
RJ-45 console port |
|
4 |
Alarm connector |
9 |
USB mini-Type B (console) port1 |
|
5 |
Protective ground connection |
10 |
Dual-purpose ports (uplink ports) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-4000-8GT4G-E | Product type | Managed industrial Ethernet switch |
| Total ports | 12 | Downlink ports | 8 x Gigabit Ethernet copper |
| Uplink ports | 4 x Gigabit Ethernet combo SFP or RJ45 | Default software feature set | LAN Base |
| Layer 2 switching features | VTPv2, VTPv3, REP, EtherChannel, Voice VLAN, QinQ tunneling | Industrial Ethernet features | CIP Ethernet/IP, PROFINET v2, IEEE 1588 PTP v2, NTP to PTP translation, CIP Time Sync |
| Power input | Redundant DC input | Input voltage range | 9.6 to 60 VDC nominal |
| Maximum input current | 3.7 A | Power consumption | 35 W measured at 9.6 V without PoE power |
| Dimensions | 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm) | Weight | 2.88 kg (6.35 lb) |
| Forwarding rate | Line rate for all ports and all packet sizes | Number of queues | 4 egress |
| MAC addresses | 16000 | IGMP multicast groups | 1000 |
| VLAN count | 1000 | IPv4 MAC security ACEs | 1000 with default TCAM template |
| NAT translation | Bidirectional 128 unique subnet NAT translation entries | Operating temperature | -40C to +70C vented, -40C to +60C sealed, -34C to +75C with fan or blower enclosure |
| Operating humidity | 5% to 95% non-condensing | Operating altitude | Up to 15000 ft |
| MTBF | 591,240 hours |
Get More Information
Need pricing, stock, or shipping details for the IE-4000-8GT4G-E ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is the published MTBF of IE-4000-8GT4G-E?
-
What altitude and weight apply to IE-4000-8GT4G-E for cabinet planning?
-
Does IE-4000-8GT4G-E include a removable SD card?
-
Which license PID upgrades IE-4000-8GT4G-E from LAN Base to IP Services?
