IE-4010-4S24P-E Description

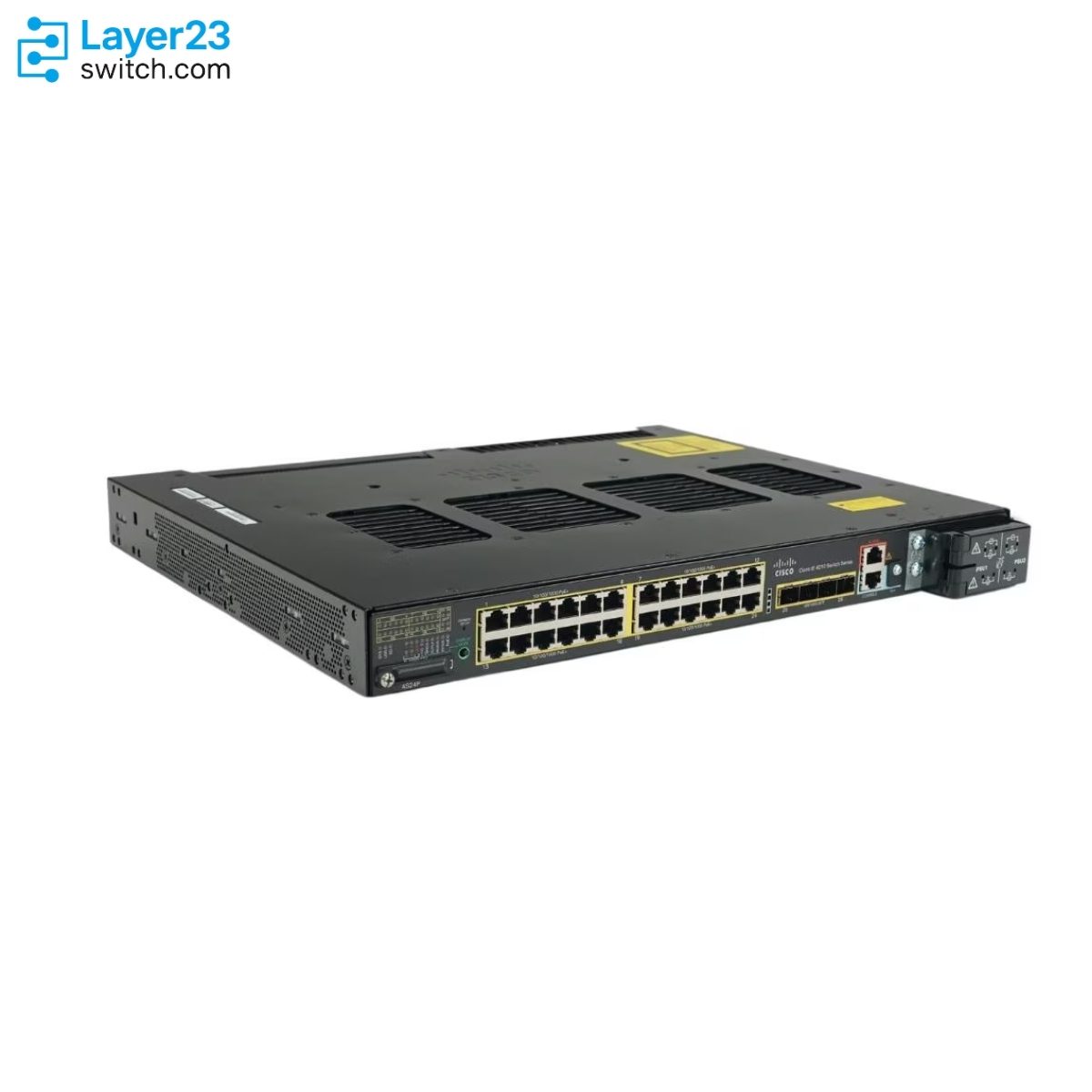

IE-4010-4S24P-E is a Cisco Industrial Ethernet 4010 Series switch featuring 4 SFP fiber uplink ports and 24 Gigabit PoE/PoE+ copper ports. Designed for demanding industrial networks, this high-density, rack-mount switch delivers secure, high-speed Layer 2/3 connectivity for smart factories, utilities, transportation, and city infrastructure. With Cisco IOS security, advanced redundancy protocols, and a robust, fanless design for extreme temperatures, IE-4010-4S24P-E ensures reliable power and data to critical devices across harsh environments.
Product Highlights
Ethernet Ports
PoE Ports
Switching Capacity
Quick Specs
|
Key Parameter |
Value |
|---|---|
|
SFP Uplink Ports |
4 |
|
Copper PoE Ports |
24 |
|
Switching Capacity |
56 Gbps |
|
Forwarding Rate |
41.67 Mpps |
|
Operating Temp. |
-40 to 75°C |
|
Power Supply |
Redundant AC/DC |
|
Software |
LAN Base |
|
Mounting |
19” Rack |
Key Features
High-Density PoE Switching
24 PoE/PoE+ ports deliver up to 385W, supporting IP cameras, phones, sensors, and wireless access points directly from the switch.
Flexible Fiber Uplinks
4 SFP uplink ports provide robust, high-speed fiber aggregation for industrial backbone networks and long-distance connections.
Rugged Reliability
Extended operating temperature range (-40°C to 75°C), fanless cooling, and hardened against shock, vibration, and electrical noise for 24/7 operation in harsh environments.
Comprehensive Security
Advanced Cisco IOS security, including 802.1x, DHCP snooping, dynamic ARP inspection, MACsec, port security, and SSH, protects industrial assets from cyber threats.
Seamless Management
Web Device Manager and CLI for intuitive configuration, monitoring, and zero-touch replacement via SwapDrive for quick recovery.
Advanced Industrial Protocols & Redundancy
Supports CIP, PROFINET, Modbus TCP, IEEE 1588 PTP, and advanced redundancy protocols (REP, PRP, MRP, HSR) for maximum uptime and integration.
Applications Scenarios
Smart Manufacturing
Powers and connects automation equipment, HD cameras, and SCADA systems on the factory floor for Industry 4.0 environments.
Utilities & Energy
Delivers reliable, secure networking for substations, smart grids, and utility monitoring with robust PoE and fiber uplinks.
Urban Infrastructure
Supports city surveillance, intelligent transportation systems, and public safety with high-capacity, high-availability Ethernet switching.
Rugged Industrial Ethernet Switch Product Comparison
|
Model |
SFP Uplink Ports |
Copper Ports |
PoE Ports |
Switching Capacity |
Forwarding Rate |
Operating Temp. |
Power Supply |
Software |
Mounting |
|---|---|---|---|---|---|---|---|---|---|
|
IE-4010-4S24P-E |
4 |
24 |
24 |
56 Gbps |
41.67 Mpps |
-40 to 75°C |
Dual AC/DC, redundant |
LAN Base |
19” Rack |
|
IE-4000-8GT8GP4G-E |
4 |
8 |
8 |
20 Gbps |
Line rate |
-40 to 70°C |
Redundant DC |
LAN Base |
DIN Rail |
|
IE-3400-8P2S-E |
2 (SFP) |
8 |
8 |
20 Gbps |
Line rate |
-40 to 75°C |
Redundant DC |
Essentials |
DIN Rail |

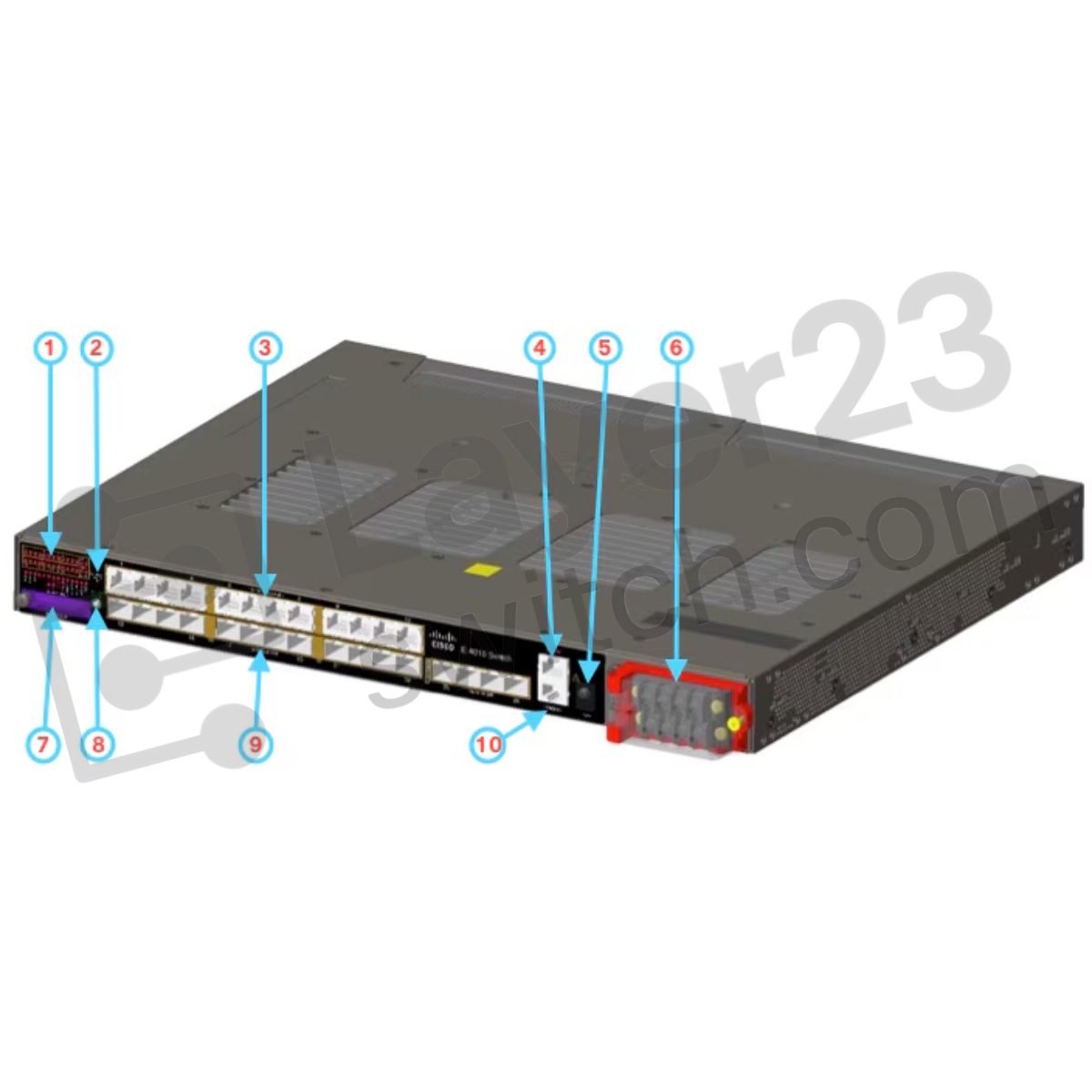

Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
1 |
LEDs |
6 |
Power-input terminal |
|
2 |
Express Setup button |
7 |
Flash memory card slot |
|
3 |
Twelve 10/100/1000 PoE/PoE+ Ports (Downlinks) |
8 |
Display mode button |
|
4 |
Alarm port |
9 |
Twelve 100/1000 SFP Ports |
|
5 |
USB (mini-Type B) console port |
10 |
Console port |
Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | IE-4010-4S24P-E | Series | Industrial Ethernet 4010 |
| Ports | 28 (4 SFP, 24 copper) | SFP Uplinks | 4 (1G/100M/FE/GE) |
| Copper PoE/PoE+ Ports | 24 | Max PoE Budget | Up to 385W (with dual PSU) |
| Switching Capacity | 56 Gbps | Forwarding Rate | 41.67 Mpps |
| MAC Addresses | 16,000 | VLANs | 1,000 |
| IGMP Groups | 1,000 | Queues | 4 egress |
| Layer 3 Routing | IPv4 Static, OSPF, EIGRP, etc. (w/ upgrade) | IPv6 Support | Yes |
| Industrial Protocols | CIP, PROFINET, Modbus TCP, SCADA | Time Sync | IEEE 1588 PTPv2 |
| Redundancy | REP, PRP, MRP, HSR, EtherChannel | SD Card | 1 GB (included) |
| Alarm Inputs | 4 | Alarm Outputs | 1 relay |
| Power Supply | Dual AC/DC redundant | Max Input Current | See datasheet (depends on PSU) |
| Power Consumption | Max 70W (excl. PoE) | Operating Temperature | -40 to 75°C |
| Storage Temperature | -40 to 85°C | Humidity | 5%–95% non-condensing |
| Dimensions (H×W×D) | 1.75 x 17.5 x 14 in. (44.5 x 44.5 x 35.6 cm) | Weight | ~12.1 lbs (5.46 kg) |
| Mounting | 19” Rack | Software | LAN Base (upgradeable) |
| Management | Web GUI, CLI, Cisco Catalyst Center | Security | 802.1x, DAI, DHCP Snooping, MACsec |
| QoS | Ingress policing, AutoQoS | Certifications | UL, CSA, EN 60950-1, ATEX, DNV, TAA |
| Warranty | 5 years | MTBF | 429,620 hours |
