IE-3100-8P2C-E Description

The IE-3100-8P2C-E is a Cisco Catalyst IE3100 Rugged Series industrial switch for DIN-rail cabinets that power cameras, phones and access points over copper. The switch has eight Gigabit PoE/PoE+ ports at up to 30W each, two 1000BASE-T/1000BASE-X combo uplinks and a 240W PoE budget on dual DC inputs from 12V to 54V. The 240W budget requires an input of 52.5V to 60V, and PoE requires Cisco IOS XE 17.15.1 or later.

Quick Specs

Parameter

Specification

Product ID

IE-3100-8P2C-E

Product type

Industrial Ethernet switch

Network license

Network Essentials

Total ports

10

PoE copper downlink ports

8 x 1000BASE-T PoE/PoE+ RJ-45 ports

Combo uplink ports

2 x 1000BASE-T/1000BASE-X dual-media ports

Default PoE budget

240 W

PoE output note

Up to 30 W PoE+ output on all 8 downlink ports

Power inputs

Dual DC inputs

Input voltage range

12 to 54 VDC nominal

Power consumption

26 W excluding PoE load

Minimum PoE software support

Cisco IOS XE 17.15.1

Product Performance

Access and Uplink Port Count
PoE Budget
MAC Address Capacity

Key Features

Eight PoE+ Copper Ports

All eight RJ45 downlinks supply up to 30W under 802.3at and also work with 802.3af devices, so one cabinet switch covers cameras, phones and sensors.

240W Budget At High Input Voltage

The budget reaches 240W only with a 52.5V to 60V input, and the default there is 125W until it is raised. Eight 30W endpoints need that full 240W.

Combo Uplinks For Copper Or Fiber

Each of the two uplinks works as 1000BASE-T or as a 1G SFP, with the SFP side used by default when both are connected.

Software Baseline For PoE

PoE on this switch is available from Cisco IOS XE 17.15.1, so the powered ports stay off until the switch runs that release or later.

Supply Sizing With A 170W Unit

The switch and its PoE load share one supply, so a 170W unit leaves about 150W for PoE after the switch’s own draw. The 170W DC unit PWR-IE170W-PC-DC= is not supported.

Internal Boost For Low-Voltage Feeds

A built-in boost converter turns a 12V or 24V input into the 54V used for PoE, and PoE operates across the 9.6V to 60V absolute input range at a lower budget.

Application Scenarios

Powered Endpoints In Control Cabinets

A transportation or plant-floor cabinet can power cameras, IP phones and wireless access points from the eight PoE+ ports, which removes separate power injectors from the enclosure.

Mixed Copper And Fiber Handoffs

A site that backhauls over copper in one cabinet and over 1G fiber in another can use the same switch, because each combo uplink works as RJ45 or as SFP.

High-Voltage DC Powered Substations

Where a 52.5V to 60V DC feed is available, the switch reaches its full 240W budget and can run all eight downlinks at 30W from a single supply.

Product Comparison

Parameter

IE-3100-8P2C-E

IE-3100-8T2C-E

IE-3100-4P2S-E

IE-3100-6P2U2C-E

Network license

Network Essentials

Network Essentials

Network Essentials

Network Essentials

Downlink ports

8 x 10/100/1000 PoE/PoE+ RJ45

8 x 10/100/1000 RJ45

4 x 10/100/1000 PoE/PoE+ RJ45

6 x 10/100/1000 PoE/PoE+ RJ45 and 2 x 4PPoE RJ45

Uplink ports

2 x 1000BASE-T/1000BASE-X combo

2 x 1000BASE-T/1000BASE-X combo

2 x 1000BASE-X SFP

2 x 1000BASE-T/1000BASE-X combo

Default PoE budget

240 W

No PoE

120 W

240 W

Maximum PoE per port

30 W (PoE+)

No PoE

30 W (PoE+)

30 W (PoE+); 90 W (4PPoE)

Power consumption

26 W excluding PoE load

17.7 W

22.5 W excluding PoE load

26 W excluding PoE load

Nominal input voltage

12V to 54V

12V to 48V

12V to 54V

12V to 54V

Operating temperature

-40°C to 75°C (blower-equipped cabinet)

-40°C to 75°C (blower-equipped cabinet)

-40°C to 75°C (blower-equipped cabinet)

-40°C to 75°C (blower-equipped cabinet)

IE-3100-8P2C-E and IE-3100-8T2C-E share eight copper ports and two combo uplinks, but IE-3100-8P2C-E adds a 240 W PoE budget with up to 30 W per port, so powered cameras and access points need it while data-only cabinets can use IE-3100-8T2C-E at 17.7 W. An endpoint that needs 90 W on a port moves to IE-3100-6P2U2C-E, which keeps 240 W and has six PoE+ ports plus two 4PPoE ports. Cabinets with only four powered endpoints and fiber uplinks can use IE-3100-4P2S-E, with a 120 W budget and two SFP-only uplinks.

PoE Power Planning

Planning item

Cisco-confirmed value

Procurement check

PoE-capable ports

8 x 1000BASE-T PoE/PoE+ downlinks

Match endpoint count to the eight powered copper ports

Documented PoE budget

240 W

Keep the powered endpoint worksheet within the Cisco-listed budget

Per-port PoE+ output

Up to 30 W on all 8 downlink ports

Check endpoint class before assuming 4PPoE support

Software support baseline

Cisco IOS XE 17.15.1 and later

Review the staged image before relying on PoE operation

Input voltage range

12 to 54 VDC nominal; 9.6 to 60 VDC absolute

Confirm the plant power feed and power-supply output before installation

Power supply sizing rule

Switch and PoE load must fit within the installed supply wattage

Choose a Cisco IE power supply with enough headroom for the planned load

Ordering Checklist

  • Power supply: Order PWR-IE170W-PC-AC=, PWR-IE240W-PCAC-L=, PWR-IE480W-PCAC-L= or another PoE-capable unit; PWR-IE170W-PC-DC= is not supported on this model. The switch plus its PoE load must fit inside the supply wattage.
  • PoE budget setting: The default budget is 125 W at 52.5-60 V input and is raised to 240 W; a 170 W supply leaves about 150 W for PoE after the switch’s own draw. Powering eight 30 W endpoints needs a supply sized for the 240 W budget.
  • SD card: Add SD-IE-1GB= or SD-IE-16GB=; the card is optional and does not ship by default. Without a card there is no stored configuration to restore when a failed switch is replaced.
  • Catalyst Center subscription: Add IE3100-DNA-E-L with a -1Y, -3Y, -5Y, -7Y or -10Y term, only if Catalyst Center Essentials manages the switch. IE3100-DNA-E-L covers up to 12 ports, which fits this 10-port switch; IE3100-DNA-E-M covers up to 24.
  • Rack mounting: Add STK-RACK-DINRAIL=, the 19-inch rack kit for DIN-rail mounting. The rack kit is its own order line, so it is missing unless added.
  • PoE software: PoE output on this switch needs Cisco IOS XE 17.15.1 or later.

Optional Add-ons

Model

Description

PWR-IE65W-PC-AC=

65 W AC DIN-rail power supply option with PoE/PoE+ support

PWR-IE65W-PC-DC=

65 W DC DIN-rail power supply option with PoE/PoE+ support

PWR-IE170W-PC-AC=

170 W AC DIN-rail power supply option with PoE/PoE+ support

PWR-IE240W-PCAC-L=

240 W AC DIN-rail power supply option with PoE/PoE+ support

PWR-IE240W-AC-IEC=

240 W AC DIN-rail power supply option with PoE/PoE+ support

PWR-IE400W-AC-IEC=

400 W AC DIN-rail power supply option with PoE/PoE+ support

PWR-IE480W-PCAC-L=

480 W AC DIN-rail power supply option with PoE/PoE+ support

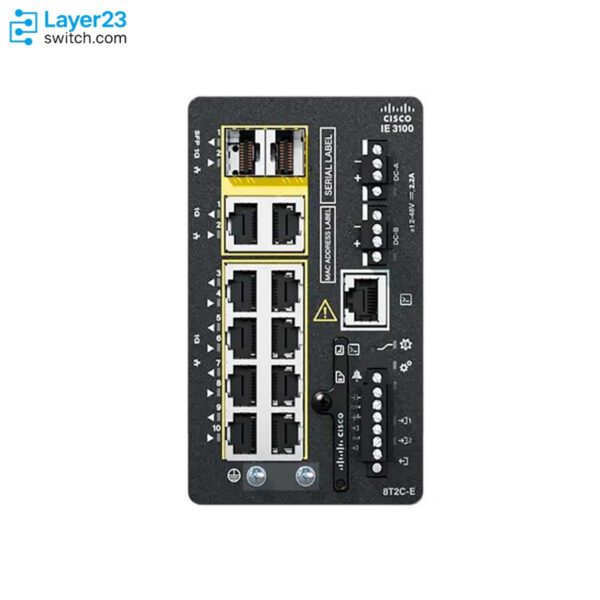

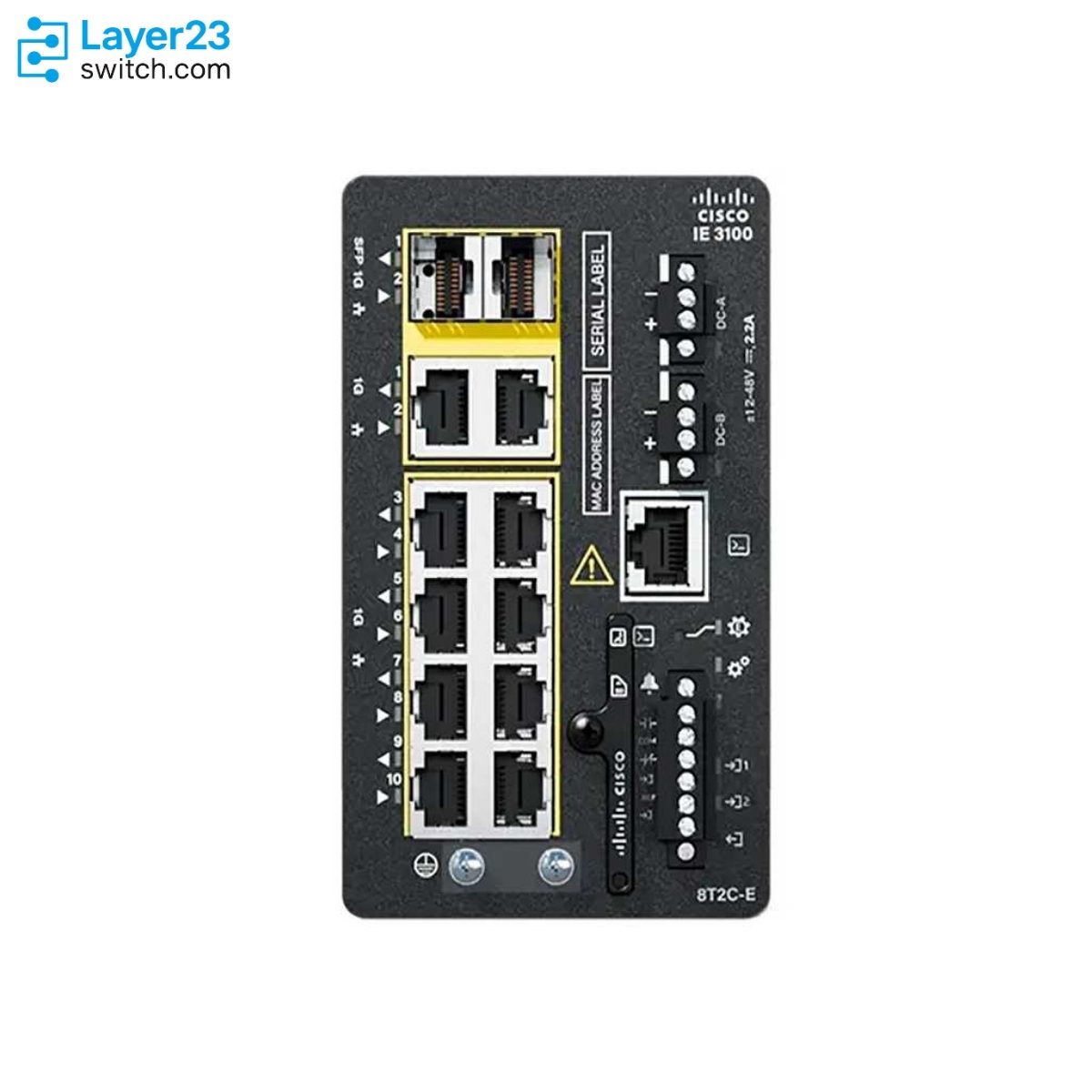

IE-3100-8P2C-E Front Panel Overview

The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.

Number

Feature

Number

Feature

1

Dual-media SFP port LEDs

6

Express Setup LED

2

Dual-media copper port LEDs

7

System LED

3

1000BASE-T port LEDs

8

Alarm input LEDs

4

Power connector LED

9

Alarm output LED

5

Management console LED

10

PoE Status LED Note This LED is present in PoE models only.

Specifications

Parameter Specification Parameter Specification
Product ID IE-3100-8P2C-E Product type Industrial Ethernet switch
Network license Network Essentials Operating system Cisco IOS XE
Downlink ports 8 x 1000BASE-T PoE/PoE+ RJ-45 Uplink ports 2 x 1000BASE-T/1000BASE-X dual-media (combo)
Total ports 10 Console port 1 RS-232 via RJ-45 and 1 micro USB
Alarm interfaces 2 dry-contact alarm inputs and 1 alarm output DRAM 4 GB
Flash 1.5 GB Removable storage 1 GB, 4 GB or 16 GB SD card (optional)
MAC addresses 8,000 VLAN IDs 256
PVST instances 128 IGMP snooping groups 512
Power redundancy Dual DC inputs DC input voltage 12 to 54 VDC nominal; 9.6 to 60 VDC absolute
Input current 7.0 A maximum (hardware installation guide); 6.1 A at 12V, 7.5 A at 24V, 5.8 A at 54V in normal operation; 80 A inrush for 1 ms at 12V, 24V or 48V Power consumption 26W maximum, excluding powered-device load
Default PoE budget 240W Per-port PoE power Up to 30W PoE+ on all 8 downlink ports
Dimensions (H x W x D) 5.00 x 3.00 x 5.12 in. (12.70 x 7.62 x 13.00 cm) Mounting DIN rail
Operating temperature -40°C to 75°C in blower-equipped cabinet; -40°C to 70°C in vented cabinet; -40°C to 60°C in sealed cabinet Storage temperature -40°C to 85°C
Operating humidity 5% to 95% noncondensing Operating altitude Up to 15,000 ft with no temperature derating
MTBF 682,250 hours

Quality Certifications

Customer Reviews

Write A Review
4.9
(26 reviews)
5 Stars
24
4 Stars
2
3 Stars
0
2 Stars
0
1 Stars
0
    Aaron Gray
    Posted on 14/03/2026
    Verified Buyer
    5.0

    Our QA inspection took longer than the unboxing — and found nothing wrong.

    Jordan Ward
    Posted on 12/03/2026
    Verified Buyer
    5.0

    Sales team had genuine product knowledge. Felt confident with their recommendations.

    Samantha Jenkins
    Posted on 06/12/2025
    Verified Buyer
    5.0

    If you’ve found Layer23, you’ve found a vendor worth ordering from.

    Procurement
    Posted on 20/10/2025
    Verified Buyer
    5.0

    Good price and fast shipping.

    Nathan Summers
    Posted on 12/06/2025
    Verified Buyer
    5.0

    Mission accomplished. Package secured.

Questions & Answers

  • What operating temperature does IE-3100-8P2C-E support?

    IE-3100-8P2C-E operates from -40C to 75C in a blower-equipped cabinet. The range is -40C to 70C in a vented cabinet and -40C to 60C in a sealed cabinet, so the enclosure type sets the ceiling.
  • What input voltage does IE-3100-8P2C-E need for its full PoE budget?

    IE-3100-8P2C-E reaches its 240W PoE budget only with a 52.5V to 60V DC input. A feed anywhere in the 9.6V to 60V absolute range still runs PoE at a lower budget, and powering eight 30W endpoints needs the full 240W, so the feed voltage decides how many endpoints run.
  • Which PoE power classes does IE-3100-8P2C-E support on its eight ports?

    IE-3100-8P2C-E supports PoE power classes 1 to 4 and 802.3af devices, from Cisco IOS XE 17.15.x per the IE3100 PoE configuration guide. Class 1 devices are budgeted at 4 W, Class 2 at 7 W, Class 3 at 15.4 W and Class 4 at 30 W.
  • What is the maximum input current of IE-3100-8P2C-E on its DC inputs?

    The maximum input current of IE-3100-8P2C-E is 7.0 A across the 12 to 54 VDC range, per the hardware installation guide. The DC supply and the cabinet breaker must be sized for that current when all eight ports deliver PoE.
  • How much DIN-rail space does IE-3100-8P2C-E need and how heavy is it?

    IE-3100-8P2C-E measures 5.00 x 3.00 x 5.12 in and weighs 2.3 lb (1.04 kg), per the hardware installation guide. The cabinet must have a DIN-rail position with that depth free before the switch is ordered.
  • What inrush current does IE-3100-8P2C-E draw at power-up?

    IE-3100-8P2C-E draws an inrush current of 80 A for 1 ms at a 12V, 24V or 48V input. The DC supply and any upstream fuse must tolerate that pulse at power-up, so check the breaker trip curve against it before installation.
