IE-3100-4P2S-E Description
The IE-3100-4P2S-E is a Cisco Catalyst IE3100 Rugged Series industrial switch for compact DIN-rail cabinets that power IP cameras and sensors over copper. The switch has four Gigabit PoE/PoE+ ports at up to 30W each, two Gigabit SFP uplinks and a 120W PoE budget on dual DC inputs from 12V to 54V. The 120W budget requires an input of 44V or higher, and PoE requires Cisco IOS XE 17.15.1 or later.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3100-4P2S-E |
|
Product type |
Industrial Ethernet switch |
|
Network license |
Network Essentials |
|
Total ports |
6 |
|
PoE copper downlink ports |
4 x 1000BASE-T PoE/PoE+ RJ45 ports |
|
SFP-only uplink ports |
2 x 1000BASE-X ports |
|
Default PoE budget |
120 W |
|
PoE output note |
Up to 30 W PoE+ output on all 4 downlink ports |
|
Minimum PoE software support |
Cisco IOS XE 17.15.1 |
|
Power inputs |
Dual DC inputs |
|
Input voltage range |
12V to 54V nominal |
|
Power consumption |
22.5 W excluding PoE load |
Product Performance
Key Features
Each of the four RJ45 downlinks supplies up to 30W under 802.3at, and 802.3af devices also work, so cameras, sensors and small access points can share one cabinet switch.
The budget is 4W to 31W with a 9.6V to 18V feed, up to 90W from 18V to 44V and up to 120W above 44V. A low-voltage bus therefore limits how many 30W endpoints can run.
A built-in boost converter turns a 12V or 24V input into the 54V used for PoE, and PoE operates across the full 9.6V to 60V absolute input range.
PoE on this switch is available from Cisco IOS XE 17.15.1, so the powered ports stay off until the switch runs that release or later.
The two uplinks are 1000BASE-X SFP ports that take 1G and 100M modules at up to 825 mW each, with no copper option on either port.
One DIN-rail supply feeds both the switch and the PoE load, so the total must fit inside the supply wattage. The 170W DC unit PWR-IE170W-PC-DC= is not supported on this model.
Application Scenarios
A roadside or perimeter cabinet can power up to four IP cameras or sensors directly from the switch, and the PoE+ ports supply up to 30W to each of them.
An outlying OT cell with its own enclosure can return traffic to the plant network over the two SFP uplinks, with no copper run between the cabinet and the network core.
At a site fed from a 24V or 48V DC bus, the switch accepts 12V to 54V input and boosts it internally to supply PoE, so no separate PoE injector is needed.
Product Comparison
|
Parameter |
IE-3100-4P2S-E |
IE-3100-3P1U2S-E | ||
|---|---|---|---|---|
|
Network license |
Network Essentials |
Network Essentials |
Network Essentials |
Network Essentials |
|
Downlink ports |
4 x 10/100/1000 PoE/PoE+ RJ45 |
4 x 10/100/1000 RJ45 |
3 x 10/100/1000 PoE/PoE+ RJ45 and 1 x 4PPoE RJ45 |
8 x 10/100/1000 PoE/PoE+ RJ45 |
|
Uplink ports |
2 x 1000BASE-X SFP |
2 x 1000BASE-X SFP |
2 x 1000BASE-X SFP |
2 x 1000BASE-T/1000BASE-X combo |
|
Default PoE budget |
120 W |
No PoE |
120 W |
125 W on 52.5V to 60V input; up to 240 W with a suitable power supply and configuration |
|
Maximum PoE per port |
30 W (PoE+) |
No PoE |
30 W (PoE+); 90 W (4PPoE) |
30 W (PoE+) |
|
Nominal input voltage |
12V to 54V |
12V to 48V |
12V to 54V |
12V to 54V |
|
Operating temperature |
-40°C to 75°C (blower-equipped cabinet) |
-40°C to 75°C (blower-equipped cabinet) |
-40°C to 75°C (blower-equipped cabinet) |
-40°C to 75°C (blower-equipped cabinet) |
|
Mounting |
DIN rail |
DIN rail |
DIN rail |
DIN rail |

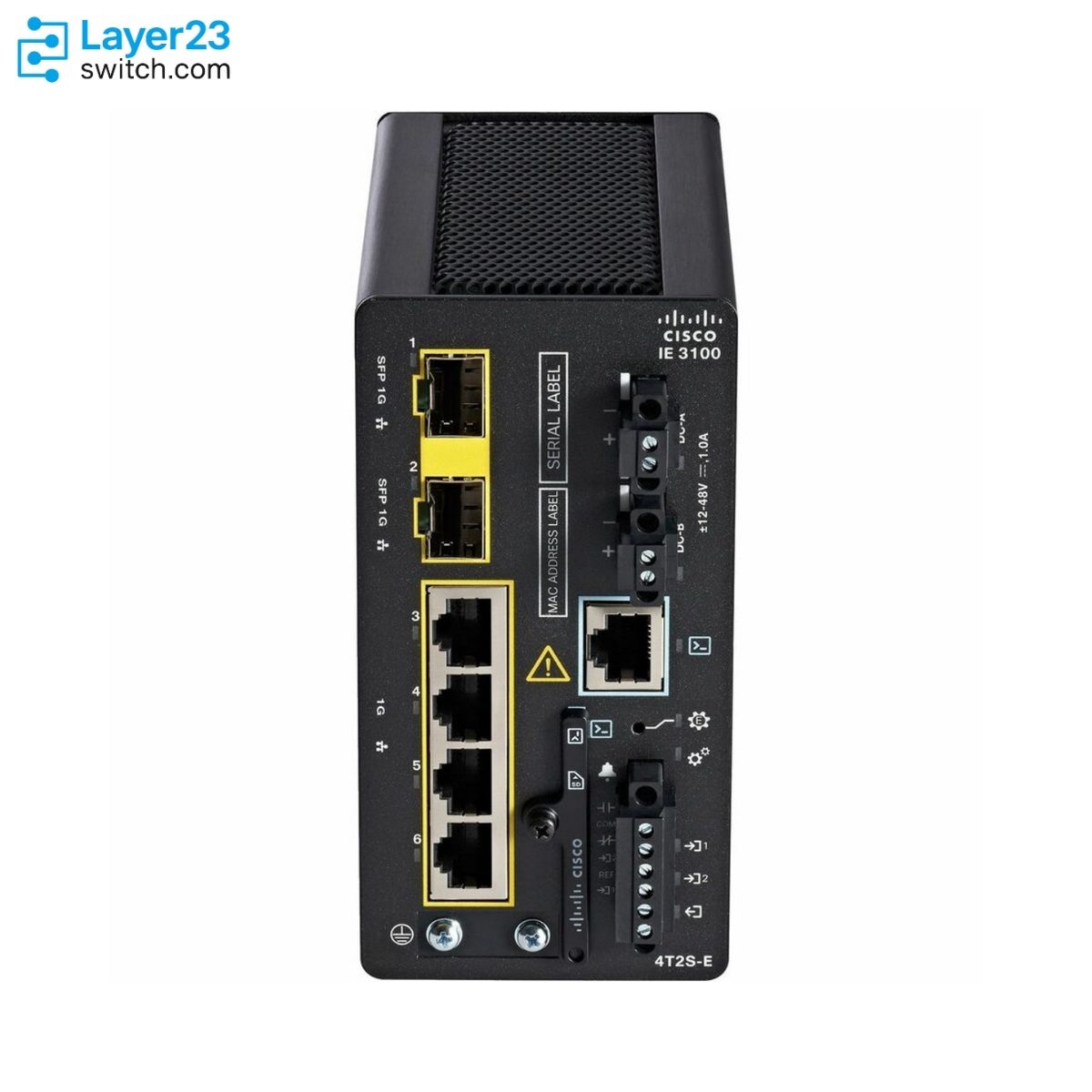

IE-3100-4P2S-E is the powered version of IE-3100-4T2S-E: both have four copper ports and two SFP uplinks, but IE-3100-4P2S-E supplies a 120 W PoE budget with up to 30 W per port, so cameras and access points need it while data-only cabinets can use IE-3100-4T2S-E. An endpoint that needs up to 90 W on one port moves to IE-3100-3P1U2S-E, which keeps the same 120 W budget for the whole switch and offers one 4PPoE port of up to 90 W beside three PoE+ ports. Cabinets with more than four powered endpoints need IE-3100-8P2C-E, with eight PoE+ ports, a 125 W default budget that can be raised to 240 W with a suitable power supply and configuration, and two combo uplinks instead of SFP-only ones.
PoE Power Planning
|
Planning item |
Cisco-confirmed value |
Procurement check |
|---|---|---|
|
PoE-capable ports |
4 x 1000BASE-T PoE/PoE+ downlinks |
Match the powered endpoint count to the four copper ports |
|
Documented PoE budget |
120 W |
Keep the camera, sensor, AP, or phone power worksheet within the confirmed budget |
|
Per-port output |
Up to 30 W PoE+ on all 4 downlink ports |
Use another IE3100 PoE SKU when 4PPoE endpoint power is required |
|
Software support baseline |
Cisco IOS XE 17.15.1 and later |
Stage a supported image before relying on PoE operation |
|
Input voltage behavior |
12V to 54V nominal input with 9.6V to 60V absolute range |
Confirm the plant power feed and PSU output before installation |
|
Power supply sizing rule |
Switch and PoE load must fit within the installed supply wattage |
Choose an IE DIN-rail power supply with enough headroom for connected endpoints |
Ordering Checklist
- Power supply: Order PWR-IE65W-PC-AC=, PWR-IE65W-PC-DC= or PWR-IE170W-PC-AC=; PWR-IE170W-PC-DC= is not supported on this model. The switch plus its PoE load must fit inside the supply wattage.
- DC input voltage: Feed 44 V or higher for the 120 W default budget; 18-44 V allows up to 90 W and 9.6-18 V up to 31 W. A low-voltage feed cannot power four 30 W endpoints.
- SD card: Add SD-IE-1GB= or SD-IE-16GB=; the card is optional and does not ship by default. Without a card there is no stored configuration to restore when a failed switch is replaced.
- Catalyst Center subscription: Add IE3100-DNA-E-L with a -1Y, -3Y, -5Y, -7Y or -10Y term, only if Catalyst Center Essentials manages the switch. IE3100-DNA-E-L covers up to 12 ports, which fits this 6-port switch; IE3100-DNA-E-M covers up to 24.
- Rack mounting: Add STK-RACK-DINRAIL=, the 19-inch rack kit for DIN-rail mounting. The rack kit is its own order line, so it is missing unless added.
Optional Add-ons
|
Model |
Description |
|---|---|
|
65 W AC DIN-rail power supply option with PoE/PoE+ support | |
|
65 W DC DIN-rail power supply option with PoE/PoE+ support | |
|
170 W AC DIN-rail power supply option with PoE/PoE+ support | |
|
240 W AC DIN-rail power supply option with PoE/PoE+ support | |
|
PWR-IE240W-AC-IEC= |
240 W AC DIN-rail power supply option with PoE/PoE+ support |
|
PWR-IE400W-AC-IEC= |
400 W AC DIN-rail power supply option with PoE/PoE+ support |
|
480 W AC DIN-rail power supply option with PoE/PoE+ support |

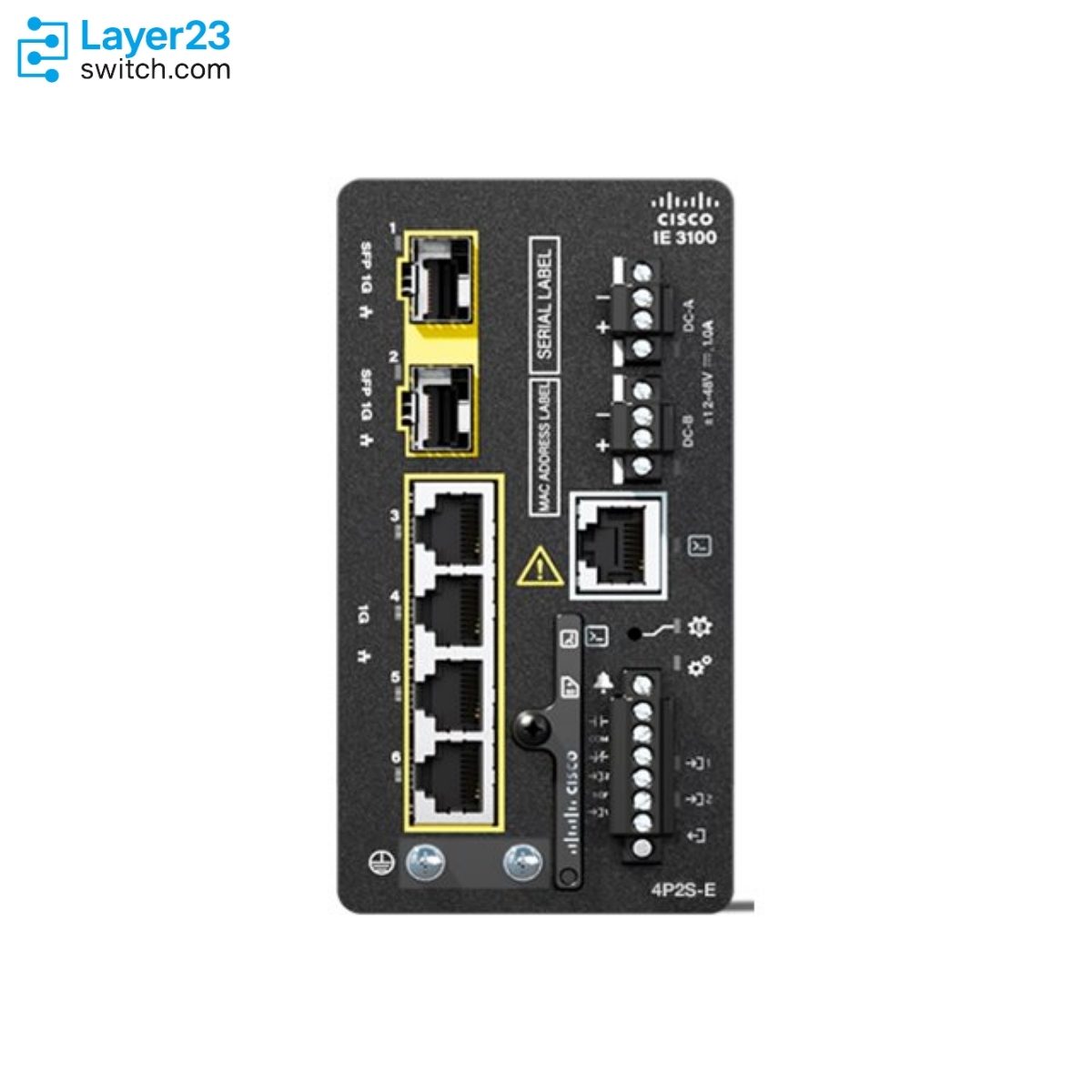

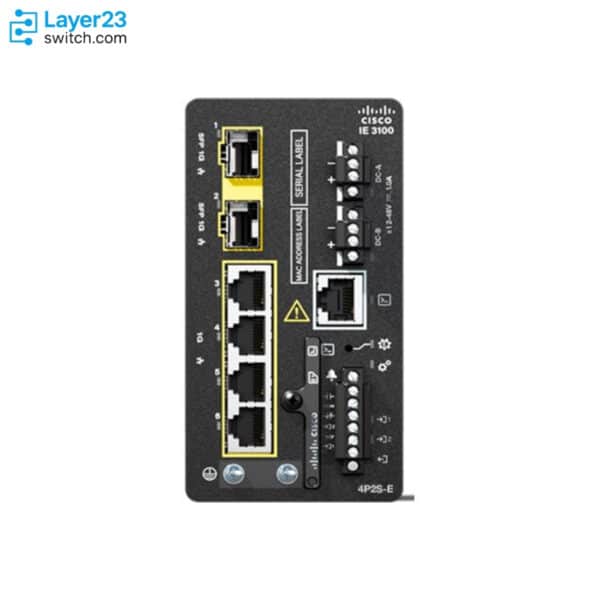

IE-3100-4P2S-E Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
Number |
Feature |
Number |
Feature |
|---|---|---|---|
|
1 |
Dual-media SFP port LEDs |
6 |
Express Setup LED |
|
2 |
Dual-media copper port LEDs |
7 |
System LED |
|
3 |
1000BASE-T port LEDs |
8 |
Alarm input LEDs |
|
4 |
Power connector LED |
9 |
Alarm output LED |
|
5 |
Management console LED |
10 |
PoE Status LED Note This LED is present in PoE models only. |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3100-4P2S-E | Product type | Industrial Ethernet switch |
| Network license | Network Essentials | Total ports | 6 |
| PoE copper downlink ports | 4 x 1000BASE-T PoE/PoE+ RJ45 ports | SFP-only uplink ports | 2 x 1000BASE-X ports |
| Default PoE budget | 120 W | PoE output | Up to 30 W PoE+ output on all 4 downlink ports |
| Minimum PoE software support | Cisco IOS XE 17.15.1 | Operating system family | Cisco IOS XE |
| Power inputs | Dual DC inputs | Input voltage range | 12V to 54V nominal; 9.6V to 60V absolute |
| Normal-operation current | 5.8 A at 12V; 7.3 A at 24V; 3.7 A at 54V | Inrush current | 80 A for 1 ms at 12V, 24V, or 48V input |
| Maximum power consumption | 22.5 W excluding connected powered-device load | Forwarding rate | 8.928 Mpps |
| Forwarding bandwidth | 6 Gbps | DRAM | 4 GB |
| Flash | 1.5 GB | SD card capacity | 1 GB, 4 GB, or 16 GB optional SD card |
| MAC addresses | 8000 | VLAN scale | 256 VLANs |
| IGMP multicast groups | 512 | STP instances | 128 |
| Console port | 1 RS-232 via RJ45 and 1 micro USB | Alarm I/O | 2 dry-contact alarm inputs and 1 alarm output |
| Mounting | DIN rail | Dimensions | 5.00 x 2.55 x 5.08 in. / 12.70 x 6.48 x 12.90 cm |
| Weight | 2.0 lb / 0.91 kg switch only | Operating temperature | -40C to 75C in blower-equipped cabinet |
| Storage temperature | -40C to 85C | Operating humidity | 5 percent to 95 percent noncondensing |
| Operating altitude | Up to 15000 ft with no temperature derating | MTBF | 755,460 hours |
| Management | Cisco Catalyst Center, WebUI, CLI, SNMP, NETCONF, and RESTCONF | Power supply note | Switch and PoE ports must stay within the installed power supply wattage |
