IE-3100-8T2C-E Description

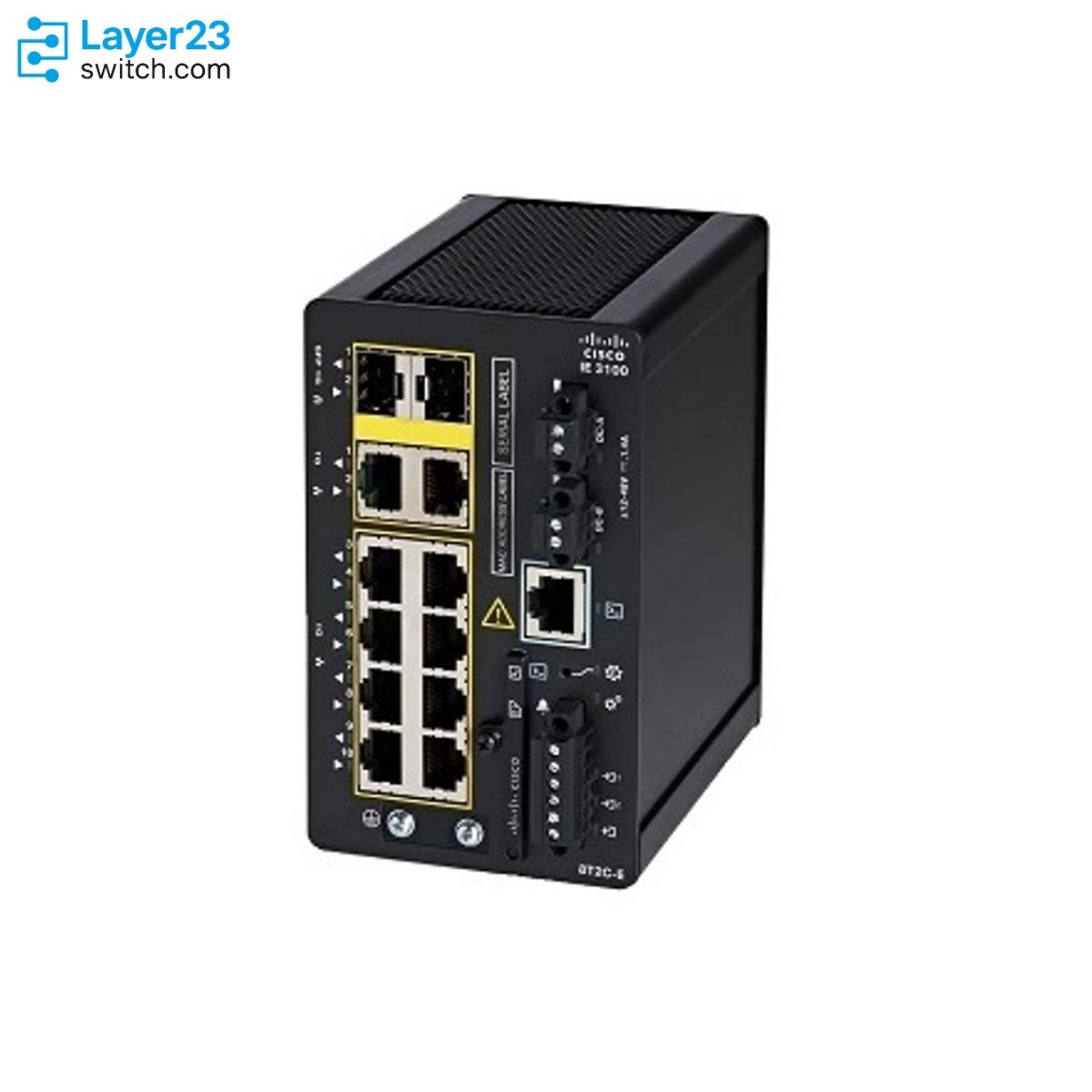

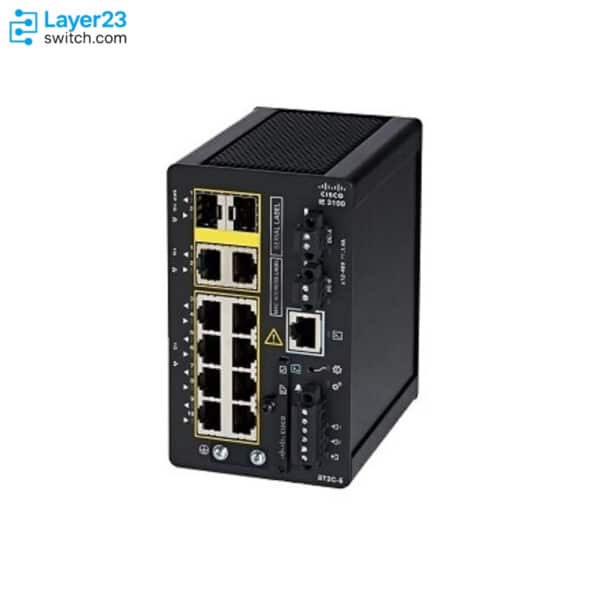

The IE-3100-8T2C-E is a Cisco Catalyst IE3100 Rugged Series industrial switch for DIN-rail control cabinets that need Gigabit copper access without PoE. The switch has eight 10/100/1000 RJ45 ports and two dual-media combo uplinks, runs on dual DC inputs from 12V to 48V nominal and draws 17.7 W. The switch has no PoE budget and no FPGA data path, so Layer 2 NAT is not available on it.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3100-8T2C-E |
|
Product type |
Industrial Ethernet switch |
|
Network license |
Network Essentials |
|
Total ports |
10 Gigabit Ethernet ports |
|
Copper access ports |
8 x 10/100/1000 RJ45 ports |
|
Combo uplink ports |
2 x 1000BASE-T/1000BASE-X dual-media ports |
|
PoE budget |
Not applicable for this non-PoE model |
|
Power input |
Dual DC inputs |
|
Nominal input voltage |
12V to 48V |
|
Power consumption |
17.7 W |
|
Forwarding rate |
14.88 Mpps |
|
MTBF |
854,560 hours |
Product Performance
Key Features
All eight RJ45 ports carry data only. Endpoints that need switch-supplied power belong on a PoE model of the IE3100 family.
Each of the two uplinks runs as 1000BASE-T copper or as an SFP, 100M or 1G. When both sides of a port are connected, the SFP is used by default unless the media type is set manually.
Two screw-terminal DC inputs work as primary and backup, and the higher-voltage feed carries the load. A second independent source keeps the switch running if one feed fails.
The switch consumes 17.7 W, a figure that goes straight into the cabinet power worksheet for a 12V to 48V supply.
The data path is standard, so Layer 2 NAT is not supported. Duplicate-address machine networks need an IE3105 model.
Two alarm inputs and one Form-C alarm output report cabinet faults. An optional SD card behind the front cover restores the configuration on a replacement switch.
Application Scenarios
In a control cabinet on a production line, the switch connects PLCs, HMIs and drives over its eight Gigabit copper ports, with power fed from a DC supply already in the cabinet.
A utility or pump-station cabinet can hand traffic back to the control center over either RJ45 or SFP fiber, because both uplinks are dual-media combo ports.
At 17.7 W, the switch suits a shared 12V to 48V cabinet supply where several loads draw from the same industrial power source.
Product Comparison
|
Parameter |
IE-3100-8T2C-E | |||
|---|---|---|---|---|
|
Total ports |
10 |
10 |
12 |
10 |
|
Downlink interfaces |
8 x 10/100/1000 RJ45 |
8 x 10/100/1000 RJ45 PoE/PoE+ |
8 x 10/100/1000 RJ45 |
8 x 10/100/1000 RJ45 |
|
Uplink ports |
2 x 1000BASE-T/1000BASE-X combo |
2 x 1000BASE-T/1000BASE-X combo |
4 x 100/1000 SFP |
2 x 1000BASE-T/1000BASE-X combo |
|
PoE power budget |
Not applicable |
240 W |
Not applicable |
Not applicable |
|
Nominal input voltage |
12V to 48V |
12V to 54V |
12V to 48V |
12V to 48V |
|
FPGA data path |
No |
No |
No |
Yes |
|
Layer 2 NAT |
Not supported |
Not supported |
Not supported |
Supported |
|
Power consumption |
17.7 W |
26 W (excluding PoE load) |
17.8 W |
28 W |
IE-3100-8T2C-E is the non-PoE model with two 1000BASE-T/1000BASE-X dual-media combo uplinks, while IE-3100-8T4S-E replaces them with four 100/1000 SFP-only uplinks for 12 ports in total, so fiber-only designs that need more than two uplinks should order IE-3100-8T4S-E. Cabinets that must power cameras, access points or phones from the switch need IE-3100-8P2C-E, which keeps the eight copper ports and two combo uplinks and adds a 240 W PoE budget. Layer 2 NAT is available only on the IE3105 variant, so a design that depends on it should order IE-3105-8T2C-E, which also has the FPGA data path and draws 28 W against 17.7 W for IE-3100-8T2C-E.
Ordering Checklist
- Power supply: Order a separate DIN-rail supply such as PWR-IE50W-AC= (50W, AC 100-240V) or PWR-IE50W-AC-L=. The ordering table lists no default power supply, so the switch arrives with nothing to power it.
- SD card: Add SD-IE-1GB= or SD-IE-16GB= if configuration backup is wanted. The card is optional and not shipped by default, so a replacement switch cannot reload its configuration from it unless ordered.
- DIN-rail mounting: Add STK-RACK-DINRAIL= if the switch goes into a 19-inch rack instead of a DIN rail. The rack kit is a separate item, and the data sheet does not say whether DIN-rail or rack hardware ships with the switch.
- Uplink optics: Choose Cisco-listed 100M or 1G SFPs for the two dual-media uplinks, using -40 to +85°C industrial-grade SFPs for utility, rail or marine sites. Each uplink uses either the SFP or the RJ45 side.
- Subscription: Optionally add Catalyst Center Essentials subscription IE3100-DNA-E-L (up to 12 ports) with a -1Y, -3Y, -5Y, -7Y or -10Y term. IE-3100-8T2C-E is covered by the Network Essentials license with no separate license PID, so this is the only license line that can be added.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Cisco Industrial Ethernet 50 W AC or high-DC power supply option | |
|
Cisco Industrial Ethernet 50 W AC low-profile power supply option | |
|
Cisco Industrial Ethernet 50 W AC power supply with IEC connector | |
|
Cisco rugged 1000BASE-SX SFP listed for IE3100 SFP support | |
|
Cisco rugged 1000BASE-LX/LH SFP listed for IE3100 SFP support | |
|
GLC-ZX-SM-RGD= |
Cisco rugged 1000BASE-ZX SFP listed for IE3100 SFP support |
|
SD-IE-16GB= |
Cisco IE 16 GB SD memory card option |
|
STK-RACK-DINRAIL= |
19 in. DIN rail mount kit listed in Cisco ordering information |

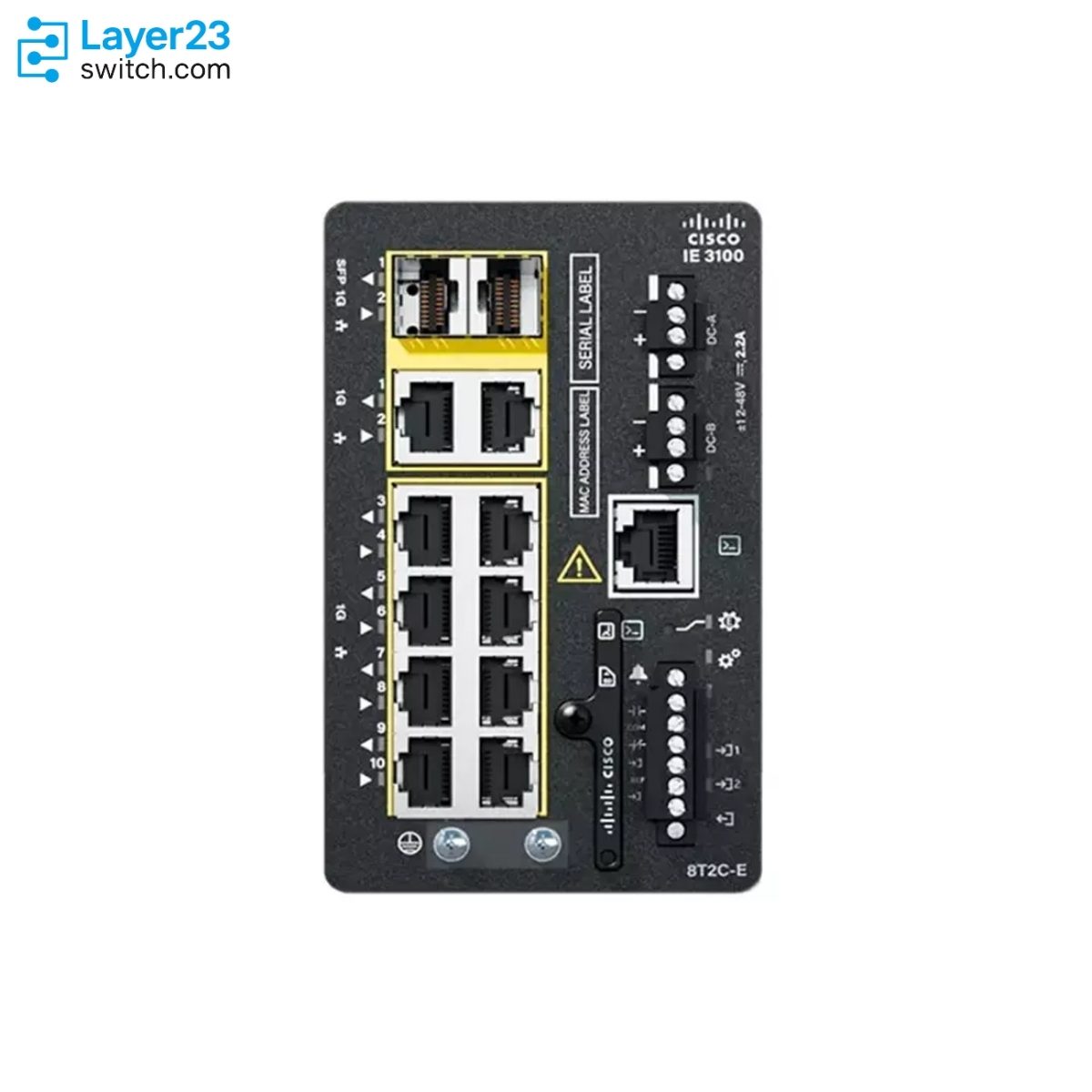

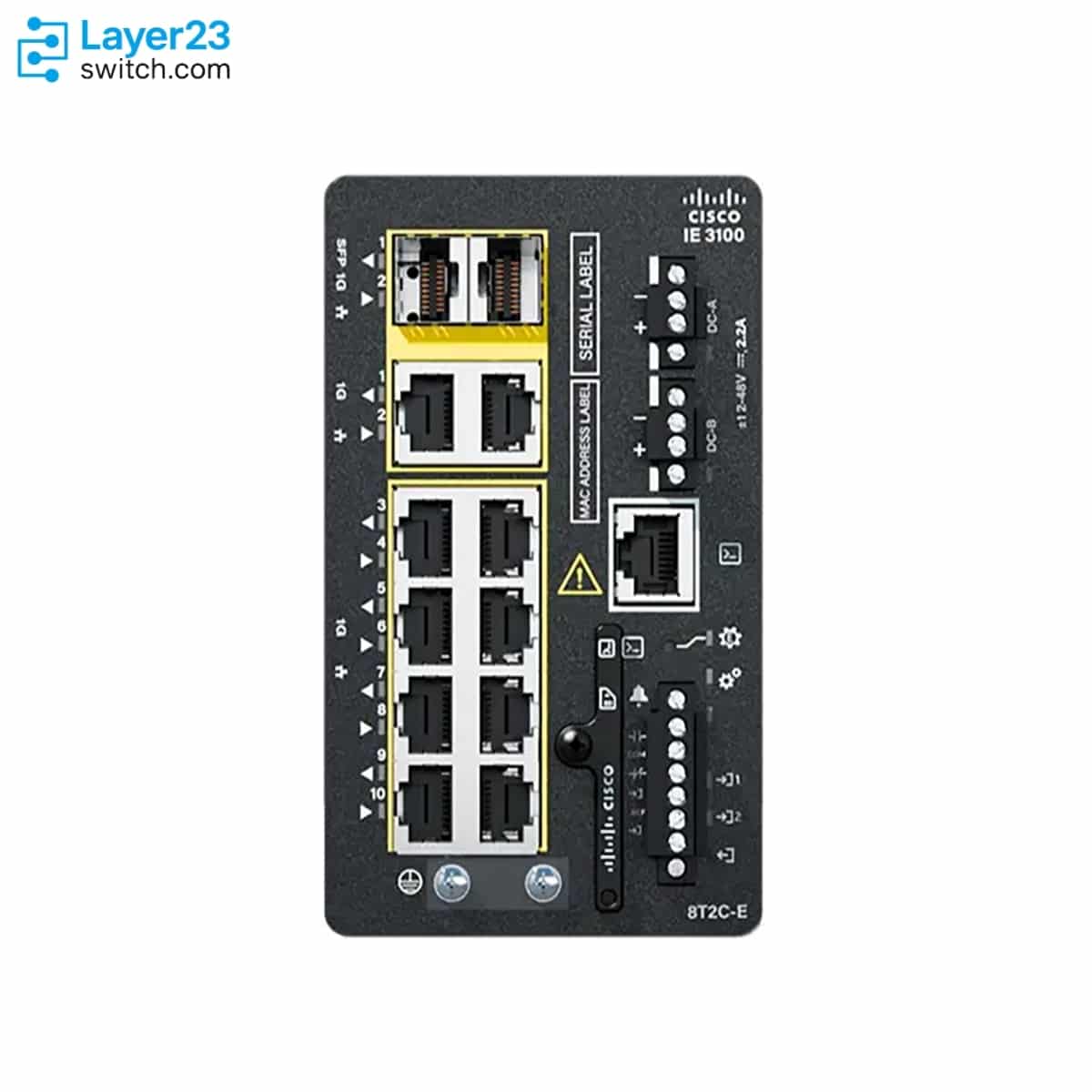

IE-3100-8T2C-E Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
Number |
Feature |
Number |
Feature |
|---|---|---|---|
|
1 |
Dual-media SFP port LEDs |
6 |
Express Setup LED |
|
2 |
Dual-media copper port LEDs |
7 |
System LED |
|
3 |
1000BASE-T port LEDs |
8 |
Alarm input LEDs |
|
4 |
Power connector LED |
9 |
Alarm output LED |
|
5 |
Management console LED |
10 |
PoE Status LED Note This LED is present in PoE models only. |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3100-8T2C-E | Product type | Industrial Ethernet switch |
| Network license | Network Essentials | Total ports | 10 Gigabit Ethernet ports |
| Copper access ports | 8 x 10/100/1000 RJ45 ports | Combo uplink ports | 2 x 1000BASE-T/1000BASE-X dual-media ports |
| SFP-only uplink ports | No SFP-only uplinks listed | PoE power budget | Not applicable for this non-PoE model |
| FPGA data path | No | Layer 2 NAT scope | Not an IE3105 variant |
| Power input | Dual DC inputs | Nominal input voltage | 12V to 48V |
| Absolute input voltage | 9.6V to 60V | Maximum current at 12V | 2.0 A |
| Maximum current at 24V | 1.0 A | Maximum current at 48V | 0.5 A |
| Inrush current at 12V | 10 A for 7 ms | Inrush current at 24V or 48V | 6 A for 6 ms |
| Power consumption | 17.7 W | Forwarding rate | 14.88 Mpps |
| Forwarding bandwidth | 10 Gbps | DRAM | 4 GB |
| Flash | 1.5 GB | SD card capacity | 1 GB, 4 GB, or 16 GB optional SD card |
| MAC addresses | 8000 | VLAN scale | 256 VLANs |
| IGMP multicast groups | 512 | STP instances | 128 |
| Console port | 1 RS-232 via RJ45 and 1 micro USB | Alarm I/O | 2 dry-contact alarm inputs and 1 alarm output |
| Mounting | DIN rail | Operating system | Cisco IOS XE |
| Operating temperature | -40C to 75C in blower-equipped cabinet | Storage temperature | -40C to 85C |
| Operating humidity | 5% to 95% noncondensing | Operating altitude | Up to 15000 ft with no temperature derating |
| Dimensions | 5.00 x 3.00 x 4.33 in. / 12.70 x 7.62 x 11.00 cm | Weight | 1.9 lb / 0.86 kg |
| Ingress protection | IP30 | MTBF | 854,560 hours |
| Industrial protocol support | EtherNet/IP CIP, Modbus, GOOSE, SCADA, and PROFINET MRP | Management | Cisco Catalyst Center, WebUI, CLI, SNMP, and open APIs |
