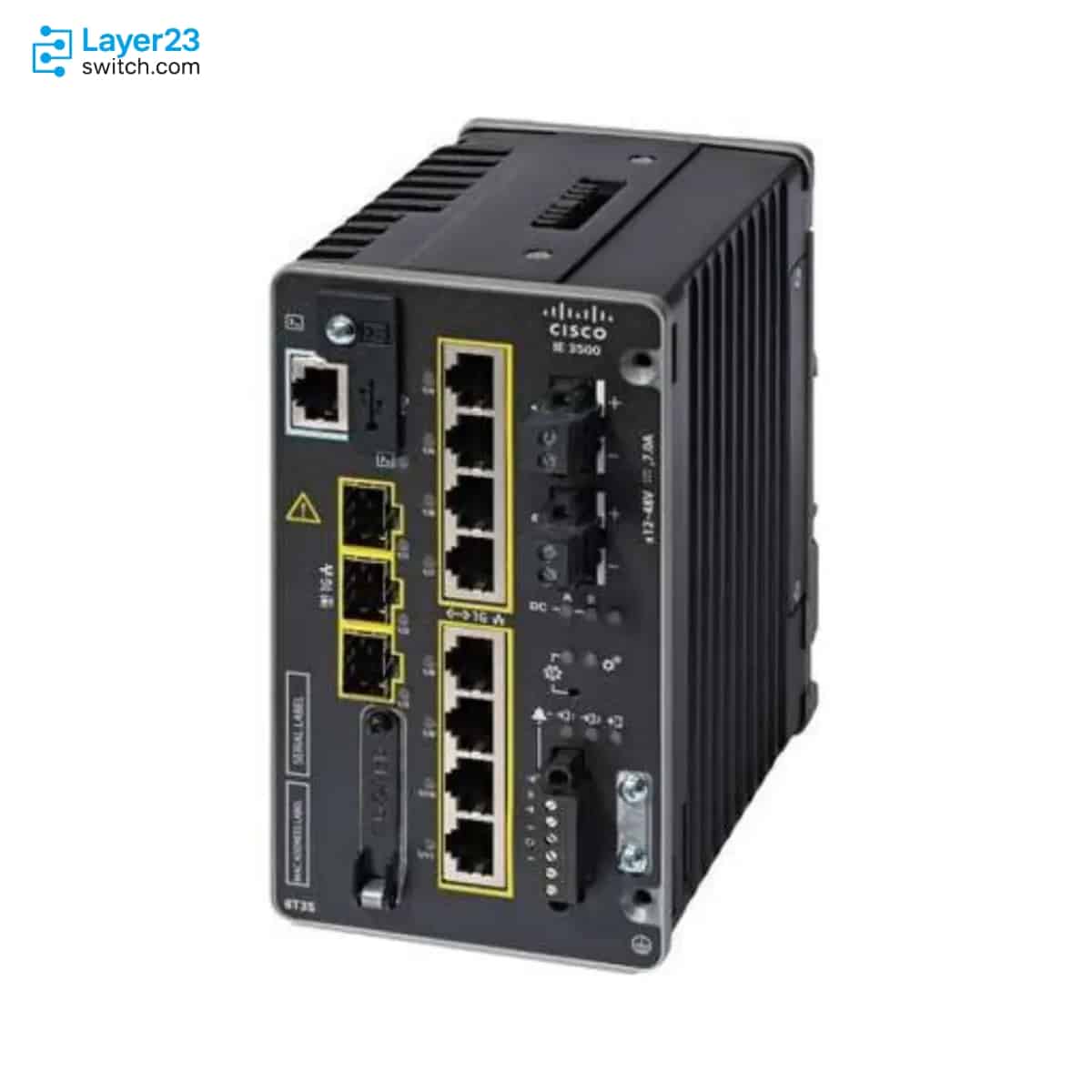

IE-3505-8P3S-E – 8xGE PoE/PoE+ Ports – 3xGE SFP Uplinks – Adv Modular Essentials – 240W PoE Budget
0/mo Solds
Cisco IE-3505-8P3S-E Compatible Accessories, Modules & Spare Parts
Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco IE-3505-8P3S-E. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.
Optics & Cables Compatible with Cisco IE-3505-8P3S-E
-
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $2,658.11.$95.80Current price is: $95.80. Condition: New Factory Sealed -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $1,202.16.$62.50Current price is: $62.50. Condition: New Factory Sealed -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $1,335.73.$57.00Current price is: $57.00. Condition: New Factory Sealed -
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOMOriginal price was: $5,329.57.$205.00Current price is: $205.00. Condition: New Factory Sealed -
GLC-ZX-SMD
1000BASE-ZX SFP - 70km SMF - EXT DOMOriginal price was: $10,672.47.$215.70Current price is: $215.70. Condition: New Factory Sealed
Power Supplies & Fans Compatible with Cisco IE-3505-8P3S-E
-
PWR-IE240W-PCAC-L
240W AC PSU - 54V PoE Output - Hardwired DIN-RailOriginal price was: $4,407.90.$670.00Current price is: $670.00. Condition: New Factory Sealed -
PWR-IE480W-PCAC-L
480W AC PSU - 54V PoE Output - DIN-RailOriginal price was: $6,665.30.$1,362.40Current price is: $1,362.40. Condition: New Factory Sealed
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
IE-3505-8P3S-E Description
IE-3505-8P3S-E is a Cisco IE3505 Rugged Series advanced modular industrial Ethernet switch for industrial access deployments that need Network Essentials switching, local PoE delivery, and fiber uplink handoff in a compact DC-powered platform. The exact 8P3S-E model provides eight 10/100/1000 PoE/PoE+ copper ports, three 100/1000 SFP uplink ports, a 240 W base PoE budget, and up to 480 W total PoE budget when used with an IE3500 expansion module, making it a fit for rugged cabinets that must connect and power field devices while keeping uplink connectivity on SFP interfaces.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3505-8P3S-E |
|
Product type |
Advanced modular industrial Ethernet switch |
|
Network license |
Network Essentials |
|
Total base ports |
11 |
|
Powered copper ports |
8 x Ethernet 10/100/1000 PoE/PoE+ ports |
|
Fiber uplink ports |
3 x 100/1000 SFP ports |
|
PoE power budget |
240 W |
|
Total PoE budget with expansion module |
480 W |
|
Input voltage rating |
12 to 54 VDC |
|
Maximum input current |
11.0A |
|
Power consumption |
42 W excluding connected powered-device load |
Product Performance
Key Features
Cisco places IE-3505-8P3S-E in the IE3505 advanced modular group, so it should be treated as the IE3505 8P3S PoE order line rather than a standard IE3500 8P3S substitute.
The E suffix maps this exact PID to Network Essentials, while the matching IE-3505-8P3S-A line changes the software tier to Network Advantage on the same port profile.
The three uplinks are documented as fiber 100/1000 SFP ports, keeping the fiber BOM on GE SFP optics instead of the 1G/10G SFP+ optics used by 3X or U3X variants.
The IE3505 8P3S profile keeps a 240 W base-switch PoE value and raises the expansion-inclusive budget to 480 W, separating it from the IE-3500-8P3S-E 360 W system limit.
Cisco marks PRP, HSR, DLR, and related redundancy functions as supported on IE3505 variants, making the 3505 base relevant when those industrial redundancy features are part of the design review.
The switch uses 12 to 54 VDC input with 11.0A maximum current, and Cisco notes that the PoE budget must be configured to match the installed power supplies and connected endpoint load.
Application Scenarios
IE-3505-8P3S-E fits a DIN-rail control cabinet where cameras, panels, access points, or other industrial endpoints need PoE/PoE+ Gigabit copper and the upstream plant network stays on 100/1000 SFP fiber.
Fits designs that specifically call for an IE3505 advanced modular switch where the architecture review includes Cisco-supported industrial redundancy functions rather than a standard IE3500 8P3S base.
This order line suits sites that want Network Essentials by default while reserving the expansion module, power supply, GE optic, and Network Advantage upgrade decisions as separate BOM items.
Product Comparison
|
Parameter |
IE-3505-8P3S-E |
IE-3505-8P3S-A | ||
|---|---|---|---|---|
|
Product type |
Advanced modular industrial Ethernet switch |
Advanced modular industrial Ethernet switch |
Modular industrial Ethernet switch |
Modular industrial Ethernet switch |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
Total base ports |
11 |
11 |
11 |
11 |
|
Copper downlink ports |
8 x 10/100/1000 PoE/PoE+ ports |
8 x 10/100/1000 PoE/PoE+ ports |
8 x 10/100/1000 PoE/PoE+ ports |
8 x 10/100/1000 PoE/PoE+/4PPoE ports |
|
Fiber uplink ports |
3 x 100/1000 SFP ports |
3 x 100/1000 SFP ports |
3 x 100/1000 SFP ports |
3 x 10G/1G SFP+ ports |
|
PoE power budget |
240 W |
240 W |
240 W |
480 W |
|
Total PoE budget with expansion module |
480 W |
480 W |
360 W |
480 W |
|
Input voltage rating |
12 to 54 VDC |
12 to 54 VDC |
12 to 54 VDC |
12 to 54 VDC |
|
Maximum input current |
11.0A |
11.0A |
11.0A |
11.5A |
|
Power consumption |
42 W excluding connected powered-device load |
42 W excluding connected powered-device load |
32 W excluding connected powered-device load |
49 W excluding connected powered-device load |
|
Dimensions |
3.98 x 6.00 x 5.29 in. |
3.98 x 6.00 x 5.29 in. |
3.48 x 6.00 x 5.29 in. |
4.38 x 6.00 x 5.29 in. |
|
Weight |
4.35 lb / 1.97 kg |
4.35 lb / 1.97 kg |
3.90 lb / 1.77 kg |
5.05 lb / 2.29 kg |
- In an IE-3505-8P3S-E vs IE-3505-8P3S-A comparison, the hardware, PoE budget, and GE SFP uplink plan match; the confirmed difference is Network Essentials versus Network Advantage.
- The IE-3505-8P3S-E vs IE-3500-8P3S-E difference is the IE3505 advanced modular base and PoE headroom, because the 3505 line lists 480 W total PoE budget with expansion module while the standard 3500 8P3S line lists 360 W.
- For IE-3505-8P3S-E vs IE-3500-8U3X-E comparison work, the key split is port capability: IE-3505-8P3S-E stays on PoE/PoE+ and GE SFP uplinks, while IE-3500-8U3X-E adds 4PPoE and 10G/1G SFP+ uplinks.
- Buyers deciding which model to choose should first verify IE3505 versus IE3500 platform need, then check license tier, powered endpoint class, total PoE budget, and SFP speed class.
Selection Guide
1. Choose it for IE3505 Essentials PoE access
Choose IE-3505-8P3S-E when the BOM requires an IE3505 advanced modular base with Network Essentials, 8 Gigabit PoE/PoE+ copper ports, and 3 GE SFP uplinks.
2. Change only the suffix for Advantage
Move to IE-3505-8P3S-A when the same IE3505 8P3S hardware must be ordered with Network Advantage instead of Network Essentials.
3. Use the standard IE3500 line only when its PoE limit fits
Select IE-3500-8P3S-E only when the project does not require the IE3505 variant and the 360 W expansion-inclusive PoE budget is enough for the endpoint plan.
4. Route 4PPoE or 10G uplinks elsewhere
Use IE-3500-8U3X-E when powered endpoints need 4PPoE or when the upstream design requires the 1G/10G SFP+ uplink class instead of GE SFP.
PoE Power Planning
|
Planning item |
Cisco-confirmed value |
Procurement check |
|---|---|---|
|
PoE power budget |
240 W |
Size the eight built-in PoE/PoE+ copper ports before expansion-module load is added |
|
Total PoE budget with expansion module |
480 W |
Keep the complete powered endpoint plan within the documented IE3505 8P3S system limit |
|
PoE-capable access ports |
8 x Ethernet 10/100/1000 PoE/PoE+ ports |
Match camera, access point, sensor, or panel count to the available copper ports |
|
Input voltage rating |
12 to 54 VDC |
Confirm the industrial DC feed before assigning powered devices |
|
Maximum input current |
11.0A |
Size the power source and wiring to the Cisco-listed current value |
|
PoE Type 1 minimum input |
46 VDC |
Use this value for PoE classes 1 through 3 |
|
PoE+ Type 2 minimum input |
52 VDC |
Use this value for PoE class 4 endpoint planning |
Ordering Checklist
|
Review area |
Required confirmation |
Procurement risk |
|---|---|---|
|
Exact Cisco PID |
IE-3505-8P3S-E with Network Essentials |
Prevents the Network Advantage suffix or standard IE3500 8P3S line from replacing the requested SKU |
|
IE3505 platform requirement |
Advanced modular IE3505 base |
Keeps PRP, HSR, DLR, and related IE3505-family design checks tied to the right platform |
|
Powered endpoint worksheet |
8 PoE/PoE+ copper ports, 240 W base-switch PoE value, and 480 W total PoE budget with expansion module |
Stops endpoint count from exceeding the documented system power plan |
|
DC power source |
12 to 54 VDC input and 11.0A maximum current |
Confirms the external supply and wiring before the switch is staged |
|
Uplink optics |
3 fiber 100/1000 SFP ports |
Avoids quoting 10G SFP+ optics for a GE SFP uplink design |
|
Expansion module choice |
Cisco-listed IE3500 expansion module and power impact |
Prevents a module selection from changing total port count or PoE load without review |
|
Software tier |
Network Essentials unless IE-3505-8P3S-A or IE3500-NW-A is required |
Keeps the license requirement aligned with the purchase line |
Optional Add-ons
|
Model |
Description |
|---|---|
|
IEM-3500-8P= |
IE3500 expansion module with 8 PoE/PoE+ ports |
|
IEM-3500-16P= |
IE3500 expansion module with 16 PoE/PoE+ ports |
|
IEM-3500-8S= |
IE3500 expansion module with 8 GE SFP fiber ports |
|
IEM-3500-8T= |
IE3500 expansion module with 8 GE copper ports |
|
IEM-3500-16T= |
IE3500 expansion module with 16 GE copper ports |
|
IEM-3500-6T2S= |
IE3500 expansion module with 6 GE copper ports and 2 GE SFP ports |
|
IEM-3500-14T2S= |
IE3500 expansion module with 14 GE copper ports and 2 GE SFP ports |
|
IEM-3500-4MU= |
IE3500 expansion module with 4 multigigabit PoE/PoE+/4PPoE ports; Cisco notes HSR, PRP, and DLR are not supported on this module |
|
240 W AC-to-DC PoE power supply option | |
|
480 W AC-to-DC PoE power supply option | |
|
SD-IE-16GB= |
Cisco IE 16GB SD memory card option |
|
STK-RACK-DINRAIL= |
19-inch DIN Rail mount kit |
|
IE3500-NW-A= |
Cisco Network Advantage license for IE3500 Series |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3505-8P3S-E | Product type | Advanced modular industrial Ethernet switch |
| Network license | Network Essentials | Operating system family | Cisco IOS XE |
| Total base ports | 11 | Powered copper ports | 8 x Ethernet 10/100/1000 PoE/PoE+ ports |
| Fiber uplink ports | 3 x fiber 100/1000 SFP ports | Uplink interface IDs | Gigabit Ethernet 1/1-3 |
| Downlink interface IDs | Gigabit Ethernet 1/4-11 | PoE power budget | 240 W |
| Total PoE budget with expansion module | 480 W | PoE standards | PoE and PoE+ |
| Power inputs | Dual DC power input | Input voltage rating | 12 to 54 VDC nominal |
| Input voltage range | 9.6 to 60 VDC absolute | Maximum input current | 11.0A |
| Power consumption | 42 W excluding power delivered to attached PoE devices | Required voltage for PoE Type 1 | 46 VDC minimum |
| Required voltage for PoE+ Type 2 | 52 VDC minimum | Expansion module family | IE3500 expansion modules |
| Removable storage | USB and optional SD card | Alarm interfaces | 2 alarm inputs and 1 alarm output |
| Console ports | 1 RS-232 via RJ-45 and 1 USB Type-C | Forwarding rate | Line rate for all ports and all packet sizes |
| Queues | 8 | Unicast MAC addresses | 24000 |
| IGMP multicast groups | 1024 | Active VLANs | 1024 |
| VLAN IDs | 4096 | Jumbo frames | 9198 bytes |
| SVIs | 32 | DRAM | 8 GB |
| User-accessible flash | 5.1 GB | Dimensions | 3.98 x 6.00 x 5.29 in. / 10.11 x 15.24 x 13.44 cm |
| Weight | 4.35 lb / 1.97 kg | Mounting | DIN rail |
| MTBF | 454728 hours |
