IE-3400-8P2S-A Description

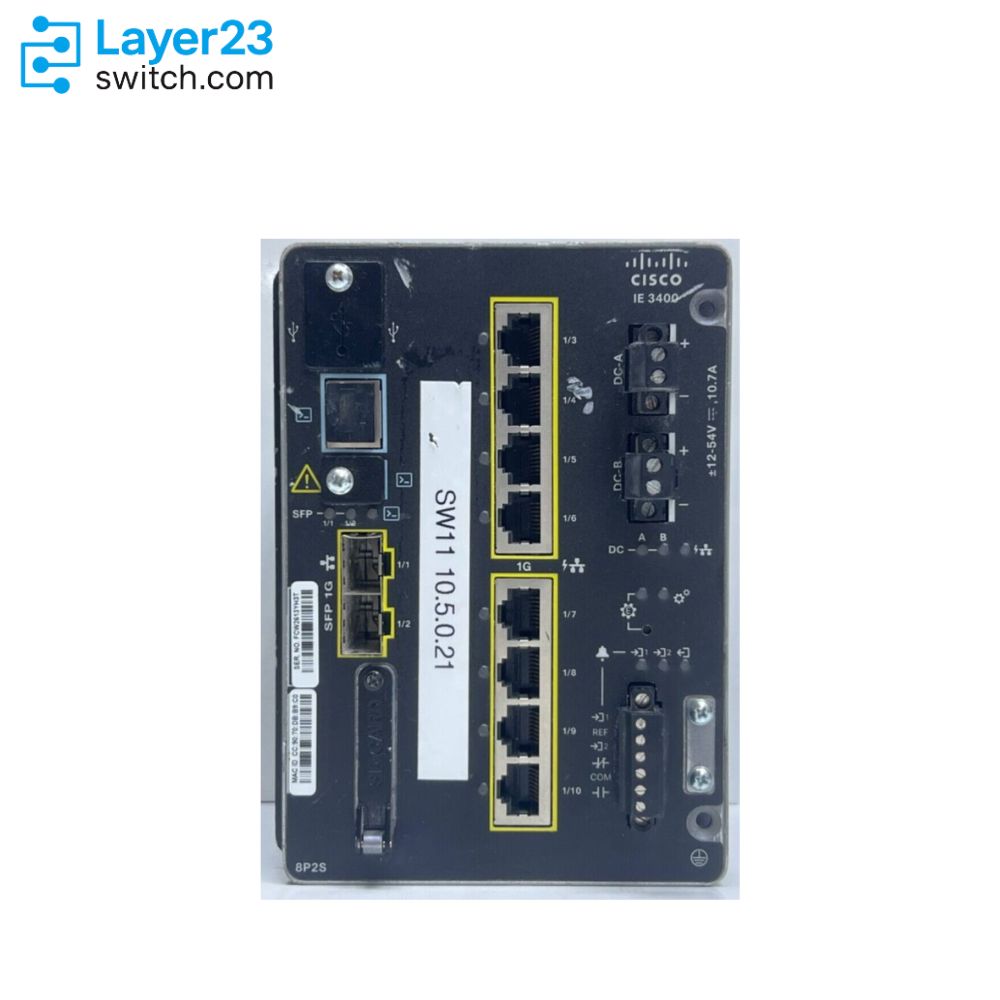

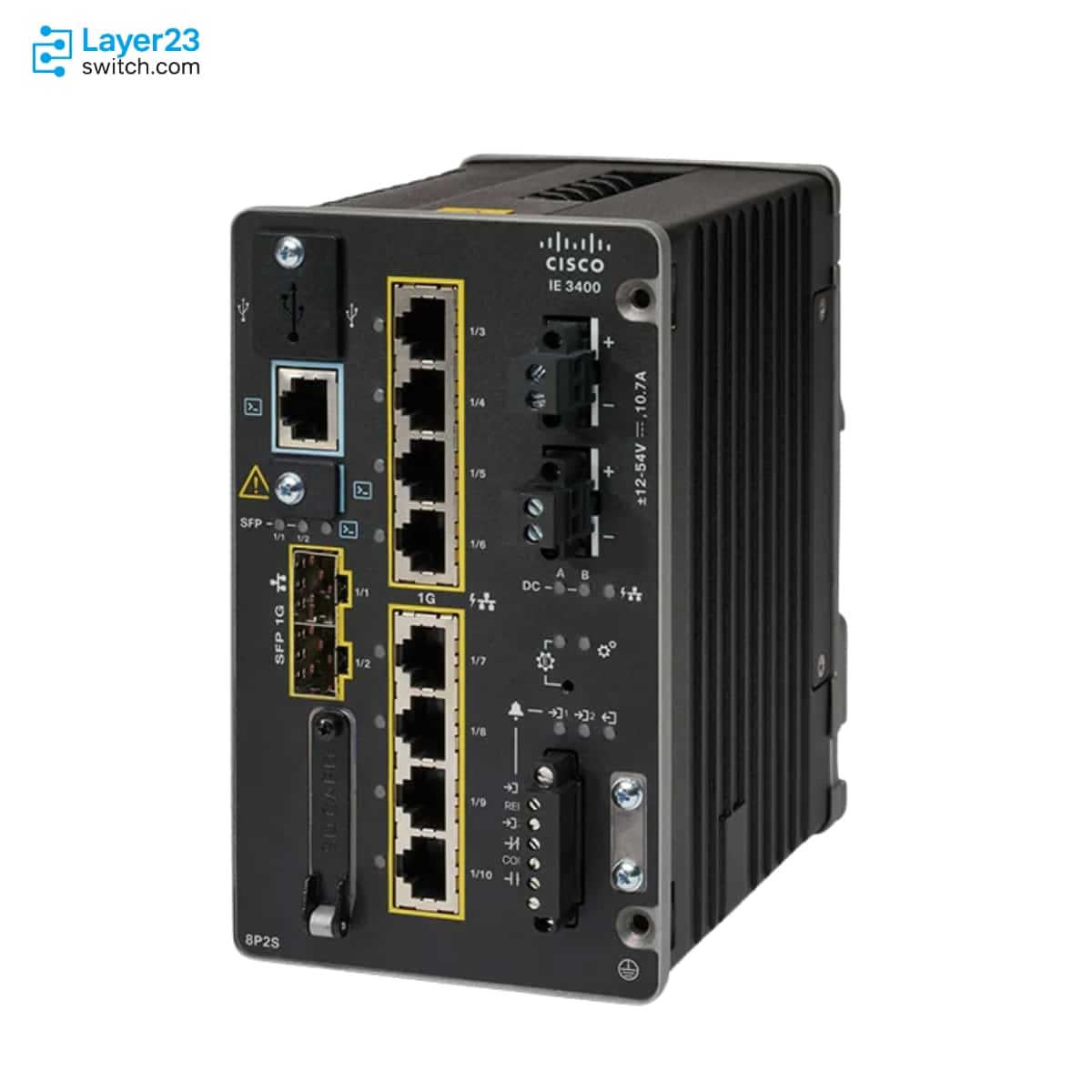

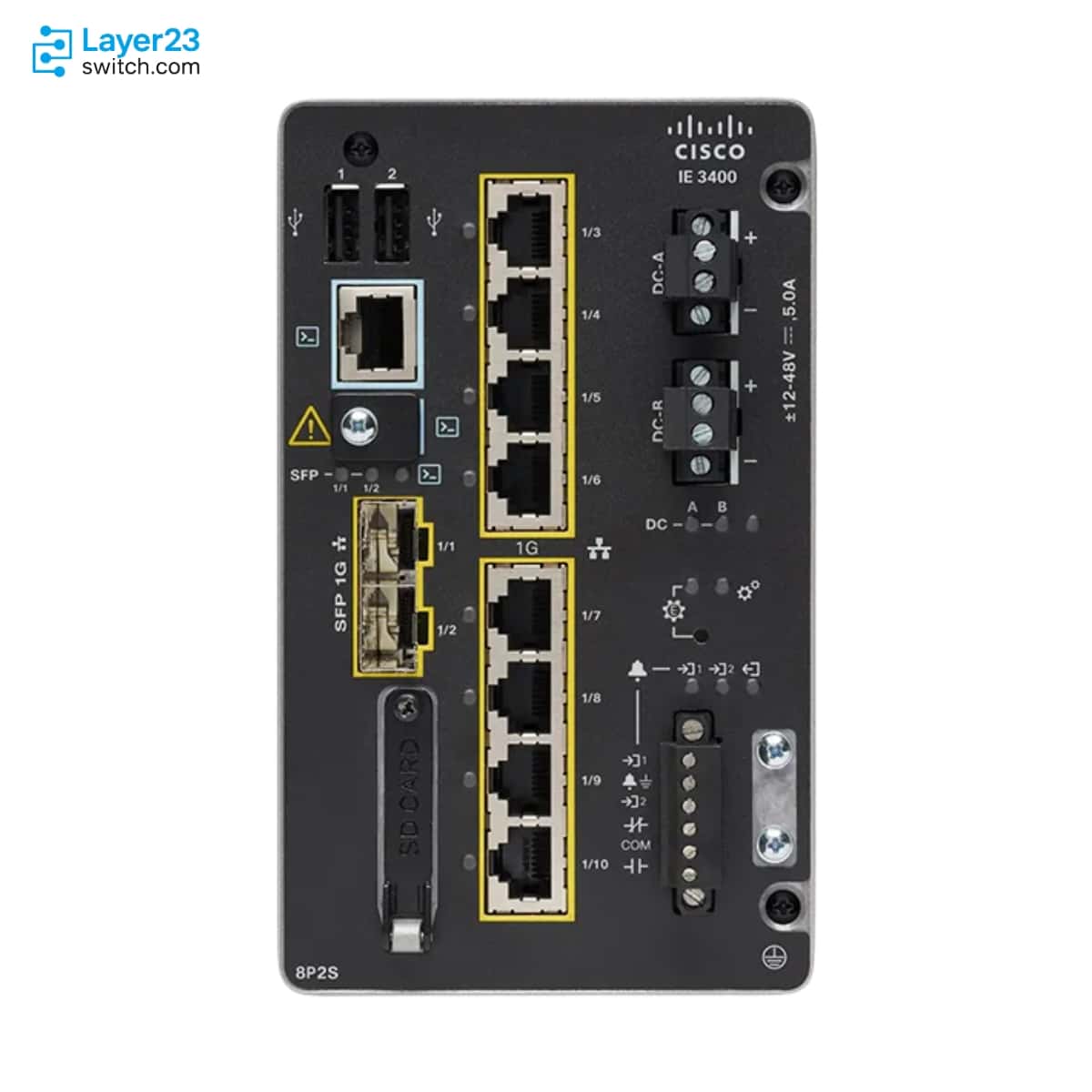

The IE-3400-8P2S-A is a Cisco Catalyst IE3400 Rugged Series advanced modular industrial PoE switch that combines 8 Gigabit PoE/PoE+ copper downlinks and 2 Gigabit SFP uplinks with the deepest security and redundancy set of Cisco's compact DIN rail line, ordered at the perpetual Network Advantage tier. Its 240W base PoE budget grows to 480W with a PoE expansion module, and the -A license activates SGT/SGACL segmentation with Cisco TrustSec, VRF-lite, VRF-Aware SGT, OSPF/BGP/EIGRP routing, MACsec-256, and PIM multicast routing on top of an Essentials baseline that already includes PRP, HSR-SAN, HSR-PRP Dual Redbox, DLR, REP and MRP rings, PROFINET, EtherNet/IP (CIP), dual-profile IEEE 1588 PTPv2, and IOx edge compute. Fanless -40°C to +70°C vented operation, dual 9.6-60VDC feeds, and substation, rail, marine, and Class I Div 2 approvals aim this powered node at plants and infrastructure where segmentation policy has to reach the machine edge.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3400-8P2S-A |
|
Downlink ports |
8x 10/100/1000M RJ45, PoE/PoE+ |
|
Uplink ports |
2x 100/1000M SFP |
|
PoE power budget |
240W base, 480W with PoE expansion module |
|
Network license |
Network Advantage (perpetual) |
|
Expansion |
1x module bay (IEM-3400/IEM-3300), up to 26 GE system ports |
|
Forwarding |
Line rate on all ports and packet sizes |
|
Unicast MAC addresses |
16K |
|
Input power |
Dual DC inputs, 9.6-60VDC (48V PoE, 54V PoE+) |
|
Power consumption |
47W (excluding PoE output) |
|
Operating temperature |
-40°C to +70°C (40 LFM vented enclosure) |
|
Alarm and console |
2 alarm in / 1 alarm out; RJ-45 + USB Mini-B console |
|
Mounting |
DIN rail |
Product Performance
Key Features
SGT/SGACL with Cisco TrustSec lets security policy follow devices on the powered edge – a capability of the -A license that stays intact only when expansion uses IEM-3400 modules rather than IEM-3300 parts.
PRP on base ports Gig1/1-1/4, HSR-SAN, HSR-PRP Dual Redbox, and DLR join REP and MRP in the baseline, covering the seamless-failover architectures that process and utility networks specify.
The PoE system doubles from 240W to 480W with a PoE module, and IEM-3300-4MU= adds four 2.5G ports at 802.3bt Type 4 for the heaviest endpoints – all behind the same base switch.
IEEE 1588 PTPv2 runs in Default and Power Profile on this GE-uplink platform, keeping C37.238 utility timing available alongside PoE, unlike the 10G-uplink IE3300 bases.
OSPF, BGP, EIGRP, VRF-lite, and MACsec-256 terminate routed segments and encrypt exposed uplinks at the cabinet, with L2NAT additionally supported on the uplink ports of this platform.
IEC 62443-4-1/-4-2, IEEE 1613, IEC 61850-3, EN50155 rail, DNV marine, NEMA TS 2, and Class I Div 2 approvals qualify the same PID for substations, rolling-stock adjacency, vessels, and process areas.
Application Scenarios
Deployed at production cells where each device class – controllers, HMIs, cameras, tools – carries its own SGT so TrustSec policy limits lateral movement without re-cabling the cell.
Installed in PRP or HSR topologies at water, energy, and chemical sites where a single lost frame matters and powered instruments hang off the same node.
Positioned in substation and yard cabinets to power IP cameras and wireless links while distributing PTP Power Profile timing and MACsec-256-protected uplinks.
Product Comparison
|
Parameter |
IE-3400-8P2S-A | ||
|---|---|---|---|
|
Downlink ports |
8x GE PoE/PoE+ |
8x GE PoE/PoE+ |
8x GE copper |
|
Uplink ports |
2x 100/1000M SFP |
2x 100/1000M SFP |
2x 100/1000M SFP |
|
Network license |
Network Advantage |
Network Essentials |
Network Advantage |
|
PoE power budget |
240W base, 480W with module |
240W base, 480W with module |
Not a PoE switch (data only) |
|
Segmentation and routing |
SGT/SGACL, TrustSec, VRF-lite, OSPF/BGP/EIGRP, PIM |
Static and inter-VLAN routing |
SGT/SGACL, TrustSec, VRF-lite, OSPF/BGP/EIGRP, PIM |
|
MACsec |
MACsec-256 |
MACsec-128 |
MACsec-256 |
|
Power consumption |
47W |
47W |
36W |
|
MTBF |
401,313 hours |
401,313 hours |
549,808 hours |
- IE-3400-8P2S-A and IE-3400-8P2S-E are one 240W/480W powered platform separated by license: TrustSec segmentation, dynamic routing, VRF-lite, PIM multicast, and MACsec-256 belong to this -A PID, while the -E covers Layer 2 powered duty and can adopt the full set later through the perpetual IE3400-NW-A= in-place upgrade.
- Against IE-3400-8T2S-A the license content is identical and the decision is physical: the 8T2S drops all PoE circuitry for an 11W lower draw and higher MTBF, so it takes the order whenever the cabinet’s endpoints power themselves.
- For deciding which SKU to order, confirm powered endpoints first (they force the 8P2S hardware), then license timing: day-one segmentation or routing lands on IE-3400-8P2S-A, and upstream-routed L2 designs can start on IE-3400-8P2S-E without stranding the hardware.
Selection Guide
1. Advantage Where Policy Reaches The Edge
Order this -A PID when TrustSec SGTs, VRF termination, routed adjacencies, or MACsec-256 are in the deployment design; if those live upstream today, IE-3400-8P2S-E runs the same powered edge and IE3400-NW-A= upgrades it in place when the design moves.
2. Keep SGT Capability In Module Choices
Expansion with IEM-3400 modules preserves SGT/SGACL; mixing an IEM-3300 module onto this base disables that segmentation on the switch, so a TrustSec site should standardize on IEM-3400-8P= for powered growth.
3. Budget Tiers And The Type 4 Path
Plan 240W for the base estate and 480W with a PoE module; endpoints above Type 3 need the IEM-3300-4MU= path – which trades away SGT and carries no PTP on its ports – or a different platform choice.
4. When The 9300 Line Fits Better
This platform peaks at GE uplinks; a powered edge that must backhaul at 10G belongs on the IE3300 10G bases (at the cost of PTP Power Profile and TrustSec) rather than stretching this SKU.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
PoE standards |
IEEE 802.3af (PoE) and 802.3at (PoE+) on 8 downlinks; 802.3bt Type 4 via IEM-3300-4MU= module ports |
|
PoE power budget |
240W base switch; 480W system with PoE expansion module |
|
Input voltage for PoE |
48VDC minimum for PoE; 54VDC for PoE+ |
|
Powered-device count |
Up to 8 base ports (24 with 16P module); sum per-port class draw against the active budget |
|
Supply sizing rule |
Switch consumption (47W) plus PoE budget must stay within the external supply wattage per the datasheet minimum power requirements |
|
Supply pairing |
PWR-IE480W-PCAC-L= carries the 480W system path; PWR-IE240W-PCAC-L= covers base-budget builds; verify hazardous-location certification per site |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
PoE-class supply |
Order a PoE-capable DIN supply sized for 47W switch draw plus the planned budget (240W or 480W path). |
An undersized supply sheds PoE load at peak draw, appearing as endpoint reboots. |
|
54V for PoE+ |
Wire 54VDC input when any port must deliver PoE+ class power. |
A 48V feed caps ports at basic PoE and starves PoE+ endpoints. |
|
Module family discipline |
Use IEM-3400 modules when SGT/SGACL is part of the design; IEM-3300 modules disable it on the base. |
A cheaper module silently removes the segmentation the -A license was bought for. |
|
Jumbo frame planning |
Note the 2000-byte jumbo limit when ERSPAN, DLR, PRP, HSR, or SGT are enabled. |
Applications tuned for 8996-byte frames break quietly once those features activate. |
|
Classified-area parts |
Avoid -L supplies in Class I Div 2 / Zone 2 areas and plan the required enclosure. |
IP20 uncertified supplies fail acceptance in classified zones. |
|
SD card for SwapDrive |
Add SD-IE-16GB= when zero-touch field replacement is planned. |
The card is optional and not shipped by default. |
Optional Add-ons
|
Model |
Description |
|---|---|
|
8x GE PoE/PoE+ expansion module (preserves SGT/SGACL; 480W system budget) | |
|
8x GE copper expansion module (preserves SGT/SGACL) | |
|
8x GE SFP fiber expansion module (preserves SGT/SGACL) | |
|
4x 1GE/2.5G copper module with 802.3bt Type 4 PoE (disables SGT on base) | |
|
240W PoE-capable DIN rail power supply, AC input, IP20 light-duty variant | |
|
480W PoE-capable DIN rail power supply, AC input, IP20 light-duty variant | |
|
170W PoE-capable DIN rail power supply, AC/DC input, hazardous-location certified | |
|
Industrial-grade 1000BASE-SX SFP, multimode, 220-550 m | |
|
SD-IE-16GB= |
16GB SD card for configuration and SwapDrive replacement |
|
STK-RACK-DINRAIL= |
19-inch rack mount kit for DIN rail switches |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3400-8P2S-A | Network license | Network Advantage, perpetual (upgrade PID for -E units: IE3400-NW-A=) |
| Downlink ports | 8x 10/100/1000M RJ45, PoE/PoE+ | Uplink ports | 2x 100/1000M SFP |
| PoE power budget | 240W base; 480W with PoE expansion module | PoE input requirement | 48VDC for PoE; 54VDC for PoE+ |
| Expansion | 1x bay; 10 compatible IEM-3400/IEM-3300 modules; up to 26 GE system ports; Type 4 via IEM-3300-4MU= | Forwarding | Line rate, all ports and packet sizes; 8 egress queues |
| MAC / routes | 16K MAC; 3000 IPv4 + 512 IPv6 indirect routes | VLANs / ACL | 256 VLANs; 128 STP instances; 3K ACL entries |
| Memory | 4 GB DRAM; 1.5 GB user flash; optional 4/16 GB SD | Jumbo frames | 8996 bytes (2000 bytes with ERSPAN/DLR/PRP/HSR/SGT) |
| Advantage features | SGT/SGACL + Cisco TrustSec, VRF-lite, VRF-Aware SGT, OSPF/BGP/ISIS/RIP/EIGRP, PBR, VRRP/HSRP, BFD, MACsec-256, PIM multicast | Essentials baseline | L2 switching, REP/Fast REP/Negotiated/Autodiscovery/ZTP, MRP, PRP (Gig1/1-1/4), PTP over PRP, HSR-SAN, HSR-PRP Dual Redbox, DLR, PROFINET, CIP, L2NAT (incl. uplinks), MACsec-128, FIPS 140-2, IOx |
| PTP timing | IEEE 1588 PTPv2, Default and Power Profile; no PTP on IEM-3300-4MU ports | SGT boundary | SGT/SGACL on base and IEM-3400 modules only; IEM-3300 modules disable it |
| Input power | Dual redundant DC, 9.6-60VDC; 10.6A input | Power consumption | 47W at 54V, excluding PoE output |
| Compatible DIN rail supplies | PoE-capable 65W/170W/240W/480W external units, ordered separately | Alarms / console | 2 alarm in, 1 alarm out; RS-232 RJ-45 + USB Mini-B console; optional USB storage |
| Operating temperature | -40°C to +70°C vented; +60°C sealed; +75°C at 200 LFM; +85°C type-tested 16 h | Altitude / humidity | To 15,000 ft; 5-95% non-condensing; storage -40°C to +85°C |
| Dimensions (H x W x D) | 6 x 4.4 x 5.3 in (15.2 x 11.2 x 13.5 cm) | Weight / MTBF | 5.0 lbs (2.3 kg); 401,313 hours |
| Supported uplink optics | 100M/1G SFP incl. GLC-SX-MM-RGD, GLC-LX-SM-RGD, GLC-ZX-SM-RGD (70 km), GLC-T-RGD, BX single-strand to 80 km; COM/EXT grades derate temperature | Industrial compliance | IEC 62443-4-1/-4-2, IEEE 1613, EN/IEC 61850-3, ODVA CIP, NEMA TS 2-2016, AREMA C&S 11/19, DNV Marine, EN50121/EN50125/EN50155, IP30 |
| Safety / hazloc | UL/CSA 60950-1, 62368-1, 61010-2-201; UL121201/CSA 213 Class I Div 2 A-D; Class I Zone 2 ATEX/IECEx (cabinet required) | Warranty | 5-year limited hardware warranty (all IE3400 PIDs and IE power supplies) |
