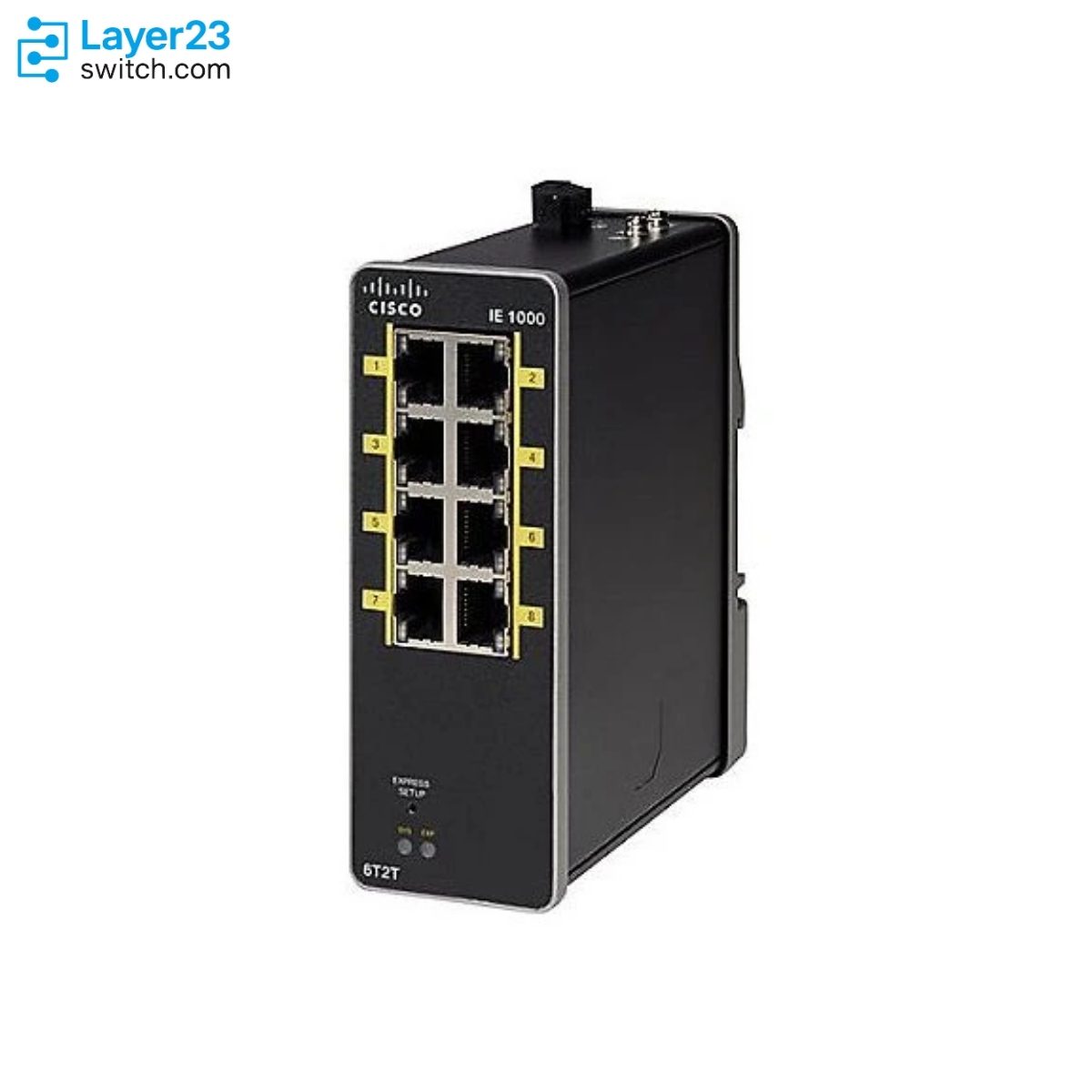

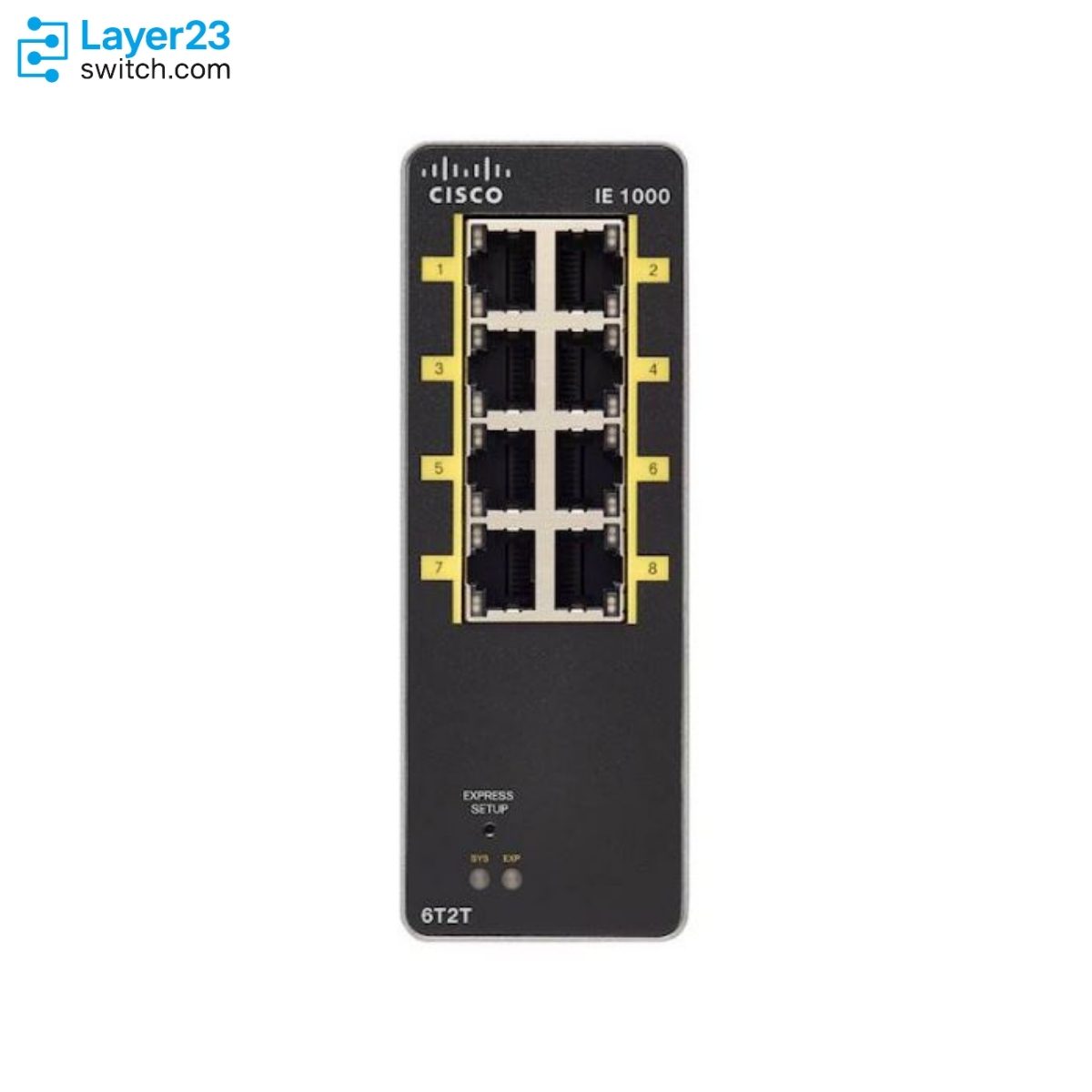

IE-1000-6T2T-LM Description
The IE-1000-6T2T-LM is the eight-port model of the Cisco Industrial Ethernet 1000 Series, a compact rugged lightly managed switch that pairs 6 Fast Ethernet copper downlinks with 2 Fast Ethernet copper uplinks for operational technology installations run entirely through a web GUI. As part of Cisco's entry industrial line for machine builders and machine-to-machine networks, it brings VLANs, IGMP snooping, EtherChannel, Sticky-MAC port security, and EtherNet/IP (CIP) awareness to teams that do not operate a command line, while the second uplink gives a small automation cell a redundant path or a daisy-chain position that the five-port model cannot offer. The switch draws 5.3W from a 12-24V feed with redundant voltage inputs, reaches operation 50 seconds after cold boot, and works from -20°C to +70°C in a vented enclosure, all in a DIN rail housing under 46 mm wide.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-1000-6T2T-LM |
|
Downlink ports |
6x 10/100M copper (RJ-45) |
|
Uplink ports |
2x 10/100M copper (RJ-45) |
|
Management model |
Web device manager GUI, SNMP v2/v3, syslog |
|
Provisioning |
Plug-and-Play, zero-touch IP discovery or DHCP |
|
Input voltage |
12-24V, redundant voltage feeds |
|
Power consumption |
5.3W |
|
Switching bandwidth (series maximum) |
5.6 Gbps |
|
Operating temperature |
-20°C to +70°C (vented enclosure) |
|
Memory |
128 MB DRAM, 160 MB onboard flash |
|
Mounting |
DIN rail |
Product Performance
Key Features
Two Fast Ethernet uplinks let the switch hold a redundant upstream path or sit mid-span in a daisy chain of cell switches, a topology the single-uplink IE-1000-4T1T-LM cannot terminate.
Six downlinks absorb the PLC, HMI, drive, and I/O count of a typical automation cell in one 45.7 mm-wide DIN rail unit, keeping a second switch off the panel bill of materials.
The web device manager, SNMP v2/v3, and syslog carry day-two operations, so the plant team that owns the panel also owns the switch without CLI skills or an IT dispatch.
A 5.3W draw from the 12-24V panel rail with redundant feed inputs means the switch shares the existing control-power budget instead of demanding its own supply class.
802.1x single-host authentication with MAC authentication bypass, Sticky-MAC learning, and BPDU guard keep casual laptop connections and rogue switches off exposed cell ports.
EN 61131-2 PLC-zone immunity, NEMA TS-2, Class 1 Div 2 hazardous-location approval (with cabinet), and IP30 housing qualify one SKU across plant floors, roadside cabinets, and mixed-use facilities.
Application Scenarios
Deployed at the center of a production cell, aggregating six machine devices over Fast Ethernet and forwarding cell traffic to the plant network through one uplink while the second uplink closes a redundant path.
Built into packaged process skids and machine-to-machine assemblies whose builders ship a preconfigured network with the equipment, using Plug-and-Play so the skid joins the site network without on-site switch engineering.
Installed in floor telecom spaces to connect HVAC, lighting, and access controllers where the device count outgrows a four-port unit but stays within six copper drops.
Product Comparison
|
Parameter |
IE-1000-6T2T-LM | ||
|---|---|---|---|
|
Total ports |
8 |
5 |
10 |
|
Downlink ports |
6x 10/100M copper |
4x 10/100M copper |
8x 10/100M PoE/PoE+ |
|
Uplinks |
2x 10/100M copper |
1x 10/100M copper |
2x 1G SFP |
|
PoE budget |
Not a PoE switch (data only) |
Not a PoE switch (data only) |
180W |
|
Input voltage |
12-24V |
12-24V |
48-54V |
|
Power consumption |
5.3W |
4.2W |
10.6W (without PoE load) |
|
Operating floor (vented) |
-20°C |
-20°C |
-40°C |
|
Weight |
1.25 lb (0.57 kg) |
1.10 lb (0.50 kg) |
1.85 lb (0.84 kg) |
- Between the IE-1000-6T2T-LM and IE-1000-4T1T-LM the decision is pure capacity on the same 12-24V data-only design: dropping to the 4T1T saves panel width and one watt but gives up two downlinks and the second uplink, so it only fits panels with four devices and no need for upstream redundancy.
- The IE-1000-8P2S-LM changes class rather than size: it powers endpoints from a 180W PoE budget, uplinks over 2x 1G SFP fiber, requires a 48-54V input, and carries a -40°C vented floor plus an alarm output, which moves it into camera, access point, and outdoor cabinet roles the copper-only IE-1000-6T2T-LM cannot serve.
- For deciding which SKU to order, rule PoE and fiber in or out first because they force IE-1000-8P2S-LM and its higher-voltage supply; a data-only design then sizes between IE-1000-6T2T-LM and IE-1000-4T1T-LM on downlink count and whether a second uplink path is worth the wider housing.
Selection Guide
1. Redundant Uplink In A Small Cell
When a six-device cell needs its upstream path duplicated or must sit inside a switch chain, the IE-1000-6T2T-LM’s second Fast Ethernet uplink carries that design; a single-homed four-device panel can shed cost and width with IE-1000-4T1T-LM.
2. All-Copper Boundary
Every port on this model terminates 4-pair Category 5 copper, so a design whose uplink must leave the cabinet on fiber, or whose endpoints draw power over Ethernet, belongs on IE-1000-8P2S-LM with its SFP uplinks and 180W budget.
3. Tempered-Space Envelope
The -20°C vented floor covers plants, risers, and tempered enclosures; an unheated outdoor cabinet that reaches -40°C sits outside this model’s range and needs the PoE models’ wider envelope.
4. Web-GUI Operating Ceiling
The lightly managed feature set ends at VLANs, IGMP snooping, spanning tree, and port security; a cell that must run ring redundancy protocols or routed segmentation needs Cisco’s fully managed Industrial Ethernet families rather than an IE 1000.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Supply pairing |
Order a 50W DIN rail supply such as PWR-IE50W-AC= against the 12-24V input plan. |
The switch ships without a power supply, and a missing or wrong-class supply stalls panel commissioning. |
|
Classified-area parts |
Keep PWR-IE50W-AC= (not PWR-IE50W-AC-L=) and a compliant enclosure on the order for Class 1 Div 2 sites. |
The -L variant is IP20 and uncertified for hazardous locations, so it fails inspection in classified zones. |
|
Enclosure thermal tier |
Match the enclosure to the documented tiers: -20°C to +70°C vented, +60°C sealed, +75°C with forced airflow. |
A sealed hot-plant cabinet silently derates the ceiling and can cook the switch in summer. |
|
Copper-only uplink runs |
Verify both upstream runs are planned as Fast Ethernet copper; there is no SFP slot on this model. |
A fiber backhaul assumption discovered at install cannot be corrected on this SKU. |
|
Mounting format |
Add STK-RACK-DINRAIL= only if the unit must sit in a 19-inch rack. |
DIN rail is the native mount; rack installs need the adapter kit on the same order. |
Optional Add-ons
|
Model |
Description |
|---|---|
|
50W DIN rail power supply, AC 100-240V or DC 125-250V input, hazardous-location certified | |
|
50W DIN rail power supply, AC input, IP20 light-duty variant without hazardous-location certification | |
|
STK-RACK-DINRAIL= |
19-inch rack mount kit for DIN rail Industrial Ethernet switches |
Cisco IE 1000 Switch Rear Panel
The rear panel of the switch has a latch for installation on a DIN rail. See photo. The latch is spring-loaded to move down to position the switch over a DIN rail and return to the original position to secure the switch to a DIN rail.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-1000-6T2T-LM | Product type | Lightly managed industrial Ethernet switch, IE 1000 Series |
| Downlink ports | 6x 10/100M copper | Uplink ports | 2x 10/100M copper |
| Connectors | RJ-45, 4-pair Category 5 UTP | Management | Web device manager GUI, SNMP v2/v3, syslog |
| Provisioning | Plug-and-Play, zero-touch IP discovery, DHCP; 50-second cold boot | Layer 2 features | VLANs, MSTP, STP PortFast, LLDP, CDP aware, IGMP snooping and querier, EtherChannel (LACP), SPAN, storm control, Smartport macros |
| Security | 802.1x single-host with MAB, Sticky-MAC port security, DHCP snooping, BPDU guard, TACACS+/RADIUS, per-port BootP server | Industrial protocol | EtherNet/IP (CIP) with EDS support |
| Forwarding bandwidth (series maximum) | 2.8 Gbps | Switching bandwidth (series maximum) | 5.6 Gbps |
| Memory | 128 MB DDR2 DRAM, 160 MB onboard flash | MTBF (series) | 374,052 hours |
| Input voltage | 12-24V, redundant voltage feeds | Power consumption | 5.3W |
| Operating temperature | -20°C to +70°C vented; -20°C to +60°C sealed; -16°C to +75°C with forced airflow | Operating altitude | Up to 13,800 ft |
| Storage environment | -40°C to +85°C, up to 15,000 ft | Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 5.0 x 1.8 x 4.5 in (127 x 45.7 x 115 mm), including DIN rail | Weight | 1.25 lb (0.57 kg) |
| Safety | UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB, UL/CSA/IEC/EN 61010-2-201, CE | Hazardous locations | ANSI/ISA 12.12.01 Class 1 Div 2 A-D; ATEX and IECEx Class 1 Zone 2 (cabinet enclosure required) |
| EMC and industry | FCC Part 15 Class A, EN 55022 Class A, EN 61000-4 series immunity, EN 61000-6-1/-2/-4, EN 61131-2, EN 61326-1, NEMA TS-2, Marine TAC, IP30 | Environmental compliance | RoHS, China RoHS, EU WEEE |
| Mounting | DIN rail; 19-inch rack via STK-RACK-DINRAIL= | Warranty | 5-year limited hardware warranty (all IE-1000 PIDs and listed IE power supplies) |
