C8300-2N2S-6T Description

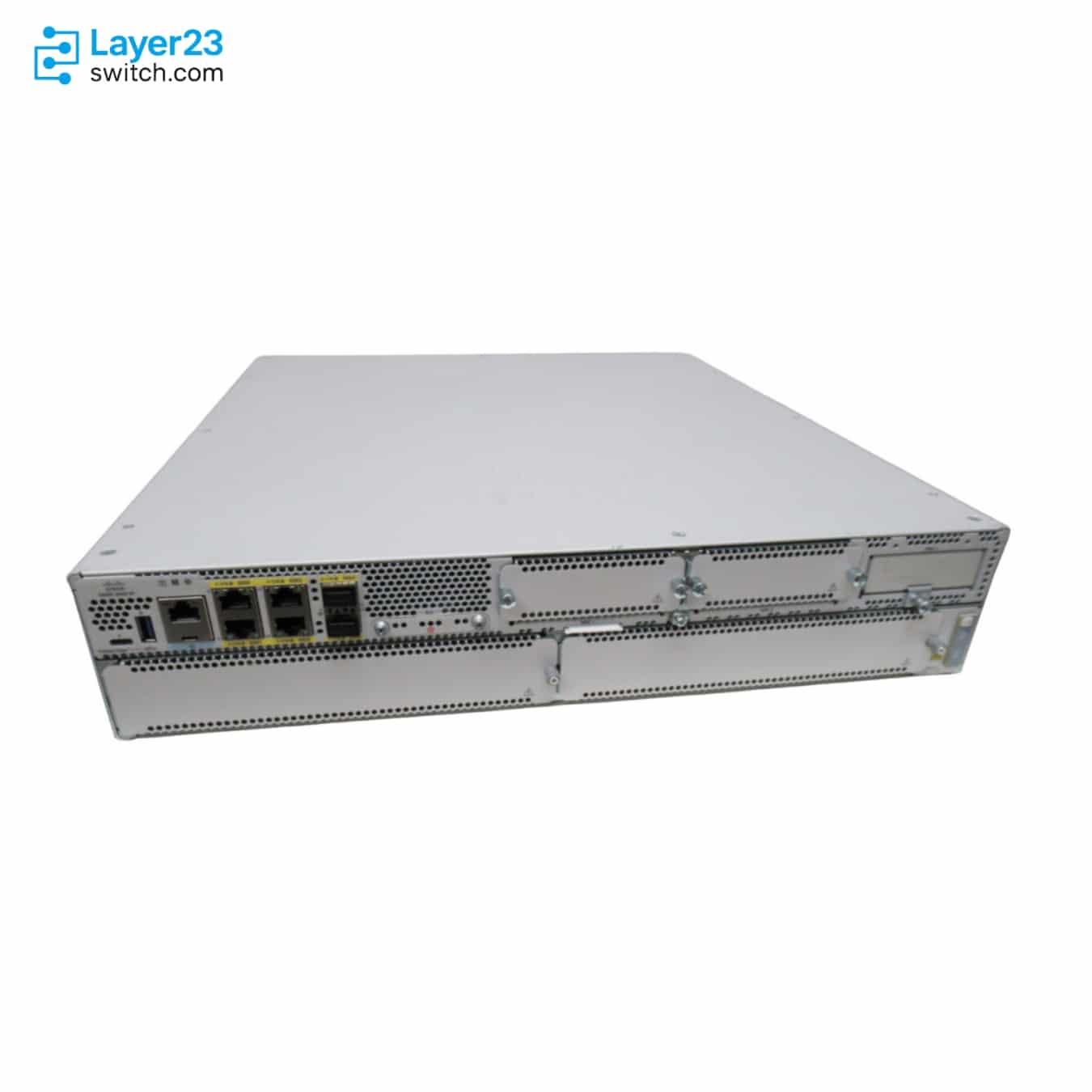

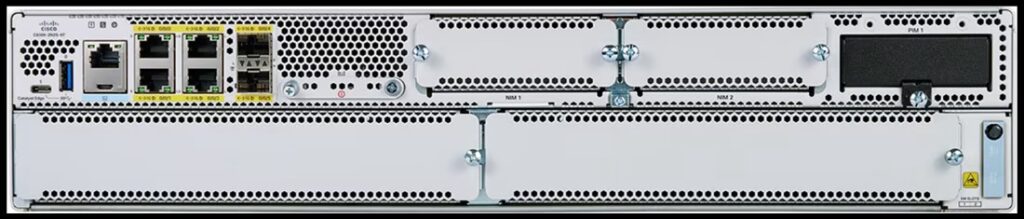

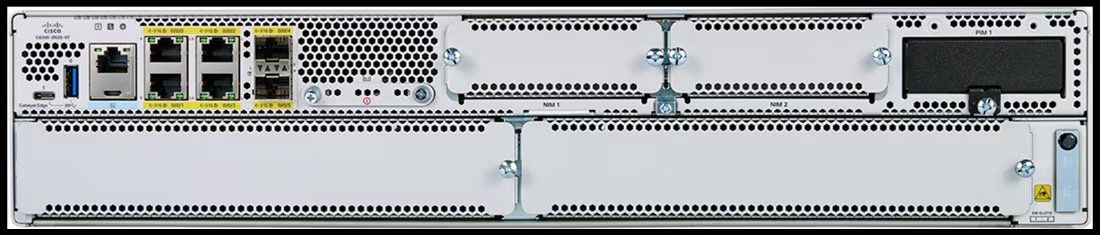

The C8300-2N2S-6T is a Cisco Catalyst 8300 Series Edge Platform 2RU router for branch WAN edges on 1G circuits that need room for two service modules. The router pairs two 1G SFP and four 1G RJ-45 ports with two SM, two NIM and one PIM slot, 8 GB of DRAM, and SD-WAN IPsec of up to 2 Gbps, or 1.8 Gbps on IMIX traffic, across 6,000 overlay tunnels. Without an HSEC license, encrypted traffic is held to 250 Mbps one way and 1,000 secure tunnels.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Embedded WAN ports |
2 x 1G SFP and 4 x 1G RJ-45 |
|
Module slots |
2 SM, 2 NIM and 1 PIM; up to 6 NIMs with SM-slot NIM carriers |
|
DRAM |
8 GB, upgradable to 16 GB or 32 GB |
|
Default M.2 storage |
16 GB M.2 USB |
|
SD-WAN IPsec throughput |
Up to 2 Gbps (1400 bytes); 1.8 Gbps (IMIX) |
|
SD-WAN overlay tunnels |
6,000 |
|
IPv4 forwarding throughput |
Up to 19.7 Gbps (1400 bytes) |
|
DIA w. NAT + NGFW + IPS + URLF + AMP |
2.3 Gbps |
|
Default power supply |
2 x PWR-CC1-650WAC 650W AC, field replaceable |
|
PoE budget with PWR-CC1-1000WAC |
500W, for PoE-capable NIMs and SMs; none on the default supplies |
|
Typical power consumption |
89W, no modules, single power supply |
|
Form factor |
2RU, rack mount only |
|
Minimum software release |
Cisco IOS XE 17.3.2 |
Product Performance
Key Features
Plain IPv4 forwarding runs at up to 19.7 Gbps with 1400-byte packets, but IPsec tops out near 2 Gbps in either software mode. On mixed branch traffic averaging 352 bytes, the router encrypts 1.8 Gbps in SD-WAN mode and 1.9 Gbps in autonomous mode, and those are the numbers to size tunnels against.
The SM slots take single-wide modules as well as double-wide modules that only the 2RU Catalyst 8300 chassis accepts, including the C-SM-40P8M2X 50-port Layer 2 switch module and the SM-X-72FXS analog voice module. NIM carriers in the SM slots take the NIM count from two to six.
The router ships with service-oriented core allocation, which reserves cores for KVM and Docker applications next to packet forwarding. The data plane heavy profile trades that away: on this 8-core platform it removes container resources entirely.
With NAT, NGFW, IPS, URL filtering and AMP all enabled, direct internet traffic runs at 2.3 Gbps under the IOS XE 17.12.2 firewall EMIX profile. A split of half IQDF-encrypted SD-WAN traffic and half inspected internet traffic reaches 2.8 Gbps.
Two PWR-CC1-650WAC supplies come installed, and neither feeds PoE. PoE ports on NIMs or SMs need at least one PWR-CC1-1000WAC in a supply bay, which gives a 500W budget for modules such as the C-NIM-1M with its 90W port.
Fitting PWR-CC1-650WDCR reverse-airflow DC supplies brings the chassis into NEBS compliance, and the C8300-FAN-2R-R fan assembly comes with them. Typical sound pressure rises from 59 dBA to 63 dBA in that build.
Application Scenarios
At a branch served by gigabit fiber or copper circuits, the router terminates the WAN on its 1G ports while a 50-port switch module connects the office floor and a UCS-E compute module runs local virtual network functions.
Retail or clinic sites that cannot lose connectivity add a 5G or LTE Advanced Pro pluggable in the PIM slot, so the router keeps an SD-WAN path open over cellular when the wired circuit fails.
Hotels and healthcare buildings that still run analog handsets and fax machines connect them to a 72-port FXS module in the double-wide SM position, with SRST keeping local calling up if the link to the call controller drops.
Product Comparison
|
Parameter |
C8300-2N2S-6T | ||
|---|---|---|---|
|
Embedded Layer 3 Ethernet ports |
2 x 1G SFP, 4 x 1G RJ-45 |
2 x 10G SFP+, 4 x 1G RJ-45 |
2 x 1G SFP, 4 x 1G RJ-45 |
|
SD-WAN IPsec throughput (1400Bytes) |
Up to 2 Gbps |
Up to 18.8 Gbps |
Up to 2 Gbps |
|
SD-WAN IPsec throughput (IMIX) |
1.8 Gbps |
7.6 Gbps |
1.8 Gbps |
|
IPv4 forwarding throughput (1400Bytes) |
Up to 19.7 Gbps |
Up to 19.7 Gbps |
Up to 19.7 Gbps |
|
SD-WAN overlay tunnels scale |
6,000 |
6,000 |
6,000 |
|
Slots |
2 SM, 2 NIM, 1 PIM |
2 SM, 2 NIM, 1 PIM |
1 SM, 1 NIM, 1 PIM |
|
Default power supplies |
2 x PWR-CC1-650WAC 650W AC |
2 x PWR-CC1-650WAC 650W AC |
2 x PWR-CC1-250WAC 250W AC |
|
Default PoE budget |
0W (PWR-CC1-650WAC) |
0W (PWR-CC1-650WAC) |
0W (PWR-CC1-250WAC) |
|
PoE budget with PoE supply |
500W (PWR-CC1-1000WAC) |
500W (PWR-CC1-1000WAC) |
250W (PWR-CC1-500WAC) |
C8300-2N2S-6T and C8300-2N2S-4T2X share the 2RU chassis, slots and dual 650W supplies, but C8300-2N2S-6T has two 1G SFP ports in place of 10G SFP+ and stops at 2 Gbps of SD-WAN IPsec against 18.8 Gbps. A site with 10G circuits, or encrypted traffic above 2 Gbps, belongs on C8300-2N2S-4T2X, which carries 7.6 Gbps on IMIX against 1.8 Gbps. C8300-1N1S-6T has the same six 1G ports and the same 2 Gbps IPsec in a 1RU chassis with one SM and one NIM slot, so a branch that needs only one service module can move down to it. Moving down also halves the PoE budget for module ports, from 500W to 250W with the PoE supply fitted.
Ordering Checklist
- Subscription and software mode: Add a Cisco DNA Essentials or Advantage subscription, or ROUT-P-C8300-E-7Y, under the chassis or on an L-DNA-C8300 line. Routing Essentials orders only with IOSXE-AUTO-MODE and carries no voice entitlements.
- Voice license tier: Choose Cisco DNA Advantage when the order includes SRST or any voice module such as SM-X-72FXS. CUBE alone needs Cisco DNA Essentials at minimum.
- HSEC license: Confirm C8000-HSEC on a hardware-attached subscription, or C8000-HSEC-DNA with L-DNA-C8300. Without HSEC the router stops at 1,000 secure tunnels and 250 Mbps of one-way encrypted traffic.
- Bandwidth tier: A Tier 2 bandwidth license unlocks the full platform throughput of C8300-2N2S-6T. A Tier 1 license keeps one-way encrypted traffic under 250 Mbps, or 500 Mbps aggregate from IOS XE 17.14.1a.
- Module lines: Select the NIMs, SMs and PIM on the chassis order. C8300-NIM-BLANK, C8300-SM-BLANK and C8300-PIM-BLANK are added only for a slot type with no module ordered.
- DIMM and M.2 lines: MEM-C8300-8GB and M2USB-16G are the defaults; change them to MEM-C8300-16GB, MEM-C8300-32GB, M2USB-32G or SSD-M2NVME-600G when route scale or hosted applications need more.
- Power supplies and cords: Swap a default PWR-CC1-650WAC for the 1000W AC PoE supply, PWR-CC1-1000WAC-P on the chassis order or PWR-CC1-1000WAC= as a spare, when PoE modules are ordered, or for PWR-CC1-650WDC at DC sites. Each supply needs a country-specific power cord.
Optional Add-ons
|
Model |
Description |
|---|---|
|
PWR-CC1-1000WAC= |
1000W AC PoE power supply with a 500W PoE budget for PoE-capable NIMs and SMs |
|
650W AC power supply, spare for either supply bay | |
|
PWR-CC1-650WDC= |
650W DC power supply, -40 to -72V input |
|
MEM-C8300-16GB= |
16 GB DRAM DIMM |
|
MEM-C8300-32GB= |
32 GB DRAM DIMM; raises IPv4 and IPv6 routes to 4M and NAT sessions to 2M |
|
M2USB-32G= |
32 GB M.2 USB storage |
|
C-SM-40P8M2X |
50-port Catalyst Layer 2 switch module with UADP ASIC, double-wide |
|
C-SM-16P4M2X |
22-port Catalyst Layer 2 switch module with UADP ASIC, single-wide |
|
1-port 2.5G/1G RJ-45 WAN NIM with 90W PoE | |
|
8-port 2.5G/1G switch NIM with UPOE and MACsec | |
|
SM-X-72FXS |
72-port FXS double-wide voice service module |
|
UCS-E1100D-M6/K9 |
UCS-E double-wide compute module, 10-core Intel Ice Lake CPU |
|
P-LTEAP18-GL |
CAT18 LTE Advanced Pro pluggable module for the PIM slot, global |
|
C8300-RM-23-2R= |
23-inch rack-mount kit for 2RU Catalyst 8300 |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C8300-2N2S-6T | Rack units | 2RU |
| 1G port density | 6: 4 x 1G RJ-45 (GE 0/0/0-0/0/3) and 2 x 1G SFP (GE 0/0/4-0/0/5) | SM slots | 2, single- or double-wide modules |
| NIM slots | 2; up to 6 NIMs with SM-slot NIM carriers | PIM slots | 1, for LTE and 5G pluggable modules |
| Console port | RJ-45 and micro-USB | USB port | USB 3.0 Type-A (USB 0) and USB 3.0 Type-C (USB 1) |
| CPU | 8-core; data plane hyperthreading supported | DRAM | 8 GB (MEM-C8300-8GB) |
| DRAM upgrade options | 16 GB or 32 GB, single DIMM | Flash | 8 GB, not upgradeable |
| Storage (M.2 SSD) default | 16 GB M.2 USB (M2USB-16G) | M.2 storage options | 32 GB M.2 USB; 600 GB or 2 TB M.2 NVMe |
| Core allocation | Service-oriented (default, container applications supported) or data plane heavy (no container resources) | EMC (ETSI/EN) | EN300 386; EN55032; EN55024; EN55035; EN61000-6-1 |
| SD-WAN IPsec throughput (1400 bytes) | Up to 2 Gbps | SD-WAN IPsec throughput with IQDF (1400 bytes) | Up to 2 Gbps |
| SD-WAN IPsec throughput (IMIX) | 1.8 Gbps | SD-WAN IPsec throughput with IQDF (IMIX) | 1.7 Gbps |
| SD-WAN overlay tunnels scale | 6,000 | 50% IQDF + 50% DIA w. NAT + NGFW + IPS + URLF + AMP | 2.8 Gbps (IOS XE 17.12.2, firewall EMIX profile) |
| DIA w. NAT + NGFW + IPS + URLF + AMP | 2.3 Gbps (IOS XE 17.12.2, firewall EMIX profile) | IPv4 forwarding throughput (1400 bytes) | Up to 19.7 Gbps |
| IPsec throughput (1400 bytes) | Up to 1.9 Gbps | IPsec throughput (IMIX) | 1.9 Gbps |
| Number of IPsec SVTI tunnels | 4,000 | Number of ACLs per system | 4,000 |
| Number of IPv4 ACEs per system | 72K | Number of IPv4 routes | 1.6M with default 8 GB; up to 4M with 32 GB |
| Number of IPv6 routes | 1.5M with default 8 GB; up to 4M with 32 GB | Number of queues | 8K |
| Number of NAT sessions | 1.2M with default 8 GB; up to 2M with 32 GB | Number of firewall sessions | 512K |
| Number of VRFs | 4,000 | Software modes | Autonomous (Cisco IOS XE) or controller (Catalyst SD-WAN) from one image |
| Encryption algorithms (autonomous mode) | DES, 3DES, AES-128 or AES-256 in CBC and GCM modes | Minimum software release | Cisco IOS XE 17.3.2 |
| License tiers | Catalyst Routing Essentials, Cisco DNA Essentials or Cisco DNA Advantage; one is required with the chassis | Default power supplies | 2 x PWR-CC1-650WAC 650W AC, field replaceable |
| Power supply options | PWR-CC1-1000WAC 1000W AC PoE; PWR-CC1-650WDC 650W DC; PWR-CC1-650WDCR 650W DC reverse airflow (NEBS) | PoE budget | 500W with PWR-CC1-1000WAC; none on PWR-CC1-650WAC |
| Power supply efficiency | 80 Plus Gold (all 2RU supplies) | Input voltage | AC: 85 to 264 VAC; DC: -40 to 72V, 48V nominal |
| Typical power, no modules, single PSU | 89W | Fan modules | C8300-FAN-2R, field replaceable; C8300-FAN-2R-R reverse airflow for NEBS |
| NEBS | Compliant with PWR-CC1-650WDCR supplies and C8300-FAN-2R-R | Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | -40°C to 70°C (-40°F to 150°F) | Relative humidity | 5 to 85% operating; 5 to 95% nonoperating, noncondensing |
| Operating altitude | 0 to 10,000 ft (0 to 3050 m) | Sound pressure (typical/maximum) | 59/73 dBA non-NEBS; 63/75 dBA NEBS |
| Sound power (typical/maximum) | 74/87 dBA non-NEBS; 77/89 dBA NEBS | Dimensions (H x W x D) | 3.5 x 17.25 x 18.52 in. |
| Weight | 40 lb with 2 AC power supplies and fan tray | Mounting | Rack mount only; 19-inch kit included, 23-inch and 4-post kits optional |
| MTBF | 710,300 hours | Safety certifications | UL 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1; IEC 60950-1; AS/NZS 60950-1; IEC/EN 60825 laser safety; FDA CFR laser safety |
| EMC (emissions) | 47 CFR Part 15 Class A; ICES 003 Class A; AS/NZS CISPR 32 Class A; CISPR 32 Class A; EN55032 Class A; VCCI-CISPR 32 Class A; CNS-13438 Class A; KN32 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3 | EMC (immunity) | IEC/EN 61000-4-2, 61000-4-3, 61000-4-4, 61000-4-5, 61000-4-6, 61000-4-8, 61000-4-11; KN35 |
